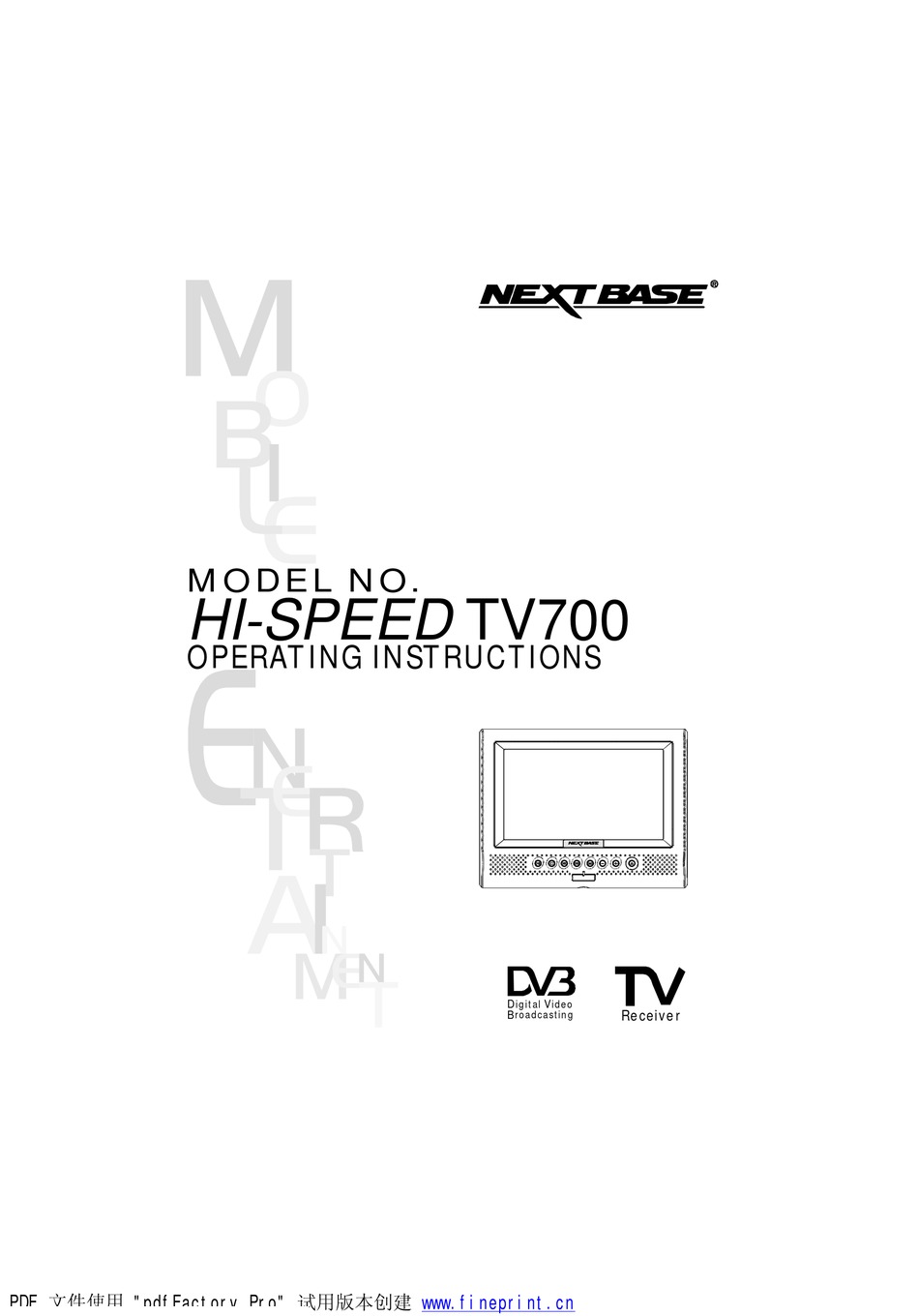

- Page 1 MODEL NO. HI-SPEED TV700 OPERATING INSTRUCTIONS ig ital ideo Re ceive r roadcasting PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS Thank you for purchasing this HI-SPEED TV700 tablet digital / analog TV. Please read this manual carefully before operating your unit and keep it handy for future reference. It will be helpful to you if you encounter any operational problem .
- Page 3 IMPORTANT SAFETY INSTRUCTIONS N OT ICE S: 1. Fully charge the Ni-MH battery before using it for the first time or reusing it after being stored for a long period. It would need 3 to 5 circles of charging and discharging operations to get the optimum performance of the battery.
-
Page 4: Table Of Contents
CONTENTS IMPORTANT SAFETY USING THE USB PORT......17 INSTRUCTIONS DTV MENU IMPORTANT SAFETY INSTRUCTIONS........1 GENERAL STEPS OF SETUP....19 PACKAGE CONTENTS DTV CHANNEL PACKAGE CONTENTS ......TV CHANNELS AND RADIO CHANNELS ...... PARTS IDENTIFICATION FAVORITE..........DELETE..........MOVE............. MAIN UNIT..........LOCK............MAIN UNIT CONTROL SECTION... -
Page 5: Package Contents
ZO OM Pre-C H SR1 O CAT V ca ble Remo te control M OD E L N O. HI-SPEED TV700 OP ERATING INSTRUCTIONS i g i tal i d eo ro a d c as ti n g Rec eiver... -
Page 6: Parts Identification
PARTS IDENTIFICATION M AI N U NIT 1.Liquid crystal display 2.Speakers 3.Control section Control buttons. 4.Remote control sensor The remote control signals are received from here. M AI N U NIT CO NT R OL SEC TIO N SCAN MOBILE ENTERTAINMENT PDF 文件使用... -
Page 7: Main Unit Left Side
PARTS IDENTIFICATION 1.POWER ON/OFF butto n Hold it for about 3 seconds to power on or turn off the unit (Standby status). 2.MODE button Use the +/- key to adjust the display mode. CONTRAST: Level 0 to 8. BRIGHTNESS: Level 0 to 8. SATURATION: Level 0 to 8. -
Page 8: Main Unit Right Panel
PARTS IDENTIFICATION M AI N U NIT RIG HT PA NEL 1.DC IN Connect the included AC adapter here. 2.PO WER ON LE D INDIC ATOR The LED will be green when the unit is on. 3.RE CHARG E LED INDICATOR The LED will be red when the battery is recharging and will be off in non-recharging state. -
Page 9: Main Unit Rear Side
PARTS IDENTIFICATION MAI N U NIT RE AR SIDE Sup port The unit can stand with this device. Ant enna jack Connect to the antenna. H OW TO ST AND Pull out the support. Draw out the support to a proper position . Push down the button to lock it. -
Page 10: Remote Control
PARTS IDENTIFICATION R EMOTE CO NT R OL (1 0) (11) AUTO MANUAL DTV / (1 2) SOURCE SCAN SCAN RADIO (1 3) (1 4) MENU INFO (1 5) (1 6) FAV- FAV+ GAME (1 7) EXIT AUDIO (1 8) (1 9) (2 0) MUTE... -
Page 11: Key Description Of Remote Control
PARTS IDENTIFICATION KE Y DE SC RIP TIO N O F R EMOTE CO NT R OL 1. SOURCE 16.GAME Press it to choose the DVB-T Press it to go to the game interface /ATV /AV IN. in DVB-T state. 17.AUDIO 2. -
Page 12: Notes On Using The Remote Control Unit
PARTS IDENTIFICATION N OT ES O N U SI NG T HE RE MO T E C ON TR OL U NIT Do not drop or step on the remote control unit or subject it to shocks. Note that the remote control unit may not work if there are obstacles between it and the remote sensor. - Page 13 ATV CHANNEL Press the Menu button on the rem ote control to bring up the main m enu. There are six items in the menu: Program, Auto Scan, Fine, Skip, Color and Sound. Please use the and OK buttons to operate the desired item. MAIN MENU PR OGRAM AU TO S CAN...
-
Page 14: Atv Channel
ATV CHANNEL AT V O PER AT ION S 1. Turn on the unit and press the TV / AV IN button to choose the TV mode. 2. Push the DVB-T / ATV switch to choose the ATV antenna setting. 3. -
Page 15: Special Keys
DTV PARTS IDENTIFICATION S PEC IAL KE YS EPG (Electronic Program Guide) A quick program guide that the user can easily move up/down to view the brief description of the selected program. Press the EXIT button or the EPG button again to exit from this interface. Electronic Program Guide Video 08 /08/2 005... - Page 16 DTV PARTS IDENTIFICATION MANUAL SCAN Perform program scanning. (Found programs will be appended to the program list.) Manual Scan S can Ty pe Sc an Type Singl e Sc an St art Freq 170000KHz End Fr eq 890000KHz Band Widt h 6MHz St art Scan Pres s O K...
- Page 17 DTV PARTS IDENTIFICATION INFO Press this button to bring forth the primary program information. 14 :29:08 St ere o 0001 GD 1 Sig nal L ang uag e 1 /1 8 8% Press this button twice to bring forth the particular program information, and press it again to exit from this interface .
-
Page 18: Using The Usb Port
USB PLAYBACK OPERATIONS U SIN G T HE U SB PO RT Only in the DTV status can the USB device be read MP3, JPG, BMP and MPEG files stored on a USB device can be played via the USB port on the left side of the unit. - Page 19 USB PLAYBACK OPERATIONS keys to move the cursor to a folder, a file ,MP3 ICON, JPEG ICON or MPEG ICON. Press OK to enter the folder or play the file highlighted. While viewing JPG and BMP files. Press keys will rotate or flip picture respectively.
-
Page 20: Dtv Menu
DTV MENU GENERAL ST EP S OF SETUP 1.Press the MENU key on the remote control to bring up “main menu”. There are three classifications: DTV Channel, Configuration and Game . DTV Ch annel TV C ha nnel s Radi o Cha n ne ls Pro gra m G ui de 2.Press buttons to highlight the icon of the desired page, then press the... -
Page 21: Tv Channels And Radio Channels
DTV CHANNEL TV CH A NNEL S AND RADIO C HA NNELS There are two different kinds of channels: TV Channels and Radio Channels. You can manage the current channels by labeling your favorites, deleting the non-favorites, moving the program s order and locking the channels. The default is FAVORITE.If there are no programs saved in the database when entering TV Channels or Radio Channels, the prompt message “No TV channels. -
Page 22: Delete
DTV CHANNEL You can use and buttons to select any programs at FAVORITE management status. If the selected program is not labeled with the FAVORITE symbol, you can set it as your favorite program by pressing the OK button and the FAVORITE symbol will appear behind the program name. -
Page 23: Move
DTV CHANNEL MOVE If you want to rearrange the program s order, you can carry out the actions through the program management actions. You can enter the MOVE interface by pressing the F3 button on the remote control at program management menu status. TV C HA NN EL S MOV E 002 B... - Page 24 DTV CHANNEL TV C HA NN ELS M OVE No or bad signal! 002 B 003 C Passw or d Press OK t o se lect D EL M OVE LOC K TV C HA NN ELS LOCK 001 A 002 B 003 C Press OK t o se lect...
-
Page 25: Dtv Configuration
DTV CONFIGURATION Choose “Configuration” item and you will see that there are three options for selecting: System Setting, Auto Scan and Manual Scan. C onf ig uration S yst em Set t in g A ut o Sca n Ma nual Sca n S YST EM SET TIN G Use and buttons to select your need. - Page 26 DTV CONFIGURATION 4:3 PS (Pan & Scan) 4:3 LB (Lette r Box) Configuration Syst em Se tt i ng OS D Lan guag e 16:9 (Wide Screen) 4: 3PS Aut o Sc an Scree n F orm at Ma nua l Sca n T V Type 4: 3LB Sta rt C hann el...
- Page 27 DTV CONFIGURATION After pressing OK in the Start Channel state, the following picture will appear: M essage Box Enable/Disable St art Channel S ett ing Choose “YES” to show all the channels for selecting or “NO” to exit. Choos e Program 01 A 02 B 03 C...
- Page 28 DTV CONFIGURATION SET SCAN AREA Select the proper region according to the place you are located. After setting, press the AUTO SCAN key to scan the channels going on this region premise. Germa ny Englan d Italy France C onf ig uration Spain S yst em Se tt in g O SD L angu age...
- Page 29 DTV CONFIGURATION 1.Input your old password first. Old p ass w ord : 2.Enter the new password. New passw ord : 3.Confirm your new password. Confi rm : NOTE: 1. If the confirmed password differs from the new password, you have to reenter them until the two are the same.
-
Page 30: Auto Scan
DTV CONFIGURATION After pressing OK in the Default state, the following picture will appear: Me ss age B ox Reset to defau lt ! Canc el NOTE: The default settings action will resume all the factory settings, including the deletion of all the saved programs. A UT O S CAN Auto scanning. -
Page 31: Game
GAME Get to the game function from the main menu. You will find three kinds of games in DTV state. GAME Bo xM an Bu rn in g T et ri s Hi t R at B OX MA N buttons to control the little man to move the boxes to the appointed place. -
Page 32: Hit Rat
GAME L E V E L S C O R E 0 0 0 0 Press the MENU key to replay the current game and the OK key to pause/play the higher level. Press EXIT to quit at any time. HIT RA T Press 1,2,3,4,5,6,7,8,9 to hit the rat according to its corresponding directions of where it appears on the screen. -
Page 33: Dimension And Parameter
OTHERS DIMENSION AND P ARA MET ER Product name: Tv700 Po wer supply: D C 12V Dimensi on: 2 02 x 1 54 x 28 mm Net weight: 7 10g MOBILE ENTERTAINMENT PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn... -
Page 34: Technical Information
TECHNICAL INFORMATION T ROU BL E S H OOTING Ph enome non Soluti on 1. Check that the unit has been turned on, and that the volume wheel is turned up. 2. Please scan channels before watching. No sound 3. Check antenna is connected and working OK. Check setup for correct TV regional setting or ATV system. - Page 35 TV 7 0 0-E N G -N B - A2 PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn...
