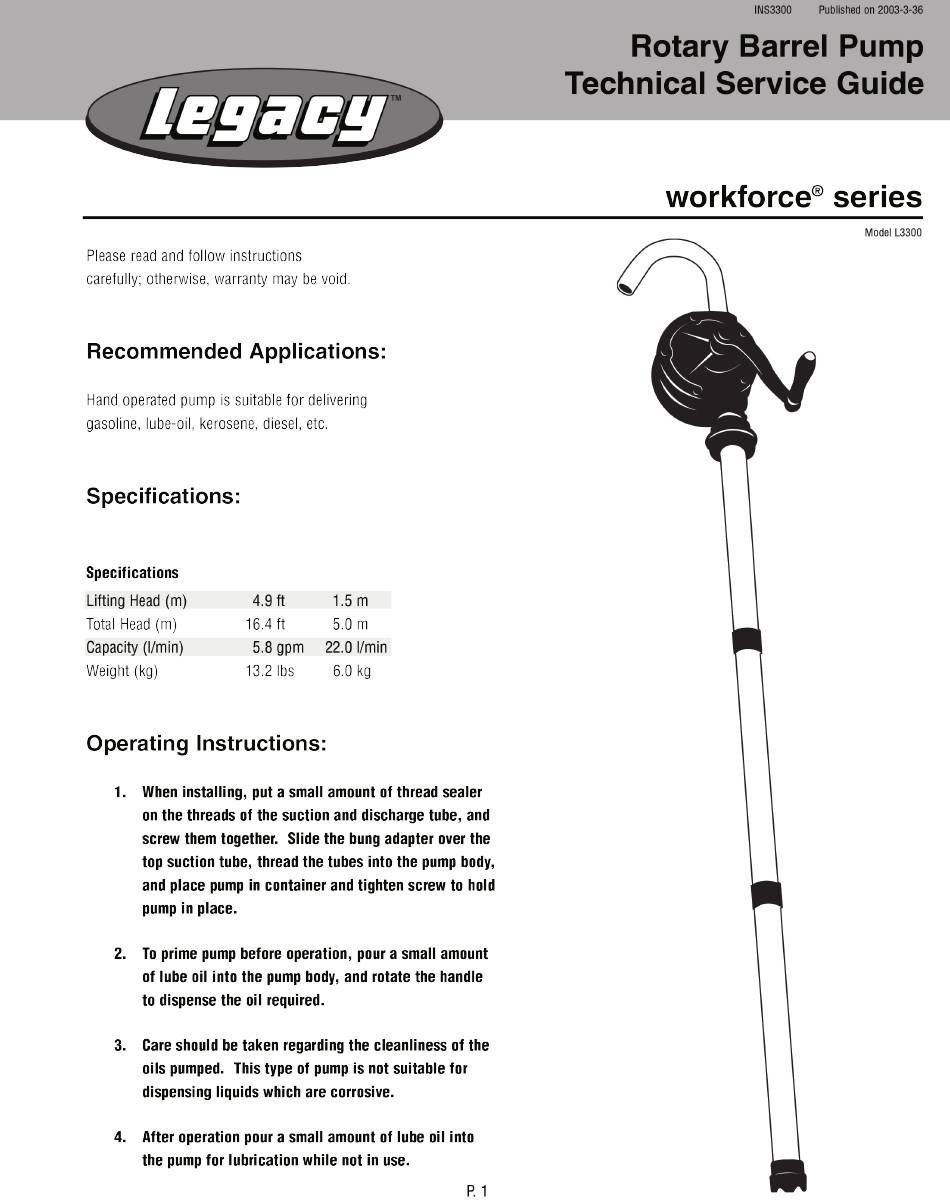

Legacy workforce Series Technical Service Manual

legacy
Please read and follow instructions
carefully; otherwise, warranty may be void.
Recommended Applications:
Hand operated pump is suitable for delivering
gasoline, lube-oil, kerosene, diesel, etc.
Specifications:
Specifications
Lifting Head (m) 4.9 ft
Total Head(m) 16.4 ft
Capacity(l/min)
5.8 gpm
Weight (kg)
13.2 lbs
Operating Instructions:
1. When installing, put a small amount of thread sealer
on the threads of the suction and discharge tube, and
screw them together. Slide the bung adapter over the
top suction tube, thread the tubes into the pump body,
and place pump in container and tighten screw to hold
pump in place.
2. To prime pump before operation, pour a small amount
of lube oil into the pump body, and rotate the handle
to dispense the oil required.
3. Care should be taken regarding the cleanliness of the
oils pumped. This type of pump is not suitable for
dispensing liquids which are corrosive.
4. After operation pour a small amount of lube oil into
the pump for lubrication while not in use.
1.5m
5.0 m
22.0 1/min
6.0 kg
Rotary Barrel
Technical Service
workforce@
INS3300 Published on 2003-3-36
Pump
Guide
series
