Summary of Contents for Edirol V-440HD - V2.0

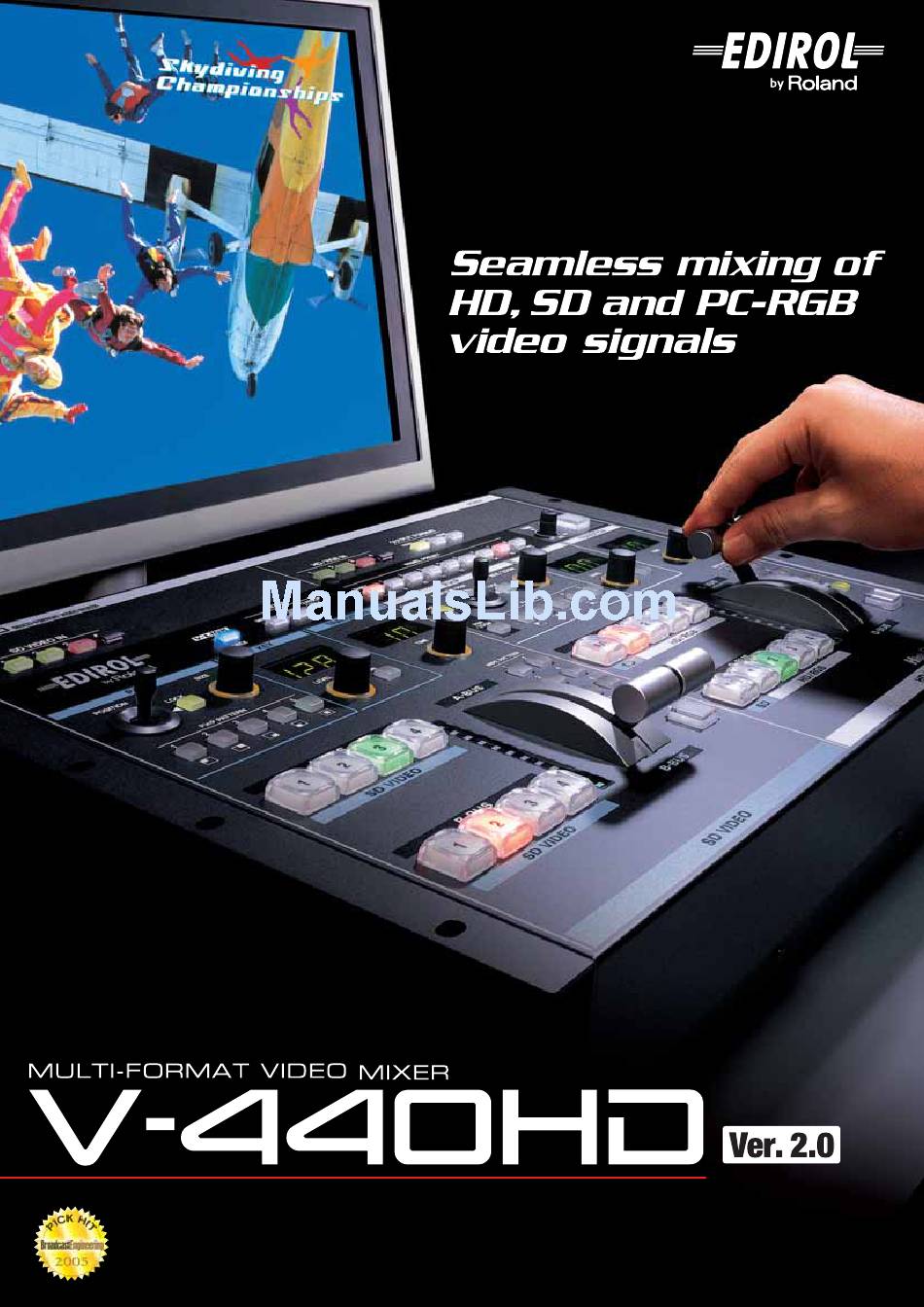

- Page 1 Pick Hit Award From Broadcast Engineering Magazine at NAB 2005...
- Page 2 With capability to input 4 SD video sources and 4 HD or RGB video sources, the V-440HD enables Mix Multiple Input Formats seamless mixing and switching of multi-format video signals. With a single unit allowing images with Capable of mixing HD (1080i/720p:component), SD (S-Video, different aspect ratios (16:9 or 4:3)*, the V-440HD can also be used as an independent SD mixer or Composite) or RGB from computer (from VGA to SXGA).
- Page 3 Multi-format capability, backlit buttons and straightforward panel layout brings simplicity to operation ■ SD VIDEO IN Button ■ MENU Buttons & Dial ■ HD/RGB IN Button ■ OUTPUT FORMAT Buttons ■ PANEL PRESETS Shows both activity and type of input On-Screen display of the setup menu is controlled via this section.
- Page 4 ■ HD/RGB Input Section ■ SD Output Section ■ SD Input Section Up to 4 source devices can ■ HD/RGB input parameters Resultant mix within the SD Up to 4 SD sources can be connected with BNC be connected via BNC or Format Auto Detect On/Off of Input Format Auto Detection Brightness...
- Page 5 ■SPECIFICATIONS Connectors Video Processing NTSC or PAL (CVBS, S(Y/C)) S-Video (Y/C) Preferential x 4:4-pin mini DIN type (Y:1.0 Vp-p, C:0.286 Vp-p, SD Input 75 ohms) 1080/59.94i/50i SMPTE274M (Y:Pb:Pr TriLevel Sync) Video (composite) x 4:BNC type (1.0 Vp-p, 75 ohms) 720/59.94p/50p SMPTE296M (Y:Pb:Pr TriLevel Sync) Video Format 640x480/60/75, 800x600/60/75, 1024x768/60/75, 1280x768/60/75, BNC Type x 4...
