INSTALLATION

M J B
OUNTING UNCTION OX

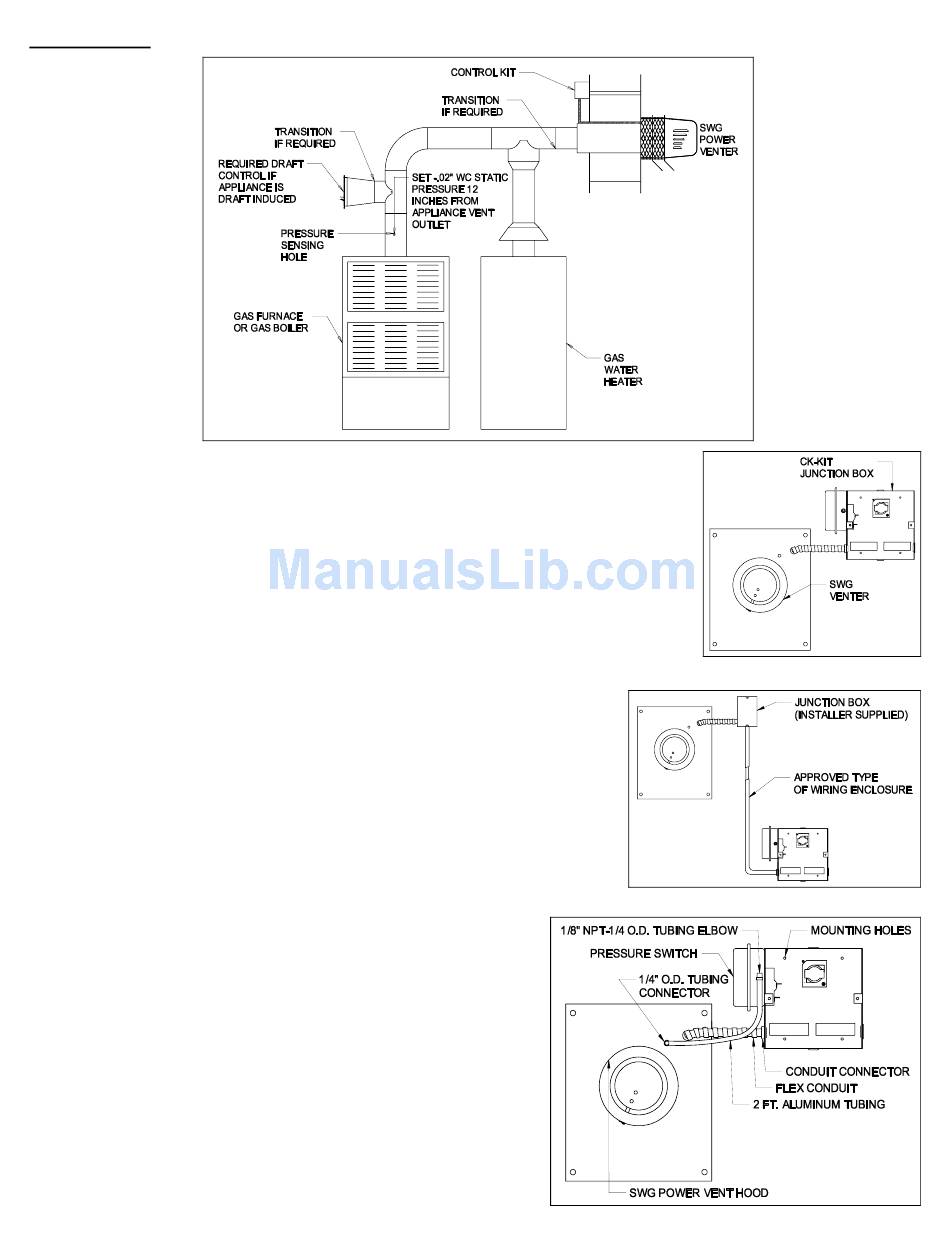

The junction box can be mounted at the venter or remotely mounted away from the
venter. (See Figure 1 & Figure 2)
1. Remove one of the knockouts from the side of the junction box where the pressure
switch is mounted. Install the flexible conduit connector onto the CK-92F junction
box and secure with fastening nut. If remote mounting the CK-92F junction box,
mount the flexible conduit connector onto a 2" x 4" installer supplied junction box.
2. Fasten the flexible conduit from the SWG Venter into the conduit connector. Mount
the CK-92F junction box or installer supplied junction box onto the wall or floor joist
without straining the flexible conduit. Fasten the CK-92F junction box through the
four dimpled locations on the base of the box. (See Figure 3)
P S S
RESSURE WITCH ENSING
1. Attach the 1/4 inch tubing connector to the pressure tube on the SWG
Venter. (See Figure 3)
2. Connect the supplied 1/4" aluminum tubing to the tubing connector. Route
the tubing to the CK-92F junction box and connect the tubing to the
pressure switch. When routing the tubing, avoid kinking the tubing by
bending the tubing too sharply.
For remote mounted CK-92F Junction Box, use a 1/4" OD copper, aluminum
or plastic tubing and route the tubing to avoid contact with any heat source.
T I
UBE NSTALLATION
Page 2
Figure 1
Figure 2
Figure 3
