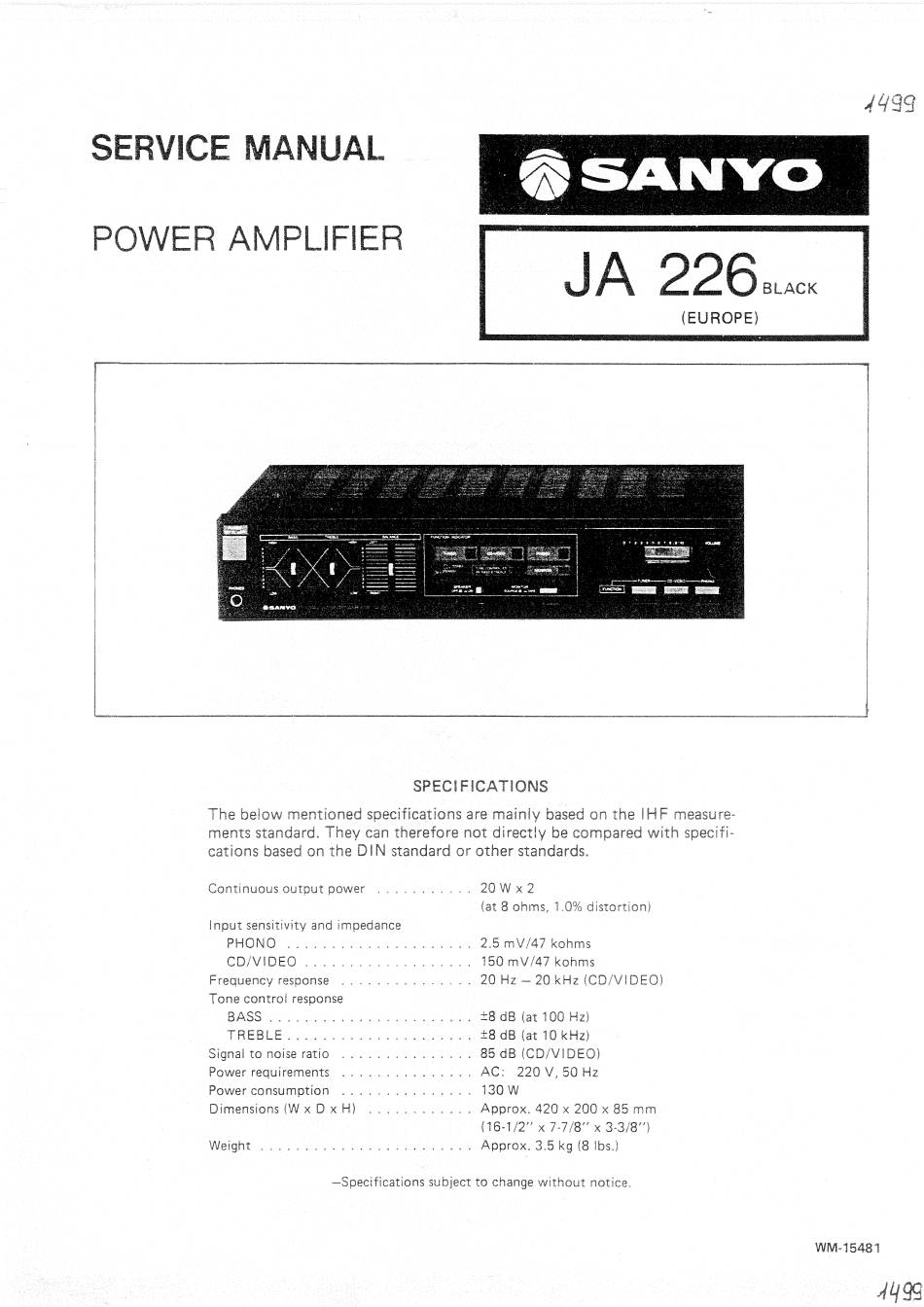

Sanyo JA 226 Service Manual

SERVICE MANUAL
POWER AMPLIFIER
The below mentioned
ments standard. They can therefore
cations based on the
Continuous
Input sensitivity
p HONO
CD/VIDEO
Frequency
Tone control
BASS
Signal to noise ratio
Power requirements
Power consumption
Dimensions
Weight
SPECIFICATIONS
specifications
DIN standard
output power
and impedance
response
response
(W x D x H)
—Specifications subject to change without notice.
O SANYO
JA
are mainly based on the IHF measure-
not directly be compared with specifi-
or other standards.
20 w x 2
(at 8 ohms, 1.0% distortion)
2.5 mV/47 kohms
150 mV/47 kohms
20 Hz - 20 kHz (CD/VIDEO)
dB (at 100 Hz)
dB (at 10 kHz)
85 dB (CD/VIDEO)
AC: 220 V, 50
130 w
Approx. 420 x 200 x 85 mm
(16-1/2" x 7-7/8" x 3-3/8")
Approx. 3.5 kg (8 lbs.)
226
BLACK
(EUROPE)
WM-15481
114 gg
