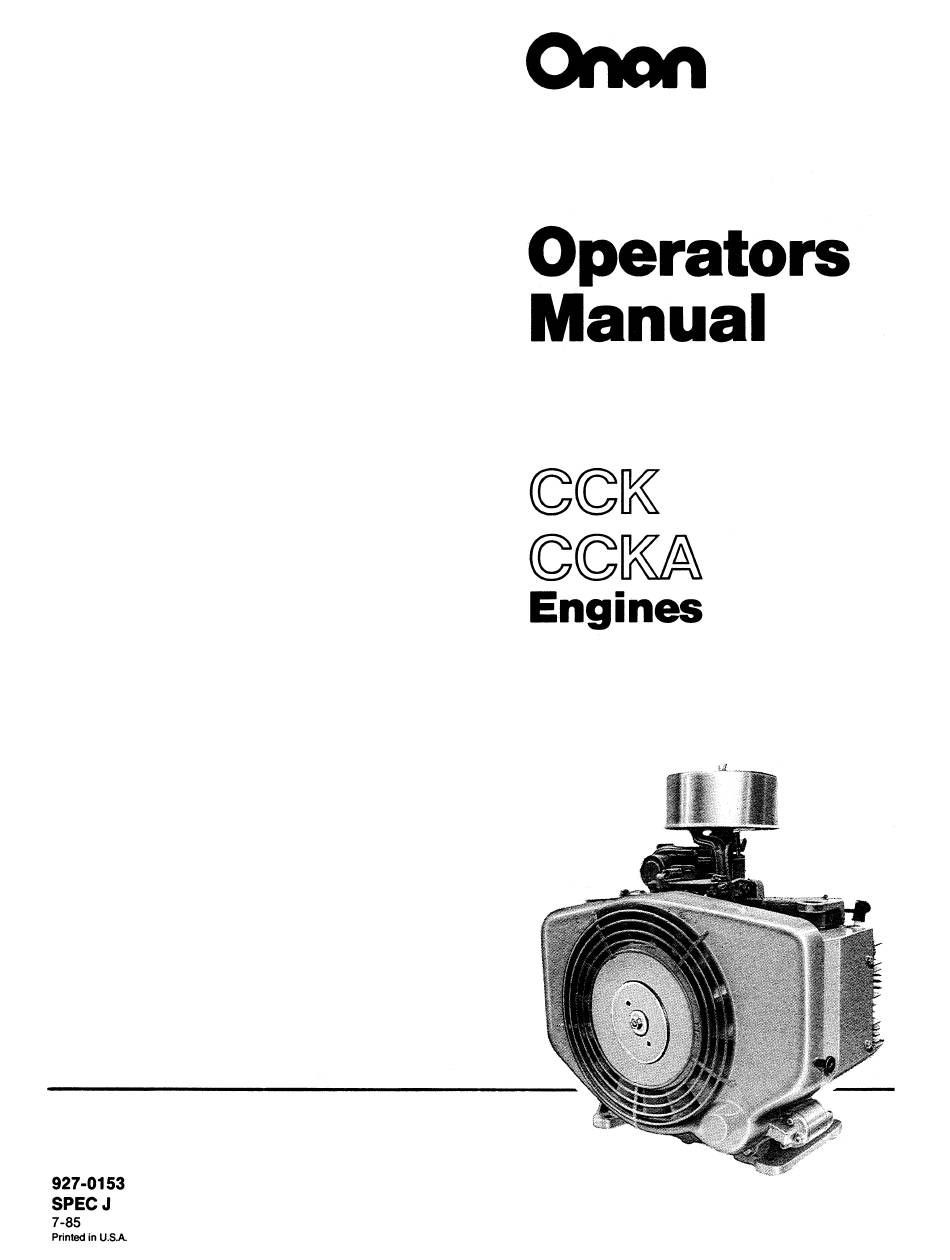

- Page 1 Operators Manual CCKA Engines 927-0153 SPEC 7-85 Printed in U.S.A.
- Page 2 Safety Precautions It is recommended that you read your engine manual Fuel System become thoroughly acquainted with your equipment DO NOT fill fuel tanks while engine is running. fore you start the engine. DO NOT smoke or use an open flame in the vicinity the engine or fuel tank.
- Page 3 Table of Contents PAGE TITLE Introduction Engine Set-Up Operation Maintenance Periodic Maintenance Schedule Adjustments AWARNING INCORRECT SERVICE OR REPLA CEMENT OF PARTS CAN RESUL T IN SEVERE PERSONAL INJURY AND/OR EQUIPMENT DAMAGE. SERVICE PERSONNEL MUST BE QUALIFIED TO PERFORM ELECTRICAL AND/OR MECHANICAL SERVICE.
- Page 4 REFERENCE Stroke 3.00 inch (762 mm) Displacement 49 CID (803 cm3) Horsepower - CCK (2700 RPM) . . 129 BHP (9.6kW) Identify your model by referring to the MODEL and SPEC Horsepower - CCKA (3600 RPM) 16.5 BHP (12.3 kW) (specification) NO.
- Page 5 1—-1 the engine prior to shipping from When adding oil between oil changes, it is preferable to Onan. Severe engine damage will result it engine is use the same brand, as various brands of oil may not be started without oil.
- Page 6 If an unexpected temperature conscientious maintenance program during this period drop occurs when the engine is filled with summer helps assure satisfactory servicefrom your Onan engine. oil, before starting the engine, move it to a warm Maintain the proper cooling and lubrication during location until the oil will flow freely.
- Page 7 RETURNING UNIT TO SERVICE 4. Remove spark plugs. Pour 1 ounce (2 tablespoons or 28 grams) of rust inhibitor or SAE #50 oil into the Remove cover and all protective wrapping. Remove cylinders. Crank the engine over a few times. plug from exhaust outlet.
- Page 8 Maintenance OIL CHANGE Accidental starting ot the engine can AWARNING cause severe personal injury or death. Change crankcase oil after the first 25 hours of opera- Disconnect the battery cable when repairs are made to tion. Thereafter change crankcase oil every 100 hours the engine, controls panel, or associated equipment.
- Page 9 Cleaning Batteries With oil in crankcase, start engine and check for leaks around filter element. Retighten only as much Keep the batteries clean by wiping them with a damp necessary to eliminate leaks, but do not overtighten. cloth whenever dirt appears excessive. If corrosion is present around the terminal connections, remove battery cables and wash the terminals with an...
- Page 10 AIR CLEANER CRANKCASE BREATHER Cartridge Air Cleaner Check and clean air cleaner element every 25 hours This engine uses a crankcase breather valve for main- (Figure 5). Clean by gently tapping element on a flat taining crankcase vacuum. If the crankcase becomes surface.
- Page 11 Regular service the engine or accessories, loss of power, overheating, periods are recommended for normal service etc., contact your nearest Onan Service Center. PERIODIC MAINTENANCE SCHEDULE AFTER EACH CYCLE OF INDICATED...
- Page 12 Adjustments MARVEL SCHEBLER CARBURETOR 3. Move the engine speed control tothe slow position. The carburetor idle and main mixture screws were 4. Pull the governor back so the THROTTLE stop maximum efficiency at the factory and should screw is against its stop.
- Page 13 BREAKER POINTS Continuity Test As a check for proper ignition timing a continuity test The timing is adjusted during initial engine assembly may be performed: and is fixed by the point gap adjustment. To maintain maximum engine efficiency, change the breaker points Adjust breaker points.
- Page 16 Onan Corporation Telephone: (612) 574-5000 1400 73rd Avenue N.E. Telex: 275477 Minneapolis, Minnesota 55432 Cable ONAN...
