Cateye TM1600E Operating Instructions

Introduction

We thank you very much for your purchasing "Chest Belt Heart Rate Sensor Kit" for
use with our Ergociser™.
Using this kit allows you to receive your heart rate via chest strap with EC-1600/EC-
3700/EC-5000. This kit contains a component to be mounted inside the control unit of
your Ergocisor, so please follow the instructions given below thoroughly before you
start enjoying your training with this kit.
• Pace maker users should never use this device.
• Keep the device away from children. If children use this device,
they should have adult supervision.
• Dispose of used batteries properly. Keep batteries out of the

Warning

reach of children. In case the battery is swallowed by accident,
consult a doctor immediately.
1 1

PREPARATION

Make sure all the components are included in the kit
• The following parts are included in the package. If anything is missing, please contact
the dealer where you purchesed the kit.
2
4
6
5

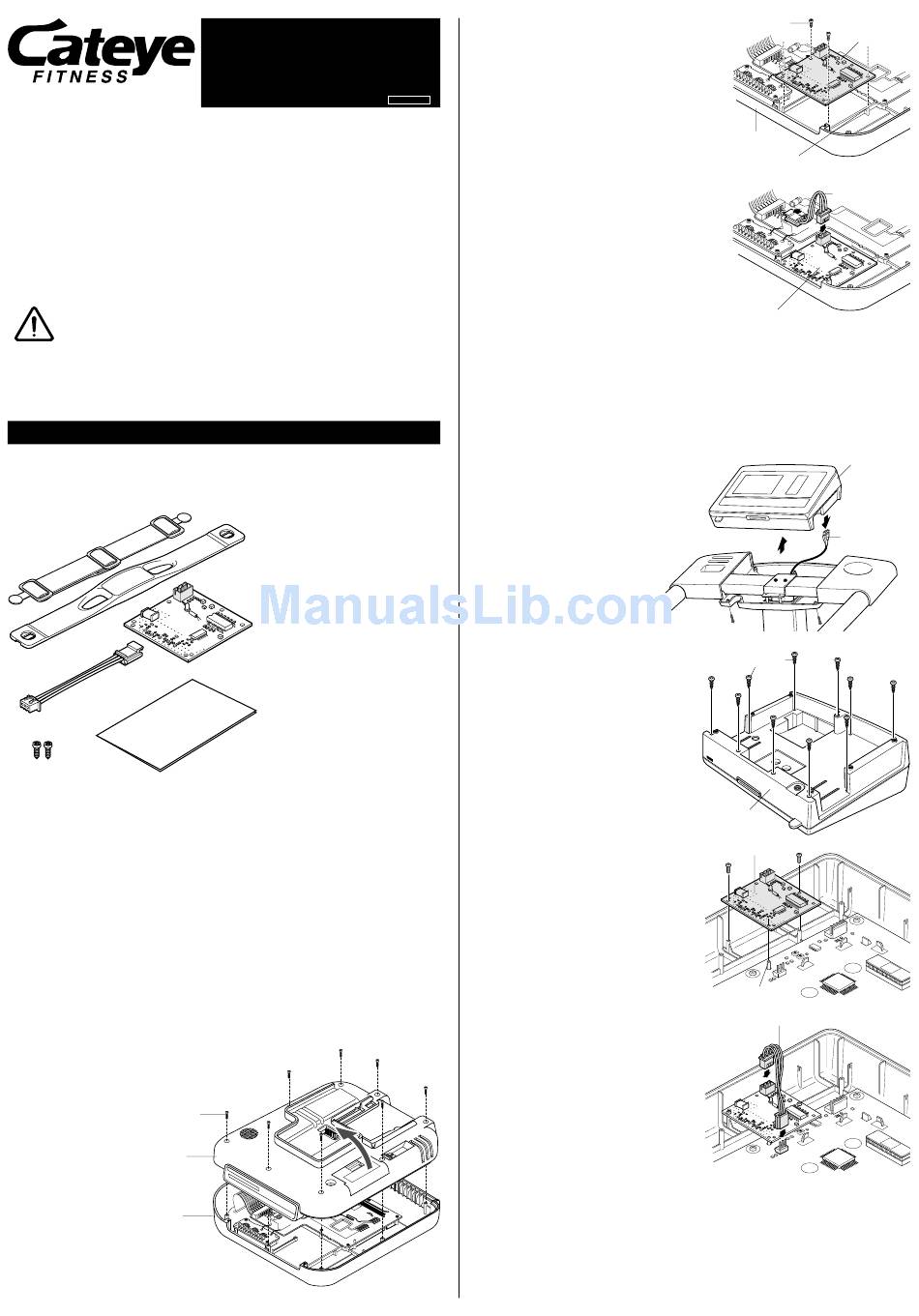

Mounting the circuit board in the control unit of Ergocisor

CAUTION !: Please handle the circuit board carefully. Before handling, take an
anti-static measure, such as touching a metallic object, to eliminate
static electricity. Hold only the side of the circuit board.
In the case of models EC-1600/EC-3700 _______________________________
1. If the control unit is already mounted on the Ergocisor, remove it from the handlebar
post, following the instructions given in Model EC-1600/3700 operating instruction.
2. Remove all the 8 screws at the bottom of the unit, and open it slowly. (Fig.2)
CAUTION !: Upper and lower bodies are connected with wirings. Open the
covers carefully not to damage them.
screws
Lower body
Upper body
Chest Belt Heart Rate
Sensor Kit
Model TM-1600
Copyright© Jan. 2001
CAT EYE Co., Ltd.
Operating Instructions
1 Transmitter/Electrode belt
2 Attachment belt
3 Circuit board (receiver)
4 Connector cable
1
5 Board set screws
6 Instruction manual
3
3. Place the circuit board in position to the
right lower corner of the upper body, in
such a way that the cover guide stubs
meet the mating holes provided on the
board, and set it securely with 2 screws
TMM16E-010528
066660040 2
provided in the kit. (Fig.3)
IMPORTANT: Place the circuit board in
4. Connect the newly mounted circuit board
with the adjoining circuit board, using the
connector cable provided in the kit as
shown in Fig.4. To assure positive
connection, insert the cable terminal until a
click sound is heard.
5. Carefully close the upper and lower bodies
and fasten the 8 screws securely.
6. Place the thermal paper in position, and
mount the control unit on your Ergociser
following the EC-1600/3700 operating
instructions.
In case of model EC-5000 ___________________________________________
1. If the control unit is already mounted
on the Ergocisor, remove it from the
body and pull cable connector, the tip
of 5P cord, out from the cable inlet on
bottom of the control unit, following the
instructions given in Model EC-5000
operating instruction. (Fig.5)
2. Remove 10 screws at the bottom of the
unit and remove the bottom cover.
(Fig.6)
WARNING !:
There is the danger of getting an
electric shock because condenser
etc. are located inside the control
unit. Please be very careful of
touching parts on the board.
3. Place the circuit board in position to
the right lower corner of the upper
body, in such a way that the cover
guide stubs meet the mating holes
provided on the board, and set it
securely with 2 screws provided in the
kit. (Fig.7)
IMPORTANT:
Be careful about the direction of the
circuit board.
4. Connect the newly mounted circuit
board with the adjoining circuit board,
using the connector cable provided in
the kit as shown in Fig.8. To assure
positive connection, insert the cable
terminal unit a click sound is heard.
5. Fix the bottom cover of the unit with 10
screws and assemble the unit.
6. Mount the control unit on your
Ergociser following the EC-5000
operating instructions.
Fig.2
Upper body
the correct way, as shown
in the figure.
Circuit board (receiver)
bottom cover
circuit board
guide stubs
Screws
Circuit board
Guide stubs Fig.3
Connector cable
Fig.4
control unit
cable connector
Fig.5
screws
Fig.6
Fig.7
connector cable
Fig.8
