Summary of Contents for Equinox Systems EQ-MN-86

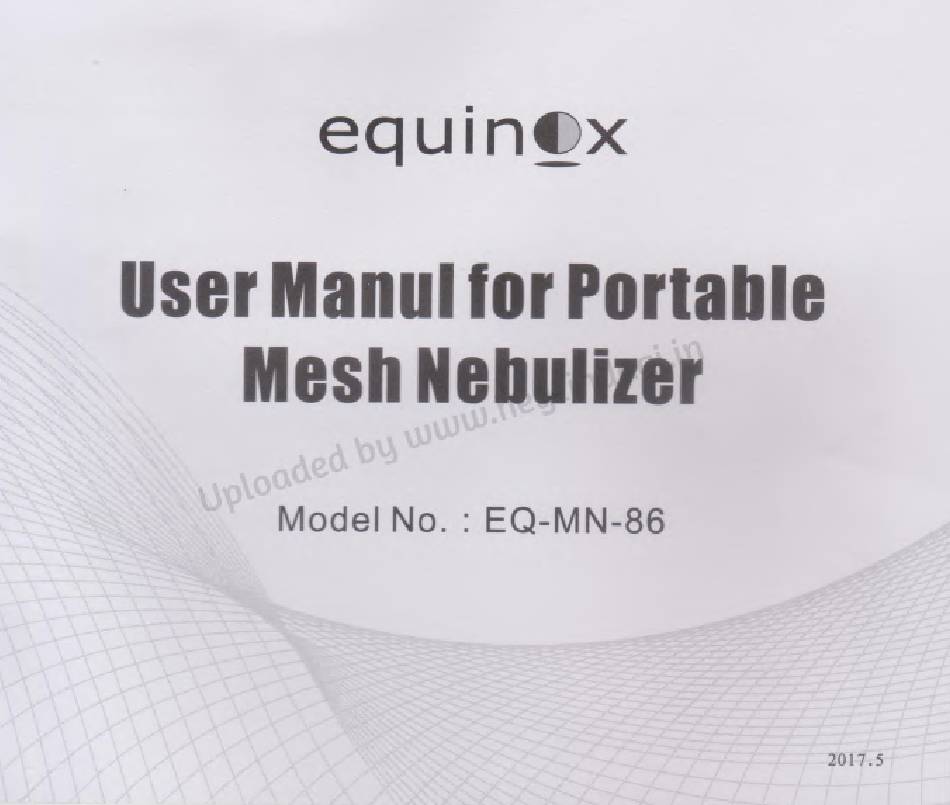

- Page 1 User Manul for Portable Mesh Nebulizer Model : EQ-MN-86 2017.5...
- Page 2 * Thank you very much for selecting our Mesh Nebulizer EQ-MN-86. * In order to make sure that this product can be used correctly, please read this manual carefully before use. Please keep this manual in a convenient place for easy access.
- Page 3 II Product Product Name: Portable Mesh Nebulizer MOdel NO.: EQ.MN.86 3. Working Principle and Mechanism The portable nebulizer is driven by the rapid oscillation of the circuit, making thepiezoelectric ceramic. The working principle of the portable atomizer is driven by the rapid oscillation of the circuit. making the piezoelectric ceramic transducer...
- Page 4 The right vertical axis is the volume percentage Ofa certain section. corresponding to thohistogram or undulating 5. Product Composition EQ-MN-86 is composed mainly by the main unit and nebulizer device. medication Cup. Micro USB cable, threaded components. Micro USB cable and accessories(masks...
- Page 5 6. Product Contents Name Name cable Medication cup Warranty Card Spray Nozzle User Manual Unit Power Switch Note: Please refer to the configuration list Child Mask Adult Mask Velvet Bag 7. Applicable scope For medical institutions and family for atomization. The atomizer for drug inhalation therapy. Applicable to adults, the elderly breathing.
- Page 6 iii Installation Instructions 1. Remove all packings, then remove the unit and accessories. 2. Installment of accessories, the medication port has been assembled on the main unit, no need to reassemble, t he headband tightnesscanbe adjusted to individual'spreference(as shownin the blowpicture) Connect the mask Note: Clean, disinfect, dry all parts before installation...
- Page 7 (Figure 1 Charging diagram) 4) Battery Charging When in low battery status, the blue indicator lights up and off gradually. At this time. please recharge the lithiumta battery with 5A/1A adaptor for about 35 minute. Power adaptor is suitable for recharging. When not fully recharged, the green indicator lights up and off gradually;...
- Page 8 IV .USE Instructions 1. Preparation: After each time use Ofthe machine, please clean and disinfect the medication cup.spray nozzle and Other accessories. Then please confirm the status of cleaning and disinfection before each use 2. Inject the liquid: open the lip and Inject liquid in to the medication cup, then screw the lid ( as the following figure) Note: Follow the doctor's advice to inject the liquid, do not exceed the maximum capacity Ofthe liquid cup,...
- Page 9 3)Slowly taking a deep breath and then breathing in drugs. 4)The nebulizer can set the working time to 10 minutes. and it will shut down automatically after 10 minutes. If you need to continue to use. press 1 times to start nebulizing. Please make sure there is enough liquid in the liquid cup.
- Page 10 1.Please cut off the power before cleaning the main unit: 1) Please clean the accessories such as medication cup, assembly and masks removed from the main unit in a container with purified water (below for around 5 min; 2)Please use the clean medical gauze to dry the accessories after cleaning; 3)Please wipe the main unit.
- Page 11 VI Storage and Maintenance 1 . Nebulizer Storage 1) Storage conditions: a. Environment temperature: -20t—55C: b. Relative humidity: c. Atmospheric: d. others: Non-corrosive gas, good ventilation. avoid high temperature, humidity and direct sunlight. 2) Storage instructions: a.Thedevice isvalidfor5years intheabove mentioned storage c ondition. A b.
- Page 12 c.Do not expose the nebulizer and accessories to corrosive liquids and gases. d.Do not wrap the power cord around the unit. e.When using a nebulizer, if any irregularities are encountered, seek a solution in accordance with Chapter 8. If the nebulizer still does not work properly. pleasecontact our companyor the dealer. VI I Contraindications,Precautions,Notice and Warning Contraindications...
- Page 13 • DO not use the unit near flammable gas atmospheres or near oxygen and anesthetic mixtures • The instrument is expected to be used in radioactive radiation harassment controlled electromagnetic environment, as far as possible away from the source Of harassment •...
- Page 14 3. Warnin • Please refer to the doctor before use the device u have diabetes or other illnesses. • using and purchasing the device should be advised by a doctor, please refer to the doctor's advi e do of us •...
- Page 15 1)PIease refer to and follow doctor's advise. 2)Only doctors can advise the users what drug are used for What medication is more treatment. suitable for nebulization use over sticky medication. It is a normal sigm if there is some strange noises or the unit shut Some medication residual...
- Page 16 X Symbol description & Electromagnetic compatibility I . Signs and symbols Separate collection Refer to instruction No toxic and harmful General imperative electrical substances and elements manual/ booklet NOTE electronic equipment ME EQUIPMENT Upward 'The application Do not disassemble Avoid Moisture part Of Type BF Be careful Note.
- Page 17 emissions 4824 Harmonic emissions This device is suitable use in all establishments including 17625.1 domestic establishments and those directly connected the buildings used for domestic purpose Voltage fluctuations If'icker emissions GB 17625.2 Guidance and Manufactures declaration-electromagnetic immunity This device is intended for use in the electromagnetic environment specified below...
- Page 18 Power frequency Power frequency magnetic field should be at levels 3Afm 3A/m magnetic field characteristicof a typical location in a typical 50Hz, 60Hz 50Hz. 60Hz GB/T 17626.8 commercial or hospital environment. Portable and mobile radio-frequency communication equipment should not be used close to any part Of this portable mesh nebulizer less than recommended isolation distances, including cables.
- Page 19 Recommen/ separatio distances between ourportable nebulizer andportable ormobile F R commumca •on equipment This device is intended for use in in an electromagnetic environment in which radiated RF disturbances are controlled the customer or the user of our equipment can help revent electromagnetic interference communications...
