Dillon Die Instructions, May 2007
illon
recision
Products, Inc.
Dillon's New Dynamic Pistol Dies
& Three-Die Rifle Die Sets
Instruction Manual, May 2007
Dillon's "New Dynamic" Pistol Die Sets
5/22/07
1:47 PM
Technical Support • (800) 223-4570
(480) 948-8009 • FAX (480) 998-2786

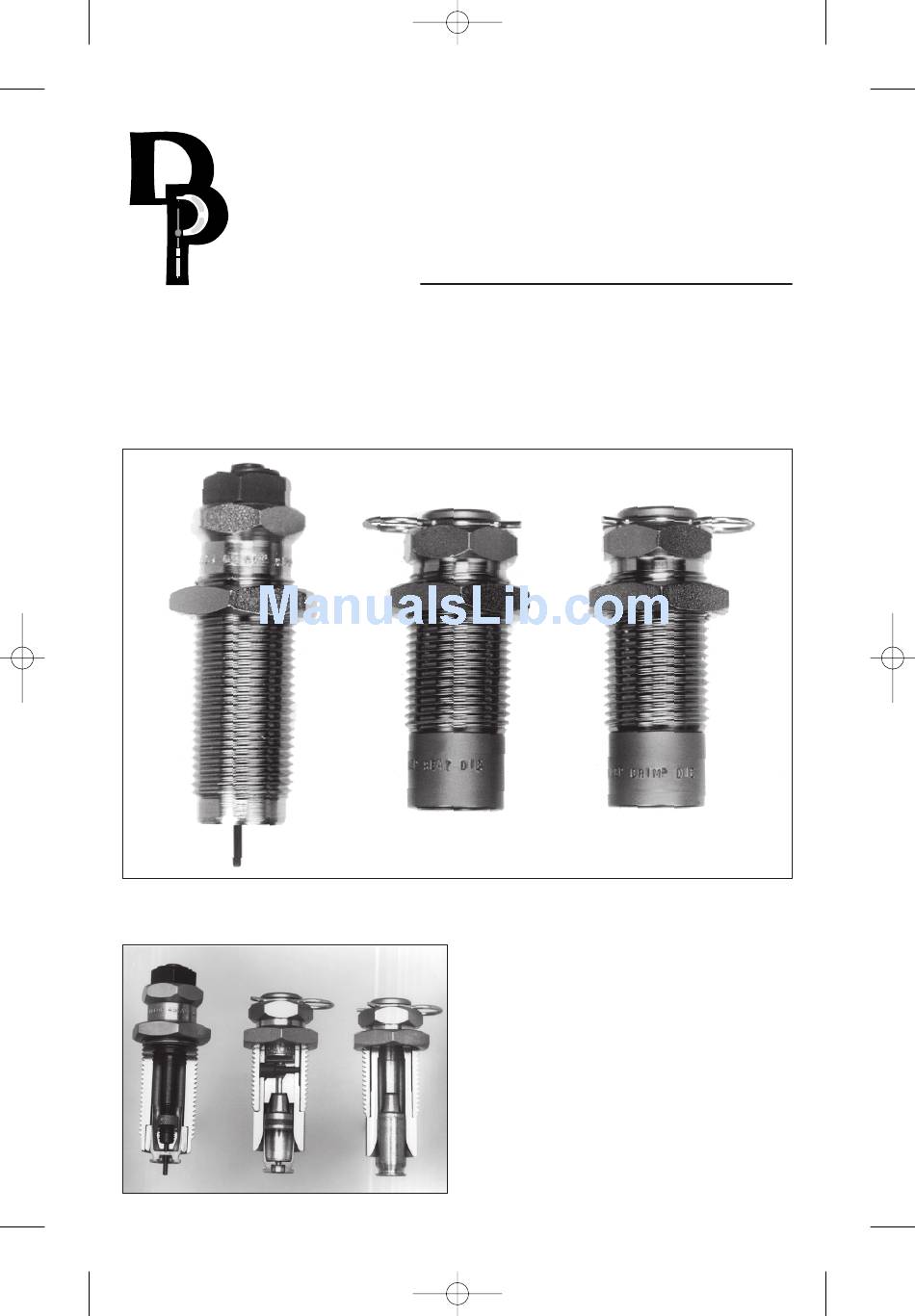

Fig 1. Dillon's New Dynamic Die Set, cut
Fig 1
away so that you can see how they look and
how they operate. From left to right they
are: Full length sizing and decapping die,
seating die (with the double ended seating
stem) and the crimp die. Note that the seat
die and the crimp die have clips on the top
to allow the insert to be removed without
affecting the critical die adjustments.
Adjust the sizing die by screwing the die
body down until it contacts the shellplate and
snug the lock ring. The decap assembly should
be screwed fully into the die at all times.
Page 1
8009 E. Dillon's Way
Scottsdale, AZ 85260
Advertisement
Summary of Contents for Dillon Precision Products Hunting Equipment
- Page 1 Dillon Die Instructions, May 2007 illon recision Products, Inc. Dillon’s New Dynamic Pistol Dies & Three-Die Rifle Die Sets Instruction Manual, May 2007 Dillon’s “New Dynamic” Pistol Die Sets 5/22/07 1:47 PM Page 1 8009 E. Dillon’s Way Scottsdale, AZ 85260 Technical Support •...
- Page 2 Dillon Die Instructions, May 2007 Fig 2. Your New Fig 2 Dynamic Dies are equipped with Dillon’s unique “snap spring” decap assembly. The spring on this unit compresses as the decap pin pushes against the spent primer. As the spent primer clears the primer pocket, the spring snaps the pin...
- Page 3 Dillon Die Instructions, May 2007 Fig 6. The double-ended seating stem can then be removed for cleaning or changing by pushing out the black cross pin. Note that the seat stem is doubled ended and can be reversed to match the shape of your bullet.
- Page 4 Dillon Die Instructions, May 2007 Dillon Three-Die Rifle Die Sets Stuck Case Remover Size Die Carbide Polished Expander to a High Ball Micro-Finish Solid, 1-Piece Decapping Standard 7/8 x 14 Threads Dillon Three-Die Rifle Die Sets Include: 1- Full-Length Size die, nut, priming assem- bly with carbide expander 1- Seat die, nut, seat stem with nut 1- Crimp die, nut and 1- Spare decap pin...
