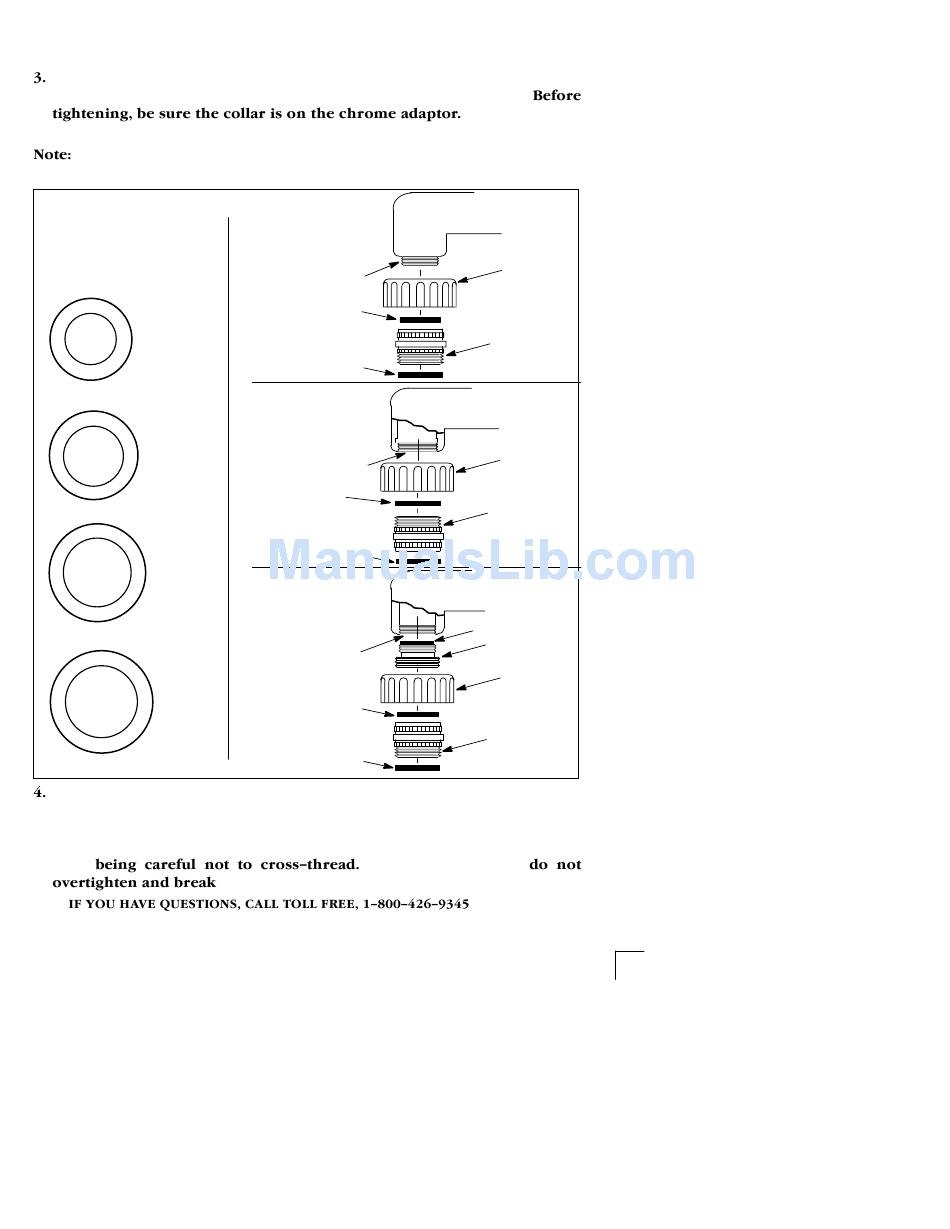

CONNECT THE FILTER TO A FAUCET
Install the fittings, as needed, on the faucet. If you use the additional adaptor
(FIG. 3C) be sure to place the 3/4" and 13/16" gaskets as shown.
cross-thread, and hand tighten only.
You can use a penny to tighten the chrome adaptor. It is internally slotted to
accept a coin.
FIG. 3
GASKETS
(actual sizes)
b
3/4" dia.
13/16" dia.
7/8" dia.
15/16" dia.
Using the 15/16" gasket as shown in FIG. 4, page 5, fasten the faucet filter to the
adaptor(s) installed in step 3. You can position the faucet filter as shown in FIG.
4, with the water diverter control to the right. You can also turn the filter so the
control is to the left, or position as otherwise desired. Turn the collar onto the
filter,
A
55/64–27 UNS
external
gasket, 13/16" dia.
gasket, 15/16" dia.
B
15 /16–27 UNS
internal
gasket, 7/8" dia.
(2 required on
some faucets)
gasket, 15/16" dia.
C
13 /16–27 UNS
internal
gasket, 13/16" dia.
gasket, 15/16" dia.
Tighten securely, but
the filter.
4
Be careful not to
SINK FAUCET
collar
adaptor,
threaded
end down
SINK FAUCET
collar
adaptor,
threaded
end up
SINK FAUCET
gasket, 3/4" dia.
adaptor
collar
adaptor (chrome),
threaded end
down
continued

Advertisement

loading
