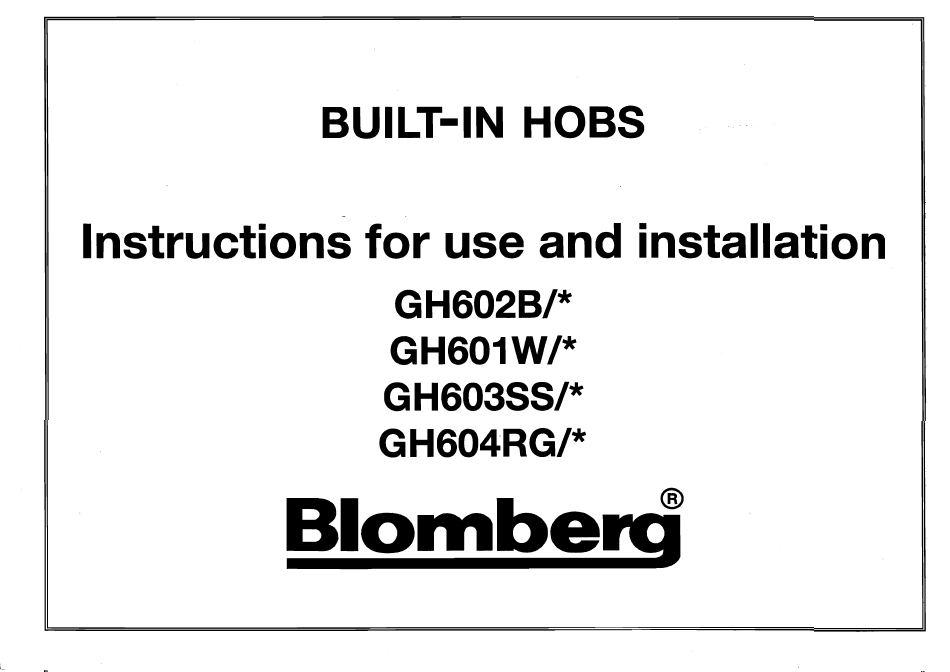

- Page 1 BUILT-IN Instructions GH602...
- Page 2 Congratulations on purchasing one of our hobs. To get the best from your new appliance we advise you to instruction booklet. It is in two parts: PART 1 FOR USER THE LAYOUT OF YOUR HOB l.JslNG THE GAS BURNERS Which pans to use on the gas burners CLEANING YOUR HOB - Care of the...
- Page 3 Part Y: For Ijser The layout of your hob 1. Semi-fast bumer 2. Fast bumer 3. Large fast bumer 4. Control knob for rear righ...
- Page 4 Part 1: For user Using the gas burners Each burner is controlled by a knob, which is turned on by pushing in and turning in an anti-clockwise direction. 6 and For a low flame, position the knob between 6 The dot (O) indicates the off position for the knob.
- Page 5 Part Y: For user Cleaning your hob Before cleaning switch off the electricity supply to the hob. Never clean your hob while it is in operation; however, cleaning your will made easier this before it has completely cooled. Care of the enamel For cleaning the enamel on the hob or the pan support, cream cleaner.
- Page 6 Part 2: For installer General information This hob has been designed for use by private individuals in a residential building. Adjustment conditions are noted a label enclosed in the wallet attached to the packaging. Before installation, make sure that local distribution conditions (gas type and pressure)
- Page 7 Part 2 : For installer Building-in should be fitted into work surface of a supporting unit. The work surface must be a minimum of 3 cm thick made of heat resistant material covered with such a material. In order not to make the manoeuvring of pans difficult, there should not be a unit or a wall to the left or right of closer...
- Page 8 Part 2: For installer Electrical connection • For your safety please read the following information: This appliance is supplied with a rewireable 13 amp three pin mains plug with a 13 amp fuse fitted. Should the fuse require replacement, it must be replaced with a fuse ra- ted at 13 amp and approved by ASTA or BSI to BS 1362.
- Page 9 Part 2: For installer connection Preliminary remarks If the hob is installed above an oven or if the proximity of other heating elements might cause the connection heat up, it is essential that rigid connections are used. If a flexible pipe or hose (as in butane gas) is used, it must be fitted in such a way that it does not come into contact with any moving part on the unit and does not pass...
- Page 10 Part 2: For installer Gas connection (continued) Connection options (continued) GASSUPPUED FROM A BOTTLE ORTANK(BUTANE/PROPANE GAS) For user safety, we advise the connection is either rigid, if possible, or effected using a flexible hose with mechanical connectors (max. length 2 m). It is also possible to effect the connection with a flexible pipe (max.
- Page 11 Part 2: For installer Changing gas (cont.) Changing from natural gas to butane/propane To carry out this operation you must do the following in order: ADAPTTHEGASCONNECTION (p.7-8) CHANGE THE INJECTORS ADJUST THE TAPS CHANGETHE INJECTORS, proceeding as follows : • bumercapsand hæds •...
- Page 12 Part 2: For installer Changing gas (cont.) ADJUS THE TAPS proceeding as follows: • Remove the control knobs by pulling them upwards. Remove the collars. Using a small screwdriver, screw the idling adjuster screw (see diagram) in as far as possible clockwise...
- Page 13 Part 2: For installer Changing gas (cont.) Changing from butane/propane gas to another gas To carry out this operation you must do the following in order: ADAPT THE GAS CONNECTION CHANGE THE INJECTORS ADJUST THE TAPS Adapt the hob connections to suit the new gas setting (see page 7).
- Page 14 rating Appliance designed for installation in: Butane Propane Natural cat: 112H3+ Hourly flow rate below: 37 mbar 20 mbar at 1500 at 1013 mbar REAR RIGHT FAST BURNER Indicator marked on injector Heat output (kW) 2.35 Reduced heat output (kVO 0.830 0.700 Hourly now rate (g/hr)
- Page 15 Personal notes...
- Page 16 87X0854 - 9953-7917 - 09/99...
