RocketFish RF-HD3025 Quick Setup Manual

RF-HD3025_10-1086_QSG_V1.eps RF-HD3025_10-1086_QSG_V1.eps 1 1 11/3/2010 11/3/2010 1:17:09 PM 1:17:09 PM V1
FINAL
FOR PRINT
Package contents

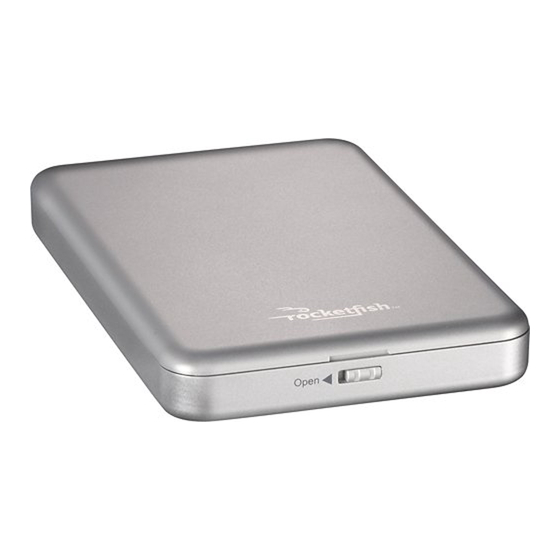

• USB 3.0 2.5" SATA hard drive enclosure
• USB 3.0 Y cable (A to Micro-B)
• Utility CD that contains Roxio BackOnTrack
System requirements
• One formatted 2.5" SATA hard drive
USB 3.0 2.5" SATA • At least one USB 3.0 port (You can connect to a USB 2.0 port, but it will only run at USB 2.0
Hard Disk Drive Enclosure
• Windows® 7, Windows Vista®, Windows® XP, or Mac OS X version 10.4 or higher.
Boîtier pour disque
Installing your hard drive in the enclosure
dur SATA 2,5 po USB 3.0
1 Slide the lock switch to the left to open the enclosure.
Caja para disco duro SATA
DE 2.5" USB 3.0
2 Remove the four screws from the printed circuit board, then remove the printed circuit board.
3 Connect the hard drive to the SATA connector on the printed circuit board.
4 Secure the hard drive to the printed circuit board with the screws (4) provided.
5 Place the printed circuit board/hard drive assembly into the enclosure with the hard drive face
QUICK SETUP GUIDE • GUIDE D'INSTALLATION RAPIDE •
RF-HD3025
GUÍA DE INSTALACIÓN RÁPIDA
6 Replace the top cover and slide the lock switch to the right to lock the enclosure.
Connecting the enclosure to a computer
• Carrying pouch
Notes:
• Screws (4)
• Screwdriver
• Quick Setup Guide
backup software and User Guide
1 Plug the smaller USB 3.0 (Micro B type) connector into the USB port on enclosure, then plug
speeds).
2 If the drive is new and is not formatted, follow the steps below to format the drive.
SATA
connector
Installing the backup software
Notes:
1 Save all files and close all programs.
down, then secure it into the enclosure with the screws (4) you previously removed.
2 Insert the included CD into the computer. The introductory screen appears automatically.
3 Click Install Backup Software. The Welcome screen opens.
4 Click Next. The Roxio End-User License Agreement screen opens.
5 Read the license agreement, then click NEXT to agree. The Choose Setup Type screen opens.
6 Choose the setup type, then click Install to start installation. It may take several minutes to
7 When installation is complete, the Setup Wizard Completed screen opens.
8 Click Finish to complete the installation.
9 See the User Guide located on the CD for information on using the software.
Using one-touch backup
To use one-touch backup if you have set up a backup project:
• Make sure that you have already installed a hard drive into the enclosure before you • Press the One-Touch button on the back of the HDD enclosure. The backup process begins.
connect your enclosure to your computer. To use one-touch backup if you have NOT set up a backup project:
• For optimal performance, make sure that your laptop or PC has USB 3.0 ports. 1 Press the One-Touch button on the HDD enclosure. The Roxio BackOnTrack software opens with
the other end of the cable into USB ports on your computer. For additional power, connect the 2 Follow the on-screen instructions to set up a backup project.
extra USB connector to the computer, especially for large capacity hard drives. 3 After a backup project is set up, push the One-Touch button to backup your data.
The operating system automatically detects and sets up the new drive. The enclosure/hard drive 4 To modify One-Touch backups in the future, follow the instructions for setting up backup
turns on and the LED on the BACKUP button turns on.
Disconnecting the enclosure from your computer
For Windows users:
1 Right-click the Safely Remove Hardware icon (located near the clock on the taskbar).
2 Select the device you want to unplug, then click STOP.
3 When Windows notifies you that it is safe to do so, unplug the enclosure from your computer.
For Macintosh users:
1 Drag the USB icon into the TRASH.
2 Unplug the enclosure.
Extra USB power connector
FCC statement
USB 3.0 A type connector
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
ICES-003
USB 3.0 Micro B connector
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Otherwise, continue to "Installing the backup software".
One-year limited warranty
For Macintosh users:
Visit www.rocketfishproducts.com for details.
1 Start the Disk Utility tool (under Applications)
2 Select the new hard drive you are trying to install.
Contact Rocketfish:
3 Click the Erase tab.
4 Choose a volume format and assign a name to the new drive, then click Erase. For customer service please call 1-800-620-2790
For Windows users: www.rocketfishproducts.com
1 Click Start, then Control Panel.
2 Click Performance and Maintenance (in Windows 7 click System and Security), then Distributed by Best Buy Purchasing, LLC
7601 Penn Avenue South, Richfi eld, Minnesota, U.S.A. 55423-3645
Administrative Tools.
© 2010 BBY Solutions, Inc. All rights reserved.
3 Click Computer Management, then click Disk Management from the menu on the
ROCKETFISH is a trademark of BBY Solutions, Inc. Registered in some countries. All other products and brand names are
left side of the screen.
trademarks of their respective owners.
4 Click on the new drive, then click on the Action tab at the top of the screen.
5 Go to All Tasks, then click on Format from the menu.
6 Select the file system and other choices you want, then click OK.
Contenu de l' e mballage
• Boîtier pour disque dur SATA 2,5 po USB 3.0
• Câble USB 3.0 en Y (A à micro B)
• CD d'utilitaires avec l'application de sauvegarde
• The Roxio BackOnTrack software only runs on Windows 7, Windows Vista, or Windows XP,
computers.
• Connect the hard drive enclosure to your computer before installing the software.
Configuration système requise
• Before installing the backup software, make sure that your Windows operating system
• Un disque dur SATA 2,5 po formaté
has been updated to the latest service pack.
• Au moins un port USB 3.0 (le boîtier peut être connecté à un port USB 2.0, mais il ne
• Windows
If the screen does not appear, double-click the Run.exe file on the CD.
install the software.
the Backup Files page displayed.
projects.
• Étui de transport
• Vis (4)
• Tournevis
Roxio BackOnTrack et le Guide de l'utilisateur • Guide d'installation rapide
fonctionnera qu'à des débits USB 2.0).
MD 7, Windows Vista MD , Windows MD XP ou Mac OS 10.4 ou supérieur
Installation du disque dur dans le boîtier
1 Faire glisser le bouton de verrouillage vers la gauche
pour ouvrir le boîtier.
2 Retirer les quatre vis du circuit imprimé et l' e xtraire du boîtier.
3 Connecter le disque dur au connecteur SATA du circuit imprimé.
Connecteur
SATA
4 Fixer le disque dur sur le circuit imprimé avec les quatre vis fournies.
5 Placer l' e nsemble circuit imprimé/disque dur dans le boîtier avec le disque dur tourné vers le
bas, puis le fixer au boîtier avec les quatre vis retirées précédemment.
6 Replacer le couvercle du dessus et faire glisser le bouton de verrouillage vers la droite pour
verrouiller le boîtier.
Connexion du boîtier à l' o rdinateur
Remarques :
• Vérifier que le disque dur a bien été installé dans le boîtier avant de connecter celui-ci
à l' o rdinateur.
• Pour une performance optimale, vérifier que l' o rdinateur portatif ou le PC dispose de ports
USB 3.0.
1 Brancher le plus petit connecteur USB 3.0 (type micro B) sur le port USB du boîtier, puis l'autre
extrémité du câble sur les ports USB de l' o rdinateur. Pour une alimentation complémentaire,
brancher le connecteur USB supplémentaire sur l' o rdinateur, surtout pour les disques durs de
