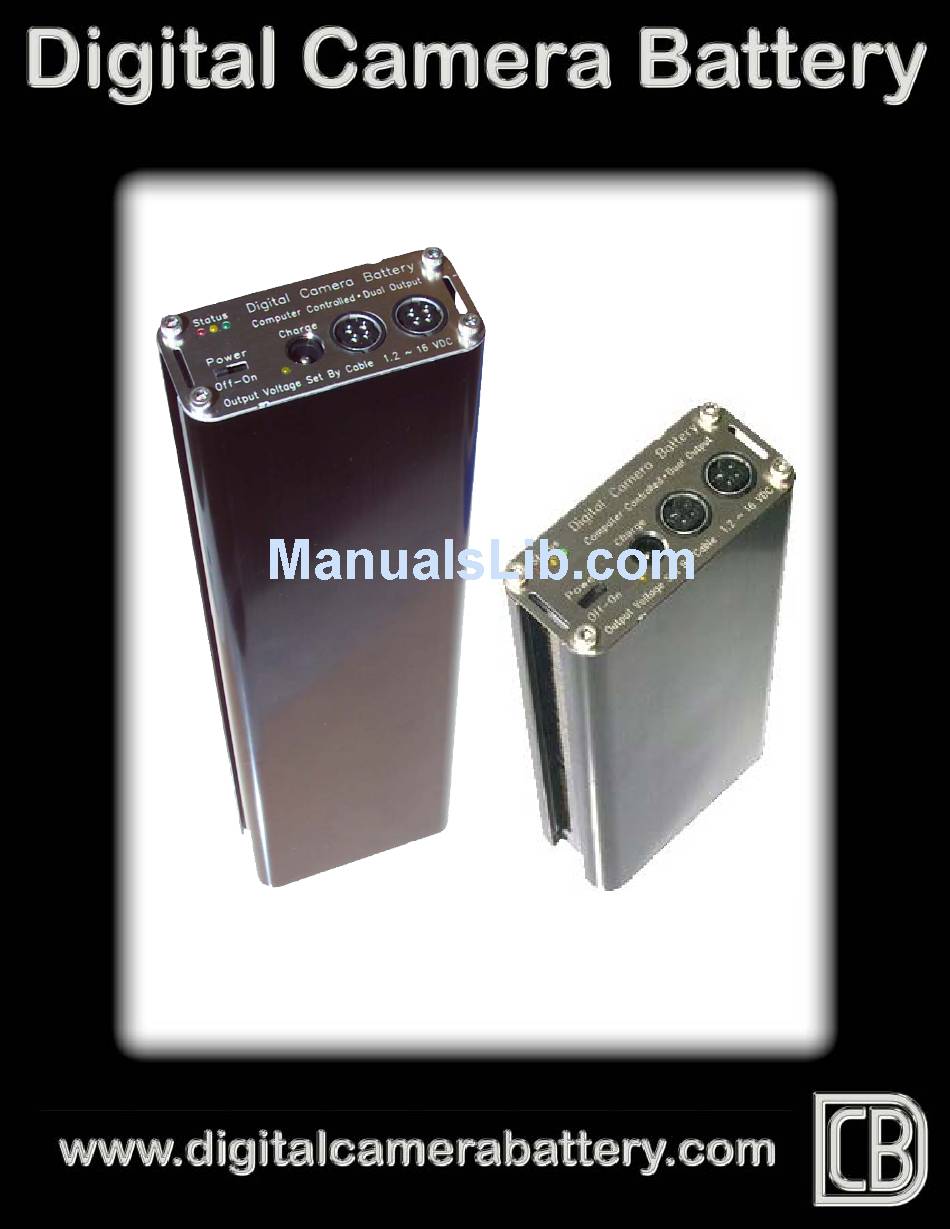

- Page 1 Owner’s Manual DCB80WB DCB40WB Page 1...
- Page 2 Never put meter probes into the Digital Camera Battery connectors! It is possible to damage the unit if control pins are shorted or activated improperly by a meter’s load or voltage. An improper charger will damage your Digital Camera Battery in a way that will void the 1 year parts and labor warranty.
- Page 3 Operation 1. When you receive your Digital Camera Battery it can be used right out of the box. Each Digital Camera Battery is fully tested at the factory. Each unit is completely charged and then discharged through each connector. Units are charged before they are packaged. However, if the unit has been exposed to extreme heat or has been on the shelf for some time, charging will be required.
- Page 4 If the capacity is twice the capacity of you products battery it will run twice as long. This chart is for the DCB30WB, the 40 and 80 watt models have even higher capacity. If this chart means nothing to you, plug the Digital Camera Battery in and be glad that it runs a long time.
- Page 5 Scale = 10min. x 500mV • Load = 2 Amps As you can see the Digital Camera Battery provides steady power from start to finish. The unregulated output from other packs can cause over voltage and brown out conditions that can damage sensitive electronics.
- Page 6 3. A completely discharged 40 watt unit should be charged for 16 hours (standard charger). The Solar charger will charge the 40 watt Digital Camera Battery in a single day of bright sunlight. The Fastcharger will charge the 40 watt Digital Camera Battery in about 3 hours anywhere in the world.
-
Page 7: Specifications
DCB40WB ~ 24 VDC @ 200 mA x 16 hours DCB60WB ~ 24 VDC @ 200 mA x 24 hours DCB80WB ~ 24 VDC @ 200 mA x 32 hours 0~24 VDC @ 0.8 A, T T T T T rip P DCB30WB = 2.5 Hours (Fastcharger) - Page 8 Any repair that would exceed 50% of the current list price will be replaced at 50% of the current list price. Liability is limited to repair of the Digital Camera Battery and it's accessories. No warranty is made or implied for any product manufactured by any other company.
