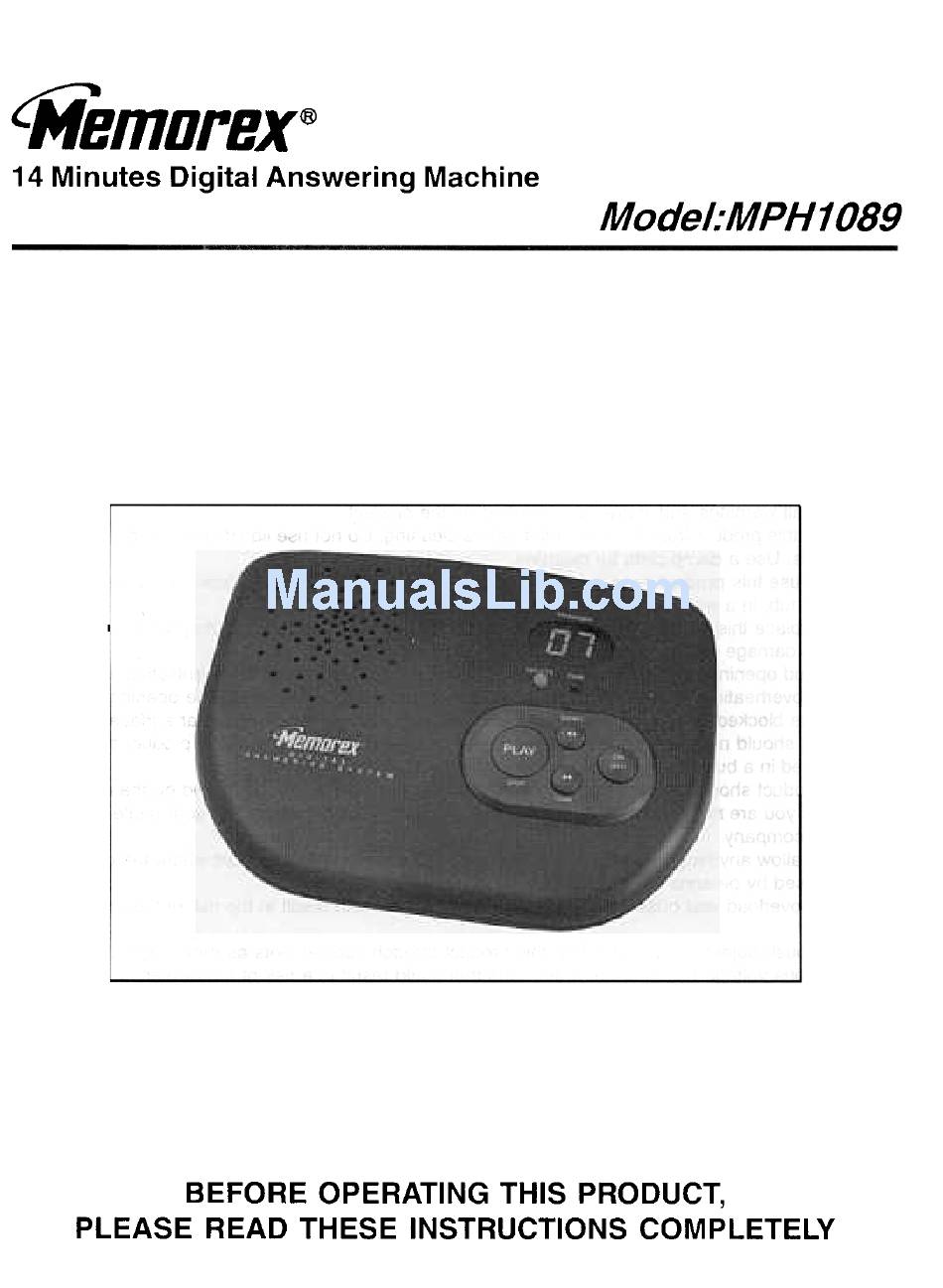

- Page 1 4iemorex@ 14 Minutes Digital Answering Machine Model..MPH1089 BEFORE OPERATING THIS PRODUCT, PLEASE READ THESE INSTRUCTIONS COMPLETELY...
- Page 2 To prevent fire or shock hazard, do not expose this product to rain or any type of excess moisture. If accidentally dropped into water, the AC adaptor should immediately be unplugged from the wall along with the telephone line cord. Use only with Class 2 Power Source 10V DC 300mA.
- Page 3 D. If the product does not operate normally by following the operating instructions. Adjust only those controls, that are covered by the operating instructions. Improper adjustments of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal operation.
- Page 4 Warning: Changes or modifications not expressly approved in writing by Memorex@ MPH1089 Product may void the user's authority to operate this product. NOTE: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
-
Page 5: Table Of Contents
Illustration List Components Installing the battery Connecting the Power Adaptor Connecting to the Telephone line Connecting your Telephone Answering System Set Up Time and Day Stamp """"""""""""""""""""""""""" To turn unit on or off To record or change your OGM To check your OGM announcement Toll Saver Facility Answering System Operation... -
Page 6: Illustration
Illustration... -
Page 7: List Of Components
List of Components A. Power Jack Socket -Connect power adaptor lead. B. Telephone Jack Socket -Connect your telephone to the unit. C. LED Indicator -Illuminates when unit is on and flashes when new messages are received. D. Skip~ / Memo button -Used when recording or replaying Memo and 2 Way Recording messages. -
Page 8: Connecting The Power Adaptor
Connecting the Power Adaptor Only use with the adaptor supplied or damage will be caused. 1. Insert the power adaptor lead into the power Jack socket (A) and connect the unit to the mains supply. 2. The unit beeps and performs a"self check"... -
Page 9: Answering System Set Up
Answering System Set Up Time and Day Stamp To set the day and time... -
Page 10: To Turn Unit On Or Off
'" To turn unit on or off The unit is set to answer calls only when the LED Indicator (C) is illuminated. To record or change your OGM Your announcement should ask callers to leave a message. Try to keep your announcement brief (under 60 seconds) as this maximizes the recording time available... -
Page 11: To Check Your Ogm Announcement
To check your OGM announcement 1: Press and release the SKIP ~~I OGM button (M). Toll Saver Facility Your unit has a Toll Saver Facility. This means your unit will answer call on the 4th rings if there are no new messages, or on the 2nd rings if new messages have been record. -
Page 12: Answering System Operation
Answering System Operation Call Intercept Adjust the volume control (N) if you wish to listen to callers as they leave their messages. The caller will not know that their call is being screened. Recording Memo Messages... -
Page 13: Two Way Recording
note »> Each ordinary memo message has a maximum record time of 60 seconds and is regarded as any other recorded message and displays on the Message Counter display (J). Two Way Recording You can record an ordinary telephone conversation if required. -
Page 14: To Replay Memo Messages And Two Way Recording
To replay Memo Messages and Two Way Recordings Playing your Messages To play new messages (If new messages are recorded) 2. The unit announces the total number of new messages only and proceeds to replay them. note »> The time and day each new message was received will be announced if the correct Day / Time stamp has been set. -
Page 15: Playing Your Messages (All Message)
To play all messages (If no new messages are recorded) note »> If the correct Day / Time stamp has been set, then after each message, the time and day that it was received is announced. The Message Counter (J) also displays the message number that is currently being played. -
Page 16: Erasing Messages
note »> Press and release the SKIP ~~I OGM button once, the current message will skip ahead to the next message. note »> Press and release the SKIP~~I MEMO button (0) once to replay current message and twice to skip back to previous message. 2. -
Page 17: To Erase Individual Messages
To erase individual messages System Memory Full 2. After 3 rings of the telephone, the unit answers calls with a voice message "Memory full, please call later". 3. The OGM announcement does not play and messages will not record. 4. Replay all messages, then follow the "Erase all Messages"... -
Page 18: Remote Operation
To change or check the Security Code '" 3. After the long beep the display shows the first digit of the code ready for setting. 6. Repeat steps 4 and 5 above to enter the 2nd and 3'" digits for your new code. note »>... -
Page 19: Accessing Your Unit By Remote Control
Accessing your unit by Remote Control 1. Call your telephone number and the unit answers with your OGM announcement. 2. Press the (.) key on the telephone keypad to interrupt your OGM announcement. 3. After the long beep enter your 3 digit Security Code and you hear one long beep. 4. -
Page 20: Remote Memo Message Control
Turn the unit Off by Remote Control Follow steps 1-4 on "Accessing your Unit by Remote Control" to access the unit. 2. Press the (#) key on the telephone 1. Press the (*) key followed by the (5) key keypad and then hang up and any on the telephone keypad and the unit messages are saved for later playback. -
Page 21: Erase Message Remotely
2. During message playback Press the (6) key once to erase the current message. 3. The unit announces "End of messages" after the last recorded message is played. note »> If you wish to enter further commands for remote functions, do so within 8 seconds after the remote voice menu is played or a long beep sounds and the call is automati- cally terminated. -
Page 22: Remotely Record A Memo Message
To stop and save messages during playback To erase all messages after playback To record a memo message Follow steps 1-4 "Accessing your Unit by Remote Control" to access the unit. Ifii'@@ ~00@ ~0@G) -
Page 23: Remotely Change Security Code
To change your Security Code Follow steps 1-4 "Accessing your Unit by Remote Control" to access the unit. To change your OGM announcement Follow steps 1-4 on "Accessing your Unit by Remote Control" to access the unit. ~0@@ ~0@0 3. Press the (7) key to stop recording and you hear a beep. -
Page 24: Room Monitor
Room Monitor Follow steps 1-4 "Accessing your Unit by Remote Control" to access the unit. Press the (2) key on the telephone keypad to start room monitor. In room monitor state, the user can monitor the status from telephone line. The duration of room monitor state is set to 15 seconds. If you wish to continue the room monitoring press (2) key again within 8 seconds. -
Page 25: Limited Warranty
MEMOREX LIMITED WARRANTY PHONES We at MEMOREX believe you will be pleased with your new Product. Please read this Warranty carefully. Memorex warrants this product to be free from manufacturing defects including original parts and workmanship for a period of ninety (90) days from the date of original purchase in, and if used in, the United States. - Page 26 OR IMPLIED SHALL APPLY TO THE PRODUCT THERE- AFTER. MEMOREX MAKES NO WARRANTY AS TO THE FITNESS OF THE PRODUCT FOR ANY PARTICULAR PURPOSE OR USE. THE EXTENT OF MEMOREX'S LIABILITY UNDER THIS LIMITED WARRANTY IS THE RE- PAIR OR REPLACEMENT PROVIDED ABOVE AT THE SOLE DISCRETION OF MEMOREX.
