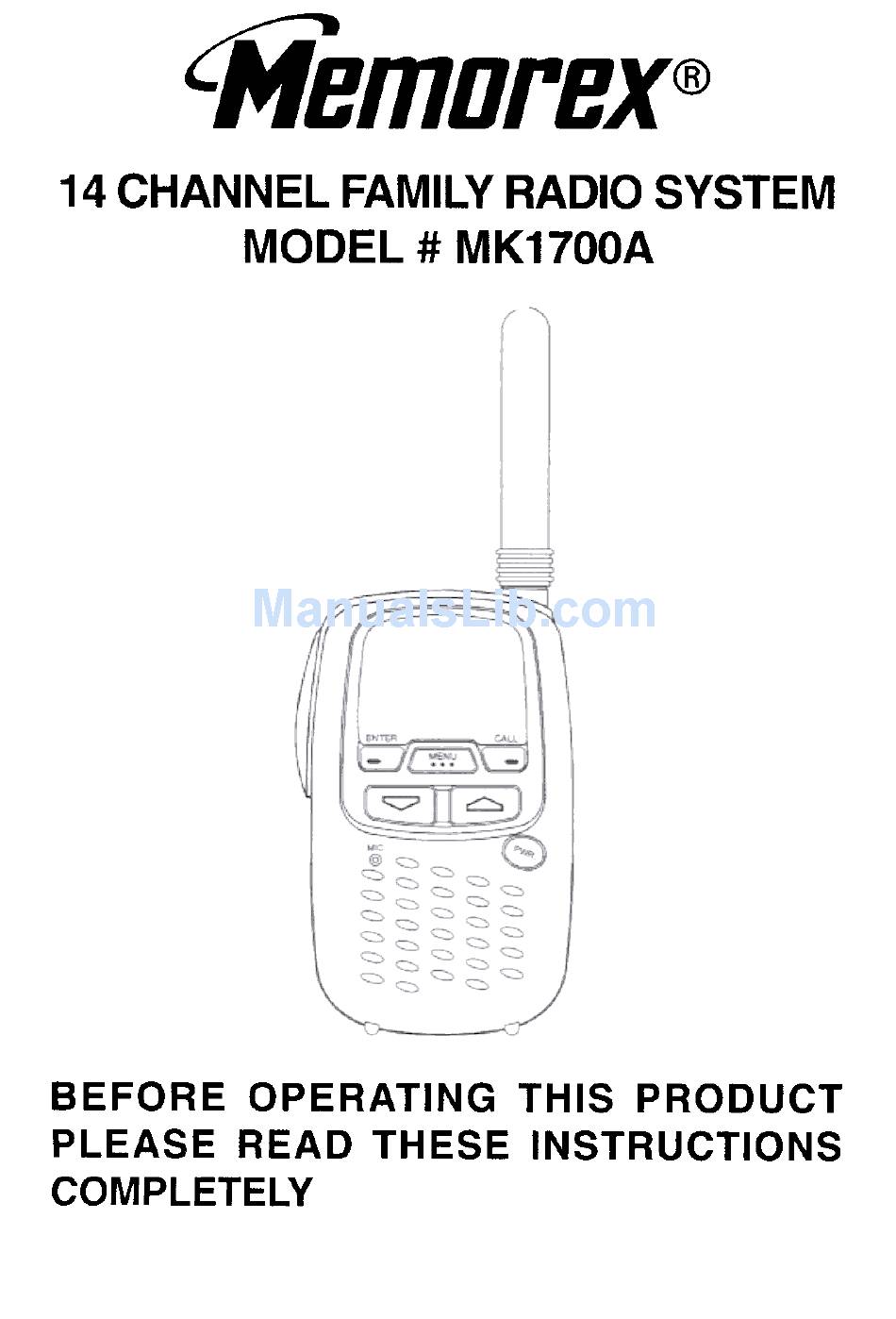

- Page 1 cMemorex@ 14 CHANNEL FAMILY RADIO SYSTEM MODEL # MK1700A BEFORE OPERATING THIS PRODUCT PLEASE READ THESE INSTRUCTIONS COMPLETELY...
- Page 2 CONTENTS Controls Automatic Features Precautions Unpacking Supplying Monitor General Select Frequency Turn Send Turn Transmit Adjust Lock Select Warnings Main Control Call Specifications Volume Main Power Channel Range Channel Tone Indicators Turn Channel Keys Control Scan Beep Unit INTRODUCTION welcome Family Radio Service...
-
Page 3: Fcc Warnings
FCC WARNINGS This device complies with part 15 of the rules, operation subject to the condition that this device does cause harmful interference. Features No Air Time Fees License Required Up to 2 miles range 14 Channel Muti-function Display Talk Confirmation Tone Call... -
Page 4: Controls And Indicators
Controls and Indicators 1. Earphone/Microphone jack 2. Transmission/Reception indicator 3. PTT button 4. MONITOR button 5. ENTER/LOCK button 6. UP/DOWN buttons 7. Microphone 8. POWER button 9. MENU button 10. CALL button 11. Power Saver mode indicator 12. LED display Display and Indicators LED display... -
Page 5: Supplying Power
Supplying Power Install Batteries 4 "AAA" alkaline batteries (a) Lift the tab of the belt clip while (b) pushing the clip up to remove it. (c) Pull lock tab down and lift door up (towards you) to remove battery cover. Insert four "AAA"... -
Page 6: To Adjust Volume Control
To Turn On The Unit or To Turn Off The Unit Press the POWER switch for more than 1 second. Auto Battery Power Saver The unit has a special circuit designed to extend battery life. If there are no transmissions within 3 seconds, the unit will automatically switch to battery save mode. -
Page 7: Automatic Channel Scan
Automatic Channel Scan Press and hold the UP or DOWN button to search signals. When the unit catches a strong signal, scan will stop for 5 seconds. If you want to stop at that channel, press the PTT or ENTER button. -
Page 8: Frequency Range
Select Main Channel Family Radio Services (FRS) radios have 14 primary channels a communicate with others, all radios in your group must be set to same channel and code. (see charts for more details) Frequency Range The FRS 1700A unit represents one of the most advanced two-way radios used. -
Page 9: General Specifications
General Specifications A. Frequency CH = 14 Channels within 462 -467 MHz. B. Receiver 1. Sensitivity For 12 dB signal 0.25 I.JV 2. Max. audio output @ 10% THO 300 mW 3. Max. SIN ratio @ 1 mV RF input 40 dB 4. - Page 10 This warranty does not cover: A) Cost incurred in the shipping of the product to and from the Memorex authorized repair facility listed. B) Damage or improper operation caused by the failure to follow the operating instructions provided with the product.
- Page 11 HAVE OTHER RIGHTS WHICH MAY VARY FROM STATE TO STATE. SOME STATES DO NOT ALLOW LIMITATIONS ON IMPLIED WARRANTIES OR EXCLUSION OF CONSEQUENTIAL DAMAGE, THEREFORE THESE RESTRICTIONS MAY NOT APPLY TO YOU. @2000. Memorex is a registered trademark of Memorex Telex N.V.
- Page 12 @ 0 i:r- o..OW[§ Memcorp, Inc. Weston, FL33331 @2000 Memorex is a trademark of Memorex Telex. N. V. Printed in Hong Kong Visit our website at www.memorex.com 052MK1700A55...
