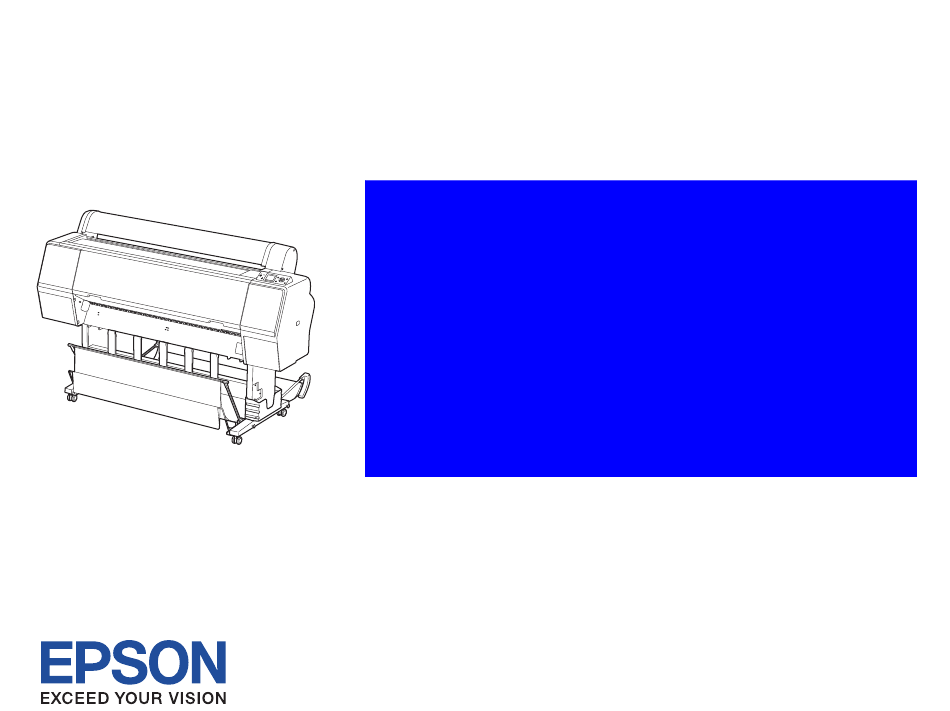

SERVICE MANUAL
Large Format Color Inkjet Printer
SC-P9000 Series
SC-P7000 Series
SC-P8000 Series
SC-P6000 Series
SE Group Confidential (Related Staff Only)
SEPS15-003

Advertisement

loading
Need help?

Need help?

Do you have a question about the SC-P9000 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Epson SC-P9000 Series

Summary of Contents for Epson SC-P9000 Series

  • Page 1 SERVICE MANUAL Large Format Color Inkjet Printer SC-P9000 Series SC-P7000 Series SC-P8000 Series SC-P6000 Series SE Group Confidential (Related Staff Only) SEPS15-003...
  • Page 2 SEIKO EPSON CORPORATION.  All effort have been made to ensure the accuracy of the contents of this manual. However, should any errors be detected, SEIKO EPSON would greatly appreciate being informed of them.
  • Page 3 2. MAKE CERTAIN THAT THE SOURCE VOLTAGES IS THE SAME AS THE RATED VOLTAGE, LISTED ON THE SERIAL NUMBER/RATING PLATE. IF THE EPSON PRODUCT HAS A PRIMARY AC RATING DIFFERENT FROM AVAILABLE POWER SOURCE, DO NOT CONNECT IT TO THE POWER SOURCE.
  • Page 4 / maintenance for the applicable Epson’s products. You shall not use this manual out of this purpose. This manual is Epson’s confidential information. When you use this manual, you shall hold it in strict confidence and shall not disclose to any third party without prior consent of Epson.
  • Page 5 Symbols Used in this Manual Various symbols are used throughout this manual either to provide additional information on a specific topic or to warn of possible danger present during a procedure or an action. Be aware of all symbols when they are used, and always read NOTE, CAUTION, or WARNING messages. Indicates an operating or maintenance procedure, practice or condition that is necessary to keep the product’s quality.
  • Page 6 Revision Status Revision Date of Issue Description October 30, 2015 First release November 2, 2015 Revised SE Group Confidential (Related Staff Only)
  • Page 7 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Contents Chapter 1 PRODUCT DESCRIPTION Chapter 3 TROUBLE SHOOTING 1.1 Product Description .................... 11 3.1 Overview ......................50 3.1.1 Preliminary Check ..................50 1.2 Basic Specifications .................... 12 3.1.2 Troubleshooting Procedure ................ 51 1.2.1 Basic Specifications ...................
  • Page 8 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.8 SpectroProofer ..................236 5.10.13 Ink Charge ................... 320 5.10.14 Tube Inner Pressure Reduction ............321 Chapter 5 ADJUSTMENT 5.10.15 LLk/Vi Ink Change ................321 5.11 PF Related Adjustment ................... 322 5.1 Overview ......................263 5.11.1 PF Timing Belt Tension Adjustment .............
  • Page 9 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Chapter 7 APPENDIX 7.1 Block Wiring Diagram ..................380 7.1.1 Main Body ....................380 7.1.2 Auto Take-up Reel ................... 381 7.1.3 SpectroProofer ..................381 7.2 Panel Menu Map ....................382 7.3 Part names used in this manual ................ 386 7.4 Exploded Diagram ....................
  • Page 10 C H A P T E R PRODUCT DESCRIPTION SE Group Confidential (Related Staff Only)
  • Page 11 Matte Black which increases black optical density using matte  Options paper. The following options are available.  Chooses between two sets of 10 color inks to suit your use (SC-P9000 Series/SC-  Hard Disk Unit P7000 Series) ...
  • Page 12 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 1.2 Basic Specifications  Nozzle configuration Table 1-2. Nozzle configuration (SC-P9000 Series/SC-P7000 Series)(K3) 1.2.1 Basic Specifications Row A Row B Row C* Row D Row E Photo Black/ Cyan Vivid Magenta Light Black Orange Table 1-1.
  • Page 13 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 1.2.2 Electric Specifications 1.2.3 Ink Specifications Item Specification Item Specification Rated voltage AC 100 to 240 V Type Special ink cartridges Rated frequency 50 to 60 Hz SC-P9000 Series/SC-P7000 Series  Black: Rated current...
  • Page 14 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 1.3 Printing Specifications 1.3.2 Paper Specification The following explains the supported paper sizes and thickness. 1.3.1 Paper Feed Specifications  Do not use wrinkled, scuffed, torn, or soiled paper. C A U T I O N ...
  • Page 15 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B CUT SHEET Item Specification SC-P9000 Series/SC-P8000 Series:  182 mm (B5) to 1,118 mm (44 inches) Paper Width SC-P7000 Series/SC-P6000 Series:  182 mm (B5) to 620 mm SC-P9000 Series/SC-P8000 Series:  297 mm (A4) to 1580 mm (B0+)
  • Page 16 = 35 mm TOP 35/BOTTOM 15MM c = 15 mm b = d = 3 mm SC-P9000 Series/SC-P8000 Series: 254 to 1118mm SC-P7000 Series/SC-P6000 Series: 254 to 610mm a = 150 mm TOP 150/BOTTOM 15MM c = 15 mm...
  • Page 17 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B CUT SHEET SC-P9000 Series/SC-P8000 Series: 210 to 1118mm SC-P7000 Series/SC-P6000 Series: 210 to 610mm Note "*": 15.5 mm when printing Enhanced Matte Poster Board. PRODUCT DESCRIPTION Printing Specifications SE Group Confidential (Related Staff Only)
  • Page 18 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 1.3.4 Borderless Printing Specification Table 1-5. Borderless Printing Mode Driver Setting Printer Operation Remarks AVAILABLE PAPER TYPE Printing is interrupted for cutting off the top  margin of the first page. This may cause color For the paper types and sizes that support the borderless printing, see "1.3.2 Paper...
  • Page 19 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 1.4 Hardware Specifications 1.4.2 Installation Room Requirement This section provides the printer dimensions and shows the main components. 1.4.1 Dimensions and Weight MAIN UNIT 300mm 300mm Height 300mm 300mm 300mm Depth Figure 1-2. Installation Room Requirement Width Figure 1-1.
  • Page 20 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 1.4.3 Part Names Table 1-7. Part Names (Front) Name FRONT Front cover Ink covers (on the left and right) Paper basket Casters Paper support Manual box Control panel Paper feed slot Roll paper cover Adapter holder Figure 1-3.
  • Page 21 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B BACK ROLL PAPER ADAPTER Figure 1-5. Roll paper adapter Figure 1-4. Back Table 1-9. Roll paper adapter Table 1-8. Part Names ( Back Name Name Size lever Maintenance Box Adapter lock lever USB port...
  • Page 22 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 1.5 Control Panel Table 1-10. Control panel Name Description On: Cannot print. (The printer is paused, a job is being CONTROL PANEL  canceled, a menu is displayed, an error has occurred, Pause light and so on.)
  • Page 23 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Table 1-10. Control panel STARTUP THE INSPECTION MODE Name Description Mode Operation Locks or releases the pressure roller. When you want to  load paper, press once to release the lock, and then adjust...
  • Page 24 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Item Description Printer status, operating status, or an error message is Message displayed. The settings for Paper Source (roll paper or cut sheets) and Auto Cut for roll paper are indicated by the icons in the following table.
  • Page 25 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 1.5.1 Menu Mode Settings Table 1-11. Menu Mode Settings List Explanation Top Menu Menu Item/Settings (shaded one is the default) Press the OK button to print a nozzle check pattern. Inspect Nozzle Check the pattern visually and perform head cleaning if you detect faint or missing colors.
  • Page 26 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Table 1-11. Menu Mode Settings List Explanation Top Menu Menu Item/Settings (shaded one is the default) Waiting Job Name Lists the estimated start time and time needed to print the User selected job.
  • Page 27 Register paper information when using commercially available paper or when using customized paper settings for Custom Paper Setting genuine Epson paper. See the following table for details on the setting content. Print Paper List Press the OK button to print a list of custom paper settings.
  • Page 28 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Table 1-11. Menu Mode Settings List Explanation Top Menu Menu Item/Settings (shaded one is the default) If Auto Cut is Off, you can choose to print (On) or not print (Off) cut lines on roll paper. Cut lines are not printed if Auto Cut is On or when cut sheets or poster board is used.
  • Page 29 Select Reference specify a specific paper type. Matte Paper Paper However, in Epson Color Calibration Utility you cannot use Plain Paper No Paper Selected as the Select Reference Paper setting. Make sure you select one of the other paper types.
  • Page 30 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Table 1-11. Menu Mode Settings List Explanation Top Menu Menu Item/Settings (shaded one is the default) Standard Select High or Extra High if the paper wrinkles while printing on roll paper. High Roll Paper Tension If Extra High is set, the Roll Paper Tension setting in the Paper menu is enabled.
  • Page 31 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Table 1-11. Menu Mode Settings List Explanation Top Menu Menu Item/Settings (shaded one is the default) Periodically Set the timing for performing an Auto Nozzle Check that will run before printing starts. Every Job Periodically: Checks at fixed intervals at a timing determined by the printer.
  • Page 32 Choose this option to view settings at a glance. Displays the latest Epson Color Calibration Utility execution Calibration Date log. You can check details on operations and so on in Epson Color Calibration Utility. You can check the current status of the SpectroProofer SpectroProofer mounter installed on the printer, and initialize the settings.
  • Page 33 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Table 1-11. Menu Mode Settings List Explanation Top Menu Menu Item/Settings (shaded one is the default) Displays the backing colors installed in the mounter. If the color differs from the actual color, check the status of the Backing Color backing and make sure it is installed correctly.
  • Page 34 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Table 1-11. Menu Mode Settings List Explanation Top Menu Menu Item/Settings (shaded one is the default) Japanese English French Italian German Language Portuguese Select the language used on the control panel's screen. Spanish...
  • Page 35 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Table 1-11. Menu Mode Settings List Explanation Top Menu Menu Item/Settings (shaded one is the default) All Nozzles Performs more powerful cleaning than Head Cleaning from the Maintenance menu. Check the ink colors with faint or missing segments in the check pattern, and then specify which nozzles to clean.
  • Page 36 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 1.5.2 Serviceman Mode The Serviceman Mode is intended to be used by a service personnel for servicing the printer. HOW TO START & QUIT Turn the printer on by pressing the [OK], [Paper Feed/Down], and [Menu/Right] buttons.
  • Page 37 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Table 1-12. Serviceman Mode Menu Explanation Item Feed Amount 1 Feed Speed 1 Feed Amount 2 Feed Speed 2 Wait Life Count Wait1 Wait2 Life Count Life Configures the durability settings of the mechanism and the printhead.
  • Page 38 C H A P T E R OPERATING PRINCIPLES SE Group Confidential (Related Staff Only)
  • Page 39 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 2.1 Main Body Diagram Name Description Operations and configurations of the printer  2.1.1 Housing Displays the printer’s status, and each value for the  Control Panel settings on LCD display. Indicates the printer’s (error) statuses with LEDs.
  • Page 40 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 2.1.2 Electric Circuit Components Diagram Name Description Relays the connection between the Main Board Assy and electric parts/components of every kind. See Ink Holder Board Assy L "Block Wiring Diagram" (p. 380) for specific connections to the concerning parts/components.
  • Page 41 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 2.1.3 Carriage Mechanism Diagram Name Description Detects the scale patterns to control the position of the CR Encoder Carriage Unit. CR HP Sensor Detects the home position of the Carriage Unit. Locks the Carriage Unit. It is driven by the Cap Motor.
  • Page 42 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 2.1.4 APG Mechanism Diagram Name Description PG HP Sensor Detects the origin position of the platen gap. Detects patterns of the scale attached on the motor to APG Encoder Sensor control the rotation of the APG Motor.
  • Page 43 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 2.1.5 Paper Feed Mechanism Diagram Name Description Detects the PF Scale patterns to control the paper PF Encoder feeding (operation of the PF Motor). Roller Release HP Detects the position (Contact/Separate status) of the Sensor driven roller.
  • Page 44 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 2.1.6 Ink System Diagram Name Description The sensor to execute the functions below. Auto Bi-D adjustment (pattern reading)  Ink Mark Sensor Auto Uni-D adjustment (pattern reading)  Remaining roll paper detection (remaining block ...
  • Page 45 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B INK SYSTEM UNIT Diagram Name Description Cap HP Sensor Detects the origin position of the Cap. Cleans the nozzle surface of the Printhead. It is driven Wiper by the Wiper Motor. The box to receive the flushed ink. It is driven by the Flushing Box Wiper Motor.
  • Page 46 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B PRESSURIZING UNIT Diagram Name Description A transmissive photo interrupter to detect the pressurizing status. It detects the status of the actuator Pressure Sensor which operates when the pressure reaches up to the specified amount.
  • Page 47 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 2.2 Options Diagram Name Description Generates the DC voltage for the Auto Take-up Reel Power Supply Board from the AC power supply. 2.2.1 Auto Take-up Reel Main Board Controls the Auto Take-up Reel.
  • Page 48 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 2.2.2 SpectroProofer Diagram Name Description Generates the DC voltage for the SpectroProofer from Power Supply Board the AC power supply. Main Board Controls the SpectroProofer. Detects the temperature and feeds it back to the dry Thermistor control section.
  • Page 49 C H A P T E R TROUBLE SHOOTING SE Group Confidential (Related Staff Only)
  • Page 50 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 3.1 Overview 3.1.1.2 Recurrence check of the trouble Check if the trouble the user claims recurs with the returned printer. This section explains the basic procedure for troubleshooting problems on the printer ...
  • Page 51 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 3.1.2 Troubleshooting Procedure 3.1.3.2 If necessary to escalate the trouble case Make a report with the following data. Refer to the following items according to the observed symptom, carry out the corresponding troubleshooting following the procedures described in the next sections.
  • Page 52 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 3.2 Remedies for Maintenance Requests This section describes the remedies for maintenance requests. Maintenance requests do not effect the printer’s operation; therefore, you can continue the current printing. When a maintenance request error occurs, the printer displays on the LCD a hexadecimal code of “NNNN” which correspond to the bit numbers assigned to error statuses as shown in the table below.
  • Page 53 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B REMEDY FOR NO. 0010/4000/8000 If the Maintenance Request No. 0010/4000/8000 occurs, take the following measure according to the procedure below. NOTE : There is a priority for occurrence of No. 0010/4000/8000. Because No. 0010 has the priority, when both No. 0010 and No. 4000 (or No. 8000) occur at the same time, No. 4000 (or No.
  • Page 54 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 3.3 Remedies for Service Call Error Error Code Error Name Page 1412 Pump life error The following tables explain the Service Call error messages and remedies. 1417 Oscillation error 1427 CSIC destination setting error...
  • Page 55 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Error Code Error Name Page Error Code Error Name Page 149D Driving time-out error 154D Driving time-out error 14D9 Pump release error 154E Velocity deviation error 14DA Overload error 154F Lock error Over speed error...
  • Page 56 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Error Code Error Name Page 1F89 CSIC error 1F8C IES error 1F8D IES error 1FB9 IES error 1FC4 IES error 1FC5 IES error 1FC6 IES error 1FC7 IES error 1FC8 IES error 1FC9...
  • Page 57 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B  Remedies for Service Call Error Error Details Error Code Description Remedy Failed Part Error Name Firmware failure Install the correct firmware. NMI error 0001 Main Board failure Replace the Main Board Assy.
  • Page 58 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Error Details Error Code Description Remedy Failed Part Error Name Detects that it is being driven in the opposite direction to the specified Check the connection between the CR Encoder and the Main Board driving direction.
  • Page 59 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Error Details Error Code Description Remedy Failed Part Error Name Detects that it is being driven at an irregularly faster speed than the Replace the PF Encoder Sensor. (See P.176) specified value just before stopping.
  • Page 60 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Error Details Error Code Description Remedy Failed Part Error Name Detects that it is being driven at an irregularly faster speed than the Replace the APG Motor. (See P.154) specified value just before stopping.
  • Page 61 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Error Details Error Code Description Remedy Failed Part Error Name The electric current flowing when driving the motor is irregularly large. Check if there is some foreign material causing extra load on the driven roller release system.
  • Page 62 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Error Details Error Code Description Remedy Failed Part Error Name Detects that the motor is still driven even though the firmware sends has Replace the Main Board Assy. (See P.137) commanded it to stop.
  • Page 63 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Error Details Error Code Description Remedy Failed Part Error Name Detects that it is being driven at an irregularly faster speed than the Replace the Cutter Unit. (See P.170) specified value. Replace the Main Board Assy.
  • Page 64 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Error Details Error Code Description Remedy Failed Part Error Name The number of operation counter of the Ink Selector has reached the Replace the Ink Selector, and clear the counter using the Service...
  • Page 65 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Error Details Error Code Description Remedy Failed Part Error Name Detects that it is being driven at an irregularly faster speed than the Replace the Ink System Unit. (See P.179) specified value. Replace the Ink System Unit.
  • Page 66 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Error Details Error Code Description Remedy Failed Part Error Name Detects that it is being driven in the opposite direction to the specified Check the connection between the Pressurizing Unit and the Main driving direction.
  • Page 67 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Error Details Error Code Description Remedy Failed Part Error Name Detects that the Flushing Box is not set in the correct position. Turn the printer off once, then turn it on again. Flushing box...
  • Page 68 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Error Details Error Code Description Remedy Failed Part Error Name Detects that it is being driven at an irregularly slower speed than the Check the connection between the Ink System Unit and the Main Board specified value.
  • Page 69 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Error Details Error Code Description Remedy Failed Part Error Name Detects that it is being driven in the opposite direction to the specified driving direction. The polarity of encoder cable is opposite. ...
  • Page 70 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Error Details Error Code Description Remedy Failed Part Error Name During PG operation, the PG HP Sensor cannot detect the change of Check the installation status of the PG HP Sensor. (See P.157) status.
  • Page 71 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Error Details Error Code Description Remedy Failed Part Error Name Detects that the driving period is irregularly long. Replace the Main Board Assy. (See P.137) Driving time-out 159D ROLL Irregular load  error Firmware becomes out of control.
  • Page 72 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Error Details Error Code Description Remedy Failed Part Error Name The Head FFC is not connected correctly. Check the connection of the Head FFC, and if there is abnormality (slant connection or the like), correct it.
  • Page 73 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Error Details Error Code Description Remedy Failed Part Error Name Communication error. 1. Check the connection between the Sub Board Assy and the Main Board Assy if the FFC is connected correctly (no slant connection exists).
  • Page 74 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Error Details Error Code Description Remedy Failed Part Error Name 1. Replace the Ink Cartridge Holder. (See P.190, P. 197) 1F85 CSIC control CSIC error 2. Replace the Main Board Assy. (See P.137) 1.
  • Page 75 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Error Details Error Code Description Remedy Failed Part Error Name 1. Check the FFC connection between the Ink Holder Board Assy and the Main Board Assy. 2. If the printer does not recover from the error even after trying 1,...
  • Page 76 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Error Details Error Code Description Remedy Failed Part Error Name 1. Check the FFC connection between the Ink Holder Board Assy and the Main Board Assy. 2. If the printer does not recover from the error even after trying 1,...
  • Page 77 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Error Details Error Code Description Remedy Failed Part Error Name Installation of the firmware has been failed. Re-install the firmware. FLASH BOOT 2003 Memory Replace the Main Board Assy. (See P.137) SUM CHECK error The Flash ROM has a defect.
  • Page 78 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 3.4 Remedies for Print Quality Troubles 3.4.1 Remedies for Print Quality Troubles This section provides troubleshooting of print quality troubles classifying them by observed symptom. Before performing troubleshooting, refer to "5.6 Image & Test Print (p288)"...
  • Page 79 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Symptom Description Remedy/Points to be checked Ink smear (printed area) Paper is curled or creased. Change the paper with a new one. The printed area of paper is contaminated by ink smear in the paper feed path.
  • Page 80 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Symptom Description Remedy/Points to be checked Horizontal banding Paper setting made in the printer driver is wrong. Correct the paper setting of the printer driver. There is something wrong with paper feeding. Check the PF Scale for scratch, contamination, and correct it if any.
  • Page 81 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 3.5 Problems on SpectroProofer This section describes the possible trouble on abnormal SpectroProofer operations, their causes, and their remedies. Table 3-3. Problems on SpectroProofer Symptom Cause Check Item Remedy Turn the printer off. Re-insert the ...
  • Page 82 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Table 3-3. Problems on SpectroProofer Symptom Cause Check Item Remedy Adjust the printer if there are any print quality Check if the printings has no quality problems such as dot Poor quality printings...
  • Page 83 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Table 3-3. Problems on SpectroProofer Symptom Cause Check Item Remedy Check the following: Attach the Backing and the white calibration  Is “Error Code 80” displayed? (See P.84) tile properly.  Color calibration not done properly Is the Backing attached to the proper position? Clean the white calibration tile.
  • Page 84 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 3.6 Remedies for Error Messages related to SpectroProofer/Auto Take-up Reel The Error messages and their corresponding remedies are explained below. NOTE: Auto Take-up Reel-related errors do not occur on SC-P7000 Series/SC-P6000 Series because it does not support the Auto Take-up Reel. Errors related to the Auto Take-up Reel do not occur on SC-P7000 Series/SC-P6000 Series.
  • Page 85 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Error Section Error Name Status Cause Remedy/Check Point Program Check Drive gear(s) of the Paper Pressing Plate is/ Replace the drive gear(s). are broken. Paper pressing origin Replace the Paper Pressing Unit. (See Origin position detection was not Paper Pressing Unit is broken.
  • Page 86 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Error Section Error Name Status Cause Remedy/Check Point Program Check There is something wrong with the Paper Replace the Paper Pressing Motor. (See Pressing Motor. P.257) Dowels and positioning holes on the Paper Pressing Unit is not installed right and left plates that secure the Paper correctly.
  • Page 87 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Error Section Error Name Status Cause Remedy/Check Point Program Check Encoder cable is damaged. Replace the cable. Replace the Paper Pressing Motor. (See Motor cable is damaged. P.257) The electric current flowing when...
  • Page 88 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Error Section Error Name Status Cause Remedy/Check Point Program Check The polarity of the encoder cable is opposite. Check the connections. Detects that it is being driven in the Take-up Reversing error opposite direction to the specified The polarity of the motor cable is opposite.
  • Page 89 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 3.7 Trouble on Service Program This section describes possible troubles on Service Program and their causes and remedies. Table 3-4. Troubles on Service Program Symptom Cause Check Item Remedy Are you running the program on the following operating...
  • Page 90 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 3.8 Trouble on NVRAM Viewer This section describes possible troubles on NVRAM Viewer and their causes and remedies. Table 3-5. Trouble on NVRAM Viewer Symptom Cause Check Item Remedy NVRAM Viewer does not start.
  • Page 91 C H A P T E R DISASSEMBLY & ASSEMBLY SE Group Confidential (Related Staff Only)
  • Page 92 • specified. However, the quantity of some screws and hooks, or the skin or gets into your eyes, rinse it off with clean water and size of some parts may differ in Epson SC-P9000 Series/SC-P8000 see a doctor immediately. Series.
  • Page 93 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B  The power switch for this printer is installed on the secondary  Make sufficient work space for servicing. W A R N I N G C A U T I O N side of the power circuit;...
  • Page 94 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.1.2 Orientation Definition  The cutter blade is razor-sharp. Be especially careful when C A U T I O N handling the cutter. The terms used for indicating the orientation/direction throughout this chapter are as ...
  • Page 95 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.1.3 Recommended Tools To protect this product from damage, use the tools indicated in the following table. Table 4-1. Tools Name Epson Part Number Note Phillips screwdriver, No. 1 Commercially available Phillips screwdriver, No. 2 Prepare the drivers in the following length.
  • Page 96 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.1.4 Cautions when replacing the Main Board Assy/Power Supply Board Assy For this printer, so as to drive the CR Motor and PF Motor properly, the characteristics of them are stored in the Main Board Assy, and used to optimize the performance in accordance with the Power Supply Board Assy.
  • Page 97 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.2 Parts Diagram See the pages written under brackets for the disassembly/assembly procedure. Spindle Cover L Rear Left Cover (p125) (p128) Roll Cover Assy Left Cover (p126) Rear Cover (p120) (p129) Spindle Cover R...
  • Page 98 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Sub Board Assy (p141) Sub Board Assy; C (p145) Power Supply Board Assy (p140) Main Board Assy (p137) AID Board (p207) Sub Board Assy; B (p143) Figure 4-3. Electric Circuit Components DISASSEMBLY & ASSEMBLY...
  • Page 99 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B CR Scale (p146) CR Motor (p152) CR Encoder Sensor (p148) CR HP Sensor (p149) APG Motor (p154) APG Unit PG HP Sensor (p155) (p157) Carriage Unit (p159) Driven Pulley Unit (Contain the CR Timing Belt) (p150) Figure 4-4.
  • Page 100 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Roller Release HP Sensor (p167) Driven Roller Release Motor Installing part (p166) PF Encoder Sensor PE Sensor Paper Thickness Sensor (p176) (p162) Rewind Unit (p168) PF Motor (p177) Cutter Unit (p170) Suction Fans (p177) Figure 4-5.
  • Page 101 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Pressurizing Unit Ink Tube L (p188) PW Sensor (p220) Ink Mark Sensor (p164) (p209) Ink Selector Ink Holder Board Assy L (p211) (p203) Printhead (p183) AID Board (p207) Ink System Unit (p179) Ink Cartridge Holder L...
  • Page 102 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Power Supply Board Take-up Reel Cover (p228) (p223) Main Board (p228) Take-up Reel LED (p225) Take-up Reel Switch (p226) Take-up Reel Sensor (p224) Take-up Reel Motor (p230) Figure 4-7. Auto Take-up Reel DISASSEMBLY & ASSEMBLY...
  • Page 103 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Cooling Fan 1 Paper Pressing Plate Sensor (p253) (p246) Paper Pressing Encoder Left Cover (p251) (p240) Paper Pressing Motor (p257) Power Supply Board (p245) Carriage Motor (p258) IF Cover (p241) Cooling Fan 2...
  • Page 104 "4.4.2.16 Front Cover Sensor R" (p190) (p130) "4.4.2.8 Left Cover" (p120) "4.4.2.18 Cartridge Cover Sensor R" (p134) "4.4.2.10 Top Cover" (p123) NOTE * : Maintenance Tank L is only for SC-P9000 Series/SC-P8000 Series. DISASSEMBLY & ASSEMBLY Disassembly Flowchart SE Group Confidential (Related Staff Only)
  • Page 105 "4.4.6.9 AID Board" (p207) "4.4.2.10 Top Cover" (p123) "4.4.1.1 Unlocking the Carriage Unit manually" (p110) "4.4.3.3 Sub Board Assy" (p141) NOTE * : Maintenance Tank L is only for SC-P9000 Series/SC-P8000 Series. DISASSEMBLY & ASSEMBLY Disassembly Flowchart SE Group Confidential (Related Staff Only)
  • Page 106 "4.4.4.4 Driven Pulley Unit" (p150) "4.4.4.7 APG Unit" (p155) "4.4.4.1 CR Scale" (p146) "4.4.4.9 Carriage Unit" (p159) NOTE * : Maintenance Tank L is only for SC-P9000 Series/SC-P8000 Series. DISASSEMBLY & ASSEMBLY Disassembly Flowchart SE Group Confidential (Related Staff Only)
  • Page 107 Unit manually" (p110) "4.4.5.1 Paper Thickness Sensor" "4.4.5.3 Driven Roller Release "4.4.5.6 Cutter Unit" (p170) (p162) Motor" (p166) NOTE * : Maintenance Tank L is only for SC-P9000 Series/SC-P8000 Series. DISASSEMBLY & ASSEMBLY Disassembly Flowchart SE Group Confidential (Related Staff Only)
  • Page 108 "4.4.6.12 Ink Tube R" (p216) "4.4.6.13 Ink Tube L" (p220) "4.4.6.11 Ink Selector" (p211) "4.4.6.3 Printhead" (p183) NOTE * : Maintenance Tank L is only for SC-P9000 Series/SC-P8000 Series. DISASSEMBLY & ASSEMBLY Disassembly Flowchart SE Group Confidential (Related Staff Only)
  • Page 109 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B SPECTROPROOFER START "4.4.8.1 Color Measurement Device" (p236) "4.4.8.2 Mounter" (p238) "4.4.8.10 CR HP Sensor" "4.4.8.9 Paper Pressing Plate "4.4.8.19 Paper Pressing Unit" "4.4.8.14 Paper Pressing "4.4.8.3 Right Cover" (p239) "4.4.8.6 Front Cover" (p242) "4.4.8.3 Right Cover"...
  • Page 110 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4 Disassembly and Assembly Procedure - As seen from the right - This section describes procedures for disassembling the components allowed to be Gear disassembled. Unless otherwise specified, disassembled units or components can be reassembled by reversing the disassembly procedure.
  • Page 111 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.1.2 Unlocking the IC Cover manually In the case that the IC Cover cannot be opened by the Control C H E C K Panel operation for some reasons, you can open the cover by the...
  • Page 112 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.2 Housing 4.4.2.1 Control Panel Control Panel Insert a flathead screwdriver or a similar tool into the holes on both sides of the Control Panel to unlock the two hooks, and detach the Control Panel.
  • Page 113 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.2.2 IC Cover (L/R) Joints Basically you can remove this part on the left and the one on the C H E C K right in the same way. Therefore this section describes the way to P O I N T remove the one on the right only.
  • Page 114 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.2.3 IC Shaft Cover (L/R) Basically you can remove this part on the left and the one on the C H E C K right in the same way. Therefore this section describes the way to P O I N T remove the one on the right only.
  • Page 115 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.2.4 IC Cover (L/R) & IC Shaft Cover (L/R) Basically you can remove this part on the left and the one on the C H E C K right in the same way. Therefore this section describes the way to P O I N T remove the one on the right only.
  • Page 116 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.2.5 Front Cover (L/R) Hooks Basically you can remove this part on the left and the one on the C H E C K right in the same way. Therefore this section describes the way to P O I N T remove the one on the right only.
  • Page 117 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.2.6 Maintenance Tank (L/R) Basically you can remove this part on the left and the one on the C H E C K right in the same way. Therefore this section describes the way to P O I N T remove the one on the right only.
  • Page 118 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.2.7 Right Cover Remove the Control Panel. (p112) Top Cover Support Base R When you do not replace the Right Cover, skip the step 2. C H E C K P O I N T Remove the Front Cover R.
  • Page 119 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Remove the nine screws that secure the Right Cover. - Rear right - C) Silver, Phillips, Bind S-tite with S.W & P.W. M4x8: five pieces D) Silver, Phillips, Bind machine screw M4x8: two pieces...
  • Page 120 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.2.8 Left Cover When you do not replace the Left Cover, skip the step 1. C H E C K P O I N T Remove the Front Cover L (p116) Remove the Maintenance Tank L.
  • Page 121 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Remove the ten screws that secure the Left Cover. - Rear left - C) Silver, Phillips, Bind S-tite with S.W & P.W. M4x8: four pieces D) Silver, Phillips, Bind P-tite with S.W & P.W. M4x12: two pieces...
  • Page 122 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.2.9 Front Cover (Middle) Front Cover (Middle) Open the Front Cover (Middle). In the next step, the cover will drop immediately after removing the C A U T I O N last screw. Therefore, make sure to hold the cover when removing the last few screws.
  • Page 123 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.2.10 Top Cover Remove the IC Cover (L/R) and the IC Shaft Cover (L/R). (p115) Remove the Maintenance Tank (L/R). (p117) NOTE: There is no Maintenance Tank (L) mounted for the SC-P7000 Series/SC- Front Cover (Middle) P6000 Series.
  • Page 124 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.2.11 Spindle Cover R Roll Cover Assy Remove the Control Panel. (p112) Remove the IC Cover R and the IC Shaft Cover R. (p115) Spindle Cover R Remove the Maintenance Tank R. (p117) Open it until Remove the Right Cover.
  • Page 125 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.2.12 Spindle Cover L Remove the IC Cover L and the IC Shaft Cover L. (p115) Remove the Maintenance Tank L. (p117) Spindle Cover L NOTE: There is no Maintenance Tank (L) mounted for the SC-P7000 Series/SC- P6000 Series.
  • Page 126 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.2.13 Roll Cover Assy - Left side - Wave washer Remove the IC Cover L and the IC Shaft Cover L. (p115) Dumper Cover Holder Spacer Remove the Maintenance Tank L. (p117) Roll Cover Assy...
  • Page 127 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 10. Remove the retaining ring and remove the Roll Paper Guide. - Right side - Retaining ring 11. Pull out the pin from the shaft. Mounting 12. Remove the three screws that secure the Mounting.
  • Page 128 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.2.14 Rear Left Cover - Rear left - Remove the four screws that secure the Rear Left Cover. A) Silver, Phillips, Bind P-tite with S.W & P.W. M4x12: two pieces B) Silver, Phillips, Bind S-tite with S.W & P.W. M4x8: two pieces Remove the Rear Left Cover.
  • Page 129 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.2.15 Rear Cover Remove the two screws, and remove the HDD (option). HDD (option) A) Black, Phillips, Bind machine screw M3x6: two pieces Remove the 21 screws, and remove the Rear Cover and Connector Frame.
  • Page 130 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.2.16 Front Cover Sensor R - As seen from the rear - Remove the Control Panel. (p112) Main Board Assy Remove the IC Cover R and the IC Shaft Cover R. (p115) Saddle Remove the Maintenance Tank R.
  • Page 131 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 12. Remove the two screws that secure the Front Cover Sensor R. - As seen from the right - Front Cover Sensor R A) Silver, Phillips, Bind machine screw M3x6: two pieces 13. Remove the Front Cover Sensor R.
  • Page 132 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.2.17 Front Cover Sensor L - As seen from the rear - Remove the IC Cover L and the IC Shaft Cover L. (p115) Remove the Maintenance Tank L. (p117) PS Board Mounting Plate...
  • Page 133 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Release the cables from the clamp. See Figure 4-38. 10. Remove the two screws that secure the Front Cover Sensor L. A) Black, Phillips, Bind P-tite M3x10: two pieces Front Cover Sensor L 11.
  • Page 134 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.2.18 Cartridge Cover Sensor R - Right side - Cover of Ink Holder Board Assy R Remove the Control Panel. (p112) Remove the IC Cover R and the IC Shaft Cover R. (p115) Remove the Maintenance Tank R.
  • Page 135 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.2.19 Cartridge Cover Sensor L - Rear left - Remove the IC Cover L and the IC Shaft Cover L. (p115) Cover of Ink Holder Board Assy L Remove the Maintenance Tank L.
  • Page 136 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Disconnect the two connectors (CN408, CN409) on the Ink Holder Board Assy L. - Left side - Ink Holder Board Assy L Release the harness from the two hooks and the tape. See Figure 4-43.
  • Page 137 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.3 Electric Circuit Components 4.4.3.1 Main Board Assy When replacing/removing this part, refer to "5.1.2 Adjustment A D J U S T M E N T R E Q U I R E D Items and the Order by Repaired Part"...
  • Page 138 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Disconnect the all cables and FFCs from the Main Board Assy. See Figure 4-45. CN14 CN23 Be extremely careful not to insert FFCs at an angle in connectors. C A U T I O N...
  • Page 139 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Connector assignment: Connector No. Color Destination Power Supply Board Assy (CN301) White HDD Fan Black Suction Fan Suction Fan Yellow Suction Fan Black Pressurizing Unit CN10 Black Pressurizing Unit CN14 Black Control Pane...
  • Page 140 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.3.2 Power Supply Board Assy - As seen from the rear - PS Board Mounting Plate When replacing/removing this part, refer to "5.1.2 Adjustment A D J U S T M E N T R E Q U I R E D Items and the Order by Repaired Part"...
  • Page 141 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.3.3 Sub Board Assy Remove the Control Panel. (p112) CR Belt Cover Remove the IC Cover R and the IC Shaft Cover R. (p115) Remove the Maintenance Tank R. (p117) Remove the Right Cover.
  • Page 142 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 12. Unlock the Carriage Unit and move it to the left end. 13. Remove the four screws that secure the Sub Board Assy. Screw A) Silver, Phillips, Bind P-tite M3x10: four pieces together...
  • Page 143 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.3.4 Sub Board Assy; B CN219 CN213 CN222 CN206 CN229 Remove the Control Panel. (p112) Remove the IC Cover R and the IC Shaft Cover R. (p115) Remove the Maintenance Tank R. (p117) CN216 Remove the Right Cover.
  • Page 144 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Connector assignment: Connector No. Color Destination (FFC) Main Board Assy (CN200) CN200 (FFC) Main Board Assy (CN201) CN201 White Main Board Assy (CN202) CN202 Paper Thickness Sensor 2 CN204 Yellow Paper Thickness Sensor 2...
  • Page 145 CN301 (FFC) PF Encoder Sensor CN302 - Left side - White PF Motor CN303 White CR Motor CN304 Maintenance Tank (L) (SC-P9000 Series/SC-P8000 Series (FFC) CN305 only) White Cutter Sensor CN307 Cutter Unit CN309 White Roller Release HP Sensor CN310...
  • Page 146 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.4 Carriage Mechanism Step 6 Step 8 CR Scale Spring 4.4.4.1 CR Scale CR Scale CR Scale When replacing/removing this part, refer to "5.1.2 Adjustment A D J U S T M E N T R E Q U I R E D Items and the Order by Repaired Part"...
  • Page 147 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B  Attach the CR Scale with the cutout on the top right corner. - Front Right - Cutout CR Scale *Some 44-inch CR Scales do not have the notation of L/R.  Make sure to route the CR Scale between the detection part of the CR Encoder Sensor on the rear of the carriage.
  • Page 148 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.4.2 CR Encoder Sensor - Rear of Carriage Unit - When replacing/removing this part, refer to "5.1.2 Adjustment A D J U S T M E N T R E Q U I R E D Items and the Order by Repaired Part"...
  • Page 149 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.4.3 CR HP Sensor - Right Side - Remove the Control Panel. (p112) Remove the IC Cover R and the IC Shaft Cover R. (p115) Remove the Maintenance Tank R. (p117) Connector Remove the Right Cover.
  • Page 150 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.4.4 Driven Pulley Unit When replacing/removing this part, refer to "5.1.2 Adjustment A D J U S T M E N T CR Belt Cover R E Q U I R E D Items and the Order by Repaired Part"...
  • Page 151 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 11. Remove the two screws that secure the Driven Pulley Holder, and remove the Driven Pulley Holder. - Left side - B) Silver, Phillips, Bind S-tite with S.W & P.W. M3x8: two pieces CR Belt 12.
  • Page 152 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.4.5 CR Motor - Right front - When replacing/removing this part, refer to "5.1.2 Adjustment A D J U S T M E N T CR Belt tension R E Q U I R E D Items and the Order by Repaired Part"...
  • Page 153 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Loosen the CR Belt tension adjustment screw to relieve the tension of the CR Belt. - Left side - 10. Detach the CR Belt from the drive pulley of the CR Motor. 11. Remove the two screws that secure the CR Motor, and remove the CR Motor.
  • Page 154 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.4.6 APG Motor When replacing/removing this part, refer to "5.1.2 Adjustment A D J U S T M E N T APG Motor Cover R E Q U I R E D Items and the Order by Repaired Part" (p264) and make sure to perform the specified operations including required adjustment.
  • Page 155 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.4.7 APG Unit Remove the Control Panel. (p112) APG Unit Remove the IC Cover R and the IC Shaft Cover R. (p115) Remove the Maintenance Tank R. (p117) Remove the Right Cover. (p118) Plate A Remove the IC Cover L and the IC Shaft Cover L.
  • Page 156 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 12. Remove the two screws that secure the APG Unit, and remove the APG Unit. - Front right - C) Silver, Phillips, Bind S-tite with S.W & P.W. M3x6: two pieces 13. Remove the two screws that secure the APG Motor, and remove the APG Motor from the APG Unit.
  • Page 157 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.4.8 PG HP Sensor Remove the Control Panel. (p112) Ink Mark Sensor Remove the IC Cover R and the IC Shaft Cover R. (p115) Remove the Maintenance Tank R. (p117) Remove the Right Cover.
  • Page 158 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Disengage the hooks that secure the PG HP Sensor, and remove the PG HP Sensor. Disconnect the connector from the PG HP Sensor. Hooks PG HP Sensor Figure 4-75. Removing the PG HP Sensor (1)
  • Page 159 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.4.9 Carriage Unit Plate B When replacing/removing this part, refer to "5.1.2 Adjustment A D J U S T M E N T R E Q U I R E D Items and the Order by Repaired Part" (p264) and make sure to perform the specified operations including required adjustment.
  • Page 160 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 14. Remove the each screw that secure the CR Stopper, and remove the three CR CR Stopper Stoppers. B) Silver, Phillips, Bind S-tite with S.W & P.W. M3x8: each one piece CR Stopper 15.
  • Page 161 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.4.10 Oil Pad Holder Remove the Control Panel.(p112) Remove the IC Cover (L/R) and the IC Shaft Cover (L/R).(p115) Remove the Maintenance Tank (L/R).(p117) NOTE: There is no Maintenance Tank (L) mounted for the SC-P7000 Series/SC- P6000 Series.
  • Page 162 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.5 Paper Feed Mechanism - Upper right - 4.4.5.1 Paper Thickness Sensor Paper Thickness Sensor Mounting Plate When replacing/removing this part, refer to "5.1.2 Adjustment A D J U S T M E N T R E Q U I R E D Items and the Order by Repaired Part"...
  • Page 163 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 10. Disconnect the connectors from the Paper Thickness Sensors. See Figure 4-82. - Upper right - 11. Disengage the hooks that secure the Paper Thickness Sensors, and remove the Paper Thickness Sensors. Connector...
  • Page 164 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.5.2 PW Sensor Remove the Control Panel. (p112) Arm Unit Remove the IC Cover R and the IC Shaft Cover R. (p115) Remove the Maintenance Tank R. (p117) Remove the Right Cover. (p118) Unlock the Carriage Unit and move it to the center.
  • Page 165 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Remove the PW Sensor from the Arm, and disconnect the connector of the PW Sensor. Connector PW Sensor Figure 4-85. Removing the PW Sensor DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure SE Group Confidential (Related Staff Only)
  • Page 166 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.5.3 Driven Roller Release Motor - Rear left - Driven Roller Release Motor Remove the IC Cover L and the IC Shaft Cover L. (p115) Remove the Maintenance Tank L. (p117) NOTE: There is no Maintenance Tank (L) mounted for the SC-P7000 Series/SC- P6000 Series.
  • Page 167 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.5.4 Roller Release HP Sensor - Left (inside) - Open the Front Cover (Middle). Roller Release HP Sensor Disengage the hooks the secure the Roller Release HP Sensor, and remove the Roller Release HP Sensor.
  • Page 168 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.5.5 Rewind Unit - Right side - The Rewind Unit is established as an ASP including the mounting C A U T I O N plate. When replacing this part, transfer the necessary items or Rewind Unit replace the whole unit.
  • Page 169 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Remove the two screws that secure the Rewind Unit, and remove the Rewind Unit. B) Silver, Phillips, Pan S-tite with S.W & P.W. M3x6: two pieces Rewind Unit Figure 4-91. Removing the Rewind Unit DISASSEMBLY &...
  • Page 170 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.5.6 Cutter Unit Remove the IC Cover (L/R) and the IC Shaft Cover (L/R). (p115) Remove the Maintenance Tank (L/R). (p117) NOTE: There is no Maintenance Tank (L) mounted for the SC-P7000 Series/SC- P6000 Series.
  • Page 171 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 11. Remove the two screws that secure the Cutter Cover Support, and remove the Cutter Cover Support. - Top - B) Silver, Phillips, Bind machine screw M3x6: two pieces 12. Remove the seven screws that secure the Mid-Front Cover, and remove the Mid- Front Cover.
  • Page 172 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 14. Disconnect the connector (CN307) on the Sub Board Assy; C. - Left side - 15. Release the harness from the clamp 1. 16. Release all the harnesses from the clamp 2. CN307 Sub Board Assy;...
  • Page 173 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 17. Move the carriage over the platen. 18. Remove the five screws that secure the Cutter Unit. Cutter Unit D) Silver, Phillips, Round Washer Head S-tite M3x6: five pieces 19. Slide the Cutter Unit to the right to detach the left side of it from the main body, then disconnect the connector of the Cutter Motor.
  • Page 174 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.5.7 Suction Fan When replacing/removing this part, refer to "5.1.2 Adjustment A D J U S T M E N T Handle R E Q U I R E D Items and the Order by Repaired Part" (p264) and make sure to perform the specified operations including required adjustment.
  • Page 175 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Since the hooks of the EJ Roller are fragile, do not apply excessive EJ Rollers C A U T I O N force to them in the next step. Release the two each hooks that secure the EJ Rollers, and remove the EJ Rollers.
  • Page 176 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.5.8 PF Encoder Sensor - Left side - When replacing/removing this part, refer to "5.1.2 Adjustment A D J U S T M E N T PF Encoder Sensor Holder R E Q U I R E D Items and the Order by Repaired Part"...
  • Page 177 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.5.9 PF Motor - Rear left - When replacing/removing this part, refer to "5.1.2 Adjustment A D J U S T M E N T Cable Retainer R E Q U I R E D Items and the Order by Repaired Part"...
  • Page 178 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Remove the two screws that secure the PF Motor, and remove the PF Motor from - Left side - PF Motor Mounting Plate the PF Motor Mounting Plate. B) Silver, Phillips, Pan S-tite with S.W & P.W. M3x6: two pieces PF Motor Figure 4-105.
  • Page 179 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.6 Ink System Mechanism - Rear right - 4.4.6.1 Ink System Unit Tube Retainer When replacing/removing this part, refer to "5.1.2 Adjustment A D J U S T M E N T Waste Ink Tube R E Q U I R E D Items and the Order by Repaired Part"...
  • Page 180 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Remove the three screws that secure the AID Board Cover, and remove the AID Board Cover. - Top right - A) Silver, Phillips, Bind machine screw M3x8: three pieces 10. Disconnect the connector (CN2) on the AID Board.
  • Page 181 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 11. Remove the three screws that secure the plate, and remove the plate. - Rear right - B) Silver, Phillips, Bind machine screw M3x6: three pieces Plate Ink System Unit 12. Remove the screw that secures the Ink System Unit.
  • Page 182 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.6.2 Wiper Cleaner Assy When replacing/removing this part, refer to "5.1.2 Adjustment A D J U S T M E N T R E Q U I R E D Items and the Order by Repaired Part" (p264) and make sure to perform the specified operations including required adjustment.
  • Page 183 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.6.3 Printhead When replacing/removing this part, refer to "5.1.2 Adjustment A D J U S T M E N T CR Belt Cover R E Q U I R E D Items and the Order by Repaired Part" (p264) and make sure to perform the specified operations including required adjustment.
  • Page 184 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 10. Remove the three screws that secure the Ink Tube Holder. A) Silver, Phillips, Bind P-tite with S.W & P.W. M3x8: three pieces Hook 11. Disengage the two hooks that secure the Ink Tube Holder, and remove the Ink Tube Holder.
  • Page 185 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Figure 4-116 Figure 4-117, the Ink Tubes are disconnected C H E C K P O I N T to indicate the screw locations easily. In actual operation; however, there is no need to disconnect them.
  • Page 186 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 15. Attach the hook on the rear of the Ink Selector onto the Main Frame to secure the Ink Selector. See Figure 4-118. Hooks After secure the Ink Selector, make sure to place a sheet of paper C A U T I O N below it to catch the spilling remaining ink.
  • Page 187 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 16. Disconnect four FFCs from the Printhead. See Figure 4-120. FFCs In the next step, to make it easier to remove the screw of the C H E C K P O I N T Printhead it is recommended to use the long shaft screwdriver.
  • Page 188 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.6.4 Pressurizing Unit Disconnect the two Pressure Tubes from the Pressurizing Unit. Remove the three screws that secure the Pressurizing Unit. When replacing/removing this part, refer to "5.1.2 Adjustment A D J U S T M E N T R E Q U I R E D Items and the Order by Repaired Part"...
  • Page 189 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Hold up the Pressurizing Unit, and release the harness from the clamp and the cable retainer. Disconnect the two connectors, and remove the Pressurizing Unit. Pressurizing Unit Connector Cable retainer Connector Clamp Figure 4-122. Removing the Pressurizing Unit DISASSEMBLY &...
  • Page 190 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.6.5 Ink Cartridge Holder R When replacing/removing this part, refer to "5.1.2 Adjustment A D J U S T M E N T R E Q U I R E D Items and the Order by Repaired Part" (p264) and make sure to perform the specified operations including required adjustment.
  • Page 191 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B DISASSEMBLING PROCEDURE - Rear right - Remove the Control Panel. (p112) Remove the IC Cover R and the IC Shaft Cover R. (p115) Hole Remove the Maintenance Tank R. (p117) Guide Remove the Right Cover.
  • Page 192 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Release the Ink Tubes from the two hooks on the Ink Cartridge Holder R. - Rear right - Pull the Ink Tube backward to give it some slack. Pull the Ink Tube forward to remove the slack. Route the Ink Tube so as not to apply load to the bend of the tube at the front of the printer.
  • Page 193 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 11. Disengage the two hooks that secure the Ink Tube Guide, and remove the Ink Tube Guide from the main body. - Rear right - Ink Tube Guide Hooks Figure 4-126. Removing the Ink Tube Guide Figure 4-127.
  • Page 194 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 12. Release the two hooks securing the cover of the Ink Holder Board Assy R, and remove the cover. 13. Release the FFC from the clamp. Cover of Ink Holder Board Assy R 14.
  • Page 195 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 15. Remove the two screws, and detach the Ink Tubes. - Right side - A) Silver, Phillips, Bind machine screw M2x16 (bit: No.1): two pieces  Use a torque driver with the torque given below when tightening the screws securing the Ink Tube.
  • Page 196 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 17. Remove the four screws that secure the Ink Cartridge Holder R. - Right side - D) Silver, Phillips, Round Washer Head S-tite M4x6: four pieces 18. Remove the Ink Cartridge Holder R.
  • Page 197 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.6.6 Ink Cartridge Holder L When replacing/removing this part, refer to "5.1.2 Adjustment A D J U S T M E N T R E Q U I R E D Items and the Order by Repaired Part" (p264) and make sure to perform the specified operations including required adjustment.
  • Page 198 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B DISASSEMBLING PROCEDURE Remove the IC Cover L and the IC Shaft Cover L. (p115) Remove the Maintenance Tank L. (p117) Tape NOTE: There is no Maintenance Tank (L) mounted for the SC-P7000 Series/SC- Guide P6000 Series.
  • Page 199 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Disengage the two hooks that secure the Ink Tube Guide, and remove the Ink Tube Guide from the main body. - Rear left - Ink Tube Guide Hooks Figure 4-134. Removing the Ink Tube Guide Figure 4-135.
  • Page 200 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 10. Release the two hooks securing the cover of the Ink Holder Board Assy L, and remove the cover. 11. Disconnect the FFC from the Ink Holder Board Assy L. Hooks Cover of Ink Holder Board Assy L Figure 4-136.
  • Page 201 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 12. Remove the two screws, and detach the Ink Tubes. - Rear left - A) Silver, Phillips, Bind machine screw M2x16 (bit: No.1): two pieces  Use a torque driver with the torque given below when tightening the screws securing the Ink Tube.
  • Page 202 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 13. Remove the six screws that secure the Ink Cartridge Holder Mounting Plate, and - Left side - remove the Ink Cartridge Holder Mounting Plate. Screw B) Silver, Phillips, Round Washer Head S-tite M4x8: four pieces...
  • Page 203 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.6.7 Ink Holder Board Assy L Hooks Remove the IC Cover L and the IC Shaft Cover L. (p115) Remove the Maintenance Tank L. (p117) Hole NOTE: There is no Maintenance Tank (L) mounted for the SC-P7000 Series/SC- P6000 Series.
  • Page 204 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Disconnect the connectors (CN408, CN409) and FFC (CN400) from the Ink CN400 Holder Board Assy L. Use a stubby driver or a ratchet driver for the following procedure. C H E C K...
  • Page 205 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.6.8 Ink Holder Board Assy R Board Cover Hooks Remove the Control Panel. (p112) Remove the IC Cover R and the IC Shaft Cover R. (p115) Remove the Maintenance Tank R. (p117) Remove the Right Cover.
  • Page 206 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 11. Disconnect the FFC (CN400) from the Ink Holder Board Assy and release the FFC from the clamp. Clamp 12. Disconnect the connectors (CN408, CN409) from the Ink Holder Board Assy R. 13. Remove the five screws that secure the plate.
  • Page 207 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.6.9 AID Board - Top right - When replacing/removing this part, refer to "5.1.2 Adjustment A D J U S T M E N T R E Q U I R E D Items and the Order by Repaired Part"...
  • Page 208 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B - Top right - AID Board Figure 4-146. Removing the AID Board DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure SE Group Confidential (Related Staff Only)
  • Page 209 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.6.10 Ink Mark Sensor When replacing/removing this part, refer to "5.1.2 Adjustment A D J U S T M E N T R E Q U I R E D Items and the Order by Repaired Part" (p264)
  • Page 210 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Disconnect the FFC, and remove the Ink Mark Sensor. Ink Mark Sensor Figure 4-149. Removing the Ink Mark Sensor DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure SE Group Confidential (Related Staff Only)
  • Page 211 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.6.11 Ink Selector When replacing/removing this part, refer to "5.1.2 Adjustment A D J U S T M E N T R E Q U I R E D Items and the Order by Repaired Part" (p264) and make sure to perform the specified operations including required adjustment.
  • Page 212 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B DISASSEMBLING PROCEDURE Remove the Control Panel. (p112) CR Belt Cover Remove the IC Cover (L/R) and the IC Shaft Cover (L/R). (p115) Remove the Maintenance Tank (L/R). (p117) NOTE: There is no Maintenance Tank (L) mounted for the SC-P7000 Series/SC- P6000 Series.
  • Page 213 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 10. Remove the three screws that secure the Ink Tube Holder. A) Silver, Phillips, Bind P-tite with S.W & P.W. M3x8: three pieces Hook 11. Disengage the two hooks that secure the Ink Tube Holder, and remove the Ink Tube Holder.
  • Page 214 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 13. Slide the two Ink Tube Stoppers in the directions of the arrow to remove them. 14. Remove the two screws that secure the Ink Tube L, and remove the Ink Tube L from the Ink Selector.
  • Page 215 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 16. Remove the screws that secure the Ink Selector. C) Silver, Phillips, Bind S-tite M3x8: two pieces D) Silver, Phillips, Pan screw with S.W & P.W. M3x8: five pieces E) Black, Phillips, Bind S-tite M3x12: one piece 17.
  • Page 216 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.6.12 Ink Tube R When replacing/removing this part, refer to "5.1.2 Adjustment A D J U S T M E N T R E Q U I R E D Items and the Order by Repaired Part" (p264) and make sure to perform the specified operations including required adjustment.
  • Page 217 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B DISASSEMBLING PROCEDURE Remove the Control Panel. (p112) Remove the IC Cover (L/R) and the IC Shaft Cover (L/R). (p115) Remove the Maintenance Tank (L/R). (p117) NOTE: There is no Maintenance Tank (L) mounted for the SC-P7000 Series/SC- Ink Tube R P6000 Series.
  • Page 218 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 15. Remove the three screws that secure the Ink Tube Holder. See Figure 4-159. Hooks B) Silver, Phillips, Bind P-tite with S.W & P.W. M3x8: three pieces 16. Disengage the two hooks that secure the Ink Tube Holder, and remove the Ink Tube Holder.
  • Page 219 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 18. Remove the two screws that secure the Ink Tube R, and remove the Ink Tube R. See Figure 4-161. C) Silver, Phillips, Bind machine screw M2x16 (bit: No.1): two pieces  When connecting the Ink Tube R, make sure to connect it correctly as shown in the figure below.
  • Page 220 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.6.13 Ink Tube L When replacing/removing this part, refer to "5.1.2 Adjustment A D J U S T M E N T R E Q U I R E D Items and the Order by Repaired Part" (p264) and make sure to perform the specified operations including required adjustment.
  • Page 221 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B DISASSEMBLING PROCEDURE Remove the Control Panel. (p112) Remove the IC Cover (L/R) and the IC Shaft Cover (L/R). (p115) Remove the Maintenance Tank (L/R). (p117) NOTE: There is no Maintenance Tank (L) mounted for the SC-P7000 Series/SC- Ink Tube L P6000 Series.
  • Page 222 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 13. Remove the Ink Tube Holder. When replacing the Ink Tube L with a new one, make sure to C A U T I O N (Step 15 in "4.4.6.12 Ink Tube R"...
  • Page 223 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.7 Auto Take-up Reel Auto Take-up Reel Hook Take-up Reel Cover 4.4.7.1 Take-up Reel Cover Remove the two screws that secure the Auto Take-up Reel. A) Silver, Phillips, Pan S-tite with S.W & P.W. M4x10: two pieces Hold up the Auto Take-up Reel to disengage the hook, and remove the Auto Take- up Reel.
  • Page 224 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.7.2 Take-up Reel Sensor Remove the screw that secures the Take-up Reel Sensor. A) Black, Phillips, Bind P-tite M3x10: one piece Remove the Take-up Reel Sensor from the Auto Take-up Reel. Disconnect the connector from the Take-up Reel Sensor.
  • Page 225 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.7.3 Take-up Reel LED Remove the Flange from the Auto Take-up Reel. Remove the Take-up Reel Cover. (p223) Disconnect the connector (CN1) on the Main Board. Power Supply Unit Remove the four screws that secure the Power Supply Unit, and remove the Power Main Board Supply Unit.
  • Page 226 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.7.4 Take-up Reel Switch Remove the Flange from the Auto Take-up Reel. Auto Take-up Reel Flange Remove the Take-up Reel Cover. (p223) Disconnect the connector (CN1) on the Main Board. Remove the four screws that secure the Power Supply Unit, and remove the Power Supply Unit.
  • Page 227 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Disconnect the connector (CN17) on the Main Board. Panel Cover Remove the four screws that secure the Take-up Reel Switch, and remove the Take-up Reel Switch from the Panel Cover. Take-up Reel Switch B) Black, Phillips, Bind P-tite screw M2x7 (bit: No.1): four pieces...
  • Page 228 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.7.5 Power Supply Board Remove the Flange from the Auto Take-up Reel. Auto Take-up Reel Flange Remove the Take-up Reel Cover. (p223) Remove the two screws that secure the Plate A, and remove the Plate A.
  • Page 229 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Remove the six screws that secure the Power Supply Board, and remove the Power Supply Board. D) Black, Phillips, Bind S-tite M3x6: six pieces Power Supply Board Disconnect the connectors (CN1, CN2) on the Power Supply Board.
  • Page 230 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.7.6 Take-up Reel Motor Auto Take-up Reel Remove the Flange from the Auto Take-up Reel. Flange Remove the Take-up Reel Cover. (p223) Disconnect the connector (CN1) on the Main Board. Remove the four screws that secure the Power Supply Unit, and remove the Power Supply Unit.
  • Page 231 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Remove the two screws that secure the Main Board Unit. B) Black, Phillips, Bind S-tite M3x6: two pieces Disconnect the connector from the Take-up Reel Motor, and remove the Main Board Unit. Remove the C-Ring.
  • Page 232 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Motor Mounting Plate C-Ring Figure 4-180. Removing the Motor Mounting Plate Motor Mounting Plate Take-up Reel Motor Gear Gear Figure 4-181. Removing the Take-up Reel Motor DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure...
  • Page 233 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.7.7 Main Board Assy Remove the Flange from the Auto Take-up Reel. Auto Take-up Reel Flange Remove the Take-up Reel Cover. (p223) Disconnect the connector (CN1) on the Main Board. Remove the four screws that secure the Power Supply Unit, and remove the Power Supply Unit.
  • Page 234 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Remove the four screws that secure the Shield Plate, and remove the three clamps CN24* CN23 CN17 CN19* CN18 and the Shield Plate. CN14* B) Black, Phillips, Bind S-tite M3x6: four pieces Disconnect all the connectors on the Main Board.
  • Page 235 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Connector assignment: Connector No. Color Destination Power Supply Board (CN2) White Unused White USB-A Unused Unused Black Unused Blue Unused CN10 Yellow Unused CN11 Black Unused CN14 Blue Unused CN15 Take-up Reel Switch...
  • Page 236 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.8 SpectroProofer 4.4.8.1 Color Measurement Device  Do not touch the lens of the Color Measurement Device. C A U T I O N  When removing the Color Measurement Device, be careful not to drop it.
  • Page 237 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Disconnect the mini USB interface cable and the DC cable connected to the Color “ Measurement Device. Hold the rear of the Color Measurement Device, and lift it forward slightly, then DC connector cable remove it.
  • Page 238 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.8.2 Mounter When removing the Mounter, make sure to hold it up supporting C A U T I O N the locations shown in the figure by two or more people. Remove the Color Measurement Device.
  • Page 239 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.8.3 Right Cover Remove the Color Measurement Device. (p236) Remove the Mounter. (p238) Right Cover In the next procedure, one of the screws is different from the C H E C K P O I N T others;...
  • Page 240 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.8.4 Left Cover Remove the Color Measurement Device. (p236) Left Cover Remove the Mounter. (p238) Remove the five screws that secure the Left Cover. A) Black, Phillips, Bind machine screw M3x6: five pieces Remove the Left Cover.
  • Page 241 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.8.5 I/F Cover I/F Cover Remove the Color Measurement Device. (p236) Remove the Mounter. (p238) Open the I/F Cover. Disengage the two dowels, and remove the I/F Cover. Dowels Figure 4-194. Removing the I/F Cover DISASSEMBLY &...
  • Page 242 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.8.6 Front Cover This part is not an ASP. Remove the Color Measurement Device. (p236) Front Cover Remove the Mounter. (p238) In the next step, make sure to confirm which screw is attached to C H E C K which location because various screws are used here.
  • Page 243 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.8.7 Main Board When replacing/removing this part, refer to "5.1.2 Adjustment A D J U S T M E N T R E Q U I R E D Items and the Order by Repaired Part" (p264) and make sure to perform the specified operations including required adjustment.
  • Page 244 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Connector assignment: Connector No. Color Destination Power Supply Board (CN2) White Color Measurement Device White USB-A USB-B Cooling Fan 1 Black Paper Pressing HP Sensor Blue CR HP Sensor CN10 Yellow Thermistor CN11...
  • Page 245 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.8.8 Power Supply Board Remove the Color Measurement Device. (p236) Power Supply Board Remove the Mounter. (p238) Remove the Front Cover. (p242) Disconnect all the connectors (CN1, CN2) on the Power Supply Board.
  • Page 246 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.8.9 Paper Pressing Plate Sensor Remove the Color Measurement Device. (p236) Remove the Mounter. (p238) Remove the three screws that secure the shield plate, and remove the shield plate. A) Silver, Phillips, Bind machine screw M3x6: three pieces...
  • Page 247 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.8.10 CR HP Sensor Remove the Color Measurement Device. (p236) Remove the Mounter. (p238) Carriage Move the carriage to the center. Disengage the hooks that secure the CR HP Sensor, and detach the CR HP Sensor.
  • Page 248 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.8.11 Thermistor Remove the Color Measurement Device. (p236) Remove the Mounter. (p238) Remove the Front Cover. (p242) Remove the Right Cover. (p239) Disconnect the connector (CN11) on the Main Board. CN11 Remove the two screws that secure the USB Housing, and remove the USB Housing.
  • Page 249 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.8.12 Mount Sensor Mount Sensor Holder Remove the Color Measurement Device. (p236) Remove the Mounter. (p238) Connector Remove the Front Cover. (p242) Remove the Right Cover. (p239) Remove the two screws that secure the Mount Sensor Holder, and remove the Mount Sensor Holder.
  • Page 250 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.8.13 LED Remove the Color Measurement Device. (p236) Remove the Mounter. (p238) Main Board Remove the Front Cover. (p242) Remove the Right Cover. (p239) Disconnect the connector (CN23) on the Main Board. CN23 Remove the two screws that secure the USB Housing, and remove the USB Housing.
  • Page 251 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.8.14 Paper Pressing Encoder Remove the Color Measurement Device. (p236) Remove the Mounter. (p238) In the next steps, take care not to damage the scale of the Paper C A U T I O N Pressing Encoder.
  • Page 252 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Disconnect the connector from the Paper Pressing Encoder and remove the Paper Pressing Encoder. Scale Connector Paper Pressing Encoder Figure 4-211. Removing the Paper Pressing Encoder DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure...
  • Page 253 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.8.15 Cooling Fan 1 Relay connector When replacing/removing this part, refer to "5.1.2 Adjustment A D J U S T M E N T R E Q U I R E D Items and the Order by Repaired Part" (p264)
  • Page 254 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.8.16 Cooling Fan 2 When replacing/removing this part, refer to "5.1.2 Adjustment A D J U S T M E N T R E Q U I R E D Items and the Order by Repaired Part" (p264) and make sure to perform the specified operations including required adjustment.
  • Page 255 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Remove the four screws that secure the USB Housing Duct, and remove the USB Housing Duct. USB Housing Duct C) Silver, Phillips, Round Washer Head S-tite M3x10: four pieces 10. Remove the four screws that secure the plate.
  • Page 256 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 13. Remove the four screws that secure the Cooling Fan2, and remove the Cooling Fan2. G) Silver, Phillips, Bind S-tite with S.W & P.W. M3x12 & nut: four pairs Cooling Fan 2 Figure 4-218. Removing the Cooling Fan 2 (2) DISASSEMBLY &...
  • Page 257 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.8.17 Paper Pressing Motor When replacing/removing this part, refer to "5.1.2 Adjustment A D J U S T M E N T R E Q U I R E D Carriage Motor mounting plate Items and the Order by Repaired Part"...
  • Page 258 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.8.18 Carriage Motor When replacing/removing this part, refer to "5.1.2 Adjustment A D J U S T M E N T R E Q U I R E D Items and the Order by Repaired Part" (p264) and make sure to perform the specified operations including required adjustment.
  • Page 259 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Remove the screw that secures the Carriage Motor mounting plate, and remove the Carriage Motor mounting plate. B) Silver, Phillips, Bind machine screw M4x8: one piece Remove the two screws that secure the Carriage Motor, and remove the Carriage Motor.
  • Page 260 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 4.4.8.19 Paper Pressing Unit Remove the Color Measurement Device. (p236) Remove the Mounter. (p238) Remove the three screws that secure the shield plate, and remove the shield plate. Shield Plate A) Silver, Phillips, Bind machine screw M3x6: three pieces Figure 4-225.
  • Page 261 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Remove the E-ring. Pull out the shaft. Remove the O-ring, and remove the Paper Pressing Unit. First align the markings on the gears on the left and the right side of the Paper Pressing Unit with the markings on the gears on the main body, then install the Paper Pressing Unit.
  • Page 262 C H A P T E R ADJUSTMENT SE Group Confidential (Related Staff Only)
  • Page 263 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 5.1 Overview This chapter describes the Service Program software utility and the adjustment procedures required after repairing or replacing certain parts. 5.1.1 Precautions Always observe the following cautions whenever making an adjustment on the printer.
  • Page 264 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 5.1.2 Adjustment Items and the Order by Repaired Part The following table shows the required adjustments by repaired or replaced part and the order in which the adjustments must be performed. Find the part(s) you repaired or replaced in the table, and carry out the adjustments in the indicated order.
  • Page 265 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Replaced or Repaired Service Repla Reatt Class Required Operations Media* Page (Reattached) Part/Unit Program ached Replacement Replacement ✓ ✓ p. 150 Turn the power on in normal mode. ✓ ✓ CR Timing Belt Tension Adjustment ✓...
  • Page 266 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Replaced or Repaired Service Repla Reatt Class Required Operations Media* Page (Reattached) Part/Unit Program ached Replacement Replacement ✓ ✓ p. 148 CR related CR Encoder Sensor Turn the power on in normal mode.
  • Page 267 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Replaced or Repaired Service Repla Reatt Class Required Operations Media* Page (Reattached) Part/Unit Program ached Replacement Replacement ✓ ✓ p. 211 Turn the power on in normal mode. ✓ Ink Selector Ink Selector Counter Reset ✓...
  • Page 268 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Replaced or Repaired Service Repla Reatt Class Required Operations Media* Page (Reattached) Part/Unit Program ached 203, Replacement Replacement ✓ ✓ p. 205 ✓ Turn the power on in normal mode. Ink Cartridge Holder ✓...
  • Page 269 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Replaced or Repaired Service Repla Reatt Class Required Operations Media* Page (Reattached) Part/Unit Program ached Replacement Replacement ✓ ✓ p. 177 Turn the power on in normal mode. ✓ ✓ PF Motor Counter Reset ✓...
  • Page 270 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Replaced or Repaired Service Repla Reatt Class Required Operations Media* Page (Reattached) Part/Unit Program ached Before ✓ ✓ ✓ NVRAM Back Up replacement ✓ ✓ Replacement Replacement p. 243 Main Board ✓ ✓...
  • Page 271 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Replaced or Repaired Service Repla Reatt Class Required Operations Media* Page (Reattached) Part/Unit Program ached Before Remove the ink cartridges. ✓ replacement ✓ ✓ Replacement Replacement p. 137 ✓ Write down the MAC address.
  • Page 272 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Replaced or Repaired Service Repla Reatt Class Required Operations Media* Page (Reattached) Part/Unit Program ached Band Feed ✓ Photo paper ✓ p. 325 T&B&S Adjustment ✓ Plain paper A3 ✓ p. 326 Uni-D Adjustment_Auto ✓...
  • Page 273 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 5.1.3 Description of Adjustments The following table describes the general outline of the adjustments. Note : The meanings of abbreviations in the “tool” column are as follows. SP = Service Program SM = Serviceman Mode MECH = Mechanical Adjustment can be performed.
  • Page 274 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Tool Class Adjustment General Overview Page MECH Checks air leak status in the ink path when replacing ink tube, ink cartridge holder, √ – – p.317 Air Leak Check for Ink Supply Sys.
  • Page 275 Especially in case of ink cartridges in Europe, please refer to the Pro7880/9880. following web site to confirm the regulation in detail. Use the tool for ECO Info: http://www.epson.eu/weee (available from July 2015) 1282355 Paper Thickness Position Tool Epson Stylus Pro4880.
  • Page 276 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 5.1.5 Service Program Basic Operations This section describes the basic operations of the Service Program.  Save the Service Program on the desktop or directly under the C A U T I O N C drive.
  • Page 277 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 5.2 NV-RAM BACKUP / NVRAM Viewer Parameters stored in the NVRAM on the Main Board are read/stored and written onto the other NVRAM on the Main Board using this menu. Also, the read parameter information is displayed on the computer screen.
  • Page 278 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 5.2.2 NVRAM Viewer Basic Operation DESCRIPTION The following functions are provided.  Life Parts Life Parts Operation History Utilization History Error History Basic information PROCEDURE Follow the on-screen instructions to install the Nviewer.
  • Page 279 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B  Change Parts History  History Figure 5-4. [Change Parts History] Screen Figure 5-5. [History] Screen 1 Item 1 Item 2 Current Value Displays the current value per item. 2 Current Value Displays the current value per item.
  • Page 280 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B  Errors History  Basic Information Figure 5-6. [Errors History] Screen Figure 5-7. [Basic Information] Screen 1 Normal Errors History The history of normal errors. 1 Item Displays the types of the most recent six normal errors saved 2 Current Value The current value of the item.
  • Page 281 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Table 5-3. Replacement History INFORMATION SAVED TO CSV FILES Item Description  Life Parts APG Motor Replacement Date and Hour Table 5-2. List Parts Operation History APG Motor Counter when Previous Replacement Item...
  • Page 282 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Table 5-4. Usage History Table 5-4. Usage History Item Item Total Print Pages Ink Cartridge Setting Times (Slot 4 Light Cyan) Total Print Dimensions Ink Cartridge Setting Times (Slot 5 Mat Black) Total Power ON Time (Hours)
  • Page 283 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Table 5-4. Usage History Table 5-4. Usage History Item Item Slot #8 Ink Cartridge(Slot9 Green) Replacement Date and Hour History1 Slot #9 Ink Cartridge(Slot9 Green) Replacement Date and Hour History2 Slot #10 Ink Cartridge(Slot9 Green) Replacement Date and Hour History3...
  • Page 284 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Table 5-4. Usage History  Errors History Item Table 5-5. Errors History Ink Cartridge(Slot6 Photo Black) Production Date History1 Item Description Ink Cartridge(Slot6 Photo Black) Production Date History2 Normal Errors History Displays the most recent six errors and their time stamps.
  • Page 285 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 5.3 ADJUSTMENTS (Individual) This mode executes the adjustment required for the repair individually. PROCEDURE Click [ADJUSTMENTS (Individual)] from the main menu. Select the adjustment item that you want to execute and click [OK].
  • Page 286 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 5.4 ADJUSTMENTS (Sequence) This mode displays the required adjustments per replaced part and executes the adjustments in order. PROCEDURE Click [ADJUSTMENTS (Sequence)] from the main menu. Select the name of the replaced part.
  • Page 287 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 5.5 Installing Firmware This section explains how to update the firmware. The firmware of this printer is written in the Flash ROM on the Main Board. If the Main Board is replaced or the firmware needs to be updated, follow the procedure below to write the firmware to the Flash ROM.
  • Page 288 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 5.6 Image & Test Print The following functions are provided. Prints an image file (.PRN file) Transfers the.PRN file PROCEDURE Click [IMAGE PRINT] from the main menu. Click [Reference] to specify a file to print.
  • Page 289 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 5.7 Counter Clear Whenever the parts/units which have life counter are replaced, the corresponding life counter must be reset. This is important to replace those parts/units at the correct timing. EXECUTION MODE Serviceman Mode PROCEDURE Turn the printer ON in the Serviceman Mode.
  • Page 290 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B The history of the Counter Clear can be checked per counter on the C H E C K Table 5-7. Clear Counter Menu List P O I N T NVRAM Viewer 277).  Reset the administrator’s password...
  • Page 291 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 5.8 References This function allows you to view the following information (PDF files).  Control panel menus in the Normal Mode  Control panel menus in the Serviceman Mode  Wiring diagrams PROCEDURE Click [References] from the main menu.
  • Page 292 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 5.9 CR Related Adjustment 5.9.1 CR Timing Belt Tension Adjustment Open/close Switch This allows you to adjust the tension of the CR Timing Belt to a specified level. This is to execute after the CR Timing Belt has been loosened such as when removing the CR Motor.
  • Page 293 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Turn the printer on. Remove the screw A. Start the Service Program and select CR Timing Belt Tension Adjustment from Adjust the Driven Pulley slant with the slant adjusting screw. After adjusting the ADJUSTMENTS (INDIVIDUAL).
  • Page 294 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 10. Open the Front Cover. 12. Input the following values to the tension meter. 11. Move the Carriage Unit to the belt tension measuring position automatically.  MASS: 001.2 g/m  SC-P9000 Series/SC-P8000 Series: ...
  • Page 295 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 15. Loosen the screws (x2) that secure the Driven Pulley Holder. 16. Adjust the belt tension with the tension adjusting screw. After adjusting the tension, tighten the screws loosened in Step 15, and then back Step ...
  • Page 296 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 5.9.2 CR Encoder Sensor Adjustment This allows you to adjust the position of the CR Encoder Sensor to the CR Scale. PROCEDURE Turn the printer on. Securing Screw Start the Service Program, and select...
  • Page 297 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 5.9.3 Head PG Adjustment <Checks and adjustments on the right side of the Platen> Open the Front Cover. This is to adjust the gap between the Printhead and the platen. Figure 5-22 and secure the ruler on the Platen with the double-sided tape.
  • Page 298 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B At the right end of the Platen, confirm and adjust the height of the C H E C K P O I N T Printhead on the right and left sides by changing the position of the Carriage and the thickness gauges.
  • Page 299 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Loosen the adjustment screw and carry out the PG adjustment with the adjustment lever. After adjustment, secure the screw and return to Step Right Left Adjustment screw Adjustment screw Adjustment lever Adjustment lever Figure 5-23.
  • Page 300 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 5.9.4 Cleaning PG Adjustment Turn the printer ON in the Serviceman Mode. Turn the power ON while pressing [Menu ] + [Paper Feed ] + [OK] This allows you to adjust the gap between the Printhead and the wiper for cleaning with simultaneously.
  • Page 301 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 10. Move the Carriage Unit over the jig manually, and whether if the Printhead can touches or pass over the 2.2mm jig. When checking the contact point of the Printhead and the jig, move...
  • Page 302 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 23. Press [Pause/Reset] while is displayed. Perform the following remedy if is displayed. C A U T I O N  Confirm the assembling status of the Printhead and the Ink System Unit.
  • Page 303 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 5.9.5 CR Motor Measurement Use this to write characteristics of the CR motor to the Main Board. The appropriate current value is set to the motor for the constantly generated mechanical load. When performing this adjustment because of the replacement of C A U T I O N the Main Board or the Power Supply Board, refer to "4.1.4...
  • Page 304 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 5.10 Head Related Adjustments 5.10.1 Head Rank ID This adjustment is to input/set the unique information of the Printhead as the head rank so as to set the optimum drive voltage when replacing the Printhead. (Reading from/...
  • Page 305 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Click [Write]. Turn off the printer. Make sure to turn off the printer after clicking the [Finish] button. C A U T I O N The setting of Head Rank ID becomes valid after the printer is restarted.
  • Page 306 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 5.10.2 Head Cleaning This is to clean the Printhead. PROCEDURE FOR CLEANING Turn the printer on. Start the Service Program and select Head Cleaning from ADJUSTMENTS (INDIVIDUAL). Select the item you want to execute, and click [OK].
  • Page 307 The nozzle check pattern can be printed from the utilities on the C H E C K P O I N T printer driver. For Mac OS X, use EPSON Printer Utility3. ADJUSTMENT Head Related Adjustments SE Group Confidential (Related Staff Only)
  • Page 308 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 5.10.4 Printhead Slant Adjustment (CR) Service Program Ver. : 1.0.0, F/W version : This allows you to adjust the Printhead angle in the CR direction. Serial No. : XXXXXXXXXXXXXXX Printed Date : XXXX/XX/XX PAPER USED ...
  • Page 309 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Press the F11 key of the keyboard to unlock the CR unit. Open the Front Cover. Loosen the screws (x6) shown in Figure 5-34. Print Print Print head head head It is NG if the misalignment is more than the line thickness.
  • Page 310 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Turn the adjustment dial to adjust the slant of the Printhead. Tighten the screws (x6) loosened in Step 10. Close the Front Cover.  See the following for the direction of rotation. C H E C K P O I N T 11.
  • Page 311 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 5.10.5 Printhead Slant Adjustment (PF) This allows you to adjust the Printhead angle in the PF direction. A = B PAPER USED C = D  Size: 16 inches or more  Type:...
  • Page 312 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Press F11 on keyboard to lock the CR unit. Open the Front Cover (Middle). Loosen the head tilt lever securing screw shown in Figure 5-38. Head tilt lever securing screw Move the head tilt lever to up and down and adjust the slant of the Printhead.
  • Page 313 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 5.10.6 Uni-D Adjustment_Auto Use this to perform an automatic Uni-D adjustment using the Ink Mark Sensor. After adjustment pattern was printed, the printer will automatically scan the pattern and correct it. PAPER USED ...
  • Page 314 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 5.10.7 Bi-D Adjustment_Auto (Half)(IMS) Use this to perform an automatic Bi-D adjustment using the Ink Mark Sensor. After adjustment pattern is printed, the printer will automatically scan the pattern and correct misalignment. PAPER USED ...
  • Page 315 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 5.10.8 Ink Mark Sensor Height Adjustment Use the thickness gauge of 2.6 and 2.7 and check if the height of the Ink Mark Sensor is within the standard value. This allows you to adjust the position of the Ink Mark Sensor to make proper position ...
  • Page 316 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 5.10.9 Ink Mark Sensor Adjustment This allows you to adjust the sensitivity and the detecting position of the Ink Mark Sensor by printing the specified patterns and scanning it with the Ink Mark Sensor.
  • Page 317 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 5.10.10 Air Leak Check for Ink Supply System Step 6 The ink supply path should be checked for air leaks whenever the Ink Tube, Ink Cartridge Holder or Dampers are replaced, or the joint of the Ink Cartridge Holder and the Damper is once loosened and retightened.
  • Page 318 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Turn each valve of the Ink Leak Measurement Jig as follows: <Part Names>  Valve No.1: Closed Pressure Gauge (GC66) The battery can be replaced  Valve No.2: Open from the hole on the rear.
  • Page 319 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 5.10.11 Initial Ink Charge Flag ON/OFF 5.10.12 Tube washing and Discharge This allows you to set whether initial ink charging is executed or not when turning the Drains ink in all the nozzles to clean them.
  • Page 320 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 5.10.13 Ink Charge This is to execute the initial ink charge. Make sure to check the ink remaining level and if the remaining C A U T I O N amount is less than 50%, replace the ink cartridge with a new one before starting this adjustment.
  • Page 321 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 5.10.14 Tube Inner Pressure Reduction 5.10.15 LLk/Vi Ink Change Reduce the pressure in the ink flow paths. Carries out ink change in Row G (between Light Light Black and Violet). PROCEDURE PROCEDURE Turn the printer on.
  • Page 322 Microphone Remove the following parts in advance.  IC Cover L and Shaft Cover L  Maintenance Tank L (SC-P9000 Series/SC-P8000 Series only)  Left Cover Install the following part after removing the Left Cover.  Maintenance Tank L (SC-P9000 Series/SC-P8000 Series only) Screws Switch the open/close detection switch on the Left Cover to make cover closed.
  • Page 323 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Press [MEASURE] on the Sonic Tension Meter U-507 and flip the Timing Belt with tweezers in the direction of the arrow in Figure 5-50.  Flip the Timing Belt as weak as the Sonic Tension Meter U-507 C A U T I O N can measure it.
  • Page 324 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 5.11.2 Skew Check This allows you to check the skew level of the paper and confirm if the paper feed is executed within the standard value. PAPER USED  Size: 24 inches or more Paper feeding direction ...
  • Page 325 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 5.11.3 Band Feed When measuring the value, make sure to put the adjustment C A U T I O N pattern on the horizontal surface. This allows you to correct the paper feeding amount. If this adjustment is not executed properly, it may cause banding.
  • Page 326 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 5.11.4 T&B&S Adjustment When measuring the value, make sure to put the adjustment C A U T I O N pattern on the horizontal surface. This allows you to adjust the top, bottom and side margins for the paper.
  • Page 327 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Top margin (15 ± 0.4 mm) Top margin (15 ± 0.4 mm) Side margin Side margin (15 ± 0.4 mm) (15 ± 0.4 mm) Service Program Ver. : 1.0.0, F/W version : XXXXXXX Serial No.
  • Page 328  IC Cover (L/R) and IC Shaft Cover (L/R) REQUIRED TOOL  Maintenance Tank (L/R) (Maintenance Tank L is for SC-P9000 Series/SC- P8000 Series only)  P-Thick Sensor Position Jig (use the one 0.5 in thickness only.)  Control Panel ...
  • Page 329 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 11. Press [Paper Set] to release the paper presser. Setting direction 12. Insert the adjustment jig (0.5) from the paper insertion opening, and set it to the position shown in Figure 5-55, then press the [Paper Set] button.
  • Page 330 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B ADJUSTMENT PROCEDURE Paper Thickness Sensor Holder Adjust sensor (1) when using the paper thickness position tool 0.4/0.5, or when the paper pressure rollers are locked and no adjustment jigs are available. Adjust sensor (2) when using the paper thickness position tool 0.8/0.9, or when the paper pressure rollers...
  • Page 331 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 5.11.6 Cut Position Adjustment Adjusts the paper position cut by the Auto Cutter. Full Center Home PAPER USED Paper feeding  Size: direction  SC-P9000 Series/SC-P8000 Series: 44 inches  SC-P7000 Series/SC-P6000 Series:24 inches ...
  • Page 332 Remove the following parts in advance.  IC Cover L and IC Shaft Cover L  Maintenance Tank L (SC-P9000 Series/SC-P8000 Series only) Screws  Left Cover Check the positional relation of the detector for the PF Encoder Sensor and PF Scale.
  • Page 333 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 5.11.8 Rear Sensor AD Adjustment When executing procedure below, do not remove the external parts C A U T I O N to acquire proper AD value. This allows you to acquire AD values of the newly attached Rear Sensor to store them onto the Main Board as a standard for reading operation of the sensor.
  • Page 334 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 5.11.9 PF Motor Measurement Use this to write characteristics of the PF motor to the Main Board. The appropriate current value is set to the motor for the constantly generated mechanical load. When performing this adjustment because of the replacement of C A U T I O N the Main Board or the Power Supply Board, refer to "4.1.4...
  • Page 335 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 5.12 Board Adjustment 5.12.2 NVRAM Backup & Restore Execute the NVRAM backup and restore. 5.12.1 Initialize Main board PROCEDURE Save the destination to the Main Board. Turn the printer on. PROCEDURE Start the Service Program, and select NVRAM Backup &...
  • Page 336 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 5.12.3 RTC Check & Input This allows you to reset the date and time of the RTC backup battery. PROCEDURE Turn the printer ON. Start the Service Program and select RTC Check & Input...
  • Page 337 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 5.12.4 Input Serial Number Use this to write the printer serial number to the NVRAM, or to check the serial number written in the NVRAM. PROCEDURE Turn the printer ON. Start the Service Program, and select...
  • Page 338 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 5.12.5 MAC Address Input Open the front cover and enter the MAC address written on the MAC address label attached inside the printer, then click the [Input] button. The MAC address of this printer is recorded on the NVRAM of the Main Board. When replacing the board, make sure to write the MAC address to the new board as follows.
  • Page 339 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 5.13 Tests 5.13.2 Suction Fan Operation Check This allows you to check if Suction Fan is operated correctly. 5.13.1 Network Communication Check PROCEDURE Use this to check if the printer can communicate with the computer via a network.
  • Page 340 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 5.13.3 AID Function Check  After the 2nd time: → Carry out the AID Function Check, and if the number of clogged Use this to check that the AID function operates properly. nozzles is still different from the check pattern, carry out the remedy #3 on Table 5-8.
  • Page 341 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B  Check procedure  No.2  No.1 Troubleshoot the error displayed on the panel. Turn the printer on.  No.3 Disconnect the AC cable. Turn the printer off. Remove the Rear Cover. (p.129) Disconnect the AC cable.
  • Page 342 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 15. Place the red probe of the tester on the metal part on the surface of the Flushing Flushing Box Box. 16. Place the black probe of the tester on the frame ground and measure the resistance.
  • Page 343 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 18. Move the Carriage Unit to the home side. (Do not lock the Carriage Unit.) 21. If the resistance value is 100 ohm or more, measure the resistance between the Head Cover Plate and the Carriage Frame.
  • Page 344 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 23. Measure the resistance between the Carriage Frame and the frame ground. 29. Start the Service Program and select AID Function Check from ADJUSTMENTS (INDIVIDUAL).  If the number of clogged nozzles is equal to the nozzle check pattern: Frame ground →...
  • Page 345 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 5.13.4 AID Adjustment Write the AID initial voltage value onto the NVRAM. PROCEDURE Before executing out the AID Adjustment, perform the AID C H E C K P O I N T Function Check 340).
  • Page 346 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 5.13.5 Operation Panel Check 5.13.6 Button Operation Check This allows you to check if there is any dot missing occurring or not on the Color LCD. This allows you to check if buttons on the control panel function correctly.
  • Page 347 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 5.13.7 SpectroProofer Check MOUNTER ONLY TEST’S PROCEDURE This inspection checks each part and function of the SpectroProofer operates normally.  Preparation Start the Service Program. INSPECTION CONTEXT Connect the mounter to the computer with a USB cable.
  • Page 348 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B  Sensors check  Fan Check Select Sensors check, and click on the [Run] button. Select check, and click on the [Run] button. Follow the instructions on the screen to execute the inspection.
  • Page 349 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B  CR move Perform this check while the mounter is installed on the printer, or C A U T I O N placed on a flat location. Select move, and click on the [Run] button.
  • Page 350 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B  Calibration check MOUNTER + ILS TEST PROCEDURE Select Calibration check, and click on the [Run] button.  Preparation Follow the instructions on the screen to execute the inspection. Start the Service Program.
  • Page 351 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B  Paper holder check Select Paper holder check, and click on the [Run] button. Follow the instructions on the screen to execute the inspection. Confirm the whole Paper Pressing Plate is touching the backing without any gap.
  • Page 352 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B  Tile position check Take a measure according to the code of displayed screen. Select Tile position check, and click on the [Run] button. Code Description Remedy Follow the instructions on the screen to execute the inspection.
  • Page 353 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B  Take-up Reel USB host check Select Take-up Reel USB host check, and click on the [Run] button. Follow the instructions on the screen to execute the inspection. Take a measure according to the code of displayed screen.
  • Page 354 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 5.13.8 Colorimetric Calibration (Color ID) with SpectroProofer This adjustment is described in the same manner as other models. C A U T I O N Therefore, the procedure is basically the same, but some actual steps or patterns may differ.
  • Page 355 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 5.13.8.2 Adjusting Method ADJUSTMENT WORKFLOW REQUIRED TOOLS The workflow of the adjustment is explained in this section. Table 5-10. Tools Required START Tool Application/Specification Plain Paper (A4) For nozzle check Cleaning EPSON Enhanced (Archival) Matte...
  • Page 356 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B ADJUSTMENT PROCEDURE Turn the printer power on. Double-click the “LFPCCAS.exe”. Select the printer model. When several drivers are installed for one printer, check that the C A U T I O N backlight of the LCD panel on the printer flashes by selecting the printer model and click [Next].
  • Page 357 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Load an A4-sized paper vertically on the paper tray, click [Next] to start the nozzle check. Check the nozzle pattern. If there is any defect, execute the cleaning using the Service Program. If the check pattern is appropriate, click [Next].
  • Page 358 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Make sure there is no missing dots in the nozzle check pattern at the bottom of the Do not contaminate the white plate of the calibration base plate. If C A U T I O N calibration chart.
  • Page 359 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 13. Make sure that the date and time printed in the second line on the upper left of the chart (measurable time and date) is within the range displayed under the heading “GMT” on the lower screen. (If the date and time is not within the range, it is necessary to print the chart again.)
  • Page 360 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 15. Click [OK] and follow the instructions (following procedure) displayed on the screen to perform color measuring. Set the calibrator with its measuring part matched with measuring start position (margin) as shown in Figure 5-96.
  • Page 361 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B If measuring color fails, you should turn the chart 90 degrees (so C H E C K P O I N T that the nozzle check pattern comes on the right) and move the calibrator from front to rear.
  • Page 362 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Start Figure 5-99. Color Measuring Order ADJUSTMENT Tests SE Group Confidential (Related Staff Only)
  • Page 363 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 17. Make sure that the “READY” message is displayed on the printer LCD panel, and click [Next] to turn OFF the printer automatically. And then, turn on the printer, write the “Color ID” to the printer main unit.
  • Page 364 C H A P T E R MAINTENANCE SE Group Confidential (Related Staff Only)
  • Page 365 Locate the printer on a stable and flat surface. This chapter provides information on how to maintain the printer in its optimum  SC-P9000 Series/SC-P8000 Series 135kg, SC-P7000 Series/SC- operating condition. P6000 Series 101kg. When the printer needs to be moved, make sure to lift or carry the printer with four people, holding the Basically, servicing on the printer should be performed on-site.
  • Page 366 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B  Be sure to spread a sheet of paper or cloth on the work space C A U T I O N before removing any ink-path-related parts or components to keep the space from being soiled with leaked ink.
  • Page 367 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 6.2 Setting Up/Storing the Printer 6.2.2 Storing the Printer and Cleaning the Ink Path When storing the printer, make sure to leave the ink cartridges installed and place it on 6.2.1 Setting Up a horizontal surface, and also inform the user on the following cautions.
  • Page 368 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B When storing the product for a long time, perform the cleaning of the ink path following the procedure below. Remove the user's maintenance box, and install the maintenance box for service. Turn the printer on.
  • Page 369 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 6.3 Transportation SETTING UP THE PRINTER AFTER TRANSPORTATION Make sure that the installation site is proper.  Make sure to keep the ink cartridge installed so as to prevent C A U T I O N ink from leaking or the printhead from drying.
  • Page 370 Turn on the printer, and set the roll paper. (Set the roll paper of 44-inch width for If there is a serious problem of dirt, clean it using a soft, clean cloth dampened SC-P9000 Series/SC-P8000 Series, and 24-inch width for SC-P7000 Series/SC- with a mild detergent. Then, wipe the platen with a dry, soft cloth.
  • Page 371 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B CLEANING THE PLATEN’S SUCKING HOLES If the paper feeding is unstable (if some floating or skewing of the paper can be seen), check the sucking holes on the platen for paper dust clogging there. If there are some clogging, clean the holes as follows.
  • Page 372 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 6.5 Lubrication Lubrication Corresponding Part Name of Lubricant Reference Part name: G-84 LUBRICATION CR Guide Shaft (Full) p.377 1516265 Part code: Part name: G-74 This section describes necessary lubrication to maintain the functions and performance Roll Paper Guide Rail p.378...
  • Page 373 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B [Lubrication 1] [Lubrication 2] Part Name Roll Cover Assy (home side) Part Name Roll Cover Assy (full side) Lubrication Point On the sliding parts of the guide pin of the Roll Cover Assy...
  • Page 374 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B [Lubrication 3] [Lubrication 4] Part Name Roll Cover Assy (home side) Part Name Sub Frame L Lubrication Point On the contact points of the mounting plate with the Roll Cover Assy Lubrication Point...
  • Page 375 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B [Lubrication 5] [Lubrication 6] Part Name Roll Cover Assy (full side) Part Name Carriage Unit Lubrication Point On the contact point of the Roll Cover Assy with the mounting plate Lubrication Point On the contact point of the PG Cam with the Shield plate...
  • Page 376 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B [Lubrication 7] [Lubrication 8] Part Name Carriage Unit Part Name Carriage Unit Lubrication Point On the contact point of the CR Slider with the CR Guide Shaft Lubrication Point The holes (4 places) at both ends of the CR Unit rear side...
  • Page 377 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B [Lubrication 9] [Lubrication 10] Part Name CR Guide Shaft Part Name CR Guide Shaft On the contact point of the CR Guide Shaft (home side) with the CR Lubrication Point On the contact point of the CR Guide Shaft (full side) with the CR Unit...
  • Page 378 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B [Lubrication 11] Part Name Roll Paper Guide Rail On the contact point of the Roll Paper Guide Rail with the Roll Paper Lubrication Point Guide Lubricants G-74 Amount Apply the grease all over the rail.
  • Page 379 C H A P T E R APPENDIX SE Group Confidential (Related Staff Only)
  • Page 380 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 7.1 Block Wiring Diagram 7.1.1 Main Body Ink Selector Sensor Ink Selector Motor Printhead Sub Board Assy Pressure Sensor PG HP Pressurizing Pump Control Panel Sensor Motor Encoder PF Encoder Sensor Pressurizing Pump Motor...
  • Page 381 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 7.1.2 Auto Take-up Reel 7.1.3 SpectroProofer NOTE : Not for SC-P7000 Series/SC-P6000 Series. SpectroProofer DC Board Cooling Fan 1 Cooling Fan 2 Paper Pressing Plate Sensor CN26 CR HP Sensor CN17 CN23 Auto Take-up Encoder...
  • Page 382 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 7.2 Panel Menu Map This section provides the map of executable menus on the Control Panel. APPENDIX Panel Menu Map SE Group Confidential (Related Staff Only)
  • Page 383 ★ Roll Paper Tension On　 Refresh Margin Roll Paper Margin ★ Normal　 Top15mm/Bottom15mm Top35mm/Bottom15mm Top150mm/Bottom15mm 15mm Refresh Margin ★ On　 Roll End Option Continue ★ Stop Printing　 SC-P9000 series/SC-P7000 series/SC-P8000 series/ Reprint SC-P6000 series Roll Paper Tension 1 to 5...
  • Page 384 Powerful Cleaning Time Zone All Nozzles XX/XX (where XX indicates Manage HDD the ink color code) Reset All Settings Date And Time MM/DD/YY HH:MM Manage HDD Format Hard Disk Format Hard Disk Reset All Settings SC-P9000 series/SC-P7000 series/SC-P8000 series/ SC-P6000 series...
  • Page 385 F to H Speed Wait 250 CPS 300 CPS Feed Speed 2 Life Count 500 CPS Wait Wait 2 Life Count Wait Life Count Cutter Length Return Length Speed Return Speed Wait 1 Wait 2 Life Count SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series...
  • Page 386 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B 7.3 Part names used in this manual Table 7-1. Conversion Table Ref. Part name used in this manual ASP part name (Ch4 sec.No.) To make it easier to locate the target part from its part name, this manual uses the part names different from the ASP part names.
  • Page 387 SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series Revision B Table 7-1. Conversion Table Table 7-1. Conversion Table Ref. Ref. Part name used in this manual ASP part name Part name used in this manual ASP part name (Ch4 sec.No.) (Ch4 sec.No.) Printhead PRINTHEAD 4.4.6.3...
