Page 1
PDR-2000 Ethernet I/O Module KEY FEATURES Dual SFP (Small Form-factor Pluggable) ports supporting fiber optic and electrical • connections Native synchronous to asynchronous protocol conversion • Programmable maintenance packet transmission rates • Configurable Loss of Communication (LOC) timeout settings •...
Page 2
DESCRIPTION The PDR-2000 Ethernet I/O module provides high-speed Ethernet communication capabilities for the PDR-2000 teleprotection system. This module serves as the interface between the PDR- 2000's internal synchronous communication system and external asynchronous Ethernet networks, supporting both standard Ethernet and GOOSE (Generic Object Oriented Substation Event) messaging protocols.
Page 3
Ethernet network. The Network ID numbers must be the same for all units communicating with each other. The PDR-2000 logic needs to be configured to allow packets from another PDR-2000 to key outputs. These settings are in the RX Logic of the PDR-2000 GUI.
Page 4
1. The Ethernet module is now accessible for configuration Configuration Parameters Unit ID Number (Local Unit) Range: 1-255 Description: Must match the Unit ID of the PDR-2000 unit Factory default: 1 Maintenance Packet Cycle Range: 3-10000 milliseconds Description: Frequency of maintenance packet transmission...
Page 5
Note: All units communicating with each other must have identical Network ID numbers Remote Unit ID Range: 1-255 Description: Unit ID of remote PDR-2000 that the local unit is communicating with Factory default: 2 Example 1: Basic Two-Unit Configuration Unit A Configuration:...
Page 6
• When programming is completed, click the Exit Programming Mode button in the GUI • The Ethernet I/O module will timeout and exit Programming Mode after 15 minutes • Cycling the power of the PDR-2000 will reset the Ethernet I/O module back to normal mode...
Page 7

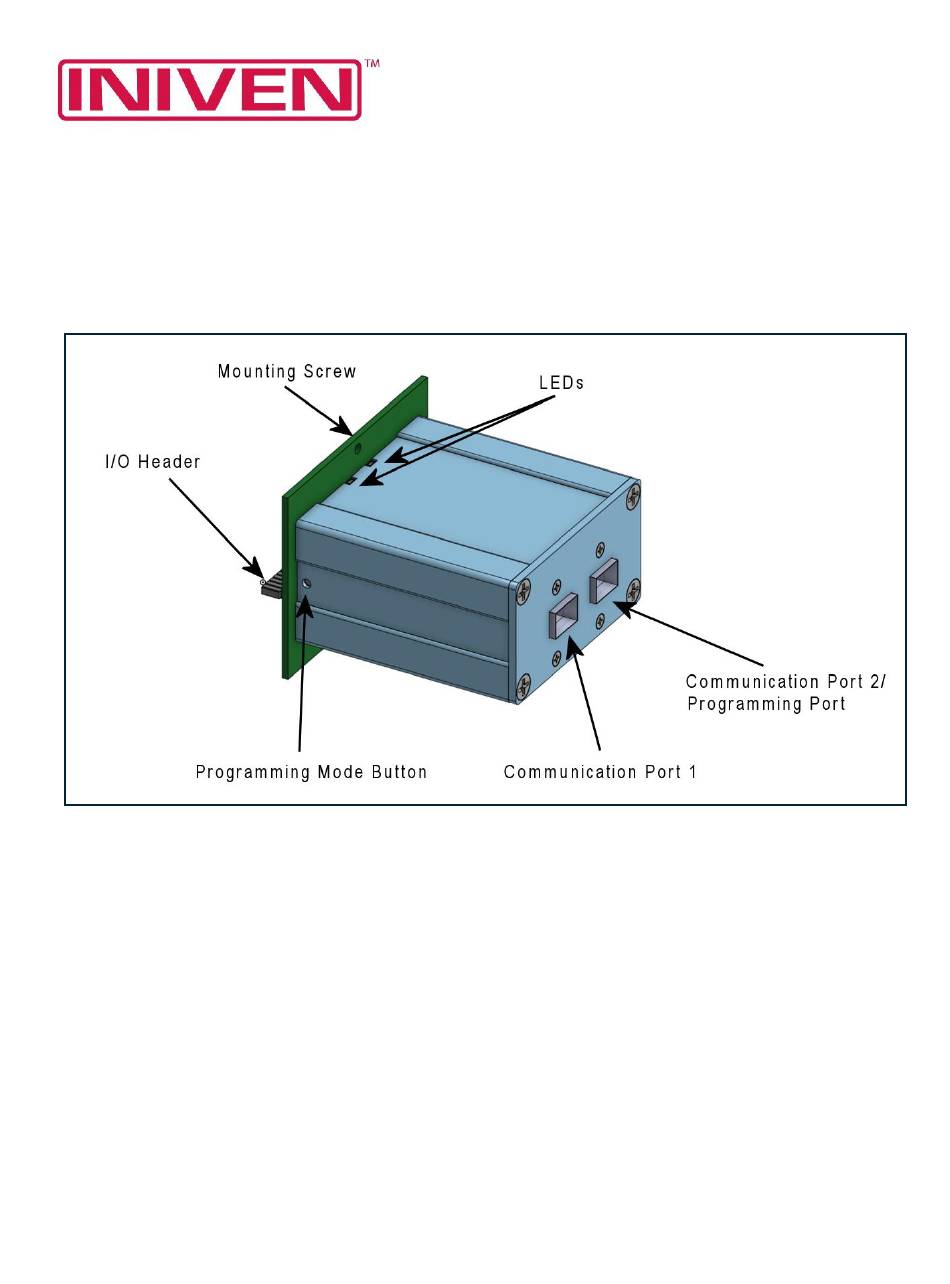

To mount the Ethernet I/O module, align the header on the back of the I/O with the connector in the opening on the rear of the PDR-2000. Use the screw mounting holes as a guide for alignment and gently push the interface into the opening. If when the interface is seated correctly the mounting holes should line up perfectly.
Page 8
• A Slow flashing Green LED indicated a Bad fiber signal • A solid Red LED indicates there is no communications from the Ethernet I/O module to the PDR-2000 microprocessor • When both LEDs alternate flashing White, the I/O module is in Programming Mode...
Page 9
SPECIFICATIONS Electrical Specifications Parameter Specification Input Voltage 5 VDC ±10% Power Consumption 5W maximum Input Current 900 mA maximum Isolation Voltage 2500 VAC Environmental Specifications Parameter Specification Operating Temperature -40°C to +70°C (-40°F to +158°F) Storage Temperature -50°C to +85°C (-58°F to +185°F) Relative Humidity Up to 95% non-condensing Vibration...
Page 10
Store modules in anti-static containers when not in use • Avoid touching connector pins or circuit board components • If you have questions or concerns, please contact Iniven by calling 908-722-3770 or by email using the Contact form at www.iniven.com...
