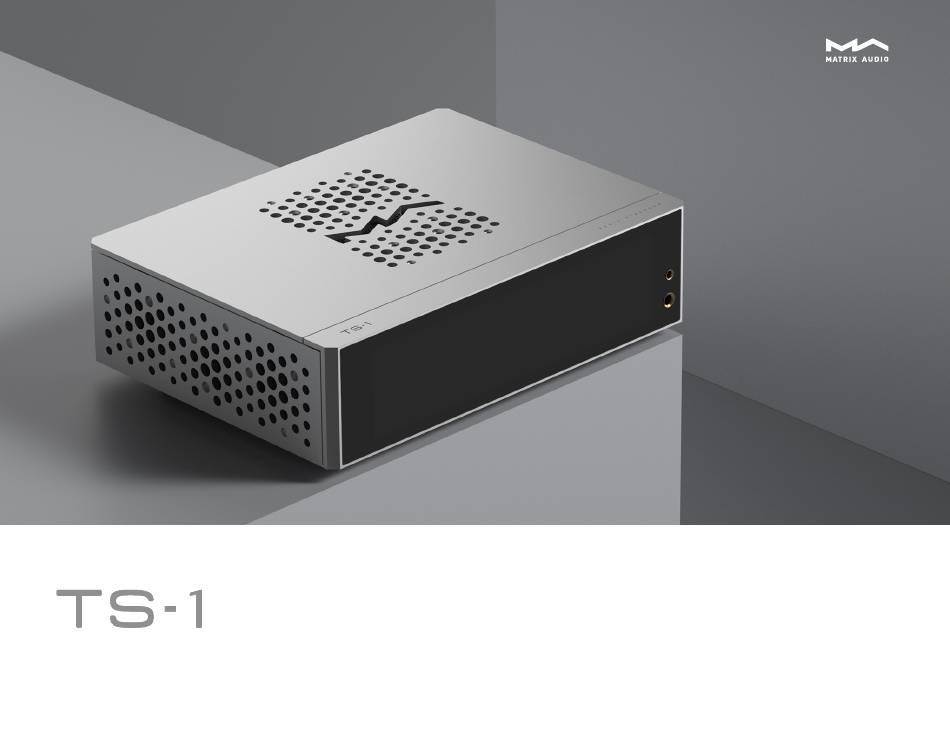

- Page 1 USER MANUAL M usic Streamer...
- Page 2 M usic Streamer Catalog Packing list............... . 01 Parts and names .
- Page 3 M usic Streamer Packing list Product Remote control Power cable Printed Materials...
- Page 4 M usic Streamer Parts and names Front Power on/Standby After connecting to power supply, touch this button to power the device on, touch it again to let the device standby. It will take about 30 seconds for the first start up after connecting to the power supply every time. LCD screen 4.4mm balanced headphone jack 6.35mm unbalanced headphone jack...
- Page 5 Only use this button when the unit works incorrectly, the unit can be reset to factory state. USB Audio Please operate under the instructions by service team from Matrix Audio. Connect to a PC through USB A to B cable, the device will work as an external sound card of the PC.
- Page 6 DC input Otherwise, the device still consumes power in standby mode. TS-1 has a built-in switching power, and a DC input is reserved for an external power to Grounding terminal upgrade the power supply. When a DC input is attached, the internal AC input of the device When using an external power, it is recommended to connect the ground wire to this will be disconnected.
- Page 7 M usic Streamer Parts and names Bottom SSD slot You can install an NVMe protocol high-speed SSD as internal storage. The slot supports 2280, 2260, and 2242 SSDs. Please turn off and unplug the power cord the device before installing the SSD. This expansion slot does not support hot swapping. Operating while powered on may risk damaging the SSD and the device.
- Page 8 If there is more than one Matrix Audio device in a single environment, in order to prevent one remote control from controlling multiple devices at the same time, we preset 5 address codes in the remote control.
- Page 9 M usic Streamer Operations before using Connect to Network MA Remote App Install the MA Remote App for your iPad, iPhone or Android phone. Connect the product to the LAN port of the network router through an Ethernet cable. It is recommended to set up the router as a DHCP server, the device will be assigned an IP address automatically.
- Page 10 M usic Streamer Operations before using Driver for USB Audio When connecting the devices to a Windows 7/8/10/11 computer via USB connection as an external audio device, please install drivers as following instructions: 1.Double-click the driver installation package and click "Next". 3.Click "Next"...
- Page 11 M usic Streamer Operations before using It’s no need to install drivers for macOS, just select “TS-1” as the audio output device in Sound Preferences. elementX2...
- Page 12 M usic Streamer Appendix Technical specifications Headphone Output 4.4mm Balanced Digital Input SNR : 119dB A-weighting Coaxial & Optical : THD+N : <0.0004%@20Hz-20kHz 4VRMS PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz Frequency Response : 20Hz-20kHz 0.5 -3dB@22kHz DSD 2.8MHz (DoP) Output Impedance : <2Ω...
- Page 13 M usic Streamer Appendix MA Player Weight & size Controller app : MA Remote App Weight : 2.89kg (6.37 pounds) Dimension : Width : 280 mm (11.02 inches) Local Playback : Depth : 210 mm (8.27 inches) Format Supported : MP3 , WMA , WAV , AIF, AIFC, AIFF, AAC, FLAC, OGG, APE, ALAC, M4A, Height : 82 mm (3.23 inches) DSF, DFF, CUE, ISO PCM 16-24Bit/44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz,...
- Page 14 M usic Streamer Appendix About Roon Ready Being Roon Ready means that Matrix Audio music streamers transparently discover and connect to Roon without any configuration, and bit-perfect audio is delivered from Roon to your music streamer. About Spotify Use your phone, tablet or computer as a remote control for Spotify. Go to spotify.com/connect to learn how.
- Page 15 M usic Streamer Precautions This product is for indoor use only. For full ventilation, it is recommended to reserve a space of larger than 5 cm around the device. Do not cover the air vents with stuffs such as papers, tablecloths, and curtains to obstruct ventilation.
