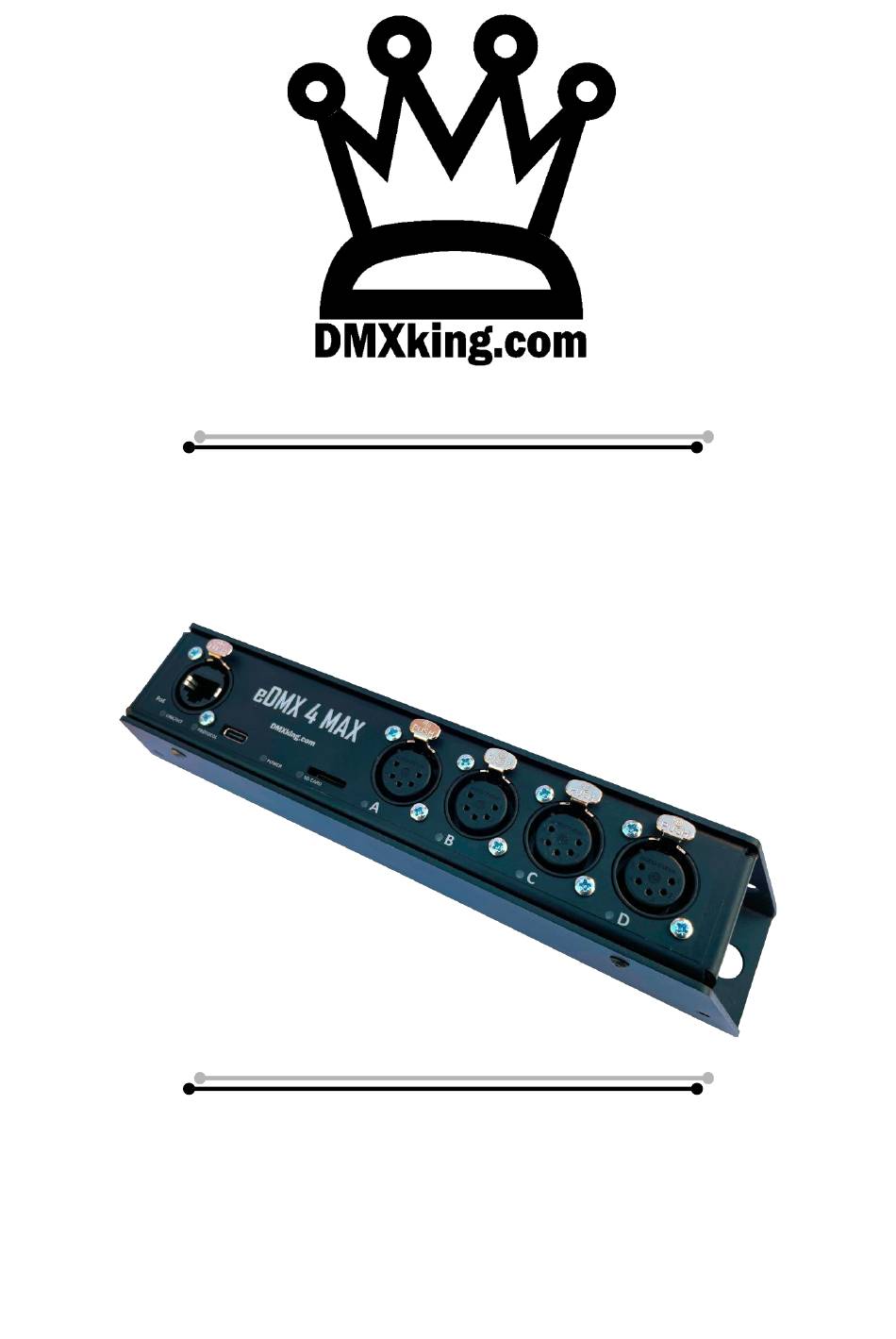

- Page 1 MAX USER MANUAL DMXking.com • JPK Systems Limited • New Zealand 0134-700-4.7...
- Page 2 USB DMX Serial Number ................................. 4 Default Configuration ................................. 5 Configuration Utility ................................... 6 Technical Specifications ................................7 Warranty ....................................7 DMXking Hardware Limited Warranty ............................7 Acknowledgements ..................................8 Declarations ....................................8 DMXking.com • JPK Systems Limited • New Zealand 0134-700-4.7...
- Page 3 HARDWARE AND FIRMWARE VERSIONS From time-to-time minor hardware changes occur in our products usually small feature additions or unseen optimizations. The table below lists eDMX4 MAX product variants. Check the product label for P/N details. Part Number Feature addition 0134-1.0-3...
- Page 4 Supported operating systems: Windows, MacOS, Linux, iOS, Android − eDMX4 MAX - 4x DMX512 OUT or DMX512 IN with Art-Net, sACN E1.31 and E1.20 RDM support − Art-Net broadcast, Art-Net II,3 & 4 unicast, sACN/E1.31 Multicast and sACN Unicast support −...
- Page 5 SD card activity Port A DMX512 Port A TX/RX activity Port B DMX512 Port B TX/RX activity Port C DMX512 Port C TX/RX activity Port D DMX512 Port D TX/RX activity DMXking.com • JPK Systems Limited • New Zealand 0134-700-4.7...
- Page 6 For software compatibility reasons a BCD serial number is calculated from the MAX device hardware MAC address using the lower 3 hexadecimal bytes converted to a decimal number. Software that has been updated for MAX series devices will display the hardware MAC address. DMXking.com • JPK Systems Limited • New Zealand 0134-700-4.7...
- Page 7 4. DEFAULT CONFIGURATION All eDMX4 MAX units ship with default IP address settings. Please reconfigure network settings as required before use. Parameter Default Setting IP Address 192.168.0.112 Subnet Mask 255.255.255.0 Default Gateway 192.168.0.254 IGMPv2 Unsolicited Unchecked Report Network Mode Static IP address DMX512 Port configuration parameter defaults.
- Page 8 5. CONFIGURATION UTILITY Download eDMX MAX Configuration Utility from https://dmxking.com/downloads-list User manual for the utility https://dmxking.com/downloads/eDMX MAX Configuration Utility User Manual (EN).pdf DMXking.com • JPK Systems Limited • New Zealand 0134-700-4.7...
- Page 9 Failure due to operator error or incorrect application of product. What DMXking will do DMXking will repair or replace, at its sole discretion, the defective hardware. How to obtain service Contact your local distributor https://dmxking.com/distributors DMXking.com • JPK Systems Limited • New Zealand 0134-700-4.7...
- Page 10 8. ACKNOWLEDGEMENTS Art-Net™ Designed by and Copyright Artistic Licence 9. DECLARATIONS The eDMX4 MAX has been tested against applicable standards and certified compliant as below. Standard IEC 62368-1 Audio/Video and ICTE Safety Requirements IEC 55032 Radiated Emissions IEC 55035 EMC Immunity Requirements...
