This Owner's Manual is provided and hosted by Appliance Factory Parts.
ASKO D5223XXLSS
Owner's Manual
Shop genuine replacement parts for ASKO
D5223XXLSS
Find Your ASKO Dishwasher Parts - Select From 210 Models
-------- Manual continues below part list --------
Advertisement
Related Manuals for Asko D5223XXLSS
Summary of Contents for Asko D5223XXLSS

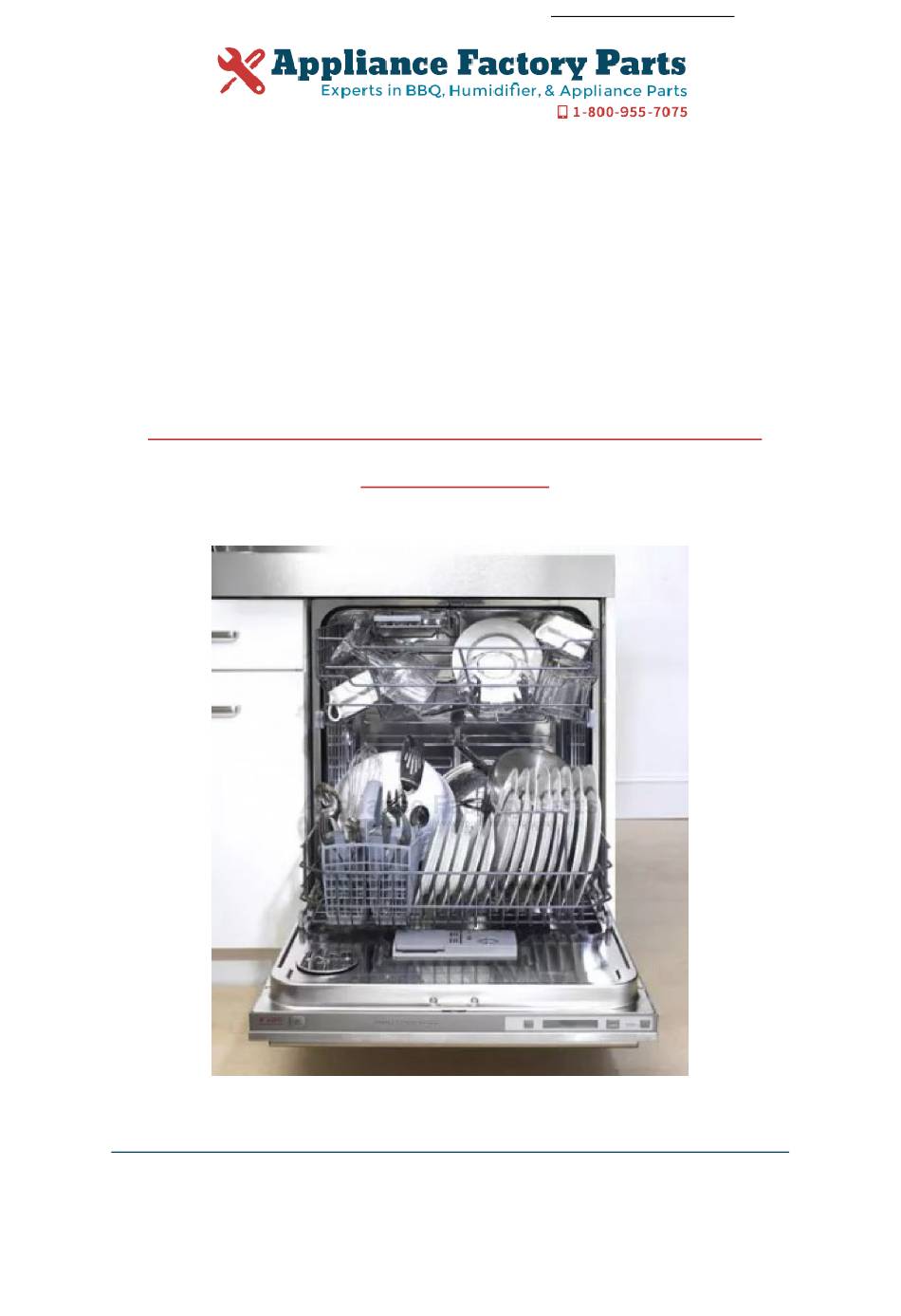

- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. ASKO D5223XXLSS Owner's Manual Shop genuine replacement parts for ASKO D5223XXLSS Find Your ASKO Dishwasher Parts - Select From 210 Models -------- Manual continues below part list --------...
- Page 2 Available Replacement Parts for ASKO D5223XXLSS 428814 SPACERS...
- Page 3 Dishwasher Save these instructions for future reference Dear ASKO customer! Thank you for choosing this quality product from Scandinavia, which was made in Sweden. We want you to feel assured that the inside of your new machine is just as good as the outside and that the ethics and standards that went into the production of this machine are just as high as the quality and perfor- mance that you will receive from it.
- Page 4 Contents Before doing your first wash Service and guarantee Important safety instructions Own comments Child safety Quick Guide Parts of the dishwasher Technical data Baskets Control panel Detergent Dispenser Basic Course Programs Program Description Options Eco-dishwashing Fragile dishes Cleaning Rinse aid Settings Fault indications Troubleshooting...
- Page 5 Before doing your first wash: Read through the directions for use Read through the directions for use before start- ing to use your machine, especially the Safety, Child Safety, and Basic Course sections. Take care with certain materials Read the Fragile Dishes section before washing china with unglazed decoration or other house- hold goods made of plastic, wood, or crystal requiring careful treatment.
- Page 6 Important safety instructions This manual does not cover all possible condi- do not smoke or use an open flame during this tions and situations that may occur. Common time. sense and caution should always be used when • When removing an old dishwasher from ser- installing, operating, and maintaining any appli- vice or discarding it, remove the door to the ance.
- Page 7 Child safety! Child safety tips Dishwasher detergents and rinse aids are cor- rosive, so always keep them out of reach of children. • Should a child swallow dishwasher detergent or rinse aid, give plenty to drink immediately, i.e., one or two glasses of milk or water. Do not try to induce vomiting.
- Page 8 Parts of the dishwasher* 1. Upper basket . Spray arms . Cutlery basket . Lower basket . Dishwasher detergent compartment . Main power switch 7. Rinse Aid Compartment 8. Filter 9. Serial tag and rating plate *Details may differ depending on the model and market! Technical data Height...
- Page 9 The baskets* Upper basket 1. Wine glass shelf . Cup rack Lower basket Cutlery basket basket *Details may differ depending on the model and market! Customer Care Center 1-800-898-1879 www.askousa.com...
- Page 10 Control panel S TA R T P R O G S T O P 1. Program selector . Quick . Daily 7. Rinse & Hold . Heavy 8. Temperature . Normal 9. Drying . Delicate 10. Start/stop Detergent Dispenser 1. Compartment for main wash dishwasher deter- gent .
- Page 11 Basic Course Below are step-by-step instructions to help you The cutlery basket has a folding flap in the achieve the best possible dishwashing results. middle for small items or narrow shafts, such as electric whisks. Load the baskets correctly! Place long cutlery and carving knives in the special knife box (if present) or in the upper Thanks to Self Cleaning System, you basket.
- Page 12 you may need to use more detergent or use a detergent with more than 8.7% phosphorous Switch on the main switch content. NOTE: We recommend that you do not add prewash detergent for the Quick wash programs. Select program NOTE: If you use a dishwashing detergent with a rinse aid additive, you should not fill the rinse aid dis- For help in choosing the appropriate...
- Page 13 Press start Standby mode The dishwasher will now start. It manages Once the machine has finished, it only the entire wash automatically. draws standby current. Should you wish to dis- Ensure that the door is properly closed or the connect the power completely, just switch off at machine will not start.
- Page 14 Programs Select a program by pressing the program Quick wash selector one or more times until the required program symbol lights up. See the Program Select Quick Wash if the dishes are very lightly soiled. This program is used for very lightly guide below.
- Page 15 Program Description Programview Programs Daily Heavy Normal Delicate Quick Rinse & Hold Program A program For heavily For nor- For glass For lightly To rinse info suitable for daily soiled loads, mally soiled and china soiled loads dishes that dishes. such as pots, loads such which has...
- Page 16 Options Select options To select an option, press one of the option but- tons. Temperature With the temperature option button you can select the wash temperature yourself. You can vary the temperatures as follows: Normal Economy Daily: 10°F (°C) 10°F (0°C) Heavy: 10°F (70°C) 10°F (°C)
- Page 17 Eco-dishwashing Only wash full loads Waiting to run the wash until the machine is full saves energy. Wash at a lower temperature If the dishes are only lightly soiled you can run a Quick wash program and reduce the tempera- ture to 8°F (0°C).
- Page 18 Fragile dishes A number of household goods are not suit- able for machine washing. This can be due to a variety of reasons. Certain materials cannot withstand intense heat; others can be damaged by the dishwasher detergent. Fragile decoration China with decoration on top of the glaze (the goods have a rough feel) should not be machine washed.
- Page 19 Cleaning The dishwasher tub is made of stainless steel and is kept clean through normal use. However, if you have hard water, limescale de- posits may form in the machine. If this happens, run an empty machine with a normal wash program with two tablespoons of citric acid in the dishwasher detergent compart- ment.
- Page 20 Drain pump NOTE! Do not forget to reinstall the fitted piece. The pump can be accessed from inside the machine. 1. Cut the power to the machine by pulling out the plug! . Remove the coarse filter and pipe section. .
- Page 21 To release the upper spray arm, the upper bas- ket must be removed. 1. Pull out the basket and turn the basket stop outwards on both rails (see picture). The bas- ket can now be removed. . Remove the upper spray arm in the same way as the lower arm and clean it.
- Page 22 Rinse aid Adding rinse aid Select dosage The dispenser is usually set at 1= soft water. In some cases, drying can be made more effi- However, depending on the water hardness, cient by using rinse aid. you may need to change the dosage. Machines with indicator on the panel Open the rinse aid cover.
- Page 23 Settings Reprogramming Some of the machine’s functions can be reprogrammed. Please reade below. The selection will be retained until the next time you reset this function. Even if the machine is turned off at the main switch or loses power for any other reason, all selec- tions registered before the interruption of power will be retained.
- Page 24 Fault indications Display Type of fault Action flashes Too much water Phone service in the dishwasher Check that the water flashes Fault with water inlet supply valve is open Shut off the water sup- flashes Valve leakage ply valve and contact service flashes Blocked drain...
- Page 25 Troubleshooting Problems Action Possible causes The dishes are not clean • The spray arms are not • Lift off the arms and clean rotating • Old dishwasher detergent. • Purchase smaller boxes of Note! Detergent is perishable detergent. • Incorrect dosage of detergent •...
- Page 26 Possible causes Action Problems • Certain food remnants such • Rinse off food residue of this Stains on stainless steel or silver as mustard, mayonnaise, type if you do not intend to lemon, vinegar, salt, and start the dishwasher immedi- dressings can cause stains ately on stainless steel if allowed...
- Page 27 Problems Action Possible causes Water remains in the • Obstruction in the drain hose • Disconnect the drain hose machine where it is connected to the sink’s water trap. Check that no debris has become stuck. Is the cone-shaped part of the pipe cut so that the diameter is at least 1 mm? •...
- Page 28 Performance information Energy standard USA: ANSI/AHAM DW-1-00 Technical data Height: -/8” - -1/” 870-90mm Width: ” (10mm) Depth: ” (10mm) Weight: 10.8 lbs (8 kg)* Water pressure . - 10 0.0 - 1.0 MPa 0.-10(Bar) Electrical connection: See serial tag/rating plate Rated power: See serial tag/rating plate *The weight can vary due to varying specifications.
- Page 29 Installation instructions SAFETY INSTRUCTIONS: 1. It is important that you closely follow the in- structions provided here. . An incorrect or defective installation can lead to higher consumption of energy, water and dishwashing detergent, which can lead to higher costs and poorer cleaning results. .
- Page 30 * With fill strips and without plastic feet. ** ASKO XLFI dishwashers can be installed either with or without accessory fill strips depending on the type of installation. If the dishwasher cutout has been cut to European widths of 23-5/8” (600 mm), the unit won’t require fill strips.
- Page 31 Installation and connection information wATER CONNECTION • The machine can be connected to a cold or hot water supply (maximum 10°F, 8°C). However, we recommend connection to a cold water supply. • The inlet pipe has a connector with either a 9/1”...
- Page 32 Step 1. Fitting the dishwasher in place 1. Loosen the mounting screws on the dish- washer’s two front steel feet using a /8 inch (1mm) open-ended wrench. Screw the mounting screws down as close to the floor as possible. . Adjust the height of the dishwasher by turn- ing the front steel feet with your hands.
- Page 33 Fitting the dishwasher in place . Push the plastic feet into place on all three steel feet (included in document bag). Note: Do not attach the plastic feet if the installation space is of minimum height. . Push the dishwasher into the cavity. At the same time, pull the electric cable and drain- age and supply hoses through the cable hole.
- Page 34 Fitting the dishwasher in place 7. Check that there is a 1/8 inch (mm) space ” between the top of the dishwasher door and 3 mm the underside of the counter. Do not attach the mounting screws. This will be done later. 8.
- Page 35 Step 2. Attaching cover or wooden door Follow the separate instructions supplied with the dishwasher to attach the chosen cover or wood- en door to the front of the machine. Note: Once you have fitted the cover or wooden door to the dishwasher, the door springs may need adjusting.
- Page 36 Step 3. Adjusting the door springs The door springs are on the sides of the dish- washer. If necessary, pull out the dishwasher and adjust the tension of the door springs. A good idea is to try adjusting one side only first. 1.
- Page 37 Adjusting the door springs . Adjust the spring tension using one of the following methods depending on how much adjustment is needed. If you need to adjust the spring a lot, place the rear mount in another hole. Place the spring further forward to reduce the tension and fur- ther back to increase the tension.
- Page 38 Step 4. Connecting electricity, water and drain 1. Connect drain hose The drain hose is routed to an inlet plug on the sink unit’s water trap. Cut the drain hose adapter to the appro priate Clamp size for connection to the undersink drain or garbage disposer.
- Page 39 Step 5. Checking dishwasher function and fit Test the dishwasher with the rinse program. Check that the dishwasher takes in water and drains. Also check that none of the connections leak. Also check that adjacent drawers and cup- boards can be opened when the dishwasher door is open.
- Page 40 Step 6. Securing the dishwasher 1. Pull out the upper basket, and the centre bas- ket if present, and turn the basket stop on the runner outwards. . Remove the upper basket, and the centre basket if present, by pulling the basket(s) out as far as possible.
- Page 41 Securing the dishwasher . Cover the screw holes on the sides with the supplied plastic plugs. Push in the plugs diago- nally to fit them in place. . Check that the dishwasher’s two front steel feet are solidly placed on the floor, that is, the dishwasher is not hanging in the air.
- Page 42 Securing the dishwasher Also adjust the rear foot if necessary so that the dishwasher is level. 7. Tighten the mounting screws on the front feet with a /8 inch (1 mm) open-ended wrench. Customer Care Center 1-800-898-1879 www.askousa.com...
- Page 43 Step 7. Attaching the toe kick (if applicable) 1. Attach the supplied sound insulation material to the back of the kick. Adjust the height of the insulation material . Loosen the holders for the toe kick by moving the gray catches to the side. .
- Page 44 Attaching the toe kick (if applicable) . Lock the holders in place by pushing each catch into a suitable notch in the holder. . Hang the toe kick on the holders. . Check that the toe kick is in line with the sur- rounding kitchen toe kick, that is, at the same depth.
- Page 45 • Correct the installation of the appliance. States. • Repair damage due to shipment, delivery, . Pickup and delivery. ASKO washers are installation, misuse or abuse. designed to be repaired in the home. • Instruct how to use the appliance.
- Page 46 For warranty service, contact our Customer Care Center at the number listed below. Before calling for service or contacting Asko Appliances Inc. regarding a warranty issue, make a note of the model, type name, and serial number. Write to us at: Asko Appliances Inc.
- Page 47 Installation checklist Asko - DishwAsher Appliance Installation Checklist • Remove packaging and check for cosmetic damages. • Remove the information packets from inside the dishwasher. • Attach any accessories as required by the installation. Fill strips, wooden door panels, accessory door panels...
- Page 48 Own comments Customer Care Center 1-800-898-1879 www.askousa.com...
- Page 49 Own comments Customer Care Center 1-800-898-1879 www.askousa.com...
- Page 50 Quick Guide 1. Load the baskets correctly! Thanks to the Self Cleaning System you don’t need to rinse the dishes, simply scrape large food particles and debris. . Dispensing dishwasher detergent The detergent compartment has a small compartment for pre-wash and one for main wash. .
