UNIVERSAL MASTERPIECE BORN IN JAPAN
MADE IN JAPAN
METAL MOVEMENT
INSTRUCTION MANUAL FOR MIYOTA WATCH MOVEMENT
CALIBRE NO. 9015
AUTOMATIC MOVEMENT
1) DISPLAYS AND BUTTONS
2) WINDING THE MAINSPRING
3) ADJUSTING TIME
4) ADJUSTING DATE

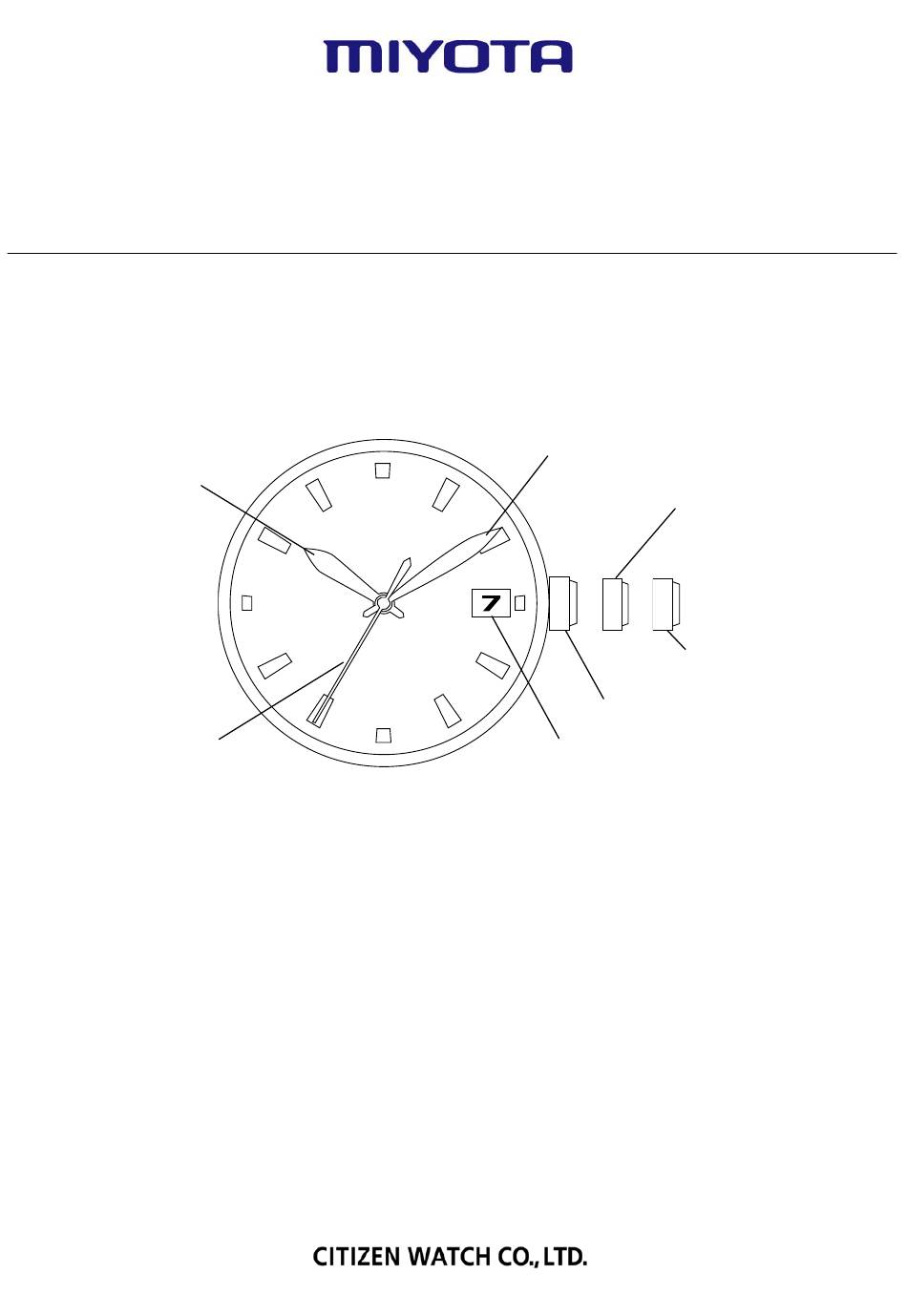

1) DISPLAYS AND BUTTONS
Minute hand
Hour hand
Date adjusting
A
B
C
Time adjusting
Mainspring winding
Second hand
Date display
2) WINDING THE MAINSPRING
Automatic winding watch can be also manual-winded by turning the crown in "A" position.
Wind 15～20 times clockwise until second hand starts to move naturally.
3) ADJUSTING TIME
Rotate the crown in "C" position and adjust the standard time.
Then check if it is morning or afternoon and adjust correctly.
4) ADJUSTING DATE
Adjust the date by rotating the crown in "B" position.
* If the date is adjusted between the hours of around 8:30 PM and 2:00 AM the date may not change
on the following day.
These specifications might be changed without prior notice.
Advertisement
Related Manuals for Citizen MIYOTA 9015
Summary of Contents for Citizen MIYOTA 9015
- Page 1 UNIVERSAL MASTERPIECE BORN IN JAPAN MADE IN JAPAN METAL MOVEMENT INSTRUCTION MANUAL FOR MIYOTA WATCH MOVEMENT CALIBRE NO. 9015 AUTOMATIC MOVEMENT 1) DISPLAYS AND BUTTONS 2) WINDING THE MAINSPRING 3) ADJUSTING TIME 4) ADJUSTING DATE 1) DISPLAYS AND BUTTONS Minute hand Hour hand Date adjusting Time adjusting...
- Page 2 Cal No.9015-1/3 ×3 923-999 115-101 119-A26 ×6 923-998 088-254 701-H01 058-501 138-251 087-B03 117-354 087-A74 ×2 930-701 117-360 ×3 930-701 094-010 098-090 023-A21 927-020 088-253 923-998 017-A01 710-204 039-991 088-252 ×2 922-820 032-991 708-091 035-701 923-998 702-201 922-820 141-251 903-A15 012-A20 269-402 922-820...
- Page 3 Cal No.9015-2/3 ×5 930-701 176-A04 109-870 108-K7X 903-A17 078-120 075-A51 087-A72 087-A75 213-614 087-A71 072-998 103-A09 ×2 923-630 077-996 028-A16 076-751 257-152 071-995 067-995 ×2 064-991 929-808 063-351 094-040 098-090 065-A05 *Illustration and parts shape might be different from real thing.
- Page 4 Cal No.9015-3/3 JA PA N MIYOTA CO. *Illustration and parts shape might be different from real thing.
- Page 5 ***** CAL. 9015 MOV'T PARTS LIST ***** ORIGINAL PARTS, MADE IN JAPAN PART NAME 9015 BALANCE BRIDGE 710-204 BALANCE WITH HAIRSPRING REGULATED 039-991 BARREL AND TRAIN WHEEL BRIDGE 701-H01 BARREL COMPLETE 001-992 BREAKELEVER FOR SECOND HAND 269-402 CANNON PINION WITH DRIVING WHEEL 028-A16 CALENDAR CORRECTOR LEVER SPRING 903-A17...
- Page 9 Cal. 9015 AUTOMATIC & MANUAL WINDING MOVEMENT WITH DATE Basic specification 11-1/2''' Ligne Φ26.0mm Overall diameter Φ25.6mm Case fitting diameter 3.90mm Total height 28800 vibrations per hour Vibration frequency 24 Jewels Jewels Function Automatic & manual winding Display by means of hands: hour, minute, second. Date calendar Stop second device Shock-absorber for balance staff...
- Page 10 Automatic winding structure Winding direction : Clockwise (seeing from case back side) Operating method Winding the mainspring, adjusting the hand, date is done by the below procedure. (1) Winding the mainspring Automatic winding watch can be also manual-winded by turning the crown in "A" position. Wind 15～20 times clockwise until second hand starts to move naturally.
