Vixen Air VXF1GP1RKW Installation Manual

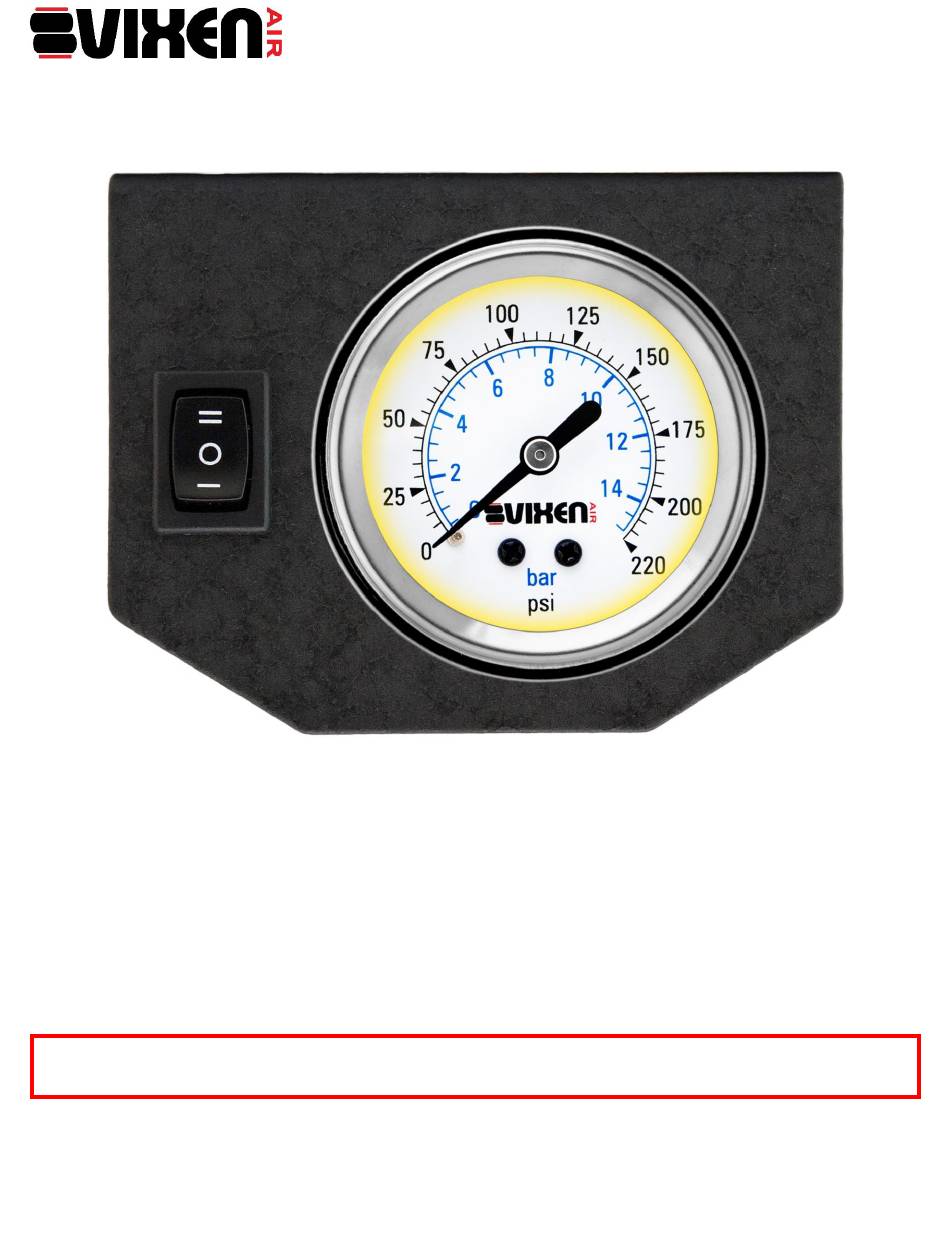

One 2" single needle air pressure white gauge with one momentary switch and metal dash panel kit

Download this manual

BEFORE BEGINNING YOUR INSTALLATION

Read through the whole instruction guide before getting started with the installation. Professional installation is

recommended for this product.

CONTENTS

 2" Single Needle Air Pressure Gauge (White Face)

 Amber Light Bulb

 1/8" NPT Female Compression Fitting for 1/4" OD Airline

 Black Powder Coated Metal Dash Panel

 One 3-Position Momentary Rocker Switch (Pre-installed)

SAFETY INSTRUCTIONS

 Do not apply shock to the product such as by dropping, doing so will affect its precision.

 For better results, install the air gauge perpendicular to the ground with the zero point on the dial at the bottom.

 Ensure that your air system has no pressure before starting the installation.

 Apply sealant to fitting's threads before assembly. DO NOT OVER TIGHTEN.

The specific voltage requirement for this air gauge is 12 volt DC, therefore installation must be done to a DC power

source of 12 volts.

PAGE 1 of 3

VXF1GP1RKW

INSTALLATION GUIDE

Need help?

Do you have a question about the VXF1GP1RKW and is the answer not in the manual?

Page 1 VXF1GP1RKW INSTALLATION GUIDE BEFORE BEGINNING YOUR INSTALLATION Read through the whole instruction guide before getting started with the installation. Professional installation is recommended for this product. CONTENTS  2" Single Needle Air Pressure Gauge (White Face)  Amber Light Bulb ...
Page 2 VXF1GP1RKW INSTALLATION GUIDE GAUGE INSTALLATION  Disconnect the vehicle's negative battery cable.  Run a 1/4" OD airline from your air tank, air spring or other device to the installation location of the gauge. When cutting or trimming the air line, use a hose cutter, a razor blade, or a sharp knife. A clean, square cut will ensure against leaks.
Page 3 VXF1GP1RKW INSTALLATION GUIDE ROCKER SWITCH WIRING AND PANEL INSTALLATION  Connect the "two lines" connector to the positive (+) wire of the air valve that is going to fill air into the air spring.  Connect the "O" connector to the 12V, you may use the same wire that you used to connect the positive wire of the gauge's bulb.
