BatteryEVO WALRUS V3 User Manual & Installation Manual

12k inverter

Advertisement

Quick Links

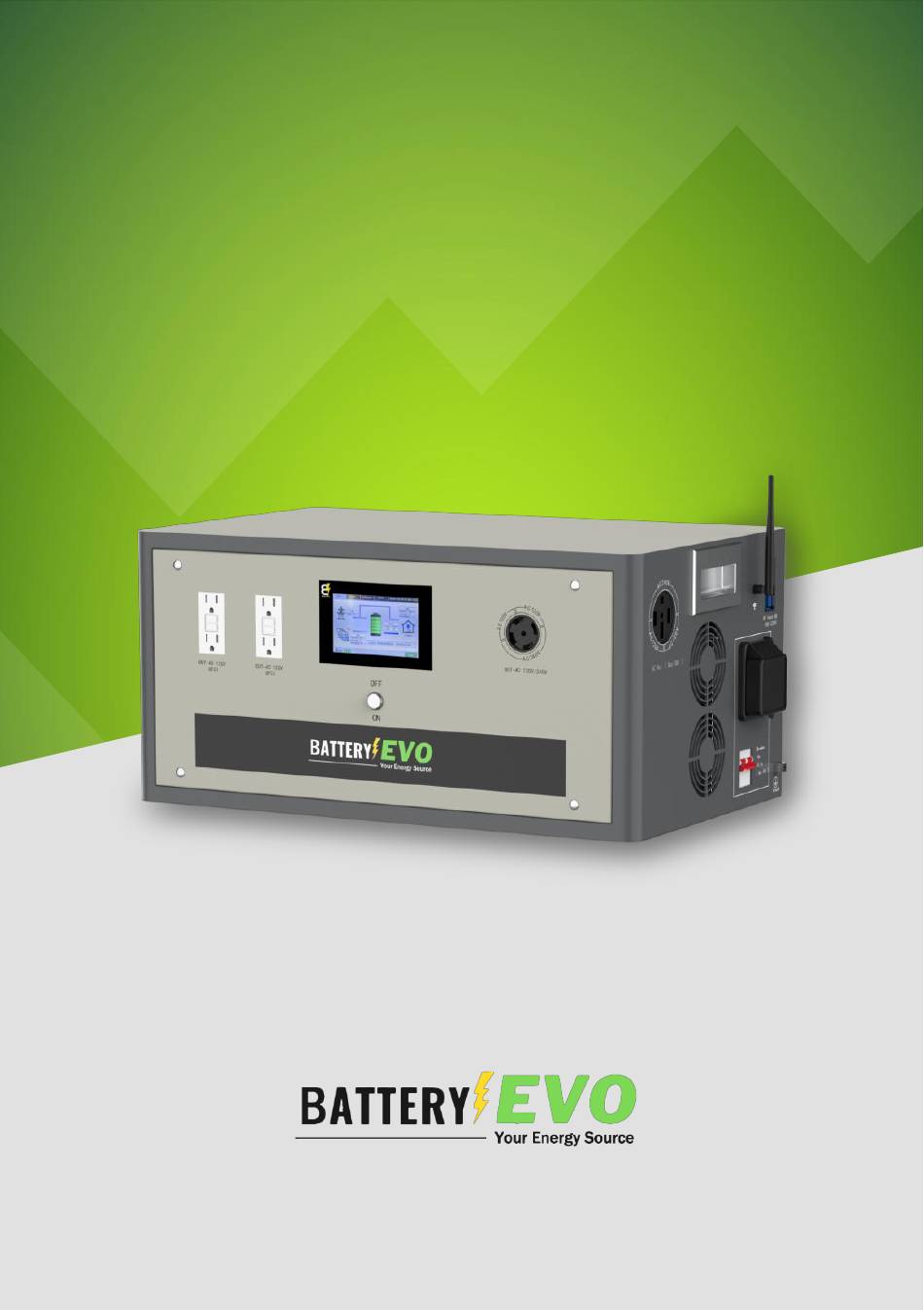

12K V3
INVERTER
USER MANUAL
INSTALLATION GUIDE
48V V3 Inverter USER MANUAL
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the WALRUS V3 and is the answer not in the manual?

Questions and answers

Summary of Contents for BatteryEVO WALRUS V3

  • Page 1 12K V3 INVERTER USER MANUAL INSTALLATION GUIDE 48V V3 Inverter USER MANUAL...
  • Page 2 Table of Contents Introduction Features & Applications Product Specifications Unit Specification Product Detail System Diagram Screen Menu Mobile Application Guide Download & Install Registration & Sign in Add device & Connection Accessories Technical Safety Guidelines Transportation Recycling Warranty & Return Information Warnings &...
  • Page 3 Introduction BatteryEVO’s V3 Inverter is a 12.5kVA inverter pack including inverter and solar charge controller perfectly suited for residential use. This user manual is designed to provide an understanding of the specifications, features, capabilities, and installation of the inverter pack with a new 7-inch touchscreen display. It is important to read and note all safety information before installing or operating the V3 inverter pack.
  • Page 4 Product Specifications Unit Specification SKU # INV008 INVERTER POWER (KVA) 12.5 CUT-OFF VOLTAGE 58.8V L:622mm / W: 392mm / H:360mm DIMENSION L:24.5in / W: 15.4in / H:14.2in NET WEIGHT 61KG / 134.5LBS PV IN CONNECTOR BE175 PV INPUT VOLTAGE 90VDC-230VDC (Open Circuit Voltage) PV INPUT MAX CURRENT 80 Amps (4KW) PV CHARGING VOLTAGE:...
  • Page 5 Product Detail 120V AC (GFCI) Outlets 1&2 Interaction area 120V / 240V AC (NEMA L14-30R) Output Outlet Main Switch Descriptions: Standard GFCI class A Outlet providing 120V power. The area for getting V3 Inverter information and performing settings. For detailed information, please refer to Section 4; It’s a Twist Lock Outlet (NEMA L14-30) provides 120V / 240V power.
  • Page 6 AC Output (Max 50A) (NEMA14-50R) outlet Wi-Fi PV Input (90V-230V DC) AC Input 120V/240V (SS2-50P) outlet Breaker for AC In (Max 63A) Ground Descriptions: This 50A Embedded Ground Blade Power Outlet (NEMA14-50R) provides 120 or 240V AC power. The Wi-Fi antenna is used to enhance the signal and the stability of the connection.
  • Page 7 NEMA L14-30 NEMA14-50R SS2-50P The ground wire should always remain connected to prevent short circuits and avoid potential damage. NEMA L14-30 & NEMA14-50R:Line1 + Neutral = 120VAC Line2 + Neutral = 120VAC Line1 + Line2 = 240VAC SS2-50P: X + W = 120VAC Y + W = 120VAC X + Y = 240VAC V3 Inverter USER MANUAL...
  • Page 8 What is inside the Inverter box: Data line #2 MPPT Output PV input Fan #1,#2 Data line #1 (Red&Black) (Red&Black) MPPT Control AC Out L1 Red AC Out L2 Black Wifi AC Out L1 Red AC in L1 Red L1 Red AC Out N White AC Out L2 Black AC In L1 Red...
  • Page 9 System Diagram V3 Inverter USER MANUAL...
  • Page 10 Screen Menu The most system interactions of 48V 12K V3 inverter pack can be operated via the front 7-inch smart touchscreen. Users can configure various working parameters on this screen, such as charging power and operational mode, for the V3 inverter. Additionally, it provides real-time information on the V3 inverter's operational status, including the inverter's output power and load percentage, parameters, and the working status of each feature.
  • Page 11 Main Page The main interface of the V3 inverter displays the real-time operational status of the system, including interactions between the grid, solar power, load, and battery. Key data on the main interface includes: • Grid Status: Shows real-time input voltage data. •...
  • Page 12 Status Page The status page of the V3 inverter provides detailed operational information and displays the current system status. The page is divided into two sections: 1.System Information: Output Voltage: Displays the set output voltage; Output Frequency: Shows the set output frequency(in Hz); AC Charge Amp: Displays the maximum AC charging current;...
  • Page 13 Configuration Page Password is required every time you enter the configuration page. (default password is: 101) Configuration Page Explanation The configuration page of the V3 inverter allows users to adjust several key parameters based on system requirements. The available settings on this page include: 1.Output Voltage: Users can set the system's output voltage;...
  • Page 14 Output Voltage setting Editing the output voltage of the standard GFCI class A outlets, while the output voltage of the Twist Lock Outlet (NEMA L14-30) will be two times (= 2 X selected voltage). Output Freq-(Hz) setting Editing the output AC frequency for both Standard GFCI class A Outlet, Twist Lock Outlet (NEMA L14-30), and Embedded Ground Blade Power Outlet (NEMA14-50R).
  • Page 15 AC Chg Amps(A) setting Select the AC charging current from the options provided. PV Chg Amps(A) setting Select the AC charging current from the options provided. V3 Inverter USER MANUAL...
  • Page 16 AC Chg Amps(A) setting The AC input voltage range varies with the power mode—UPS or INV. In Uninterruptible Power Supply mode, the device uses external AC as the main power and switches to the battery if AC fails, maintaining power without interruption.
  • Page 17 Priority setting Select one of the provided charging modes; When the solar charging mode is selected, grid charging will be disconnected. However, when the grid charging mode is chosen, both solar and grid charging will occur simultaneously. For ‘Grid Time Control’, requires input time information.
  • Page 18 SAV MODE setting Select whether to activate the power saving mode, which will limit the power consumption of V3 inverter in standby mode. V3 Inverter USER MANUAL...
  • Page 19 Set Battery setting • CC-V: Constant Current/Constant Voltage. The 58.0V represents the battery charging voltage; • FLA-V: Float Voltage. It is the voltage (57.2V) at which a battery is maintained after being fully charged to maintain that capacity by compensating for battery self-discharge; •...
  • Page 20 Installing the App • Once the download is complete, the app will automatically begin the installation process. • After installation, you'll find the BatteryEVO app icon on your home screen or app drawer. V3 Inverter USER MANUAL...
  • Page 21 Service and Privacy Policy, then submit your registration. • You may be asked to verify your email address. Check your email inbox for a verification code from BatteryEVO and click on it to confirm your account. V3 Inverter USER MANUAL...
  • Page 22 Add a device (datalogger) • After logged in, there will be the list of added devices or datalogger. • To add a new datalogger, you need to click the “+” button. • Find the PN number and bar code at the top of the Wi-Fi antenna.
  • Page 23 • Complete the parameter as far as possible • There are two required fields: “Design power(KW)” ---10 “Datalogger address”--- Your location, you can click the icon to enter to the GPS to get the location. • At the top left of the page, find the drop-down list of presentation types.
  • Page 24 Wi-Fi Pairing • To pair V3 to the local Wi-Fi, we need to ensure the local Wi-Fi is working properly. • Click the “Me” option on the navigation menu at the button. 中国移动 • Click the “Network tools” icon the option box will pop up here.
  • Page 25 • Before the next step, the mobile device should connect to the datalogger as the Wi-Fi connection. • Select the datalogger network that is the same as the PN number on V3. • The password for the datalogger: 12345678 V3 Inverter USER MANUAL...
  • Page 26 • Click the “Next” button to access the next page. • If a prompt window pops up, the datalogger connection has failed and needs to try again. • Enter or select (by clicking the Wi- Fi icon) the local router to which the datalogger should connected.
  • Page 27 Alternatively, contact BatteryEVO technical support team for assistance. Bluetooth Pairing • Click the “Network tools” icon the option box will pop up here.
  • Page 28 • Bluetooth either activates automatically or requires manual enabling. • The App then initiates a search for nearby devices with Bluetooth capabilities. • Select the Bluetooth which has same PN number with datalogger from the listed device. V3 Inverter USER MANUAL...
  • Page 29 • Bluetooth connected successful to the datalogger. • Click “Internet Settings” to continue the datalogger pairing to the local router. • Enter or select (by clicking the Wi- Fi icon) the local router to which the datalogger should connected. • Enter the router’s password. V3 Inverter USER MANUAL...
  • Page 30 Alternatively, contact BatteryEVO technical support team for assistance. Viewing V3 Status • At the top left of the page, find the drop-down list of presentation types.
  • Page 31 • Click triangle icon on the left of the datalogger. Devices that are already connected to datalogger will be shown below. • Click the device. • The system status and data are synchronized in real-time. V3 Inverter USER MANUAL...
  • Page 32 (NEMA14 grid. -50R) 50 Amp This cable is suitable for 10 Ft RV connecting the battery output to Optional Extension the power grid. Cable Optional items are available on the BatteryEVO website. V3 Inverter USER MANUAL...
  • Page 33 Technical Safety Guidelines WARNING: Before installing or operating V3 inverter, please make sure to review all safety guidelines, warnings, and precautions thoroughly. Do not install V3 inverter pack in a location that is exposed to direct sunlight and water. Do not charge V3 inverter pack with a voltage exceeding 57.6V. Do not charge the V3 inverter when the temperature is below -20°C.
  • Page 34 Transportation WARNING: Before installing, make sure to review all safety guidelines, warnings, and precautions thoroughly. 1. V3 inverter should be kept upright. V3 Inverter USER MANUAL...
  • Page 35 & return policy: • For all returns or warranty claims contact support@BatteryEVO.com. • 30-day money back guarantee. Full refunds may be issued for returns of undamaged batteries not related to warranty claims, subject to a 20% restocking fee.
  • Page 36 » BatteryEVO offers a 10-year manufacturers defect warranty from the date of purchase. The average lifespan of a BatteryEVO battery at 100% Depth of Discharge is between 1,000 – 3,000 recharge cycles depending on chemistry, or roughly 5 to 10 years with standard use (see the specifications of V3 for more information).
  • Page 37 Warnings & Precautions Lithium Iron Phosphate (LiFePO4) batteries are a safe chemistry, but it is important to follow safety measures when handling any electronics. Please adhere to this manual’s instructions for safe handling and operation. General Safety • Always wear protective gear when handling batteries. •...
  • Page 38 Charging and Handing • In the case of charging, use only a dedicated charger. Battery Charging Voltage must be under 83VDC. • Charge according to the conditions specified by the user manual. Hazardous Emergency Treatment • If V3 exhibits any abnormal conditions, such as overheating or smoking, immediately disconnect all connections.
  • Page 39 https://batteryevo.com...
  • Page 40 https://batteryevo.com...

This manual is also suitable for:

Inv008
