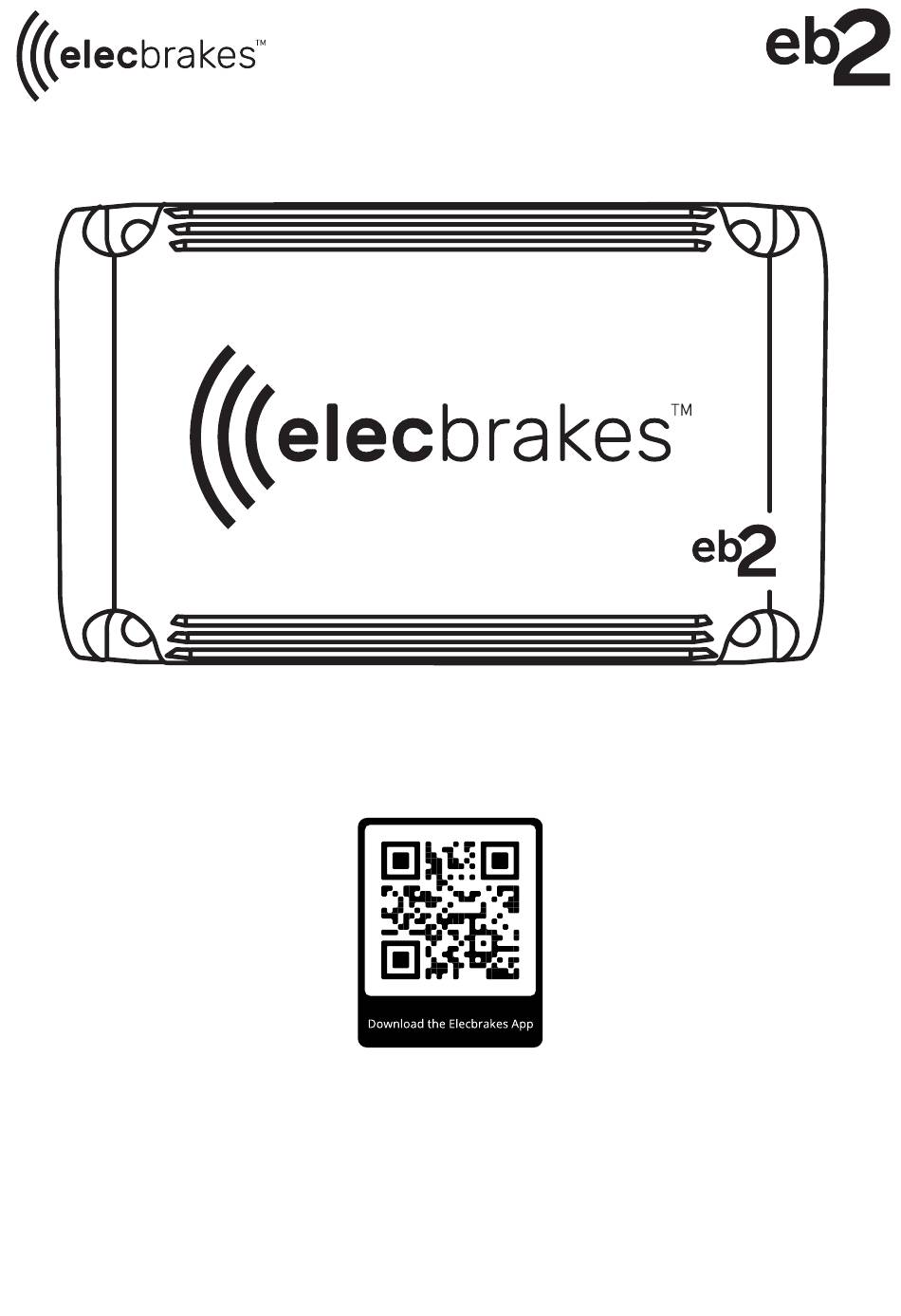

- Page 1 EB2 Technical Manual V1.8 -01-04-2025...
- Page 2 This guide is tailored for users of all experience levels, including those with limited 4. Dimensions .................. p.2 familiarity with vehicle electrical systems, due to the EB2’s 5. Installation ................... p.3 straightforward plug + play design. By adhering to the provided instructions and safety precautions, you can 6.
- Page 3 There are two options for getting started: In-App Onboarding The Quick-Install Video Download the Elecbrakes app and Watch our EB2 Quick follow the prompts to get started. Install Guide video. 4. DIMENSIONS 140mm 117mm 05mm EB2 Technical Manual | V1.8 -01-04-2025...
- Page 4 Fasten the EB2 to the trailer using the four self- tapping screws supplied. For correct forward direction detection and accurate proportional control you MUST ensure one of the unit’s sides or...
- Page 5 Observe power delivery to the brakes by looking at the Output section on the data 4.00 V Voltage page of the app. Place your foot on the brake Current 1.00A and confirm voltage and current are non-zero. EB2 Technical Manual | V1.8 -01-04-2025...
- Page 6 Elecbrakes brake controllers have the ability to apply a user defined brake output in this case, referred to as a ‘Minimum’. Think of it like an offset or bias.
- Page 7 Release to stop at the desired value. · Tap again to disable the override. If you are using an Elecbrakes remote, the override is triggered by a force sensitive button. Apply more force to apply a larger override value.
- Page 8 Warnings The EB2 brake controller will actively protect against a range of system faults, notifying you of exactly what is happening and directing you towards potential issues and fixes for your setup. This is in addition to the real-time information available to you via the data page of the app.
- Page 9 140mm x 90mm x 40mm Mechanical Characteristics Housing material Glass reinforced nylon Fasteners S500 self tapping ph3 head Encapsulant Polyurethane elastomer Operating range -30°C to 75°C ambient Thermal Properties Over temperature output throttling 145°C internal Other Bluetooth version EB2 Technical Manual | V1.8 -01-04-2025...
- Page 10 Elecbrakes products purchased in Australia and New be excluded under the Australian Consumer Law. You are Zealand are covered by the Elecbrakes Product Warranty. entitled to a replacement or refund for a major failure and This Product Warranty is provided by:...
- Page 11 Need Help? Check out our FAQ page online elecbrakes.com/FAQ or call our customer service team on 1300 516 248...
