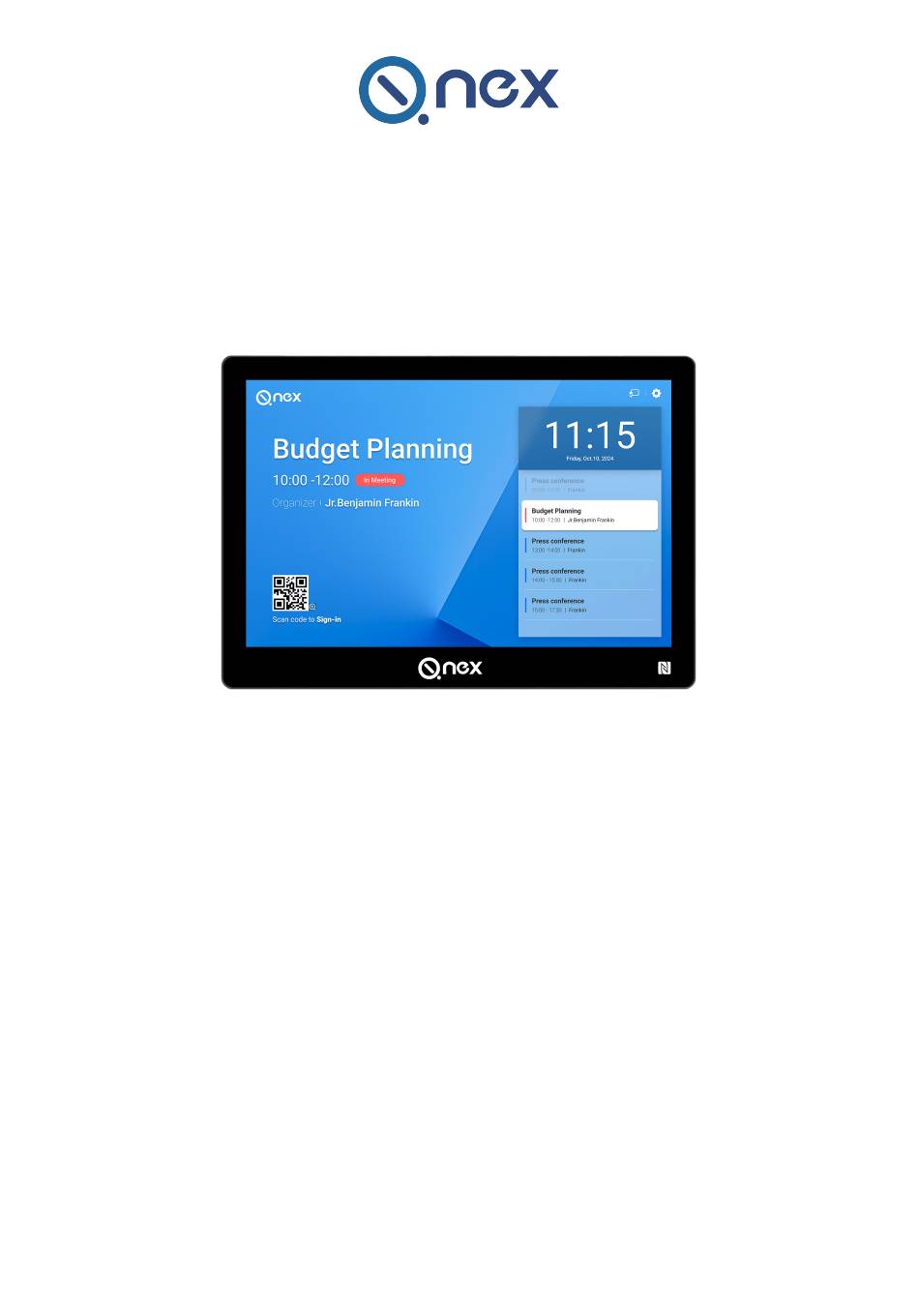

- Page 1 Q-NEX Room Scheduler Quick Guide Q-NEX Room Scheduler —— Quick Guide —— Returnstar Interactive Technology Group Co., Ltd. No. 1 / 8...
- Page 2 Q-NEX Room Scheduler Quick Guide No. 2 / 8...
- Page 3 Q-NEX Room Scheduler Quick Guide 1. Introduction The Q-NEX Room Scheduler Quick Guide provides instructions for installing, wiring, and configuring the CPL50 device for use within the Q-NEX system to manage meeting rooms. No. 3 / 8...
- Page 4 Q-NEX Room Scheduler Quick Guide 2. Understanding the CPL50 2.1 Dimensions Brackets 2.2 Interface No. 4 / 8...
- Page 5 Q-NEX Room Scheduler Quick Guide Port(s) Description USB-C Used for firmware flashing. Audio Reserved port. USB (Type A) Reserved port. Reset Button Used to reset the device to default settings. For wired network connection. RJ45 Supports PoE (Power over Ethernet) for power supply when connected Ethernet to a PoE switch.
- Page 6 1. Secure the two brackets to the desired wall height using expansion bolts. 2. Align the keyhole slots on the back of the CPL50 with the mounting pins on the brackets, then slide the device downward to lock it in place.
- Page 7 Use either: PoE with a PoE switch, or The power adapter with a non-PoE switch/router. 2. Use an LAN cable to connect the CPL50 to the meeting room's network, ensuring it shares the same LAN as the Q-NEX system. ...
- Page 8 Meeting > Panel Management. 3.4 Room Booking CPL50 Meeting Room Booking Return to the Web-Console via the Q-NEX Console icon in the Dashboard. Go to Meeting to book a room. Booking details sync instantly to the CPL50. No. 8 / 8...
