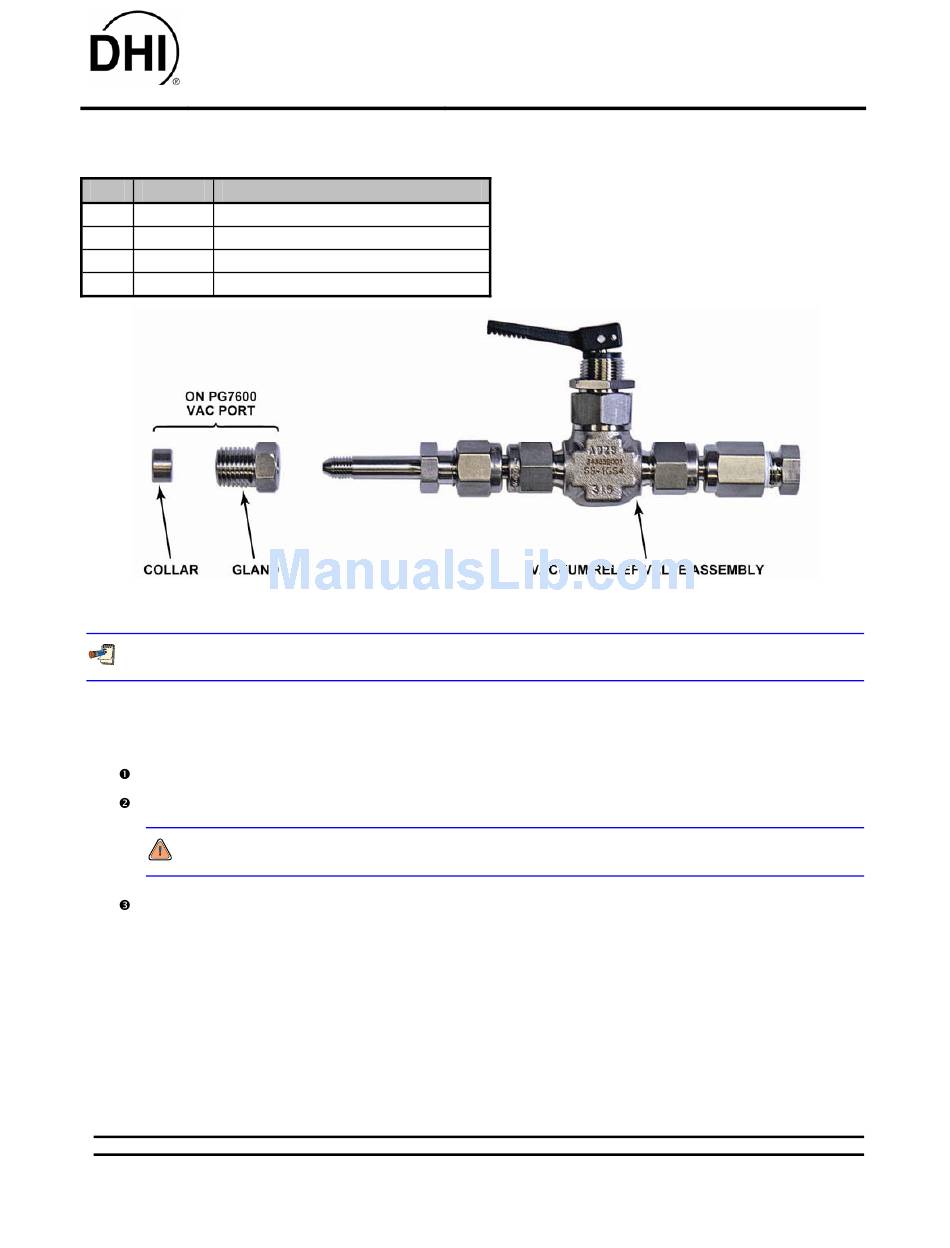

PG7600 VACUUM RELIEF VALVE,
P/N 401050, INCLUDES:
QTY PART NO
1 401050 Vacuum relief valve assembly
1 100272 Gland (on PG7600 VAC port)
1 101200 Collar (on PG7600 VAC port)
1 560002 Instruction Sheet
Vacuum relief valve is shown in the closed position.

GENERAL INSTALLATION

Remove gland, collar and plastic plug from the PG7600™ vacuum port.
Install gland and collar onto vacuum relief valve assembly.
Collar threads left-handed. Ensure collar is fully threaded. The plastic plug is not used.
Screw the adaptor (as assembled) into the PG7600™ vacuum port. Torque to 15 Nm (Newton meter).
