- Page 1 Quick Start Guide 2-Port 8K HDMI Switch HDMI Switch 2In 1Out P/N: D0206...
- Page 2 SAFETY PRECAUTIONS Please read the following safety precautions carefully before you unpack and install this equipment. 1.Do not expose the unit to rain, moisture or any other dripping liquids. And keep it away from any wet locations such as fish tanks, vases. 2.Do not install the unit close to fire or any other heat sources.
- Page 3 SPECIFICATION Input Port 2 x HDMI(A Female connector), 1xUSB Output Port 1 x HDMI(A Female connector) Bandwidth 48Gbps Output Resolution 1080P@24/50/60Hz/120Hz, 4K@60/120Hz 8K@30/60Hz Operating Temperature -15℃~55℃/5°F~131°F Deep Color 8bit / 10bit / 12bit Chroma 4:2:0 / 4:2:2 / 4:4:4 Chassis Aluminium alloy Shell Dimension 70mm(L)x50.8mm(W)x12.8mm(H)
- Page 4 INSTALLATION This 2x1 HDMI switch offers you a great way to tidy up your home theater. It allows you to connect up to 2 HD sources, and you can switch the HD sources very conveniently by using the easy-click switch button on the unit . The system is compatible with HDMI 2.1, 3D and 8K Ultra HD.

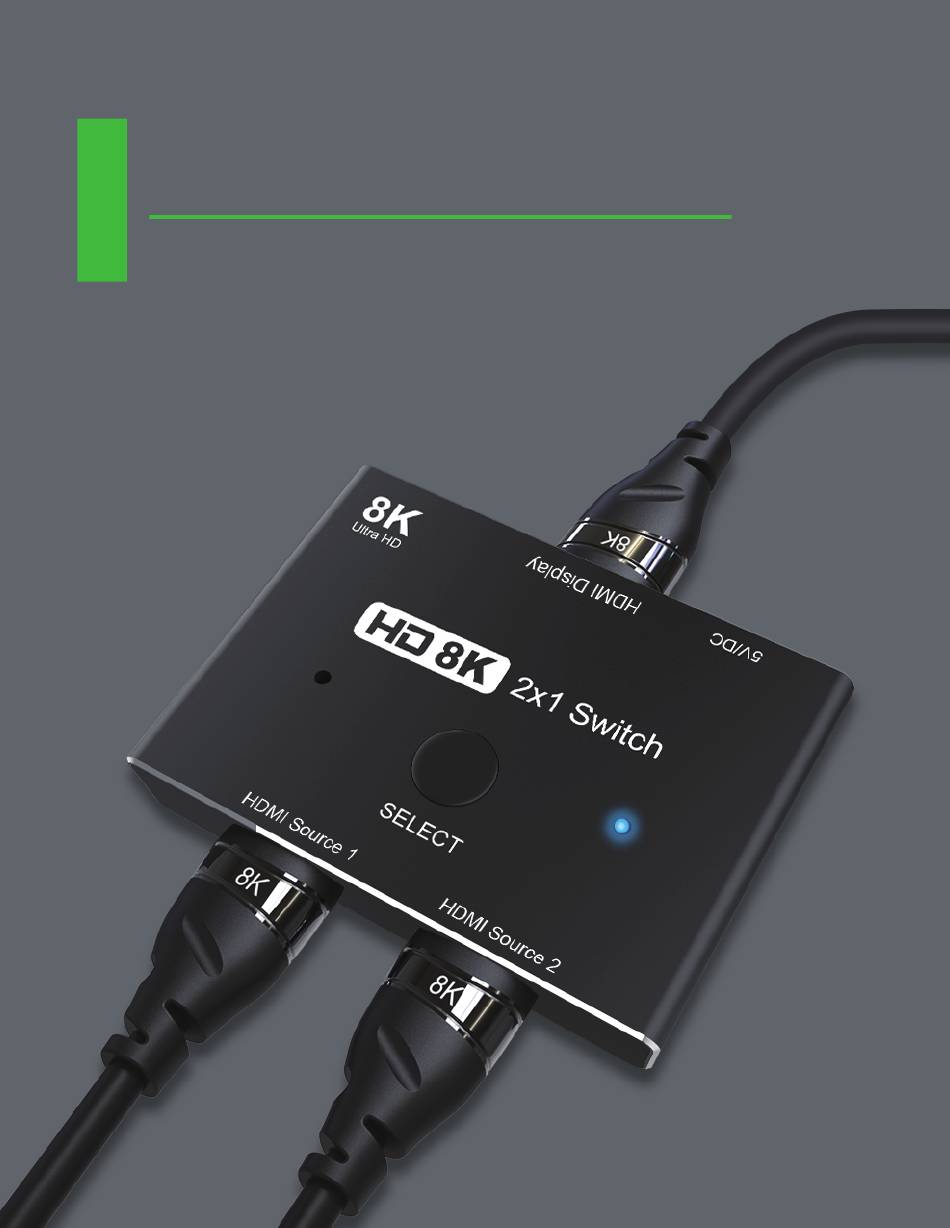

- Page 5 PANEL DESCRIPTION Rear Panel Top Panel 2x1 Switch SELECT HDMI Source 2 HDMI Source 1 Front Panel 1 Power Supply: Micro USB (5V) 2 HDMI Output: Connect to HDMI Display 3 Source 1 LED 4 Switch button 5 Source 2 LED 6 HDMI Input 1: Connect to HDMI source 1 7 HDMI Input 2: Connect to HDMI source 2...
- Page 6 INSTALLATION •Connect HDMI input ports to the HD signal source equipments such as DVD player, Blue-ray player, Set-top box, PC etc. •Connect HDMI output port to the HDMI display. •In case your HDMI source could not provide sufficient power, you can use the supplied USB cable and connect to your existing device to power the unit.
