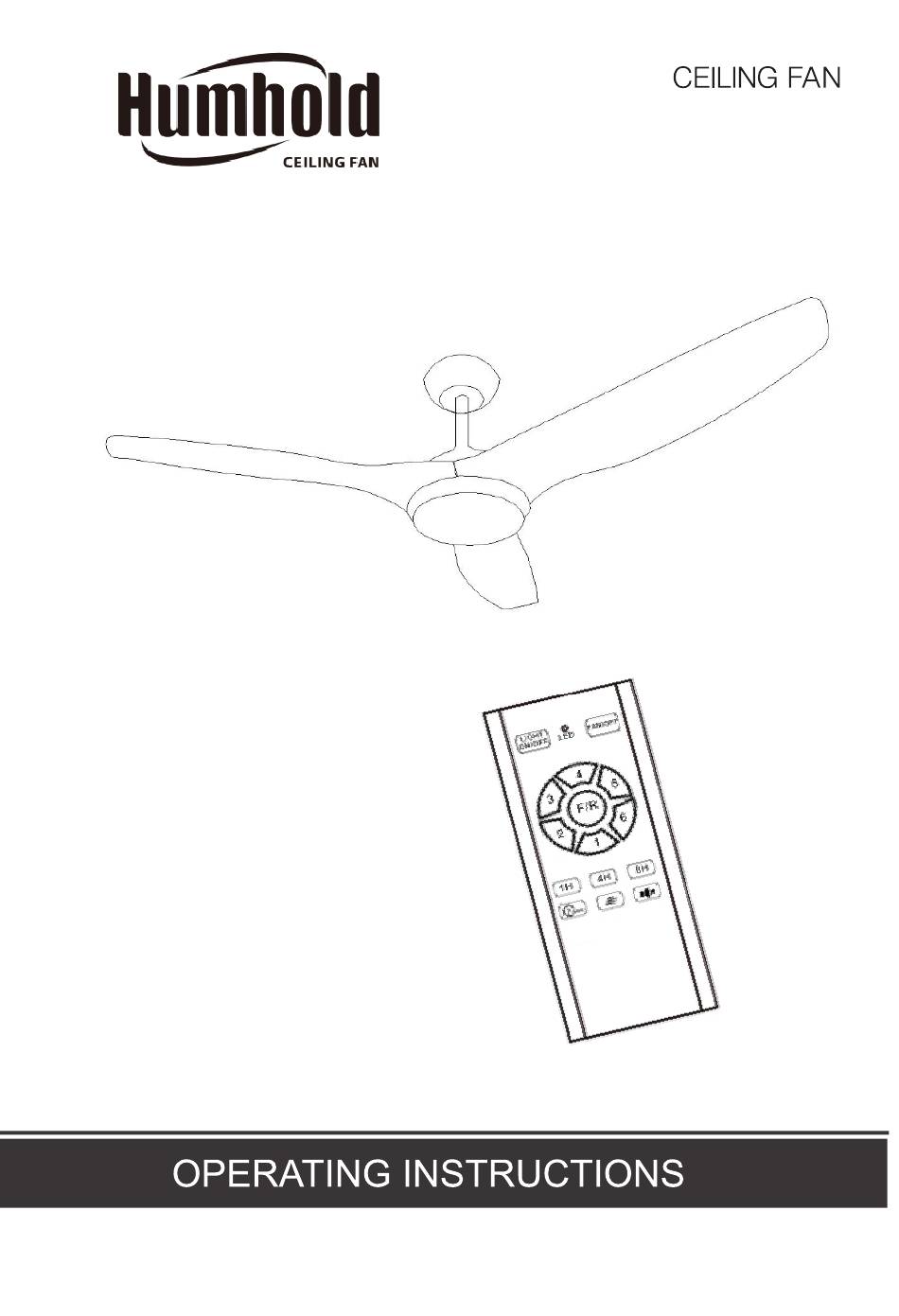

Humhold B0CL4WD713 Operating Instructions Manual

Advertisement

Quick Links

Advertisement

loading
Need help?

Need help?

Do you have a question about the B0CL4WD713 and is the answer not in the manual?

Questions and answers

Summary of Contents for Humhold B0CL4WD713

  • Page 2 1. Safety precautions------------------------------------------------------------- 2 2. Parts & Accessories----------------------------------------------------------- 3 3. Fix hanger bracket------------------------------------------------------------- 4 4. Downrod,canopy & coupling cover installation----------------------8 5. Power supply wire connection-------------------------------------------10 6. Fan blade Installation---------------------------------------------------------11 7. Installation of LED Board---------------------------------------------------- 12 8. Remote control operation-------------------------------------------------- 14 9.
  • Page 3 11. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Page 4 Downrod(5 inches, 10 inches & 14 inches; Canopy 1 pc 5 inches one with hanger ball ) Motor Assembly 1 pc Magnet cvoer 1 pc Light Color ON/OFF ADJ. ON/OFF LED Board 1 pc Blade 3 pcs Light Cover 1 pc...
  • Page 5 30 inches 7.5 feet Assess location Concrete ceiling, According to the Secure mounting bracket to ceiling joist length if expansion screws, bore holes or suitable piece of timber inserted by percussive drills with Ø8mm drill. between the ceiling joists. The mount- After that, fix the mounting bracket on ing bracket should be attached with four ceiling by expansion screws.
  • Page 6 WOOD SCREW USE MACHINE SCREW (Included) when securing to (Provided with outlet box)when support structure with approved securing to existing ceiling fan- rated outlet box . Make sure it electrical outlet box. Drill 9/64" pilot holes in support is securely installed and is structure to aid in securing acceptable for fan support of 31.8kg (70) lbs) or less.
  • Page 7 Support Support Structure Structure Ceiling Outlet Box (required) Angled Standard Ceiling Mounting Mounting Outlet Box Style Style (required) Maximum tilting angle 20 Use standard mounting or low-profile mounting Use Angled mounting to hang the fan from a to hang the fan from a flat ceiling. vaulted or angled ceiling.
  • Page 8 Downrod selection 1) Select right downrod according to the height of ceiling; 2) This fan attach 5 &10 inches downrod, If it doesn't fit for you, please contact our company to purchase other size; Steps 1 4 to remove the bolt of downrod and feeding wires to downrod from motor.
  • Page 9 Magnet cover Coupling cover Steps 5 8 to re-assembly the hanger-ball to the downrod...
  • Page 10 5. Power supply wire connection...
  • Page 12 6. Fan blade installation Note: The fan blade needs to be aligned with the "center" position of thescrew hole group. Do not lock the screws when installing the blades and then tightenall the screws after all the fan blades are installed. 1.
  • Page 13 7. Installation of LED board 1. Thread the motor line through the LEDboard, then align the LED board with thetrianqular cover on the motor and put it on. 2. Install the screws on the 3. Connect the motor line and triangular coverinto the the lamp panel line.
  • Page 14 1. Turn ON/OFF the Light or Matching code. Light Color ON/OFF ADJ. 2. ON/OFF the FAN 3. Speed of the fan ON/OFF (1 low speed ---- 6 high speed) 4. Direction of the fan (reverse switch) 5. Silent mode 6. LED indicated light 8.
  • Page 15 NOTE 1: A beep will be heard when a function is activated. NOTE 2: The motor does not react instantaneously to changes made by the handset. Be patient and allow the motor to process the instruction when changing functions. NOTE 3:The remote control includes a memory function. this function records the status when power has been disconnected to allow resumption when power is restored.
  • Page 16 PAIRING MORE THAN ONE FAN: when more than 1 fan is installed e.g. FAN A & FAN B, and pairing is required each fan needs to be paired separately. Follow the steps given below to pair the fans: 1.To pair turn the power ON to one fan only e.g. FAN A and within 30 seconds of turning ON the power to the fan “A”, press and hold the FAN ON/OFF button on the transmitter “A”...
  • Page 19 We want to hear your voice! Feel free to touch base if you encounter any issue whenusing our product(s) or want to know more about our brandWe will be more than happy to provide top-notch pre-sales & after- sales service 24/7 Email: support@humhold.com...
