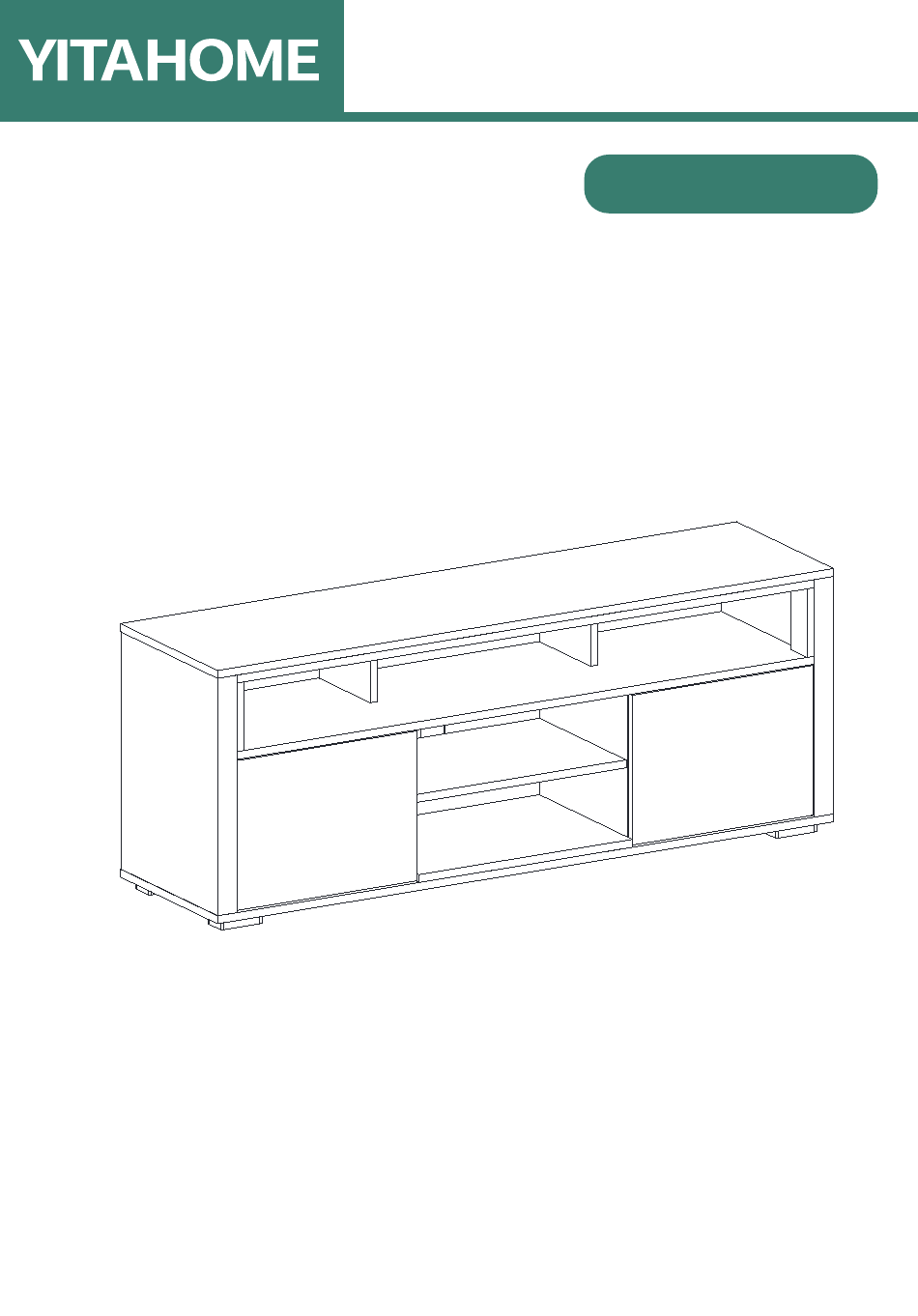

- Page 1 ASSEMBLY INSTRUCTIONS SGSHK-V1 FTLFTS-6011 TV STAND...
- Page 2 Hardware 8 x 40 MM 3.5 x 14 MM Ａ ｘ （３２＋４）ｓｅｔｓ Ｃ ｘ （３６＋４）ｐｃｓ Ｂ ｘ （２４＋３）ｐｃｓ 4 x 25 MM E x 4pcs Ｄ ｘ （１０＋１）ｐｃｓ M6 x 25 MM F x 6pcs G x 5pcs Ｈ ｘ （１２＋２）ｐｃｓ FLASH STROBE FADE SMOOTH Provided by the customer, not included in the hardware J x 1set accessory list...
- Page 3 Parts List...
- Page 4 Parts List 1300x350x15mm=1pc 450x350x40mm=1pc 450x350x40mm=1pc 1218x350x15mm=1pc 316x290x15mm=1pc 316x290x15mm=1pc 1300x350x15mm=1pc 184x145x15mm=2pcs 1218x60x15mm=1pc 130x60x15mm=2pcs 450x312x15mm=1pc 450x334x15mm=1pc 1228x154x3mm=1pc 1228x299x3mm=1pc 380x284x15mm=2pcs...
- Page 5 Step 1 A x 12 B x 10...
- Page 6 Step 2 Step 3 D x 10 G x 5...
- Page 7 Step 4 A x 12 B x 8...
- Page 8 Step 5 Step 6 F x 6...
- Page 9 Step 7 A x 8 B x 6 C x 12 H x 12...
- Page 10 Step 8 C x 24 E x 4 Adjust this screw to adjust the distance between the upper and down parts of the door panel, Adjust this screw to adjust the left and right distance of the door panel. Adjust this screw to adjust the longitudinal separation of the door panel.
- Page 11 Step 9 J x 1 FLASH STROBE FADE SMOOTH Put out the plastic sheet before use. √ × Tear off the adhesive on the back of the LED light strip and stick it to the bottom of the top plate Installation Completed...
- Page 12 Pure & Easy CONTACT US: If you have any questions about the installation of YITAHOME® products， just contact us at +1(888)-717-8084 from Mon-Fri 8:00 AM-16:30 PM PST / Saturday 8:00 AM-12:00 PMPST or E-mail us at: after-sale.cs@hotmail.com Alternative method to contact us(amazon.com orders only) 1.Log into your amazon account...
