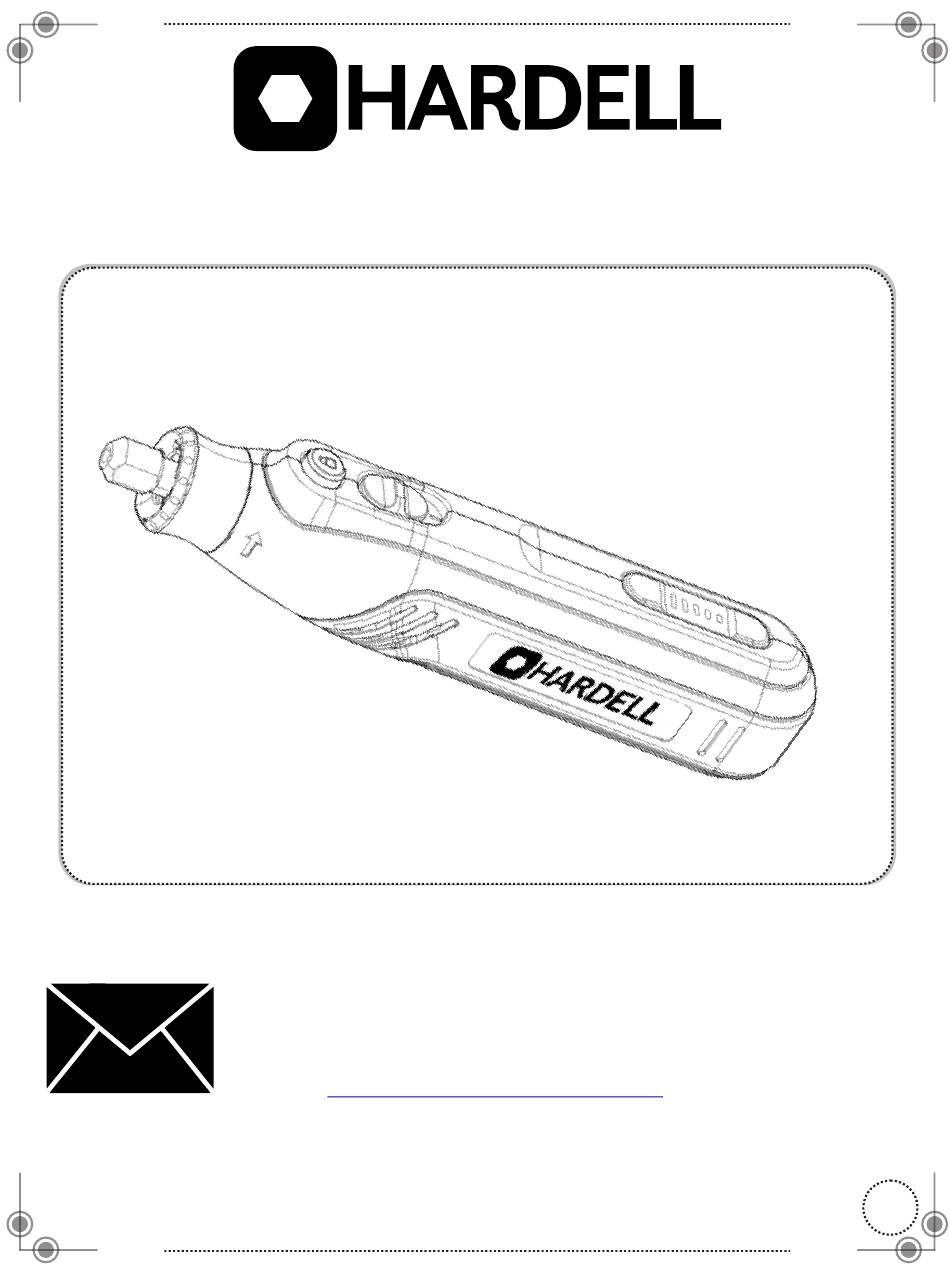

4V Cordless Rotary Tool Kit
User Manual
Thank you for purchasing this product. To ensure proper
use and trouble-free operation, please read this guide
carefully before operating. If there is any issue, please
contact us via Amazon or
email:
hardell.service@gmail.com,
We will help you within 12 hours.
01
Advertisement
Related Manuals for HARDELL Q0M-DC-4M
Summary of Contents for HARDELL Q0M-DC-4M
- Page 1 Thank you for purchasing this product. To ensure proper use and trouble-free operation, please read this guide carefully before operating. If there is any issue, please contact us via Amazon or email: hardell.service@gmail.com, We will help you within 12 hours.
- Page 2 Component List 1. Rotary Tool Component Component Locking Collar On/Off Switch Collect Speed adjustment button Speed Indicator/ Chuck Housing Electricity indicator Charging cable Charging port Spindle Lock Button About charging Connect the power supply (DC4V), Insert USB into the machine. Charging complete= H(Electricity indicator) five green lights charging= H(Electricity indicator) green light flashing NOTE! A battery pack that has been unused for a while or never been charged...
- Page 3 2. Accessories List (101pcs) Accessory Diameter Quantity Application Name Shanks Sanding paper 40pcs Use to sand wood, metal and jade Use to cut wood, metal, plastic, Cut off wheel 36pcs jade and glass Use to sand wood, metal, plastic 4pcs Sanding band and jade Grinding wheel...
- Page 4 OPERATING INSTRUCTIONS 1. Speed control Use the speed adjustment button “+” or “-” to adjust the speed. This tool has five speed settings (see below list). Push the on/off switch forward to turn on the tool. Push backward the on/off switch will turn off the tool. The battery indicator will light up according to the tool speed.
- Page 5 3.Assemble & Disassemble Accessories Press and hold the spindle lock button, use the wrench to loosen the Locking Collar, and disassemble the accessory. Note! Tum the tool off and ensure that the rotating part is stopped beforetaking next step. Note! Replace the accessories by inserting them into the collect as far as possible to minimizeexhaustion and imbalance.
- Page 6 4.How to Use mandrels Mandrels are shanks with a threaded screw head used for , cut-off wheels , sanding bands, and felt wheels. Details see below figures. sanding drum kit cut off wheel felt wheels...
- Page 7 Safety instructions Warning!!! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. 1. Before using the tool, ensure that it is ready and safe to use! 2.
- Page 8 Never try to repair the product by yourself. For any inquiries concerning our products, please contact our after-sales team via hardell.service@gmail.com, we are free to help you solve your problemanytime.
