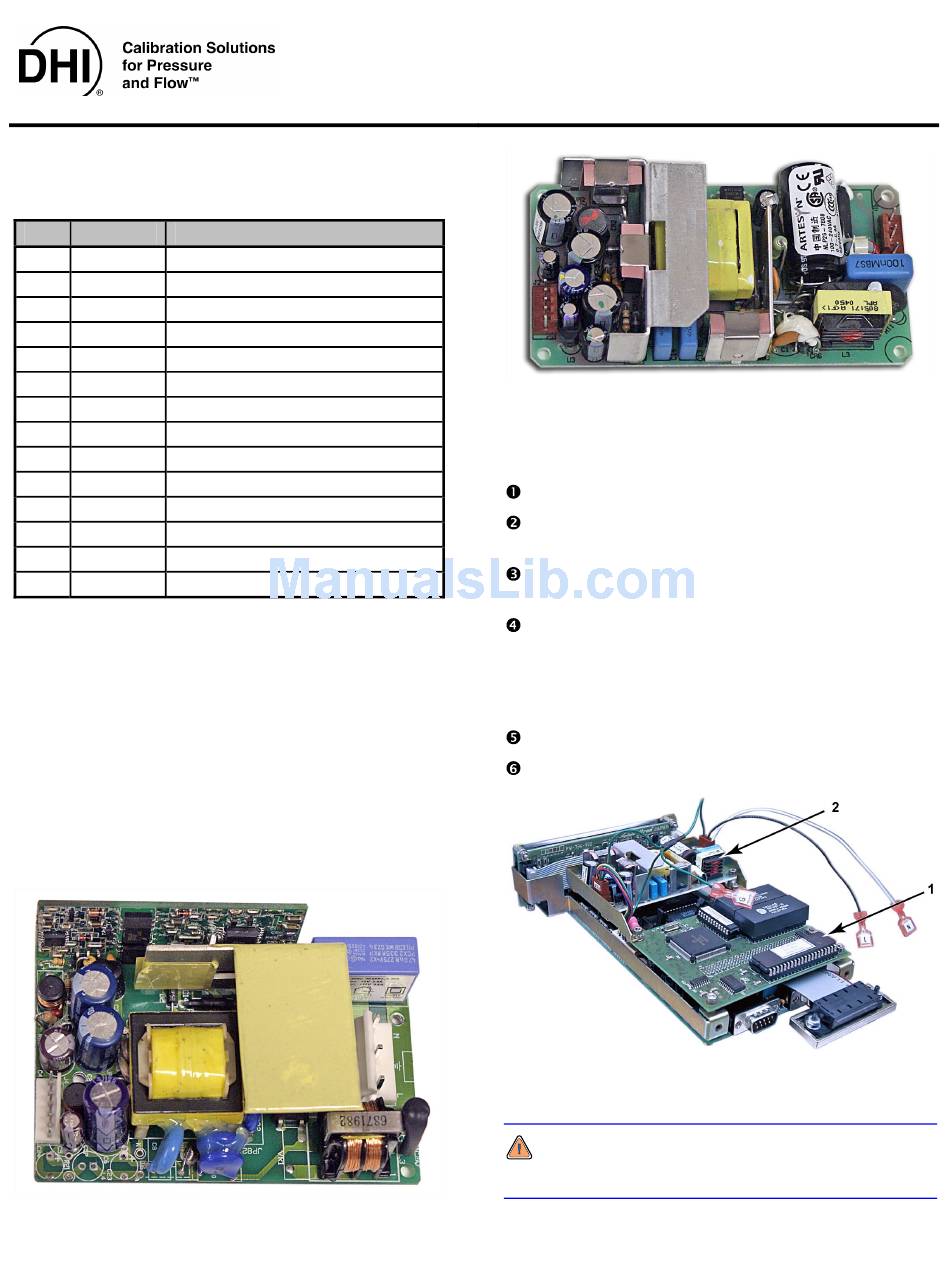

DH Instruments ARTESYN - INSTALLATION FOR RPM3 Replacement Manual

REPLACEMENT POWER SUPPLY KIT,
P/N 402117, INCLUDES:
QTY PART NO
1 103501 Artesyn® Power Supply, +5V, +12V
1 402299 PROM, 68302 BIOS Mini-Micro
5 100739-Z Washer, Flat, M3
2 100969-Z Washer, External Tooth, M3
6 102464-Z Washer, Split Lock, M3
2 100984-Z Screw, PHP, M3 x 6
2 101010-Z Screw, SHC, M3 x 8
1 101005-Z Screw, SHC, M3 x 10
2 101006-Z Screw, SHC, M3 x 12
4 101041-Z Tie, Cable, 3.9"
2 103513 Spacer, Round, 6 MM x 6
2 103514 Spacer, Round, 6 MM x 3
1 124013 Bracket, Power Supply, RPM3
1 402116 Cable Assembly, AC/DC, RPM3
This is a replacement power supply kit for RPM3. It
includes the replacement power supply and a
replacement BIOS Prom that must be installed for
proper operation.
Some RPM3 products may contain a power supply
manufactured by Ault. A bracket, mounting hardware,
and replacement AC/DC power cable are provided for
conversion to the
manufactured by Artesyn®. After the enclosure cover
has been removed the installer must identify the
power supply (see Figures 1 and 2) and proceed to
the appropriate section for removal and installation.
Figure 1. Top View - Ault Power Supply
DESCRIPTION
replacement power
REMOVE AND REPLACE ARTESYN®
POWER SUPPLY AND BIOS:
Disconnect power cord.
Remove enclosure cover from unit (disconnect fan
cable prior to completely removing cover).
Detach AC cable and DC cable from power
supply.
The power supply is mounted in four (4) places
with a stainless steel screw, flat washer, lock
washer and aluminum spacer.
screws, flat washers and lock washers and
remove the power supply board from the chassis.
Remove and discard the EPROM BIOS IC.
Installation is the reverse of removal.
supply
Figure 3. Bios Prom and Power Supply Location
NOTE: Installer must be properly grounded when
handling BIOS IC.
REPLACEMENT
POWER SUPPLY KIT
for RPM3
PN 402117
Installation Instructions
Figure 2. Top View - Artesyn® Power Supply
1. BIOS IC 2. Power Supply
Remove the
