DH Instruments 32MM MOLBLOC CRADLE KIT Installation And Use

32mm molbloc cradle kit

Advertisement

This kit is used to retrofit the 1/4" molstic-S™ platform in order to provide mounting for the molbloc-L™ laminar flow
elements with 32 mm square bodies.

PREPARING THE PLATFORM FOR CRADLE INSTALLATION

Early deliveries of the molstic-S platform did not include the holes necessary to mount the downstream cradles for 32
mm molbloc-L elements. If your platform does not have these holes, designated by sets 4, 5, and 6 in Figure 1, then
they will have to be drilled prior to installation of the cradles.
In order to locate and drill holes for the downstream cradles, use the following procedure:
Disassemble all of the existing cradles from the platform and retain the parts.
Determine in which location (4, 5, or 6) you will mount the downstream cradles.
Using a pencil and a straightedge, mark a line parallel to and 57 mm from the outlet end of the platform.
In order to locate the point on the platform to drill each new hole, mark a line that is parallel to the long side of the
platform and connects the centers of the existing holes. For example, if installing the downstream cradle in
location "4", mark a line from the centers of the two holes in location "7" to the centers of those in location "1".
Punch the intersection of the marked lines to facilitate drilling the platform.
Drill all necessary holes to a diameter of 4.6 mm.
32mm molbloc Cradle Kit

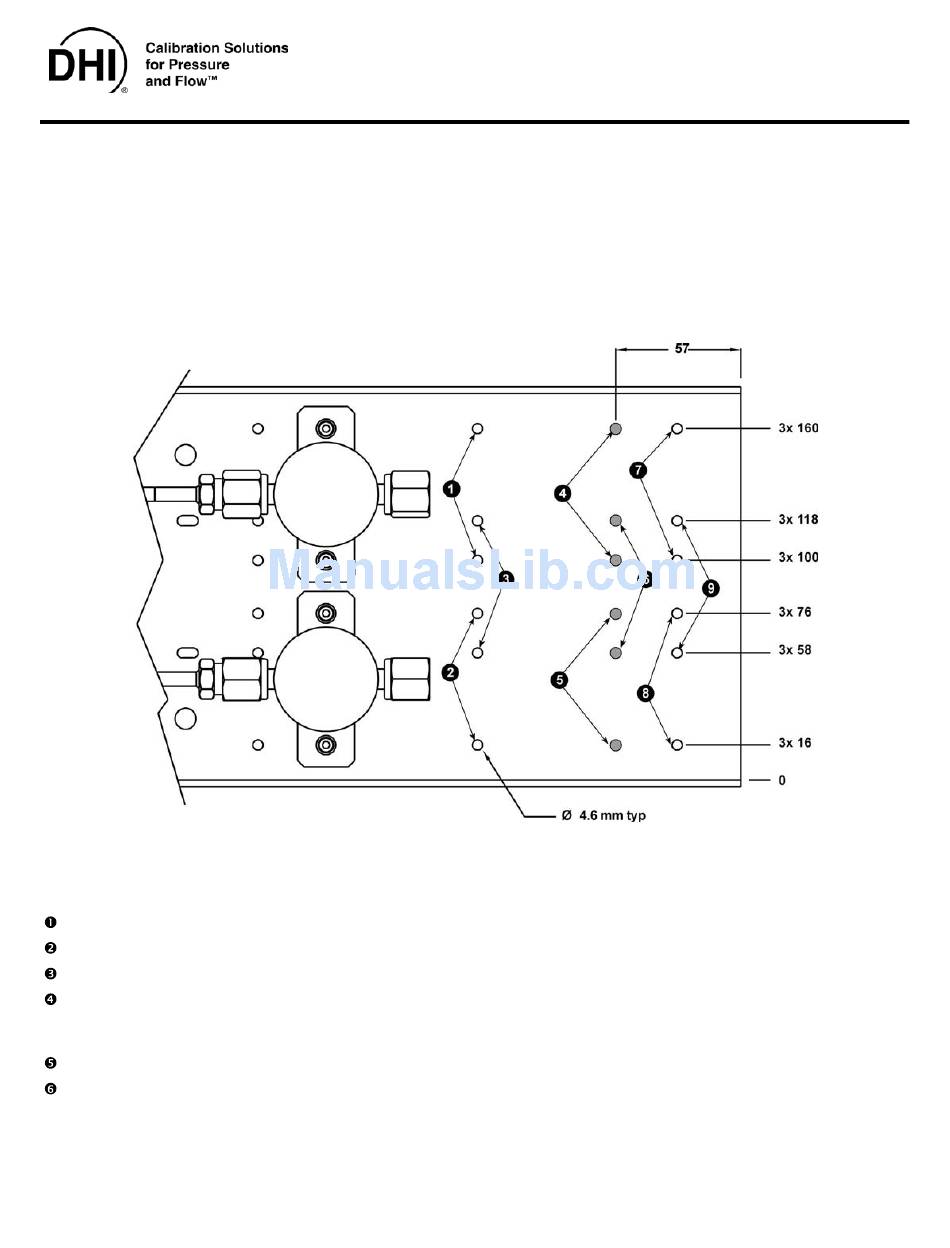

Figure 1 molstic-S Hole Pattern
Installation and Use of
P/N 402134
Instruction Sheet

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 32MM MOLBLOC CRADLE KIT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for DH Instruments 32MM MOLBLOC CRADLE KIT

  • Page 1 Installation and Use of 32mm molbloc Cradle Kit P/N 402134 Instruction Sheet This kit is used to retrofit the 1/4” molstic-S™ platform in order to provide mounting for the molbloc-L™ laminar flow elements with 32 mm square bodies. PREPARING THE PLATFORM FOR CRADLE INSTALLATION Early deliveries of the molstic-S platform did not include the holes necessary to mount the downstream cradles for 32 mm molbloc-L elements.
  • Page 2 INSTALLATION OF CRADLES ONTO MOLSTIC-S PLATFORM With the molstic-S resting on its side, position the upstream cradle for the 32 mm molbloc-L into the desired location, either 1, 2, or 3. Place a lock washer and then a flat washer onto the socket head cap screw. Thread the screw into the upstream cradle from the bottom side of the molstic platform and leave loose enough to allow for later adjustment.
