Fishman VTB Installation Manual

VTB
INSTALLATION GUIDE
www.fishman.com

System Requirements

These instructions support installation with the
following systems:
• Fishman Acoustic Matrix Natural I &II—
between Rev. 4.0 and 6.0
• Fishman Powerjack—Rev. 2.3
• Martin Gold Plus—between Rev. 4.0 and 6.0
• Martin Active Jack—Rev. 2.3
Please note that revision numbers for each
pickup are printed on the circuit board inside
the endpin jack.
Do not attempt to install the VTB with
the discontinued Acoustic Matrix Natural
or the Acoustic Matrix Hot preamps or
similar versions of the Martin Gold Plus
systems. These systems can be identified
by the rectangular metal box that encases
the electronics.

Installation

Warning! Installation of the VTB is meant to be
performed only by a professional repairperson.
. Locate the controls on the top of the instrument's
shoulder, on the bass-side adjacent to the neck.
Check for interference with the internal structural
components, such as the neck block, the top braces
or the lining. When you choose a location, be aware
the VTB knobs must clear the interior lining of the
guitar case. The single-shaft control is for volume
and the dual shaft control is for bass (outer knob)
and treble (inner knob).
2. Reinforce the mounting area with a backing
strip of thin veneer glued to the inside of the
guitar. Use the included drilling template to size
the backing strip.
3. Fasten the template to locate
Active Volume, Bass
& Treble Controls
for Fishman
Acoustic Matrix Natural I,
Acoustic Matrix Natural II
and Powerjack preamps.
3
⁄ " (9.5mm) holes.
8

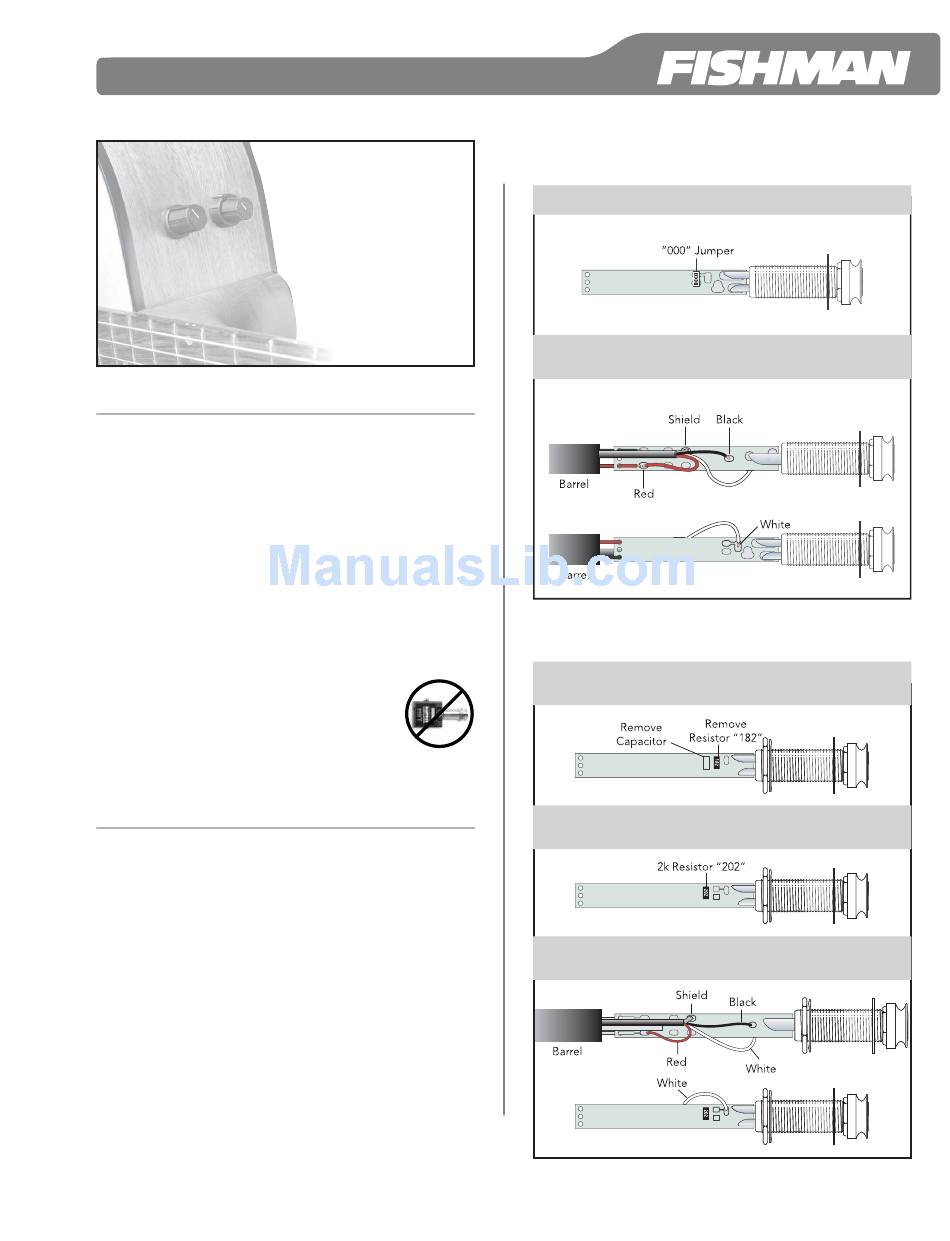

Fishman Acoustic Matrix and
Martin Gold Plus—Rev . 6.0:
. Remove "000" jumper.
2. Thread cable assembly through barrel and solder
as indicated.
Fishman Acoustic Matrix and
Martin Gold Plus—Rev . 5.0, 5.3:
. Remove the components from the endpin
preamp as indicated
2. Solder the new 2k resistor (supplied with your VTB)
to the preamp circuit board in place of the capacitor
3. Thread cable assembly through barrel and solder
as indicated.
