Summary of Contents for Avantree BTSP-850-BLK

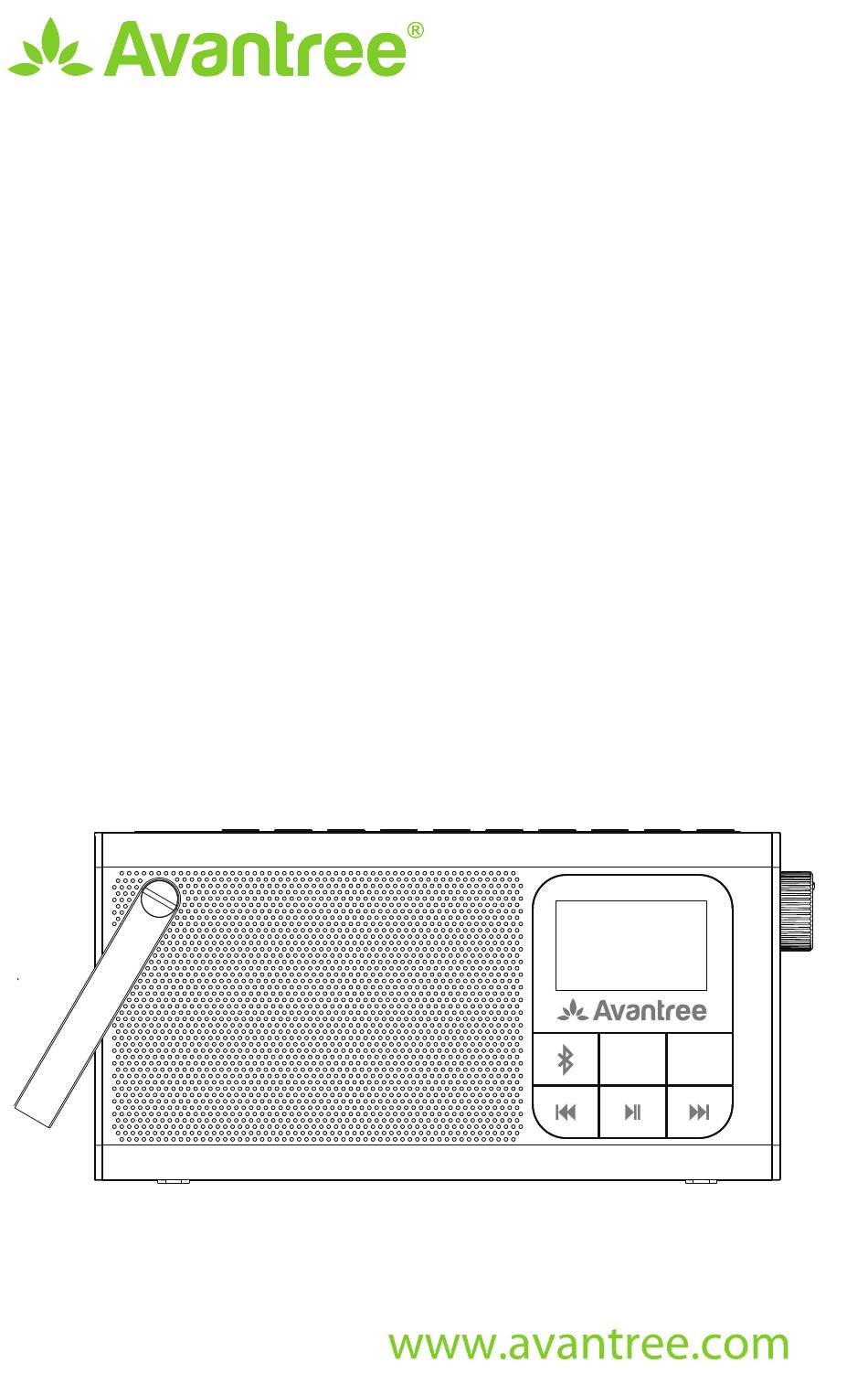

- Page 1 For a Better Experience BTSP-850-BLK MENU MODE...
- Page 2 Contents 7 Bluetooth mode Chapter I: About the product 8 FM radio mode 1 Warnings 9 Micro SD card mode 2 Product and accessories 10 Card reader mode 3 Product specifications 10 Aux input mode Chapter II : How to use 11 How to charge 12 FAQ 4/5 Product overview and...
- Page 3 Product and accessories MENU MODE Multi function portable speaker 1 pc Aux cable 1 pc BL-5C Battery 1 pc USB cable 1 pc...
- Page 4 Product specifications Appearance External Micro USB interface, Micro card slot, Aux interfaces audio interface,headset jack Size W130×D32×H66 (mm) Product weight 158g (including BL-5C battery ) Basic specifications Product type Multi function Portable Bluetooth speaker Loudspeaker 1 speaker with bass radiator Housing material Highly anti-shock ABS plastic Interaction method Buttons and knob Portable speaker, Bluetooth connection,...
- Page 5 How to use Product overview and basic operation Power on/off, volume control: Clockwise rotation to turn on & volume+, anti-clockwise to turn off & volume- VOL- VOL+ Audio input: 3.5mm Aux cable jack for audio input, supports PC connection, music player, mobile phone and other audio devices.
- Page 6 Menu: Short press for current mode menu, long press for system menu. Bluetooth: Short press to enter Bluetooth mode, Mode: Short press to switch long press to disconnect the modes among Micro SD Bluetooth. card /FM radio /USB sound card. LCD Screen Play/Pause: Short press to stop or play music.
- Page 7 Menu Short press MENU to enter current mode menu, long press MENU to enter system settings. Micro SD card mode FM radio mode Repeat Auto-Searching Equalizer Delete Local Folder Return Delete file Return Repeat All Natural Repeat Folder Rock Repeat one Random Classic Return...
- Page 8 VOL- VOL+ enter Bluetooth mode, turn on Bluetooth device, search " Avantree SP850" to pair and connect. Note ： 1. If necessary, please press"0000" to pair with Bluetooth device. 2. Bluetooth can reconnect automatically the last paired device.
- Page 9 FM radio Mode Rotate the knob to turn on the speaker, VOL+ and it will automatically enter FM radio mode for the first time use. Afterward, it will go back the last mode when power on. Short press to switch to FM radio mode when under other MODE modes.
- Page 10 Number 0~9 Press the numbers directly to select stored channels. Alternatively, press the channel numbers directly to play. Tips: We suggest you allow the product search the FM radio channels firstly by its self to save the local FM radio channels. Delete: Delete current channels.
- Page 11 Card reader mode When connecting the speaker to a PC via USB, short press to switch to Card reader mode, enabling you to remove MODE or add files to the Micro SD card. VOL+ Card reader Aux Input mode Connect the speaker to other music players via 3.5mm audio cable to play music.
- Page 12 How to charge Put BL-5C battery correctly in the battery box, connect the speaker to electric device via USB cable. The "battery volume icon" should be flashing. When it’s fully charged, the "battery volume icon" will show completely and not flash. USB charging VOL+ Note:...
- Page 13 Problems Solutions 1.Check if the battery is low. 2.Check if Micro SD format is correct ( Micro SD Cannot play or blank LCD FAT32 format). display 3.Check if the files' format stored in Micro SD card is MP3/WMA /WAV. 1.Check the volume. No sound 2.Check if speaker is under Mute mode or Pause mode.
- Page 14 More FAQs on support.avantree.com Video user guide: Search “Avantree SP850” on Youtube.com Telephone support refer to http: //www.avantree.com/contact-us Email support: support@avantree.com Z-PKMN-SP850-V3...
