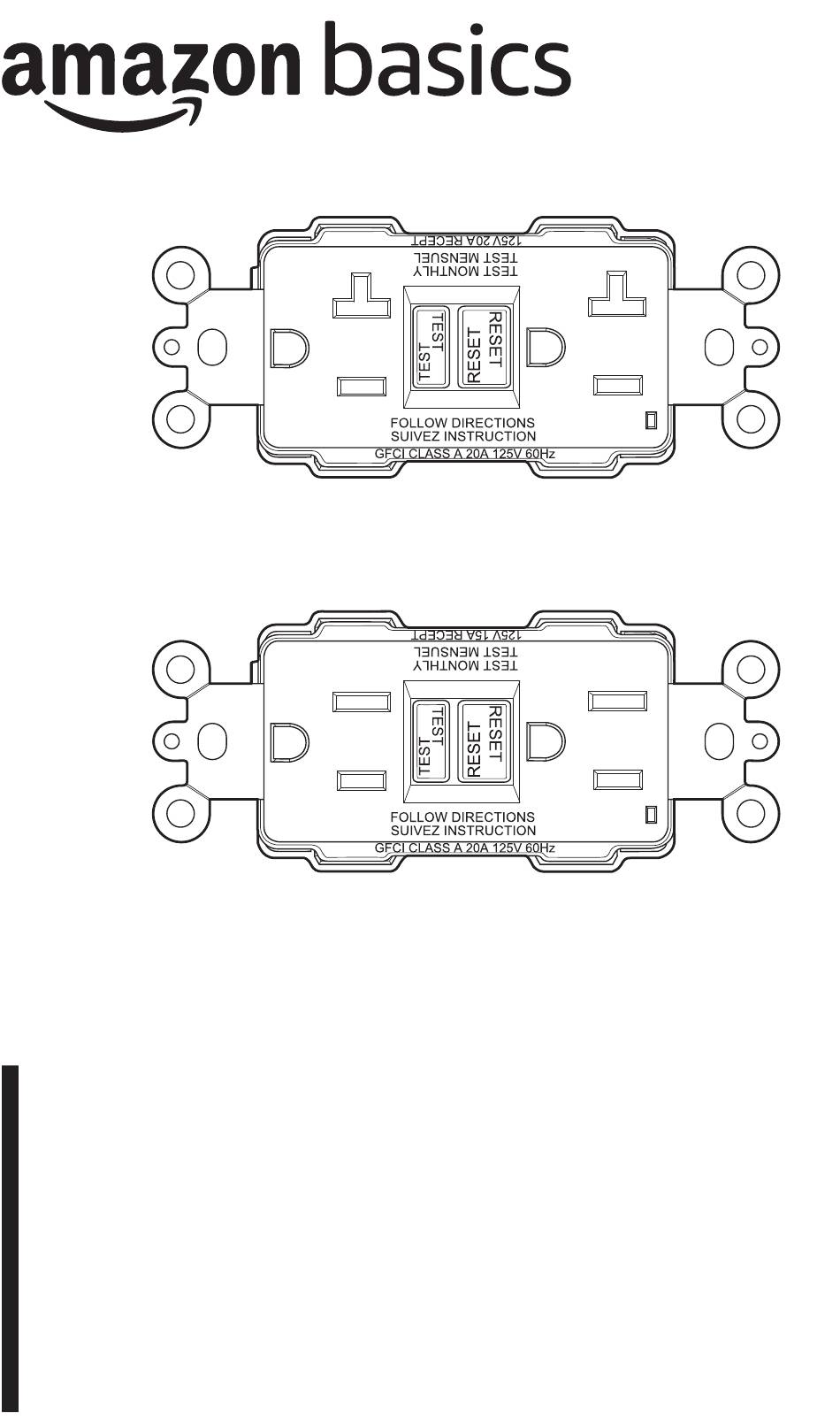

- Page 1 B0BBZZM2FL B0BC12CL5C GFCI Tamper Resistant and Weather Resistant with LED indicator Disjoncteur de fuite de terre (DDFT) résistant à la falsification et aux intempéries avec voyant LED GFCI, inviolable y resistente a la intemperie, con indicador LED...
- Page 2 Product description • Description du produit • Descripción del producto Grounding terminal (green) Mounting for grounding wire » bracket (yoke) (bare copper or green) Support de Borne de mise à la terre (verte) montage (étrier) pour fil de mise à la terre »...
- Page 3 LINE cable LINE cable LINE cable Câble d’ALIMENTATION Câble d’ALIMENTATION Câble d’ALIMENTATION Cable LÍNEA Cable LÍNEA Cable LÍNEA Circuit breaker Disjoncteur Disyuntor LOAD cable LOAD cable Câble de CHARGE Câble de CHARGE Cable CARGA Cable CARGA...
- Page 4 Wiring option • Option de câblage • Opción de cableado Back wire • Fil arrière • Cable trasero Side wire •Fil latéral • Cable lateral Torque • Couple • Par de torsión: 14 lb-in...
- Page 5 LINE cable Câble d’ALIMENTATION Cable LÍNEA Grounding terminal (if any) Borne de terre (le cas échéant) Terminal de conexión a tierra (si existe)
- Page 6 LINE cable Câble d’ALIMENTATION Cable LÍNEA LOAD cable Grounding terminal (if any) Câble de CHARGE Borne de terre (le cas échéant) Cable CARGA Terminal de conexión a tierra (si existe)
- Page 8 Important Safeguards Read these instructions carefully and retain them for future use. If this product is passed to a third party, then these instructions must be included. When using the product, basic safety precautions should always be followed to reduce the risk of injury including the following: Risk of injury or death! Do not install D ANGER...
- Page 9 This outlet is rated 125 V AC and must be » connected to a suitable power source. Install only in a suitable UL Listed outlet box. » Connect only to terminal copper wire of 12 AWG or » 14 AWG. Do not use with aluminum wires. Do not attempt to disassemble, repair, or modify »...
- Page 10 Reinstall the receptacle in the electrical box, attach the wall plate, then turn on power at the circuit breaker or fuse. Determine if power is flowing to the GFCI receptacle by plugging in a lamp or radio into it. If the radio or lamp works, the capped wires are the LOAD wires.
- Page 11 If the product is placed in a circuit, be NOTICE aware of the position of the product (Fig. 1). When it is in position A, it provides GFCI protection to “load side” of receptacles B and C. When it is in position C, it does not provide protection to receptacles A or B.
- Page 12 GFCI testing Perform the GFCI testing after NOTICE installation and every month to ensure proper operation. If the product can not be reset, then it must be replaced. Refer to Troubleshooting section if the NOTICE product fails to perform as described as below. Turn on the power at circuit breaker or fuse.
- Page 13 Troubleshooting Turn off the power at circuit breaker or fuse. Check the wire connections against the appropriate wiring diagram in Fig. 5A or 5B. Make sure that there are no loose wires or loose connections. After rewiring any connections to the NOTICE product, refer to GFCI testing section to ensure the product works properly before use.
- Page 14 To ensure we are providing the best customer experience possible, please consider writing a customer review. Scan QR Code below with your phone camera or QR reader: If you need help with your Amazon Basics product, please use the website or number below. amazon.com/gp/help/customer/contact-us +1 877‑485‑0385...
