Nuvo SF77/861 Installation Instructions

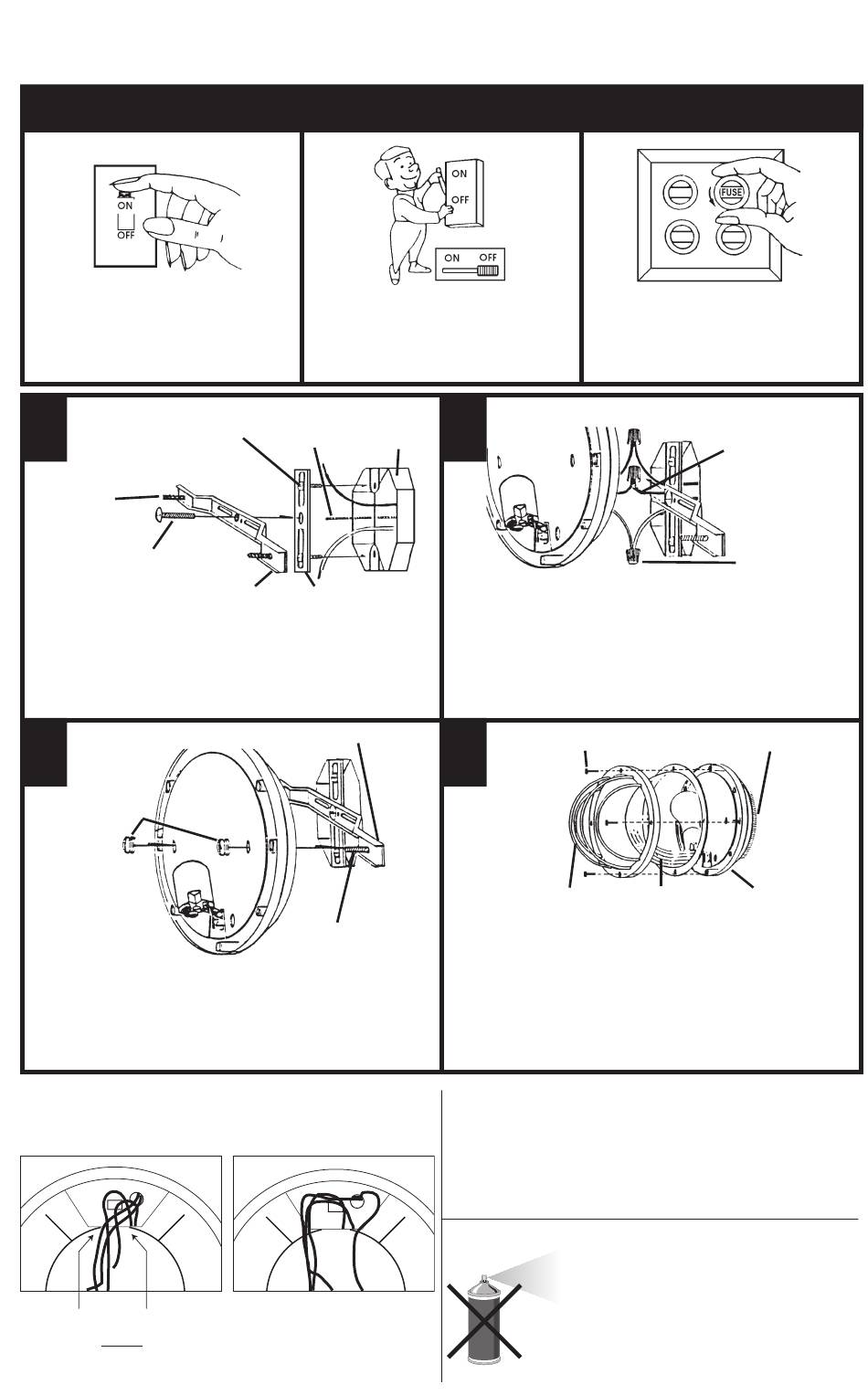

INSTALLATION INSTRUCTIONS
R E A D I M P O R TA N T S A F E T Y T I P S B E F O R E P R O C E E D I N G W I T H I N S TA L L AT I O N
Turn fixture off! (Place wall switch
in off position, if fixture has built-in
switch or chain pull, switch or pull
chain so fixture is off.)
1
outlet box
screws
(not provided)
fixture
mounting
screws
mounting screw
outer cross bar
ATTACH small cross bar to outlet box with outlet box screws
(8-32 x 1/2, screws not provided). THREAD fixture mounting
screws (8-32 x 1,2 provided) into large cross bar. ATTACH
large cross bar to small cross bar with mounting screw (1/4
- 20 x 3/8,1 provided).
3
thumb nuts
POSITION THE FIXTURE over the large cross bar and secure
in place with the thumb nuts (2 provided). Screw bulb into
socket. Be sure to use bulb with wattage no greater than
specified for this fixture.
NOTE: BE SURE WIRES EXITING THE BACK OF FIXTURE ARE
NOT PINCHED BETWEEN THE BACK OF FIXTURE AND CEILING
OR WALL
CORRECT
WIRES MUST LAY
IN THIS SLOT
SAFETY TIPS
Next - go to the main fuse box. If
your fuse box has an ON/OFF switch,
simply place main power switch in
OFF position.
ground outlet
wire box
small cross bar
outer cross bar
fixture mounting
screws
INCORRECT
Screw-in type fuses - unscrew the fuse
or fuses that control the power to the
fixture or room you are working in.
2
CONNECT THE WIRES. NOTE: Attach black fixture wire to black
supply wire, white fixture wire to white supply wire. Do not mix
them up. Use approved electrical tape or wire connectors (not
provided). Connect bare fixture ground wire to ground wire
from outlet box. NEVER CONNECT GROUND WIRE TO BLACK
OR WHITE POWER SUPPLY WIRES.
4
mounting screws
bar grill
PLACE DIFFUSER ON FIXTURE BASE. Then place bar grill or
frame over diffuser and attach to base with mounting screws
(8-32 x 1/2, 4 combination head screws provided). NOTE:
Outdoor wall fixture MUST be caulked with an acrylic caulk
where base of fixture meets mounting surface. This provides
a water tight seal when fixture is installed.
NOTE: Following warning applies to ceiling installation only.
WARNING - RISK OF FIRE, MOST DWELLINGS BUILT
BEFORE 1985 HAVE SUPPLY WIRE RATED 60˚C. CONSULT A
QUALIFIED ELECTRICIAN BEFORE INSTALLING. FOR SUPPLY
CONNECTIONS, USE WIRE RATED FOR AT LEAST 90˚C.
CLEAN ONLY WITH MILD SOAP AND
WATER.
CLEANSERS,
PESTICIDES
BASED
THESE
ground wire
wire
connectors
(not provided)
caulk
diffuser base
AVOID SPRAYING
INSECTICIDES,
THAT ARE PETROLEUM
HYDROCARBON PRODUCTS.
WILL DEGRADE LUMINAIRE.
IS010 Rev B
WITH
AND
