Summary of Contents for XJD FE-HT-LXC06

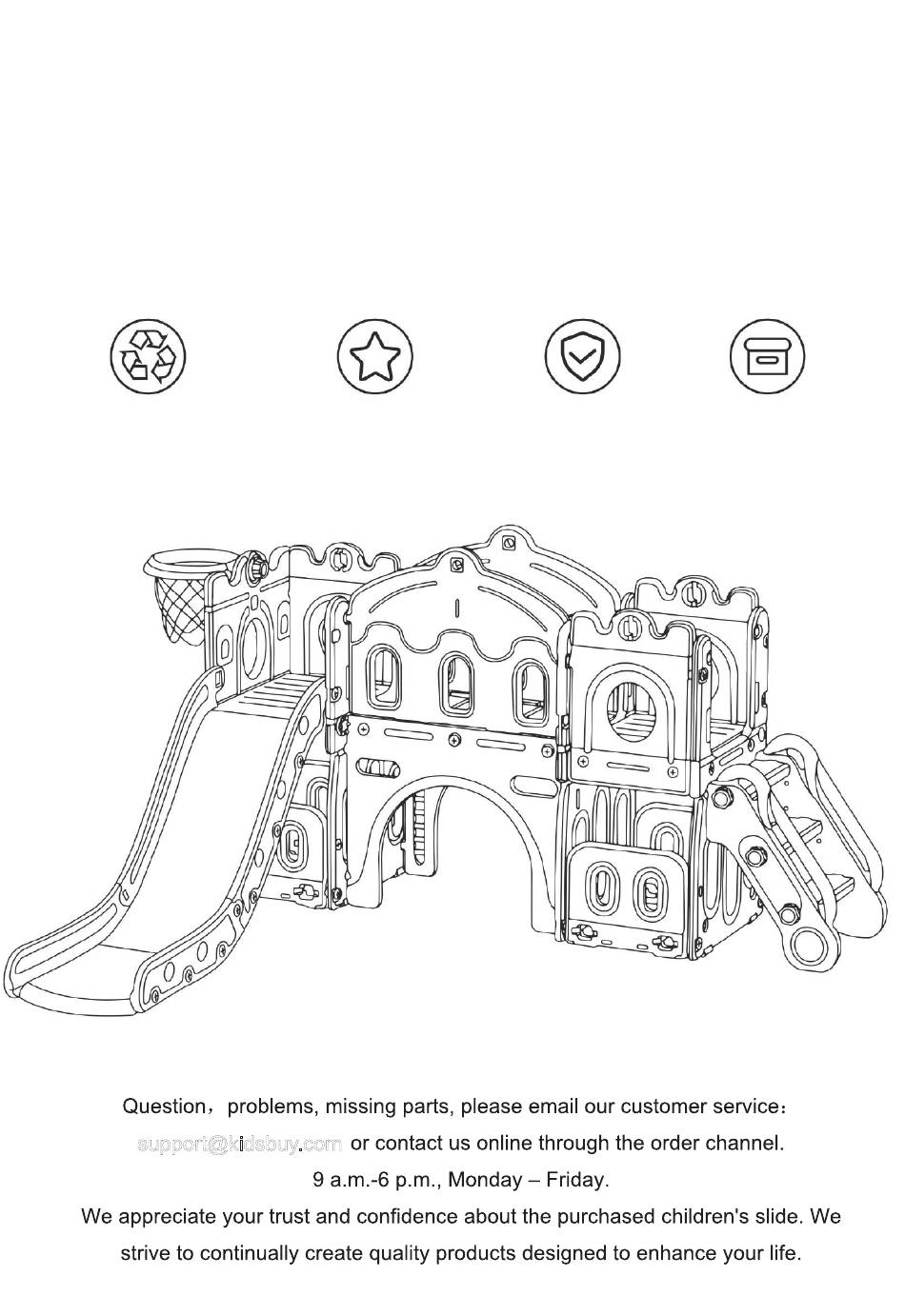

- Page 1 L-SHAPED TOWER SLIDE INSTALLATION MANUAL Eco-friendly material Multiple ways to play Safe and stable Easy to store support@kidsbuy.com...
- Page 2 READ ALL INSTRUCTIONS BEFORE USE slide handrail*2 Large side plate*1 Small Gate*4 2-ear platform*1 3-ear platform*1 Plastic Screwdriver*1 Aisl U-shaped side plate*2 Rectangular screw*2...
- Page 3 Step 1: Place the slide (top) on the buffer board (bottom), align the holes, and tighten the screw from the back using a screwdriver. Attach the slide handrails to both sides of the slide with small cross nuts and rectangular screws, and tighten with the plastic screwdriver.
- Page 4 Step 4: Assemble another U-shaped side plate of the aisle on the other side, and install the two aisle side panels on the U-shaped side plate and the aisle platform. Assemble the 3-ear large platform with the large round hole baffle, and then assemble it with the large side plate.
