Summary of Contents for PerfectPrime TC2100

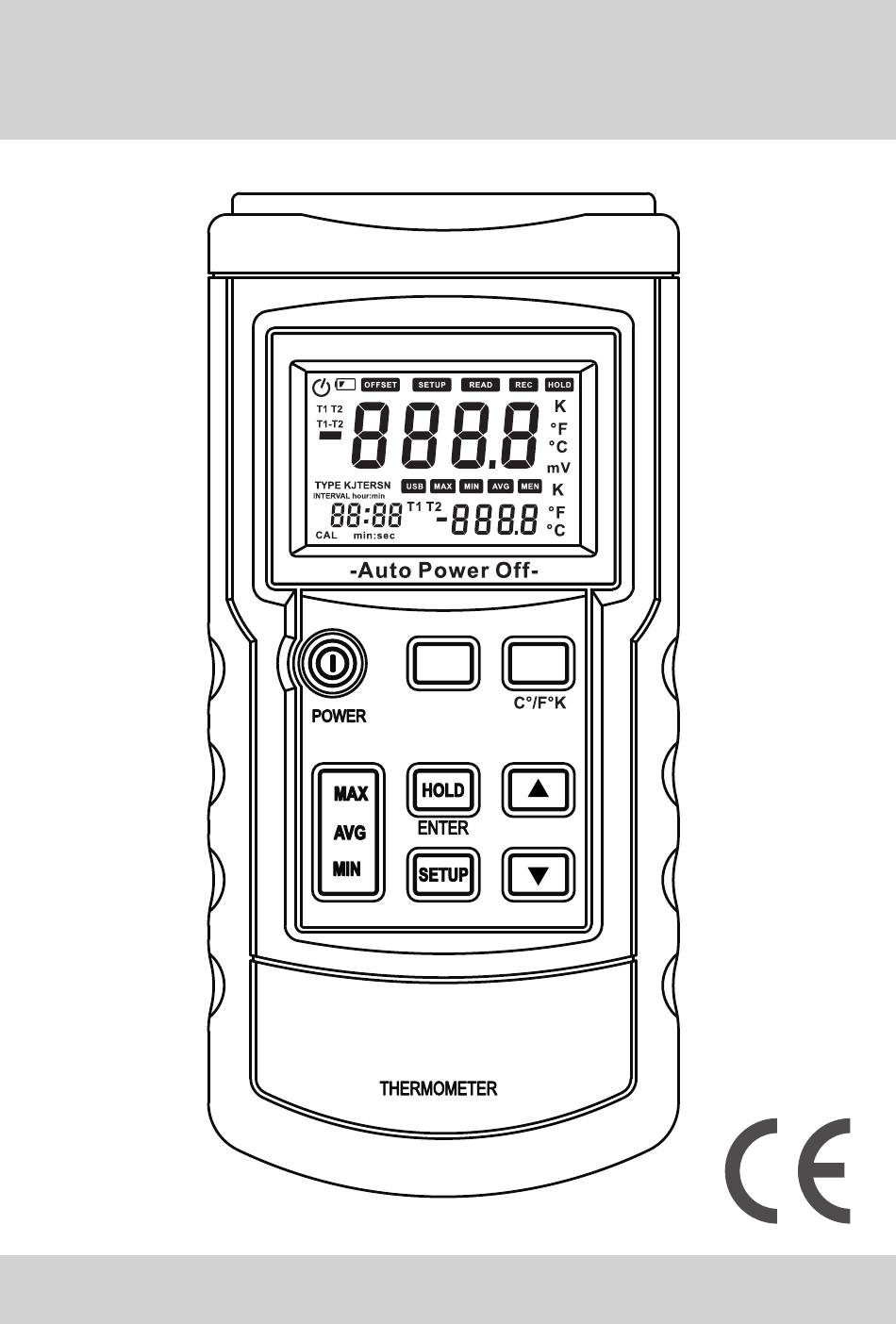

- Page 1 Digital Thermometer T1/T2/T1-T2 PC-Link READ...
- Page 2 Digital Thermometer CONTENTS 1. Safety Information ........1 2. Product Overview ........3 3 Recognize Meter ......... 4 3.1 Component............4 3.2 Display............5 3.3 Keys Description...........6 4. Setting Meter .........8 4.1 SETUP Option ........8 4.2 SETUP Option Setting......9 5. Using Meter ..........13 5.1 Connecting thermocouple....12 5.2 Displaying Temperature.....12 5.3 Data Hold..........12...
- Page 3 Digital Thermometer CONTENTS 5.4 Viewing MAX, MIN and AVG Readings....12 5.5 Use Offset value To Adjust Temperature probe error....13 5.6 User Self-Calibration......13 6. Data Storage........15 6.1 Data Storage ........15 6.2 Data Reading........15 6.3 Clearing Stored Data......16 7. Data Transmission.......16 8. Meter Maintenance.......16 8.1 Replace Battery........16 8.2 Clean..........16 9.
- Page 6 Digital Thermometer 2. Product Overview This digital thermometer uses a thermocouple with microprocessor as the temperature sensor. It has the following features: • Suitable for various thermocouples, such as K, J, T, E, R, S, N • It can show results with °C, °F and K (Kelvin) •...
- Page 7 Digital Thermometer 3. Meter Description 3.1 Component -auto Power Off- T2 + C°/F°K T1/T2/T1-T2 POWER HOLD ENTER SETUP READ PC-Link THERMOMETER USB port Thermocouple T1 input Thermocouple T2 input Measure under normal temperature Display...
- Page 10 Digital Thermometer POWER Power on or off thermometer Select to display T1, T2 and T1-T2 (temperature difference T1/T2/ measurement) on main or auxiliary T1-T2 screen alternately Unit selection: Celsius (°C), ˚C/˚F/K Fahrenheit (°F), Kelvin (K) View maximum, minimum and MAX/MIN average value.
- Page 11 Digital Thermometer 4. Setting Meter 4.1 SETUP Option Press the SETUP key to enter setup mode. “ ” SETUP symbol will flash on the screen, Press it again to switch setting states sequentally. Save all previous settings before exiting. If the meter is turned off in the process of setting, setting changes will not be saved.
- Page 14 Digital Thermometer Press ENTER key to select time format, including “hour:min” or “min:sec”. Hold ▼ to quickly increase or decrease. If this setting is not changed, the system time is the current thermometer running time. 7. Power frequency setting (LinE) To get the best measurement results, please set the thermometer's power frequency to local usage Enter the power frequency setting.
- Page 15 Digital Thermometer 5. Using The Meter 5.1 Connecting Thermocouple 1. Insert the thermocouple to input jack 2. Press the power key to turn on the thermometer power 3. Set the thermocouple type to be consistent with the inserted thermocouple type Note: If the thermocouple is not connected to the selected input end or the thermocouple is “open”, or when it exceeds measuring range,...
- Page 16 Digital Thermometer 5.5 Use offset Value To Adjust Temperature Probe Error Use OFFSET (T1) and OFFSET (T2) in the SETUP option to adjust the thermometer readings to compensate for a certain kind of thermocouple error. 1. Put the thermocouple in a known and stable temperature environment (such as in ice bath or dry well calibrator) 2.
- Page 17 Digital Thermometer e) Press “ENTER” key to save the current calibration value. f) Press “T1/T2/T1-T2” key (or “TC TYPE” key) to switch to T1 measurement channel. g) Input 0μV in T1 measurement channel h) After stabilizing, press “ENTER” key to save the current calibration value.
