LAW5300

Ampara los

siguientes

modelos:

Encendido de cerillo, sin características

eléctricas

No. parte W11296360 Rev. A

STM . W11296361 Rev. A

Need help?

Do you have a question about the ESTUFAS LAW5300 and is the answer not in the manual?

Questions and answers

Summary of Contents for Acros ESTUFAS LAW5300

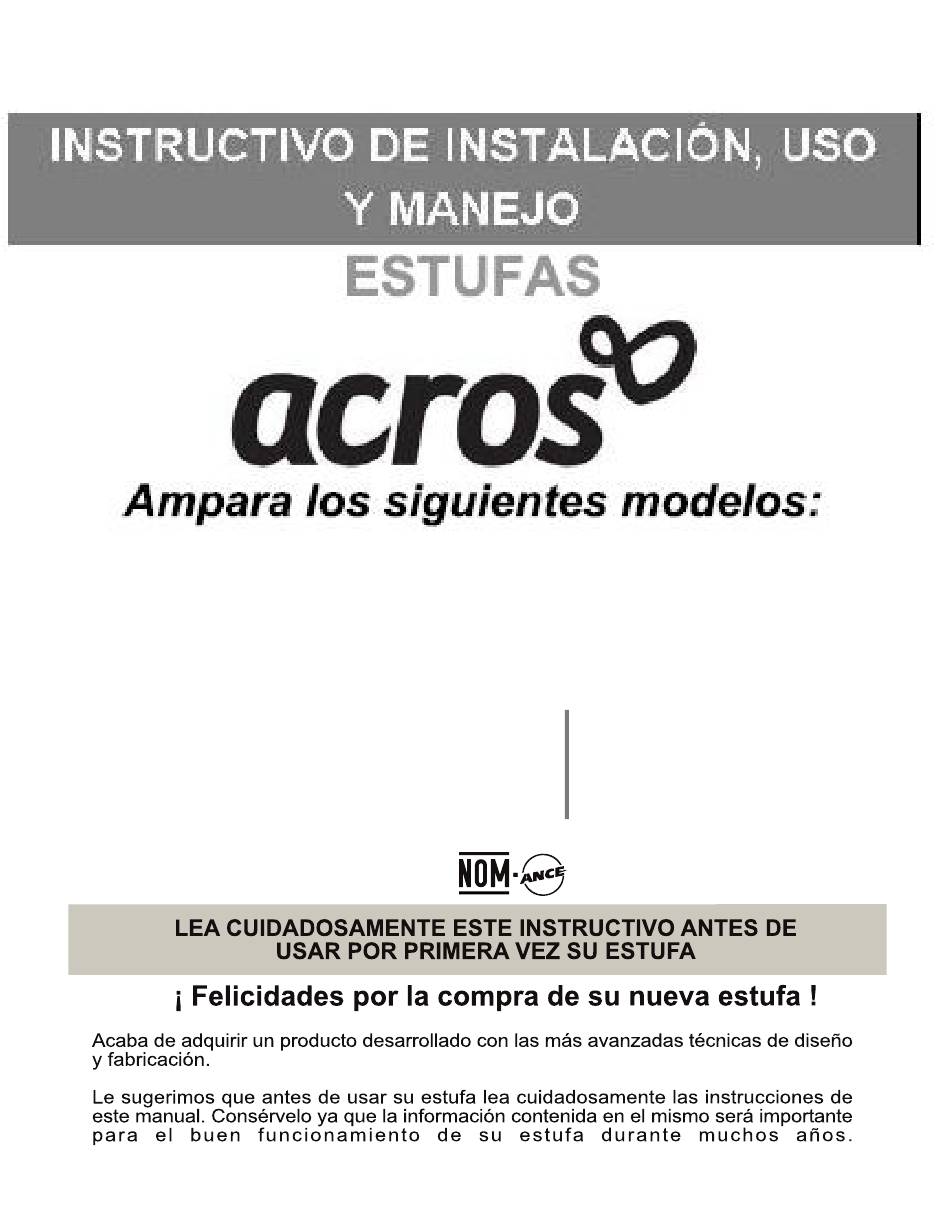

Page 1 LAW5300 Ampara los siguientes modelos: Encendido de cerillo, sin características eléctricas No. parte W11296360 Rev. A STM . W11296361 Rev. A...
Page 2 Seguridad Solución de problemas Servicio Técnico ATENCIÓN: Si el cordón de alimentación es dañado, éste debe sustituirse por el fabricante, por su agente de servicio autorizado para evitar un peligro.
Page 3 ATENCIÓN: Durante el uso y limpieza de los quemadores evite que se introduzcan alimentos o basura hacia el interior de estos, pues podría producir la obstrucción de los inyectores de paso de gas. Recuerde que el correcto funcionamiento de su artefacto depende del cuidado que tenga en la aplicación de este punto.
Page 5 Conexión ALIMENTACIÓN DE GAS INSTALACIÓN CON CILINDRO DE GAS L.P. IMPORTANTE: · Este producto está preparado para funcionar con gas LP (Licuado de Petroleo). · Antes de la instalación asegurese que las condiciones locales de distribución de gas (naturaleza y presión de gas) y las especiﬁcaciones técnicas de esta estufa son compatibles. ·...
Page 6 2. Con el destornillador, apriete la abrazadera metálica alrededor de la manguera (ﬁg. 2). 3. Ponga la otra abrazadera metálica en el otro extremo de la manguera de gas y conecte este otro extremo de la manguera a la válvula reguladora de su cilindro de gas.
Page 7 NOTA : Para operar esta estufa con gas Natural, se requiere el juego de conversión de acuerdo con la siguiente tabla y puede solicitarlo en su centro de servicio autorizado: Modelo Kit de Gas LP a Gas Natural LAW5300 W10478143 GAS NATURAL PRESIÓN DE OPERACIÓN GAS LP PRESIÓN DE OPERACIÓN 1,76 kPa;...
Page 8 figura...
Page 10 Precaliente siempre su horno en la posición Máxima durante 20 minutos o más. Esto es importante para lograr una cocción rápida y uniforme de los alimentos.
Page 11 PARRILLAS DEL HORNO...
Page 15 Solucion de problemas Antes de llamar a Servicio, pruebe las soluciones aquí sugeridas.
Page 16 Whirlpool. Conexiones | Mantenimientos | Extensiones de Garantía Accesorios | Reparaciones dentro y fuera de garantía Industrias Acros Whirlpool, S. de R.L. de C.V. Carretera Panamericana km. 280 C.P. 38020 Celaya, Gto.
Page 17 CERTIFICADO DE GARANTIA GRANDES ELECTRODOMÉSTICOS GARANTÍA VÁLIDA SÓLO EN EL PAÍS DE ADQUISICIÓN DEL PRODUCTO GARANTIZADO IMPORTANTE: Para su utilización este Certificado o Tarjeta de Garantía deberá presentarse junto a la factura o boleta de compra original del producto garantizado. Para Colombia la factura será exigible sólo en los casos en que la normativa local así lo permita. SUGERENCIA: Lo invitamos a registrar su producto a través de los diferentes medios de contacto de nuestro Centro de Atención al Cliente en cada país, los cuales se encuentran señalados en el punto 6 del presente Certificado de Garantía.
Page 18 CERTIFICADO DE GARANTIA GRANDES ELECTRODOMÉSTICOS • Daños ocasionados por golpes o caídas, así como los rayones o hendiduras. • Fallas en los bombillos o lámparas en aquellos productos que tengan iluminación interna. • Fallas, daños y/o defectos causados y/o con origen en el transporte y/o manipulación y/o intervención de técnicos y/ o persona y/o cualquier tercero no autorizados por el Garante.
Page 19 CERTIFICADO DE GARANTIA GRANDES ELECTRODOMÉSTICOS CHILE Garante: Whirlpool Chile Ltda. Dirección: Alcántara 44, Piso 7, Las Condes, Santiago de Chile Para productos marca Whirlpool y Consul comuníquese en Santiago de Chile y desde telefonía móvil al teléfono +56 2 753 2600 Desde el resto del país para productos Whirlpool y Consul a nuestra línea gratuita nacional 01800 201736 Horarios de atención: Llámenos de lunes a viernes de 8:00 a 18:00 horas y sábados de 8:00 a 14:00 horas E-mail: contactochile@whirlpool.com - Para productos marca KitchenAid, comuníquese con nosotros al teléfono + 56 2 207 4522...
Page 20 CERTIFICADO DE GARANTIA GRANDES ELECTRODOMÉSTICOS NICARAGUA Por favor, lo invitamos a chequear los datos del Garante. Si tiene alguna consulta respecto de los Distribuidores oficiales o bien sus datos, contáctenos a través de los medios señalados a continuación. E-mail: contactonicaragua@whirlpool.com PANAMÁ...
Page 21 20” GAS RANGE INSTRUCTIONS MANUAL, INSTALLATION AND USE GUIDE LAW5300 Model with Match Ignition Without Electrical Characteristics PLEASE READ THIS DOCUMENT CAREFULLY BEFORE USING YOUR RANGE FOR THE FIRST TIME Congratulations for your new appliance! You just purchased a new appliance, designed and manufactured following the most advanced techniques, Whirlpool guaranteed! We strongly recommend you to read the instructions on this manual before using your range.
Page 22 TABLE OF CONTENTS Range Safety Installation Connection How it works Flame adjustment Using the accessories and features Range care Electric Diagram Troubleshooting Service and Technical support Warranty RANGE SAFETY Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.
Page 23 ATTENTION: During use and clean of the burners, prevent food or debris from getting into the burners. This could cause the clogging of the gas nozzle. Remember that the proper performance of your appliance depends on the use and care given to this product. ATTENTION: Do not keep empty containers on the burner when lit.
Page 24 The location of the range should be away from the elements and over a flat resistant surface.  Do not install your range over a carpet or any flammable material. If the ground under the range is synthetic, make sure ...
Page 25 Connection GAS SUPPLY INSTALLATION USING LP GAS FROM A CYLINDER IMPORTANT: This stove is prepared to work with LP gas.  Before the installation, make sure that local gas distribution conditions (Nature of gas and pressure) and technical  specifications of this range are compatible. The technical specifications for this range are on the identification label on the back of this product.
Page 26 Installation procedure Put one of the metal clamps on one of the ends of the hose and connect this end of the hose to the gas supply located on the part back of the range (Fig. 1). 2. Use a screwdriver to tighten the metallic clamp around the hose (Fig.
Page 27 It is not recommended to place the gas cylinder next to the range. In case of problems, consult your Whirlpool Service  Center. IMPORTANT: The installation must be performed by qualified personnel. INSTALLATION USING NATURAL GAS or LP GAS FROM A PIPE LINE IMPORTANT: This stove is prepared to work with LP gas.
Page 28 WARNING Explosion Hazard Always use pipes and valves approved by the local regulations. Verify the integrity of pipes and gas regulators, replace them if necessary. Tight all gas connections during the installation. Install this appliance according to the specifications in this manual. Not follow these instructions may cause explosion, fire or possible injure people.
Page 29 Make sure the gas supply line is open (tank or shutoff valve). Check the gas lines and pipes are not kinked, bended or damaged. 5. Once you have confirmed that the electric connection and gas are ok, press the ignition button and turn the cooktop burner to Hi position (Max), the burner should light up this time.
Page 30 Flame Adjustment Flame on cooktop burners When converting your range from LP gas to Natural gas, you will need to adjust some components to get the best performance from your appliance. It is possible that after a conversion, the cooktop burner flames may need adjustment to avoid sudden light off or flames taller than normal even on the Lo position (minimum).
Page 31 6. When the adjustment has been done, tighten the air regulator screw and set the burner to its original position 7. Place the screw with the washer holding the frontal range frame and the burner. Tighten the screw. 8. Turn on the burner again following the steps on section “Testing your Range”, “Oven Burner”.
Page 32 Coated burner Burner openings Gas supply opening Aluminum Burner cap Always keep the burner cap when using the cooktop burners. The clean cap over the burner will help to ignite the burner correctly and keep the flame uniform. Always keep the burner cap clean after spilling any liquids and periodically remove and clean the burner caps as indicated on the section “Range Care”, “Cooktop Burners”.
Page 33 Range Care It’s very important to keep your range clean to keep an optimum performance, follow these recommendations for cleaning: we recommend to use water, soap and a soft cloth or a sponge to clean the range. Don’t use steel wools, you can damage the finish permanently Before cleaning the range, unplug the range or disconnect electric power.
Page 35 Troubleshooting Check over Solution Problem...
Page 36 Conexions | Manteinance | Guarantee extensions | Accesories | Repairs covered and no covered by guarantee PRODUCT MANUFACTURED BY: Industrias Acros Whirlpool S. de R.L. de C.V., Unidad Celaya Carretera Panamericana Km. 280 C.P. 38020, Celaya, Gto. Tel. 01 (461) 6 18 55 00...
Page 37 CERTIFICATE OF WARRANTY BIG APPLIANCES WARRANTY VALID ONLY IN THE COUNTRY OF PURCHASE IMPORTANT: For it to be used, this Certificate of Warranty must be submitted along with original purchase invoice of the warranted product. In Colombia, invoice will be required only where local laws so allow. SUGGESTION: Please register your product through the different means of contact of our Customer Service Center in each country, indicated in section 6 of this Certificate of Warranty.
Page 38 CERTIFICATE OF WARRANTY BIG APPLIANCES • Damages caused by strikes, falls, scratches and/or marks. • Failure of light bulbs or lamps in products with interior lighting. • Failure, damage and/or defects caused and/or resulting of the transportation and/or manipulation and/or intervention of technicians and/or person and/or any third party non authorized by Warrantor.
Page 39 CERTIFICATE OF WARRANTY BIG APPLIANCES CHILE Warrantor: Whirlpool Chile Ltda. Address: Alcantara 44, piso 7, Las Condes, Santiago de Chile For Whirlpool and Consul brand products in Santiago de Chile and from mobile phones, please call +56 2 753 2600 From the rest of the country, for Whirlpool and Consul products, please call national hotline 01800 201736 Customer service hours: Please call Monday through Friday from 8:00 to 18:00 and Saturday from 8:00 to 14:00 E-mail: contactochile@whirlpool.com - For KitchenAid products, please call +56 2 207 4522...
Page 40 CERTIFICATE OF WARRANTY BIG APPLIANCES PERU Warrantor: Whirlpool Peru S.R.L. Registered address: Av. Benevides 1890, Mira ores, Lima For products distributed by Whirlpool Peru S.R.L. please call 511-3110014. Customer service hours: Please call Monday through Friday from 9:00 to 18:00 and Saturday from 9:00 to 13:00 E-mail: contactoperu@whirlpool.com - Visit our websites: www.whirlpool.com.pe and www.kitchenaid.com.pe PUERTO RICO Warrantor: Whirlpool Corporation...
