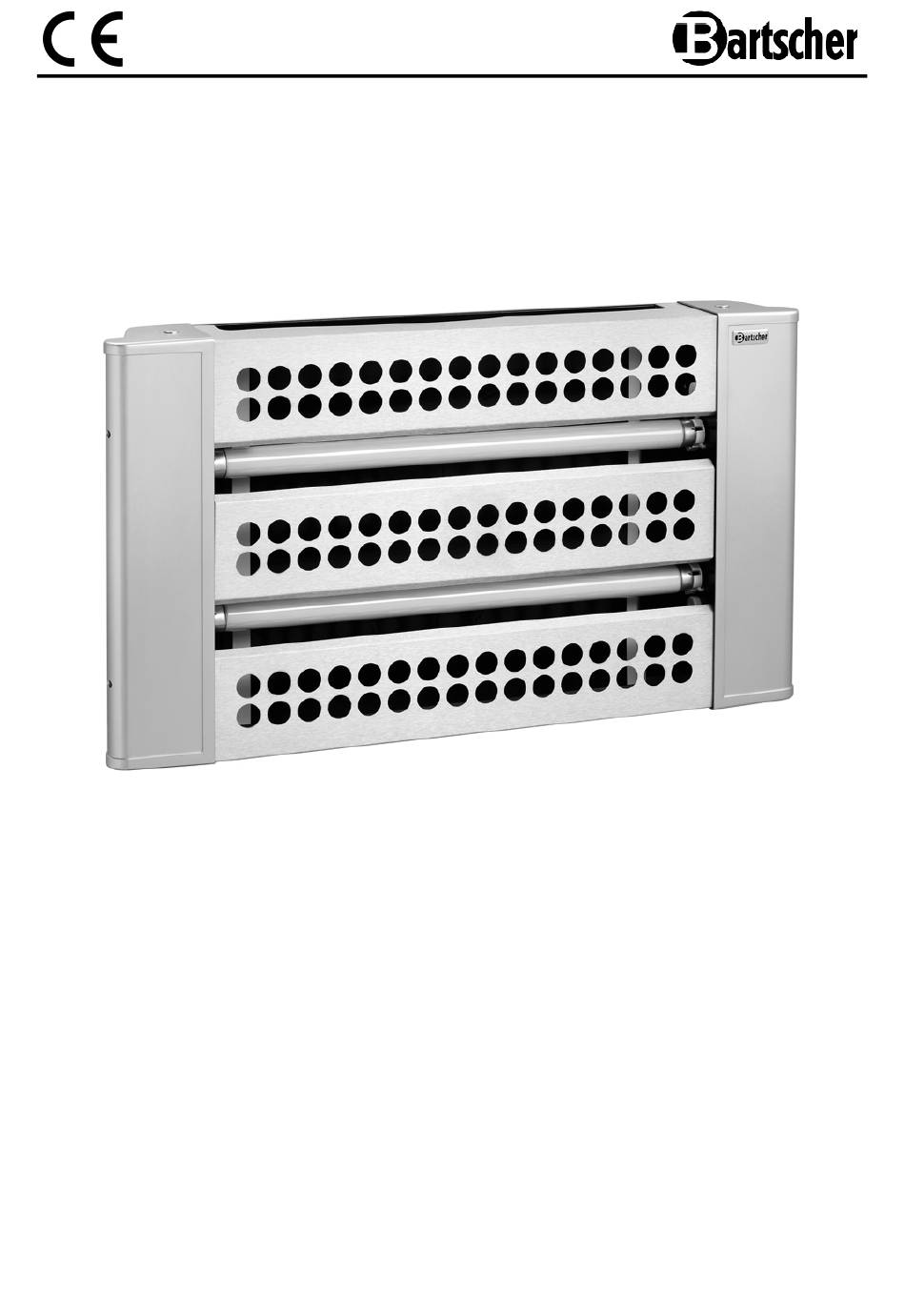

- Page 1 IF-100 300318 V1/1013...
- Page 2 6. Cleaning and maintenance ..................25 6.1 Safety advice ....................... 27 6.2 Cleaning ......................27 6.3 Safety instructions for maintenance ..............27 7. Waste disposal ......................28 Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax:...
- Page 3 1. General information 1.1 Information about the instruction manual This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device.
- Page 4 1.3 Liability and Warrantees All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors.
- Page 5 2.Safety This section provides an overview of all important safety aspects. In addition every chapter provides precise safety advice for the prevention of dangers which are highlighted by the use of the above mentioned symbols. Furthermore, attention should be paid to all pictograms, markers and labels on the device, which must be kept in a permanent state of legibility.
- Page 6 CAUTION! o The device can be used by children 8 years and up, as well as by people with disabilities and those with limited experience/knowledge as long as they are under supervision or have been instructed on proper use of the device and its possible dangers.
- Page 7 3. Transport, packaging and storage 3.1 Delivery check Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only. Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints.
- Page 8 Accessories: 10 adhesive sheets, fixtures We reserve the right to make technical changes! Optional accessories (not included in delivery!) Adhesive sheet for insect trap IF-100 • 20 pieces • Weight: 1.24 kg Code-No.: 300319 UVA neon tube for insect trap IF-100 •...
- Page 9 4.2 Overview of parts ① ② ⑤ ③ ④ ① Adhesive sheet tray ② Socket ③ Neon tubes (2) ④ Body ⑤ Grid - 22 -...
- Page 10 5. Installation and operation 5.1 Safety instructions WARNING! Risk of electric shock! The device must only be connected to a properly installed single socket with protective contact. Never remove the power cable by pulling the cable itself; always grab the plug housing.
- Page 11 • Put the device near the place where the insects fly into the room, but outside the area of wind gusts or drafts (windows, doors). • Place the device at a height of about 1.5 - 2 meters in a partially shaded area of the room, if possible.
- Page 12 5.3 Operation • Remove the protective film from one of the supplied adhesive sheets. • Place the adhesive sheet in the device behind the neon tubes (the figure above). NOTE! For hygienic reasons, the adhesive sheets should be changed at regular time intervals. •...
- Page 13 Replacement of UVA neon tubes If one of the neon tubes of the insect trap is damaged, it can easily be replaced by another one with the same rating (observe the imprint on the neon tube!). WARNING! Risk of electric shock! Unplug the device from mains before replacing the neon tubes (pull the plug!).
- Page 14 6. Cleaning and maintenance 6.1 Safety advice o Before beginning with repair or cleaning works make sure the device has been disconnected from power supply and has cooled down. o Do not use any acid agents and make sure no water ingresses the device. o To protect yourself from electric shock, never immerse the device, its cables and the plug in water or other liquids.
- Page 15 NOTE! For the disposal of the device please consider and act according to the national and local rules and regulations. Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax:...
