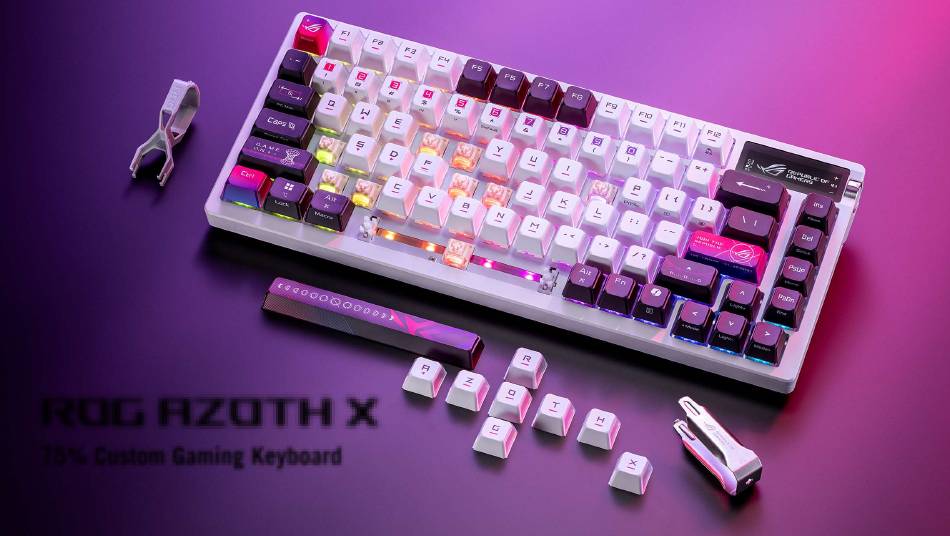

  • Page 1 ROG Azoth X 75% Custom Gaming Keyboard...
  • Page 2 CRAFTED FOR IMMERSION The ROG Azoth X is a 75% custom gaming keyboard built for gamers and keyboard enthusiasts who demand precision and versatility. It features hot-swappable ROG NX Mechanical Switches V2 and dye-sublimated, three-side translucent keycaps for enhanced durability and aesthetics.
  • Page 3 *Even though the switches are hot swappable, it is not recommended to swap out switches when the keyboard is on to prevent short circuiting the keyboard. **Wireless Aura Sync only available in 2.4 GHz RF mode. CONFIDENTIAL : ALL MATERIALS APPEARING IN THIS PRESENTATION MAY NOT BE RELEASED OR REPRODUCED WITHOUT PRIOR EMAIL PERMISSION FROM ASUS...
  • Page 4 German ISO Layout CONFIDENTIAL : ALL MATERIALS APPEARING IN THIS PRESENTATION MAY NOT BE RELEASED OR REPRODUCED WITHOUT PRIOR EMAIL PERMISSION FROM ASUS...
  • Page 5 Stellar-themed ROG Keycaps* FR4 Positioning Plate South-facing RGB PCB Azoth X Gasket Mount & Five-layer Dampening Design OLED Display & Silicone Wrist Rest Tri-mode New ROG NX Switches** Three-way Control Knob Connectivity 2.4 GHz RF Bluetooth Wired Snow V2 Storm V2 *Keycap material: PBT with PC **German version uses ROG Snow V2 switches only.
  • Page 6 The front and top sides are dye-sublimated with the ROG Stellar Theme, boasting ROG’s signature aesthetics while ensuring legends stay sharp and vibrant even after countless gaming sessions. CONFIDENTIAL : ALL MATERIALS APPEARING IN THIS PRESENTATION MAY NOT BE RELEASED OR REPRODUCED WITHOUT PRIOR EMAIL PERMISSION FROM ASUS...
  • Page 7 Cherry profile. ROG NX Storm V2 ROG NX Snow V2 Disclaimer: ROG Strom V2 switches not available for DE layout. CONFIDENTIAL : ALL MATERIALS APPEARING IN THIS PRESENTATION MAY NOT BE RELEASED OR REPRODUCED WITHOUT PRIOR EMAIL PERMISSION FROM ASUS...
  • Page 8 ROG NX SNOW V2 ROG NX Snow V2 Refined Linear 1.8 mm 40 gf 53 gf Actuation Point Initial Force Total Force CONFIDENTIAL : ALL MATERIALS APPEARING IN THIS PRESENTATION MAY NOT BE RELEASED OR REPRODUCED WITHOUT PRIOR EMAIL PERMISSION FROM ASUS...
  • Page 9 The NX Snow V2 boasts zero actuation versus POM bottom housing for deeper keystroke sound reset point, giving great keypress and reset consistency CONFIDENTIAL : ALL MATERIALS APPEARING IN THIS PRESENTATION MAY NOT BE RELEASED OR REPRODUCED WITHOUT PRIOR EMAIL PERMISSION FROM ASUS...
  • Page 10 1.8 mm 65 gf Actuation Point Tactile Force Click Ratio Disclaimer: ROG Strom V2 switches not available for DE layout. CONFIDENTIAL : ALL MATERIALS APPEARING IN THIS PRESENTATION MAY NOT BE RELEASED OR REPRODUCED WITHOUT PRIOR EMAIL PERMISSION FROM ASUS...
  • Page 11 The NX Storm boasts zero actuation vs. reset point, PC bottom housing for deeper keystroke sound. giving great keypress and reset consistency, therefore enhancing your muscle memory CONFIDENTIAL : ALL MATERIALS APPEARING IN THIS PRESENTATION MAY NOT BE RELEASED OR REPRODUCED WITHOUT PRIOR EMAIL PERMISSION FROM ASUS...
  • Page 12 Hot-swappable Switches Swap and install your preferred switch type for a unique, customized feel. CONFIDENTIAL : ALL MATERIALS APPEARING IN THIS PRESENTATION MAY NOT BE RELEASED OR REPRODUCED WITHOUT PRIOR EMAIL PERMISSION FROM ASUS...
  • Page 13 Five-layer Dampening Foam PORON® Plate Foam Effectively absorbs switch pinging and hollowness PORON ® Switch Pad Cushions every keystroke, reducing the impact on the PCB South-Facing PCB Optimizes keycap compatibility and improves lighting aesthetics Two-layer PORON ® Dampening Foam Absorbs vibration and enhances stability Silicone Pad Completely eliminates echoes and provides a flat surface for the PORON dampening layer...
  • Page 14 Current profile Current connection (Wired, 2.4 GHz or BLE device #) Battery status Mac or PC mode More OLED display settings CONFIDENTIAL : ALL MATERIALS APPEARING IN THIS PRESENTATION MAY NOT BE RELEASED OR REPRODUCED WITHOUT PRIOR EMAIL PERMISSION FROM ASUS...
  • Page 15 OLED Display Enjoy more custom settings, such as OLED animation, audio visualization or system info via Armoury Crate software or Gear Link web app. ANIMATION AUDIO VISUALIZATION SYSTEM INFO...
  • Page 16 Three-way Control Knob with Side Button Press the side button to rotate the functions: Volume Adjustment > Multimedia > RGB Lighting Brightness > OLED Brightness > RGB Lighting Effect Functions carousel Flick up knob Flick down knob Vertically press knob 1.
  • Page 17 Tri-mode Connectivity ROG SpeedNova wireless technology offers up to 1600+ hours of stable, uninterrupted near-zero- latency gameplay in 2.4 GHz RF mode. Battery Life in 2.4 GHz RF Mode: 2.4 GHz RF 1600+ Hours of battery life Wireless receiver & (Both RGB lighting &...
  • Page 18 Tri-mode Connectivity Alternatively, you can use Bluetooth mode to connect to up to three devices at the same time. How to pair your devices: 1. Select Bluetooth mode via the switch on the keyboard. 2. Press and hold the side button for 3 seconds. 3.
  • Page 19 Tri-mode Connectivity You can also charge and play simultaneously in wired USB mode. 2.4 GHz RF Bluetooth Type-C port for wired connection & charging Wired...
  • Page 20 ROG Azoth X is equipped with the ROG Omni Receiver that allows wireless connection to multiple supported devices with a single USB receiver — without compromising performance. CONFIDENTIAL : ALL MATERIALS APPEARING IN THIS PRESENTATION MAY NOT BE RELEASED OR REPRODUCED WITHOUT PRIOR EMAIL PERMISSION FROM ASUS...
  • Page 21 Speed Tap mode is turned off, A and D keys will flash RED light. *Speed Tap feature is turned off by default. Simultaneously press Fn + Caps keys to activate. CONFIDENTIAL : ALL MATERIALS APPEARING IN THIS PRESENTATION MAY NOT BE RELEASED OR REPRODUCED WITHOUT PRIOR EMAIL PERMISSION FROM ASUS...
  • Page 22 Spacebar, Shift and Enter to deliver keystrokes that stay true to the original switch feel. CONFIDENTIAL : ALL MATERIALS APPEARING IN THIS PRESENTATION MAY NOT BE RELEASED OR REPRODUCED WITHOUT PRIOR EMAIL PERMISSION FROM ASUS...
  • Page 23 The Azoth X includes two pairs of keyboard feet of different heights, giving it CONFIDENTIAL : ALL MATERIALS APPEARING IN THIS PRESENTATION MAY NOT BE RELEASED OR REPRODUCED WITHOUT PRIOR EMAIL PERMISSION FROM ASUS...
  • Page 24 Easily toggle MacOS mode to remap the keys for use with MacBooks and Macs. Press Fn + Tab to switch between PC and Mac keyboard layout. CONFIDENTIAL : ALL MATERIALS APPEARING IN THIS PRESENTATION MAY NOT BE RELEASED OR REPRODUCED WITHOUT PRIOR EMAIL PERMISSION FROM ASUS...
  • Page 25 RGB Lighting Mode & Brightness (Hold both keys for five seconds) PC / Mac Mode Stealth Mode Screen light up/down CONFIDENTIAL : ALL MATERIALS APPEARING IN THIS PRESENTATION MAY NOT BE RELEASED OR REPRODUCED WITHOUT PRIOR EMAIL PERMISSION FROM ASUS...
  • Page 26 Gear Link CONFIDENTIAL : ALL MATERIALS APPEARING IN THIS PRESENTATION MAY NOT BE RELEASED OR REPRODUCED WITHOUT PRIOR EMAIL PERMISSION FROM ASUS...
  • Page 27 Gear Link – New Web-based Software Quick setups – no downloads needed A fast, web-based tool to set up and customize your devices. Adjust key functions, lighting effects, and more — all without downloads so you're up and running in no time. Click HERE to initialize your device **Gear Link is launched on Apr.
  • Page 28 Gear Link – Lighter, Simpler, Smoother No App. No Limits Go from zero to ready in seconds – no downloads, no installs Works right from your browser – anywhere, anytime Say goodbye to cluttered shortcuts and repetitive setups Updates without Disruption New updates apply instantly on your next visit –...
  • Page 29 Comparison Table Features Functions Gear Link Armoury Crate Key assignment Keyboard functions Mouse functions Multimedia Copilot Stealth Lighting Device Lighting Performance Performance related settings (DPI, etc.) Power Power related settings Calibration (Mouse) Calibration related settings FW update Device FW update Available in 2025 Q2 Key assignment Mute Microphone (Multimedia)
  • Page 30 Armoury Crate unifies system and lighting controls. Easily create, define and customize scenario profiles, map keys, and record macros. For ROG Azoth X, Armoury Crate also allows you to set custom images and animations, audio visualizations, system status monitoring, or...
  • Page 31 How To Connect My Device Via Gear Link https://GearLink.asus.com Connect your device to the computer, and press the “Connect with USB/RF” button on the Gear Link CONFIDENTIAL : ALL MATERIALS APPEARING IN THIS PRESENTATION MAY NOT BE RELEASED OR REPRODUCED WITHOUT PRIOR EMAIL PERMISSION FROM ASUS...
  • Page 32 Select your device that is compatible with Gear Link CONFIDENTIAL : ALL MATERIALS APPEARING IN THIS PRESENTATION MAY NOT BE RELEASED OR REPRODUCED WITHOUT PRIOR EMAIL PERMISSION FROM ASUS...
  • Page 33 Press “Connect” button CONFIDENTIAL : ALL MATERIALS APPEARING IN THIS PRESENTATION MAY NOT BE RELEASED OR REPRODUCED WITHOUT PRIOR EMAIL PERMISSION FROM ASUS...
  • Page 34 You can now enter the device page to configure your device CONFIDENTIAL : ALL MATERIALS APPEARING IN THIS PRESENTATION MAY NOT BE RELEASED OR REPRODUCED WITHOUT PRIOR EMAIL PERMISSION FROM ASUS...
  • Page 35 APPENDIX CONFIDENTIAL : ALL MATERIALS APPEARING IN THIS PRESENTATION MAY NOT BE RELEASED OR REPRODUCED WITHOUT PRIOR EMAIL PERMISSION FROM ASUS...
  • Page 36 1 × USB A-C 2M Cable 1 × Warranty booklet 1 × ROG Thank You Card 1 × Quick Start Guide CONFIDENTIAL : ALL MATERIALS APPEARING IN THIS PRESENTATION MAY NOT BE RELEASED OR REPRODUCED WITHOUT PRIOR EMAIL PERMISSION FROM ASUS...
  • Page 37 Basic Hotkeys Profile Switch: Fn + profiles Software Armoury Crate & Gear Link Dimensions Keyboard 326*136*40mm Weight (without cable) 1186g CONFIDENTIAL : ALL MATERIALS APPEARING IN THIS PRESENTATION MAY NOT BE RELEASED OR REPRODUCED WITHOUT PRIOR EMAIL PERMISSION FROM ASUS...
  • Page 38 Q3: Does Azoth X also support Armoury Crate Gear (AC Gear)? A3: No, Azoth X will not have its own dedicated Armoury Crate Gear. Instead the ROG Azoth X does support our new Web App – Gear Link. Q4: What other third party keycaps does Azoth X support? A4: Other than Cherry Profile keycaps, the new ROG NX Snow and Storm V2 switches also support GMK keycaps.
  • Page 39 2.4 GHz RF Than connect the wireless receiver Wireless Receiver to the dongle extender Connect the USB cable to your desktop/laptop CONFIDENTIAL : ALL MATERIALS APPEARING IN THIS PRESENTATION MAY NOT BE RELEASED OR REPRODUCED WITHOUT PRIOR EMAIL PERMISSION FROM ASUS...
  • Page 40 Comparison Table - ROG Azoth Series Feature ROG Azoth Extreme ROG Azoth X ROG Azoth Photo MSRP 569,90 € 329,00 € 299,90 € Positioning plate Carbon Fiber Steel PCBA North-facing PCB South-facing PCB North-facing PCB All aluminum with Top aluminum /bottom plastic...
  • Page 41 Comparison Table AZOTH X Competitor K Competitor I Competitor W Competitor R Competitor M $ 195 (barbone) $279.99 $299.99 $219.99 $350 $199.99 MSRP (US$) $ 255 (full set) Pre build Pre-build Pre-build barebone Pre-build barebone Mode All aluminum RF 2.4GHz / Bluetooth / USB RF 2.4GHz / Bluetooth / USB RF 2.4GHz / Bluetooth / USB RF 2.4GHz / Bluetooth / USB...
  • Page 42 THANK YOU...
