ASSEMBLY INSTRUCTIONS

INSTRUCTIONS DE MONTAGE

INSTRUCCIONES DE MONTAJE

TROUBLESHOOTING GUIDE

GUIDE DE DÉPANNAGE

GUÍA DE SOLUCIÓN DE PROBLEMAS

THANK YOU FOR YOUR PURCHASE.

MERCI POUR VOTRE ACHAT.

LE AGRADECEMOS SU ADQUISICIÓN.

IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY

IMPORTANT, À CONSERVER POUR DE FUTURS BESOINS DE RÉFÉRENCE : À LIRE SOIGNE USEMENT

IMPORTANTE: CONSERVE PARA FUTURA REFERENCIA. LEA CUIDADOSAMENTE

ITM. / ART. 213504 / 8564700 / 552314

Leather Power Reclining Sofa

Canapé en cuir à inclinaison motorisée

Sofá reclinable de piel con sistema eléctrico

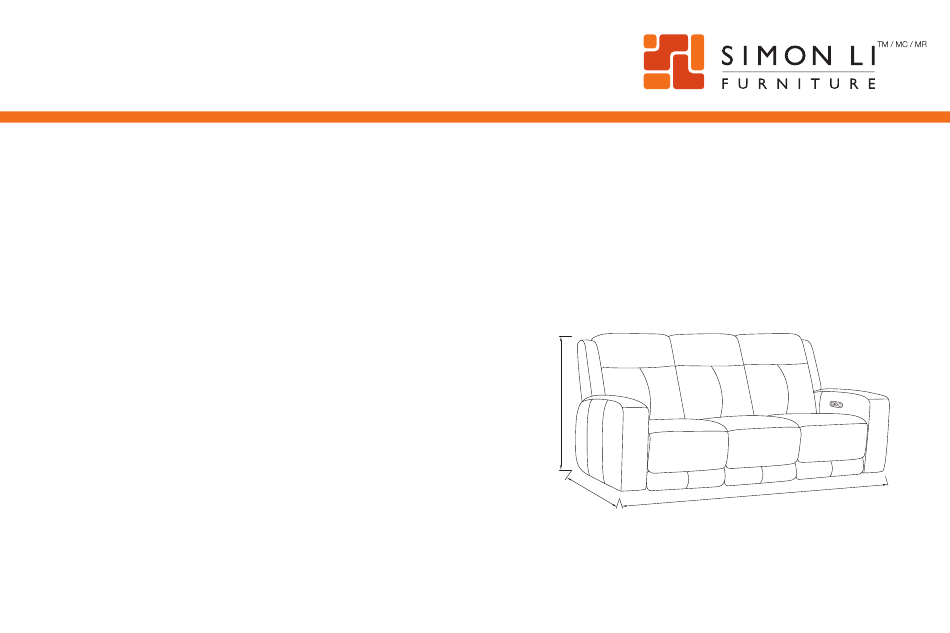

103 cm

40.5 in

40,5 po

101 cm

39.7 in

39,7 po

M: M553-336

224 cm / 88.1 in / 88,1 po

Need help?

Do you have a question about the 213504 and is the answer not in the manual?

Questions and answers

Summary of Contents for SIMON LI FURNITURE 213504

Page 1 ASSEMBLY INSTRUCTIONS ITM. / ART. 213504 / 8564700 / 552314 INSTRUCTIONS DE MONTAGE M: M553-336 INSTRUCCIONES DE MONTAJE Leather Power Reclining Sofa TROUBLESHOOTING GUIDE Canapé en cuir à inclinaison motorisée GUIDE DE DÉPANNAGE Sofá reclinable de piel con sistema eléctrico GUÍA DE SOLUCIÓN DE PROBLEMAS...
Page 2 CUSTOMER SERVICE SERVICE CLIENTS SERVICIO AL CLIENTE If you experience any issues, are missing parts, or have questions about the product please contact our Customer Service Department for assistance. Phone: 833-494-3403 Email to: service@simonli.com Monday –Friday 8:00 AM – 5:00PM PST (English Only) If you need to replace or return your item please contact Costco Customer Service.
Page 3 ASSEMBLY INSTRUCTIONS INSTRUCTIONS DE MONTAGE INSTRUCCIONES DE ENSAMBLE Before you begin the assembly of your new piece of furniture, please ensure that all parts have been supplied. If you are missing any pieces, please contact us to request replacement parts. Please follow instructions closely to avoid the risk of voiding your warranty and/or possible safety hazards. It is recommended that assembly be done on a soft surface like carpet to avoid damage.
Page 4 ASSEMBLY INSTRUCTIONS INSTRUCTIONS DE MONTAGE INSTRUCCIONES DE ENSAMBLE PARTS LIST/LISTE DES PIÈCES/LISTA DE PARTES...
Page 5 ASSEMBLY INSTRUCTIONS INSTRUCTIONS DE MONTAGE INSTRUCCIONES DE ENSAMBLE 1. Attach seat back to seat cushion by aligning metal groove 2. Press seat back in until you hear a “click” to make sure it (M) on seat back to bracket (N) on seat cushion. is locked into position.
Page 6 ASSEMBLY INSTRUCTIONS INSTRUCTIONS DE MONTAGE INSTRUCCIONES DE ENSAMBLE 3. Press the back wing in and make sure it is locked into position. Appuyez sur l’aile arrière et assurez-vous qu’elle est verrouillée en position. Presione el ala trasera y asegúrese de que esté bloqueada en su posición.
Page 7 ASSEMBLY INSTRUCTIONS INSTRUCTIONS DE MONTAGE INSTRUCCIONES DE ENSAMBLE 4. Please connect wiring (H) both for left and right seats. Veuillez connecter le câblage (H) à la fois pour les sièges à gauhe et à droite. Conecte el cableado (H) tanto para el asiento izquierdo como para el asiento derecho. AU/NZ Power cord is fixed by a cable tie, please untie it before using.
Page 8 ASSEMBLY INSTRUCTIONS INSTRUCTIONS DE MONTAGE INSTRUCCIONES DE ENSAMBLE 5. Press the switch to operate the reclining seat and head If you need to remove the seat back, please lift the back flap. rest, as shown below. Pull the metal tab (K) on the outside of each bracket (M), outwards to the side.
Page 9 ASSEMBLY INSTRUCTIONS INSTRUCTIONS DE MONTAGE INSTRUCCIONES DE ENSAMBLE To help maintain the shape of the cushions, occasional massaging of the seats, arms, and headrest may be needed. Smooth any folds or creases on the seats by running your hands firmly over them. Pour maintenir la forme des coussins, le massage occasionnel est nécessaire pour les sièges, les bras et l’appui-tête.
Page 10 TROUBLESHOOTING INSTRUCTIONS INSTRUCTIONS DE DÉPANNAGE INSTRUCCIONES PARA LA RESOLUCIÓN DE PROBLEMAS TRANSFORMER ISSUE When your entire unit is not functioning, please check the transformer (J) on the inside of the unit. If there is no green light on the transformer, then you may need a new transformer (J). Please reach out to our Customer Service Department for further assistance.
Page 11 TROUBLESHOOTING INSTRUCTIONS INSTRUCTIONS DE DÉPANNAGE INSTRUCCIONES PARA LA RESOLUCIÓN DE PROBLEMAS SWITCH ISSUE If the transformer (J) is illuminated, but the unit still isn’t functioning then this is an issue with the arm button switch (L). Please reach out to our Customer Service Department for further assistance.
Page 12 TROUBLESHOOTING INSTRUCTIONS INSTRUCTIONS DE DÉPANNAGE INSTRUCCIONES PARA LA RESOLUCIÓN DE PROBLEMAS MOTOR ISSUE If all electronic functions are working, and it is just one recliner that has stopped working, then the motor is most likely faulty and needs to be replaced. Please reach out to our Customer Service Department for further assistance.
Page 13 LIMITED WARRANTY Please find the warranty information from below link http://costco.simonli.com AUSTRALIA : Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
Page 14 HOW TO CARE FOR YOUR SIMON LI LEATHER Protect the furniture against direct sunlight. Lack of protection may result in discoloration of the leather. Keep furniture a minimum of 1.22m / 4 feet away from heat sources such as radiators, fireplaces, etc. Avoid contact with alcohol, thinner, benzene/benzol, etc.
Page 15 Costco Wholesale Australia Pty Ltd Distributed by: Costco Wholesale Canada Ltd.* Importado por: Costco Wholesale Corporation 415 W. Hunt Club Road 17-21 Parramatta Road Importadora Primex S.A. de C.V. Lidcombe NSW 2141 P.O. Box 34535 Ottawa, Ontario Blvd. Magnocentro No. 4 Australia Seattle, WA 98124-1535 K2E 1C5, Canada...
Page 16 Made in China / Fabriqué en Chine / Hecho en China 100V-240V~ 50/60HZ...
