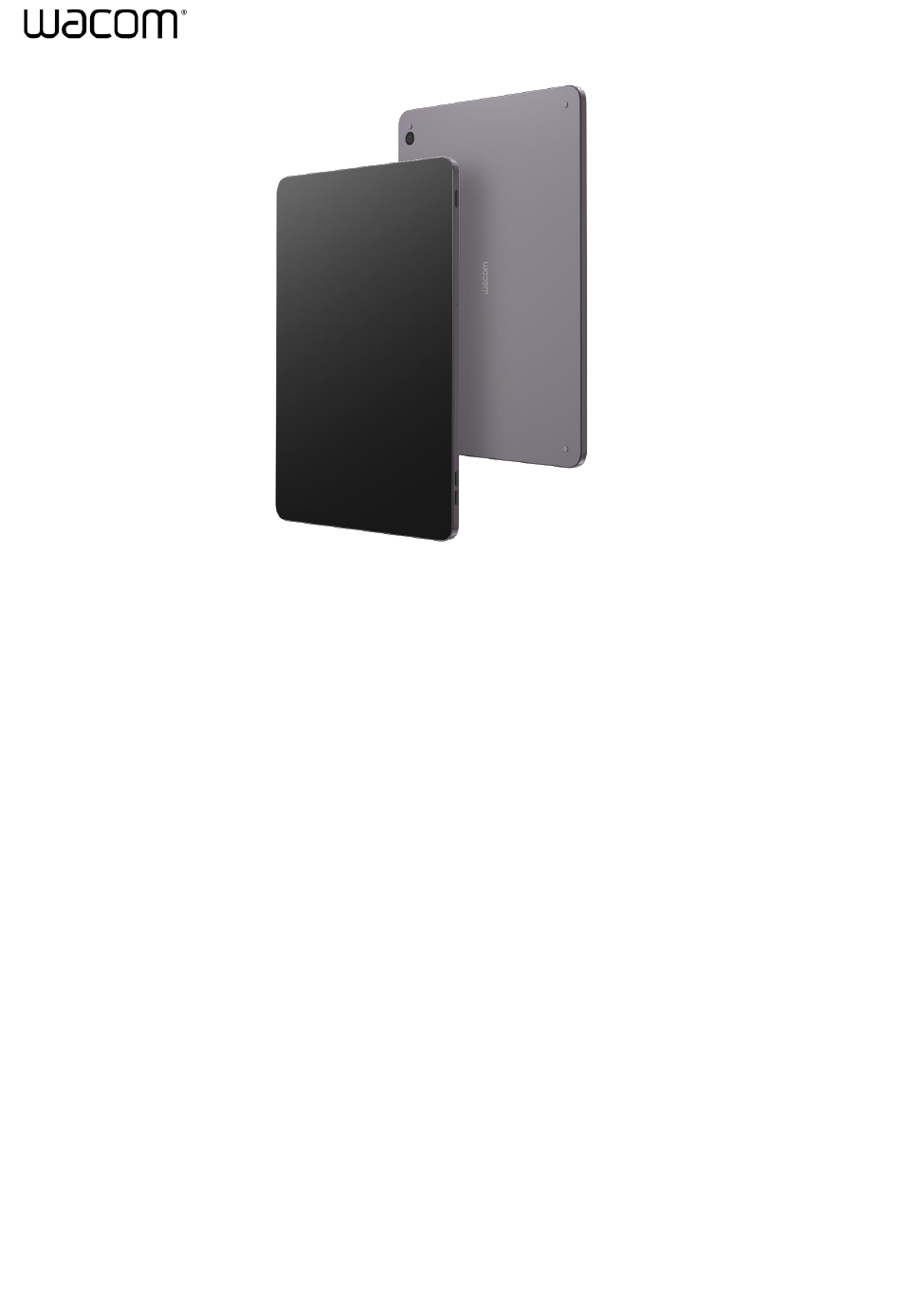

- Page 1 Repair Guide DTHA116G...
-
Page 2: Table Of Contents
Table of Contents ....................... 1. Important Notices Important Safety information ..........................3 Important precautions ............................2. Summary of the product ............................. 5 3. Disassembly ................................... 6 3.1 Disassembly ............................... 3.2 screw disassembly ............................3.3 Steel sheet&FPC disassembly ......................... 3.4 BOX& Graphite disassembly ........................ -
Page 3: Important Notices
1. Important Notices Read this chapter first to find about safety information. 1. The Wacom Warranty will be void if the device has been opened by 3rd party. 2. The requirement of professional repairers’ regulation : a. The professional repairer has the technical competence to repair electronic displays... -
Page 4: Important Precautions
Important precautions • Repair must be performed by professional service technicians in a repair center. End users should not perform these procedures. • This product meets ROHS requirements. Be sure to use lead-free solder wire when soldering. • If you must change a capacitor, be sure to match the polarity as printed on the PCB. •... -
Page 5: Summary Of The Product
2. Summary of the product This chapter provides an overview of the product. Product type LCD tablet 11.45 Size 266.042 Length(mm) 181.98 Width(mm) 6.99 Thickness(mm) -
Page 6: Disassembly
3. Disassembly 3.1 display disassembly Step 1: Screen Preheating Place the device face down on the heating platform and heat it at 80° C (Figure 1) for about 2 minutes (it's ready when the machine feels hot to the touch). Step 2: Screen Disassembly 1、... -
Page 7: Screw Disassembly
3.2 screw disassembly Step 1: Screw Disassembly Place the machine head steadily on the work table, use an electric screwdriver to remove the screws, and place them in the screw storage box (a total of 27 screws). Step 2: Inspection Check the inside of the machine head to ensure there are no residual screws. -
Page 8: Box& Graphite Disassembly
1. Use tweezers to lift and remove the MIC FPC, then place it in the defective scrap box (Figure 4). 2. Clean the residual adhesive at the MIC FPC position on the middle frame (Figure 5). Equipment accessory Ion Fan Finger cot Screw Storage Box Anti-static wrist strap... -
Page 9: Mainboard& Camera Disassembly
Step 3: Disassemble the graphite sheet Slowly peel off the graphite sheet in the direction shown in the diagram (Figure 4). Equipment accessory Ion Fan Finger cot Anti-static wrist strap tweezers Glue Stick 3.5 Mainboard& Camera disassembly Step 1: Disassemble the conductive foam 1. -
Page 10: Battery Disassembly
Step 3: Disassemble the mainboard and camera 1. Lift and remove the mainboard in the direction shown (Figure 6) 2. Remove the rear camera and front camera separately, peel off the conductive cloth of the front camera, protect it with a protective cover/masking tape, and place it in the tray 3. -
Page 11: Rear Camera Disassembly
Equipment accessory Ion Fan Finger cot Anti-static wrist strap tweezers Masking tape Marker pen 3.7 Rear camera disassembly Step 1: Preheating Place the middle frame component on the heating platform in the direction shown and heat for 3-5 minutes (heating temperature: 80±5℃). - Page 12 Step 2: Disassemble the lens As shown in the figure, use a cleaning stick to press the lens from the inside to separate it from the middle frame (Figure 2). Step 3: Clean the adhesive 1. Remove residual adhesive from the middle frame 2.
-
Page 13: Repair Tools Related In Factory
4. Repair tools related in factory Wrist Strap Anti-static gloves ESD screwdriver Tweezers sucker...
