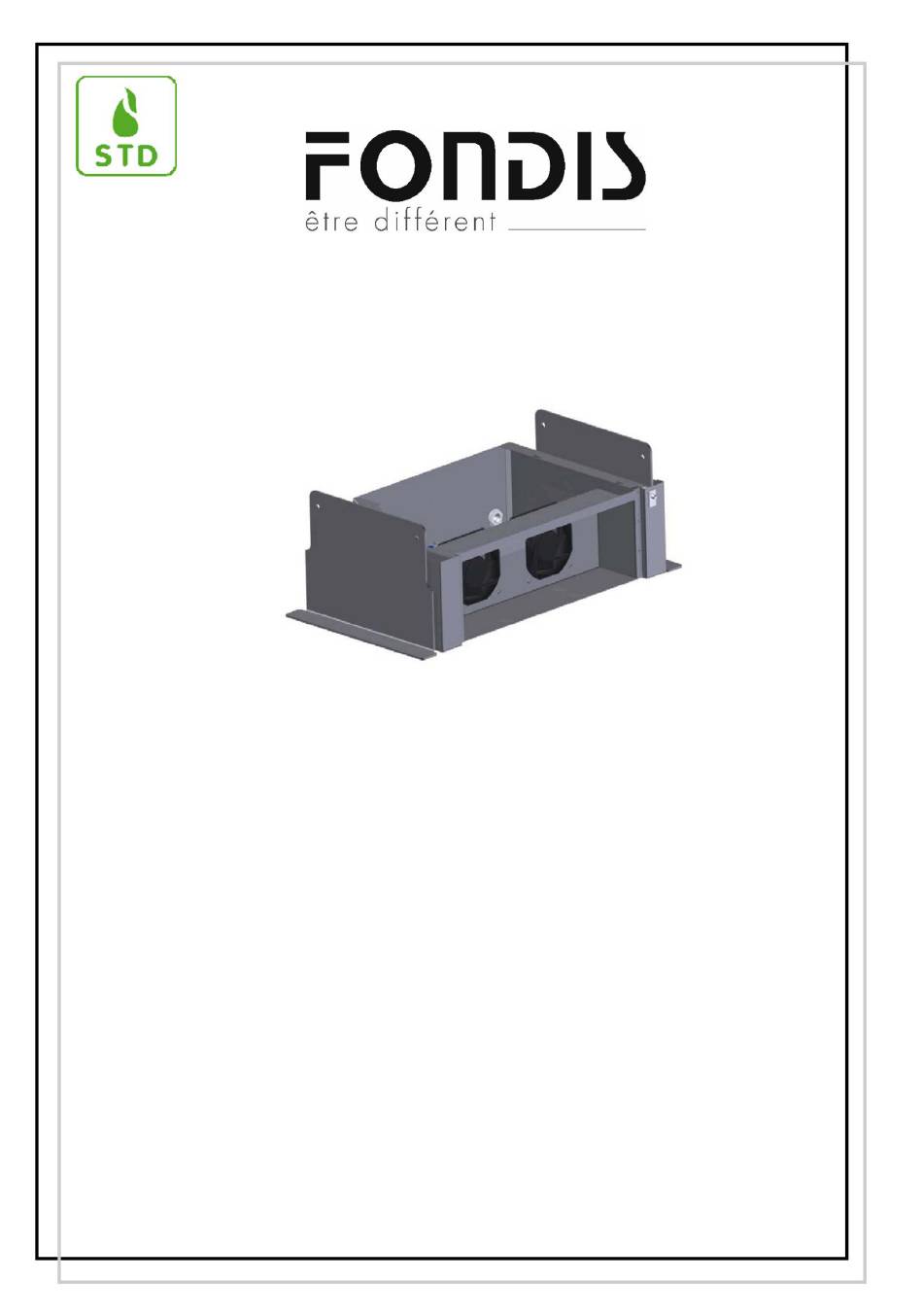

- Page 1 Machine Translated by Google User guide and installation instructions (keep safe) FAN UNIT Notice ref: 02/2018...
- Page 2 Machine Translated by Google Fan kit assembly instructions V60L / V80 L/V100L (BF512900, BF512915, BF512931) Installation must be carried out by a professional or competent person who will have previously checked that the power supply complies with current standards. Our liability is limited to the supply of the device.
- Page 3 Machine Translated by Google To fix the probe, remove the fairing Screw the box using the 4 M4x10 screws provided Fix the probe in the hole in the fairing (if there is no hole: make one) 8 Reassemble the block with the fans Reassemble the fairing FAN KIT INSTRUCTIONS - 02/22/2018...
- Page 4 Machine Translated by Google VIEW FROM BELOW Unscrew, place the tab used to cut the fan on the side of the door where the fan box switch is located when opening the door and screw it back on 2. Electrical wiring diagram GREEN/YELLOW WIRE GREEN/YELLOW WIRE FILE BROWN...
- Page 5 Machine Translated by Google Manual or Button Fan power ON/OFF adjustment automatic mode 3.1. Bouton ON/OFF ÿ To turn the dimmer on or off, press the P2 key ÿ When the drive is off, the red diode L4 is on 3.2.
