Fishman M-300 - INSTALLATION GUIDE REV C Installation Manual

NASHVILLE SERIES PICKUPS
INSTALLATION GUIDE
www.fishman.com
Read Me First!
If you are unfamiliar with these products, please pay
close attention to the dimensional requirements for
installation. Failure to do so can result in permanent
damage to the pickup.
Installation of this product is a straightforward
procedure, but we recommend this job only if you
are an experienced repair technician.

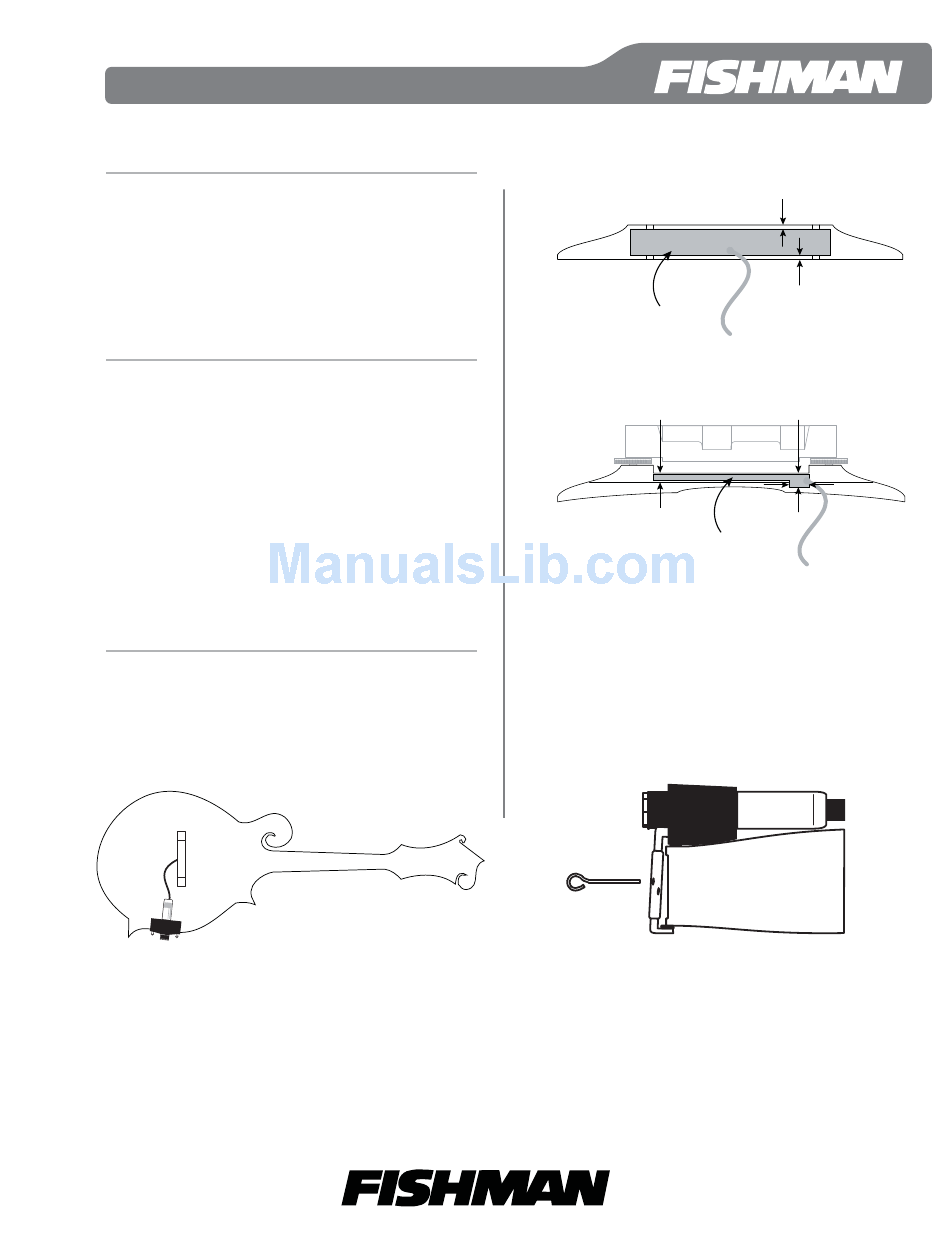

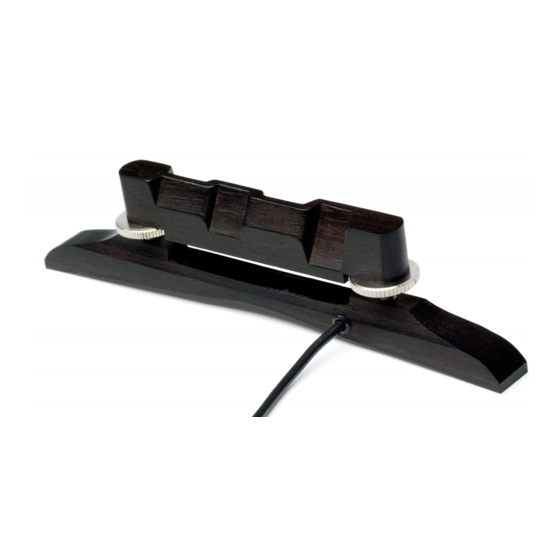

M-300 and M-400
The Nashville Series fl at-top and two piece archtop
mandolin pickups feature a piezo-ceramic ele-
ment preinstalled in the bridge. Use your preferred
method for bridge fi tting.
For the fl at-top model (M-400), up to .050" may
be removed from either the top or bottom of the
bridge (Figure 1).
For the archtop model (M-300), be sure to observe
the "Do not modify" area of the bridge base
(Figure 2).
Special care must be taken not to damage the
pickup wire when tooling the bridge blank.
Installing The Jack
After fi tting the pickup, place the jack in a com-
fortable location (Figure 3) and tighten it with the
enclosed turnbuckle key (Figure 4). Be careful not to
scratch the side of your instrument.
Figure 3.
Figure 1. M-400
Figure 2. M-300
Figure 4.
www.fi shman.com
0.050"
0.050"
Do not modify
0.180"
0.100"
Do not modify
0.250"
