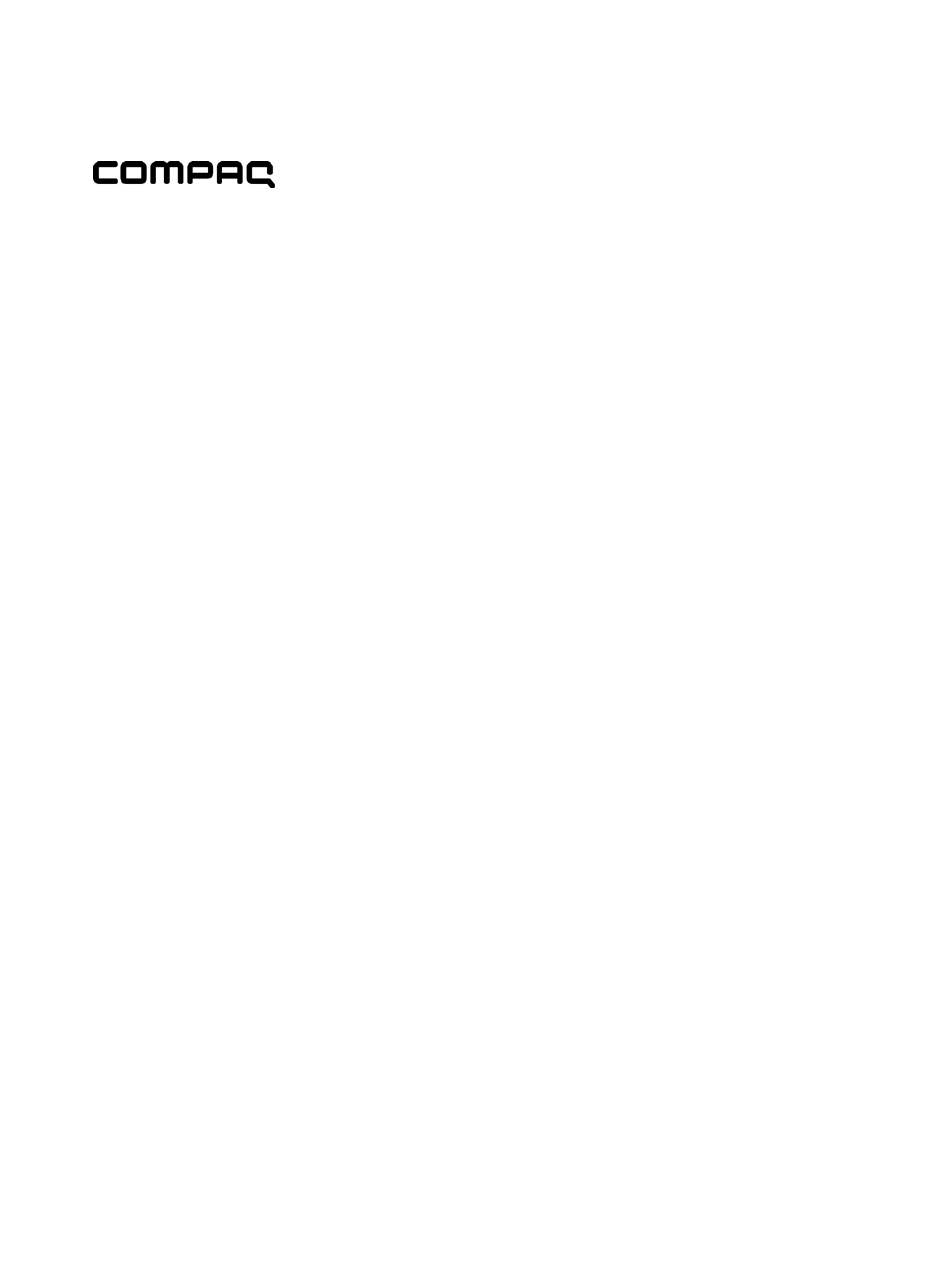

Compaq Presario V6500, V6600, and V6700
Notebook PCs
Maintenance and Service Guide
Download from Www.Somanuals.com. All Manuals Search And Download.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Compaq Presario V6500 and is the answer not in the manual?

Questions and answers

Related Manuals for HP Compaq Presario V6500

Summary of Contents for HP Compaq Presario V6500

  • Page 1 Compaq Presario V6500, V6600, and V6700 Notebook PCs Maintenance and Service Guide Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 2 SD Logo is a trademark of its proprietor. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty.
  • Page 3 Safety warning notice WARNING! To reduce the possibility of heat-related injuries or of overheating the computer, do not place the computer directly on your lap or obstruct the computer air vents. Use the computer only on a hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft surface, such as pillows or rugs or clothing, to block airflow.
  • Page 4 Safety warning notice Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 5 Table of contents 1 Product description 2 External component identification Top components ........................6 Display components ....................6 Buttons and speakers ....................7 Keys ........................8 Lights ........................9 TouchPad ....................... 10 Front components ........................11 Left-side components ....................... 12 Rear component ........................
  • Page 6 Electrostatic discharge damage ..............36 Packaging and transporting guidelines ........37 Workstation guidelines .............. 37 Equipment guidelines ..............38 Unknown user password ..................39 Component replacement procedures ..................40 Serial number ......................40 Battery ........................41 Hard drive ......................42 Computer feet ......................
  • Page 7 Computer specifications ......................85 15.4-inch, WXGA, BrightView display specifications ..............86 Hard drive specifications ......................87 DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive specifications ......... 88 HD DVD-ROM Drive with SuperMulti DVD±R/RW Double Layer support specifications ....89 Blu-ray Disc ROM Drive with SuperMulti DVD±R/RW Double-Layer (DL) support specifications ..90 System DMA specifications, Intel ....................
  • Page 8 9 Connector pin assignments Audio-out (headphone) ......................123 Audio-in (microphone) ......................123 External monitor ........................124 RJ-11 (modem) ........................125 RJ-45 (network) ........................125 S-Video-out .......................... 126 Universal Serial Bus ......................126 10 Power cord set requirements Requirements for all countries or regions ................. 127 Requirements for specific countries or regions ................
  • Page 9 Product description Category Description AMD models Full-featured Defeatured Intel models Intel models Product Name Compaq Presario V6500, √ √ √ V6600, and V6700 Notebook Processors Intel® Core™ 2 Duo processors 2.20-GHz processor, 4-MB L2 cache, √ √ 800-MHz front side bus (FSB) 2.00-GHz processor, 2-MB L2 cache,...
  • Page 10 Category Description AMD models Full-featured Defeatured Intel models Intel models Turion TL-58 (1.9 -GHz, 1-MB L2 √ cache) Turion TL-56 (1.8 -GHz, 1-MB L2 √ cache) Athlon™ TK-53 (1.7-GHz. 512-MB L2 √ cache) Chipset Northbridge: Intel GM965 √ √ Southbridge: Intel ICH8m √...
  • Page 11 Category Description AMD models Full-featured Defeatured Intel models Intel models Supports the following configurations: √ √ √ 4096 (2048 × 2) ● 2048 (2048 × 1, 1024 × 2) ● 1536 (1024 + 512) ● ● 1024 (1024 × 1, 512 × 2) 512 (512 ×...
  • Page 12 Category Description AMD models Full-featured Defeatured Intel models Intel models Presario-branded Altec Lansing √ √ √ speakers Modem 56K V.92 data/fax modem √ √ √ Supports all world-wide certification √ √ √ requirements Modem cable not included √ √ √ Ethernet Integrated Realtek 10/100 network √...
  • Page 13 Category Description AMD models Full-featured Defeatured Intel models Intel models Docking Expansion port 3 supports HP xb3000 √ √ √ Notebook Expansion Base and HP Notebook QuickDock Keyboard/pointing 14.1-inch keyboard √ √ √ devices TouchPad with 2 buttons and four-way √...
  • Page 14 External component identification Top components Display components Item Component Description Internal display switch* Turns off the display if the display is closed while the computer is on. Internal microphones (2) (select models only) Record sound. NOTE: If there is a microphone icon next to each microphone opening, the computer has internal microphones.
  • Page 15 Buttons and speakers Item Component Description Power button* ● When the computer is off, press the button to turn on the computer. ● When the computer is on, press the button to initiate Sleep. When the computer is in the Sleep state, press the ●...
  • Page 16 Keys Item Component Function Displays system information when pressed in combination with the key. Executes frequently used system functions when pressed in combination with a function key or the key. Windows logo key Displays the Windows Start menu. Windows applications key Displays a shortcut menu for items beneath the pointer.
  • Page 17 Lights Item Component Description Power lights (2)* On: The computer is on. ● ● Blinking: The computer is in the Sleep state. Off: The computer is off or in Hibernation. ● Battery light On: A battery is charging. ● ● Blinking: A battery that is the only available power source has reached a low battery level or a critical battery level.
  • Page 18 TouchPad Item Component Function TouchPad light Blue: TouchPad is enabled. ● Amber: TouchPad is disabled. ● TouchPad* Moves the pointer and selects or activates items on the screen. TouchPad horizontal scroll zone Scrolls left or right. Left TouchPad button* Functions like the left button on an external mouse. TouchPad on/off button Enables/disables the TouchPad.
  • Page 19 Amber: An integrated wireless device is turned off. ● Consumer infrared lens (select models only) Receives a signal from a remote control device, such as the HP Remote Control. Audio-in (microphone) Connects an optional computer headset microphone, stereo array microphone, or monaural microphone.
  • Page 20 Left-side components Item Component Function S-Video-out jack Connects an optional S-Video device such as a television, VCR, camcorder, overhead projector, or video capture card. External monitor port Connects an external VGA monitor or projector. Expansion port 3 Connects the computer to an optional docking device or expansion product.
  • Page 21 Rear component Component Description Vent Enables airflow to cool internal components. NOTE: The computer fan starts up automatically to cool internal components and prevent overheating. It is normal for the internal fan to cycle on and off during routine operation. Right-side components Item Component...
  • Page 22 Bottom components Item Component Function Battery bay Holds the battery. Battery release latch Releases the battery from the battery bay. Optical drive Reads optical discs and, on select models, also writes to optical discs. Memory/WLAN module compartment Contains the memory module slots, the WLAN module slot, and the RTC battery.
  • Page 23 Illustrated parts catalog Serial number location When ordering parts or requesting information, provide the computer serial number and model number located on the bottom of the computer. Serial number location Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 24 Computer major components Item Description Spare part number 15.4-inch, WXGA, BrightView display assembly (includes microphones) 446485-001 Chapter 3 Illustrated parts catalog Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 25 Item Description Spare part number NOTE: Display assembly components on page 22 for more display assembly spare part information. Switch cover (includes LED board and cable) For use in full-featured models 431425-001 and 451010-001 For use in defeatured models 455260-001 Power button board (includes power button board cable) 431438-001 Keyboards...
  • Page 26 Item Description Spare part number HDMI port cover (not illustrated) Processors (include thermal material ) Intel Core 2 Duo processors: 2.20-GHz processor (4-MB L2 cache, 800-MHz FSB) 453771-001 ● 2.00-GHz processor (2-MB L2 cache, 800-MHz FSB) 455515-001 ● ● 1.86-GHz processor (1-MB L2 cache, 533-MHz FSB) 453773–001 1.50-GHz processor (2-MB L2 cache, 667-MHz FSB) 453772-001...
  • Page 27 Item Description Spare part number ● In full-featured models equipped with consumer infrared 454176-001 In defeatured models equipped with consumer infrared 449967-001 ● (14) Batteries 12-cell, 8.80-AH, Li-ion 451864-001 6-cell, 2.55-AH, Li-ion 446507-001 6-cell, 2.20-AH, Li-ion 446506-001 (15) Base enclosure (includes infrared lens and wireless on/off switch) For use with full-featured computer models 448343-001 For use with defeatured models...
  • Page 28 Item Description Spare part number Hungary, Iceland, Ireland, Israel, Italy, Latvia, Lebanon, Liechtenstein, Lithuania, Luxembourg, Malta, Monaco, the Netherlands, Norway, Oman, the Philippines, Poland, Portugal, Qatar, Romania, Russia, Serbia and Montenegro, Singapore, Slovakia, Slovenia, South Africa, Spain, Sri Lanka, Sweden, Switzerland, Turkey, Ukraine, the United Kingdom, and Uzbekistan For use in Australia, New Zealand, Pakistan, the People's Republic of China, and South 441086-003 and...
  • Page 29 Item Description Spare part number Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe For use in Japan 441090-291 ● Intel 802.11b/g WLAN module for use in Thailand 451861-004 Broadcom 4311AG 802.11a/b/g modules: For use in the United States and Canada 441075-001...
  • Page 30 Display assembly components Item Description Spare part number Display bezel For use in computers with Intel processors 433283-001 and 453328-001 For use in computer models with AMD processors: Full-featured models 433284-002 ● Display inverter (includes Mylar shield) 431391-001 Display Hinge Kit (includes left and right display hinges) 433288-001 Display panel (15.4-inch, WXGA, BrightView;...
  • Page 31 Plastics Kit Item Description Spare part number Plastics Kit: 438669-001 ExpressCard slot bezel Hard drive cover (includes 2 captive screws, secured by C-clips) Memory/WLAN module compartment cover (includes 3 captive screws, secured by C-clips) Plastics Kit Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 32 Cable Kit Item Description Spare part number Cable Kit: 446520-001 LED board cable Power button board cable USB/power connector board cable Audio board cable Bluetooth module cable Chapter 3 Illustrated parts catalog Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 33 Mass storage devices Item Description Spare part number Hard drives (include hard drive bracket) 250-GB, 5400-rpm 453775-001 200-GB, 4200-rpm 451863-001 160-GB, 5400-rpm 451862-001 120-GB, 5400-rpm 446498-001 80-GB, 5400-rpm 446497-001 60-GB, 5400-rpm 446496-001 Optical drives (include bezel and bracket) For use in computer models with Intel processors: Blu-ray Disc ROM Drive with SuperMulti DVD±R/RW Double-Layer (DL) support 462453–001 ●...
  • Page 34 DVB-T tuner 412175-001 DVB-T wireless antenna adapter 412176-001 ExpressCard Kit (includes software CD) 445170-001 HP backpack 405527-001 HP carrying case 418162-001 HP Remote Control 435743-001 Infrared emitter with cable 439129-001 Label Kit for computer models with Intel processors 446525-001 Label Kit for computer models with AMD processors...
  • Page 35 Description Spare part number Japan 394279-291 South Korea 394279-AD1 The People's Republic of China 394279-AA1 Switzerland 394279-BG1 Taiwan 394279-AB1 The United Kingdom and Hong Kong 394279-031 Screw Kit (see Screw listing on page 101 for more Screw Kit information) 434983-001 Hex HM5.0×9.0 standoff ●...
  • Page 36 DVB-T tuner 412176-001 DVB-T antenna adapter 412766-001 Bluetooth module (includes Bluetooth module cable) 412766-002 Bluetooth module (includes Bluetooth module cable) 418162-001 HP carrying case 430958-001 Wireless laser mouse 431391-001 Display inverter (includes Mylar shield) 431393-001 Microphone 431400-001 Display Screw Kit (see...
  • Page 37 Spare part Description number 438669-001 Plastics Kit (see Plastics Kit on page 23 for more Plastics Kit information) 439128-001 Windows Vista remote control (fits inside ExpressCard slot) 439129-001 Infrared emitter with cable 439130-001 ATSC/NTSC/PAL TV tuner 439131-001 ATSC/NTSC TV tuner antenna 439254-001 Windows Vista remote control (does not fit inside ExpressCard slot) 441075-001...
  • Page 38 Spare part Description number Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Palau, Panama, Papua New Guinea, Paraguay, the People's Republic of China, Peru, the Philippines, Poland, Portugal, Qatar, the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome &...
  • Page 39 Spare part Description number 446504-001 DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive for use in computer models with Intel processors 446505-001 DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive for use in computer models with Intel processors 446506-001 6-cell, 2.20-AH battery 446507-001 6-cell, 2.55-AH battery 446510-001...
  • Page 40 Spare part Description number 451010-001 Switch cover for use in full-featured models (includes LED board) 451013-001 AMD Athlon TK-53 processor (1.7-GHz. 512-MB L2 cache) 451407-001 Top cover for use in defeatured computer models with AMD processors (includes speakers and TouchPad and cable) 451861-001 Intel 802.11a/b/g WLAN module for use in Antigua and Barbuda, Argentina, Australia, the Bahamas,...
  • Page 41 Spare part Description number 455515-001 Intel Core 2 Duo 2.00-GHz processor (2-MB L2 cache, 800-MHz FSB; includes thermal material) 455943–001 Intel Core Duo T2310 1.46-GHz processor (1-MB L2 cache, 533-MHz FSB; includes thermal material) 455944–001 Intel Core Duo T2330 1.6-GHz processor (1-MB L2 cache, 533-MHz FSB; includes thermal material) 457315–001 Intel Celeron TM530 1.50-GHz processor (2-MB L2 cache, 533-MHz FSB;...
  • Page 42 Removal and replacement procedures Preliminary replacement requirements Tools required You will need the following tools to complete the removal and replacement procedures: Magnetic screwdriver ● Phillips P0 and P1 screwdrivers ● Flat-bladed screwdriver ● Service considerations The following sections include some of the considerations that you must keep in mind during disassembly and assembly procedures.
  • Page 43 Cables and connectors CAUTION: When servicing the computer, be sure that cables are placed in their proper locations during the reassembly process. Improper cable placement can damage the computer. Cables must be handled with extreme care to avoid damage. Apply only the tension required to unseat or seat the cables during removal and insertion.
  • Page 44 Grounding guidelines Electrostatic discharge damage Electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure determine the degree of sensitivity. Networks built into many integrated circuits provide some protection, but in many cases, ESD contains enough power to alter device parameters or melt silicon junctions. A discharge of static electricity from a finger or other conductor can destroy static-sensitive devices or microcircuitry.
  • Page 45 Packaging and transporting guidelines Follow these grounding guidelines when packaging and transporting equipment: To avoid hand contact, transport products in static-safe tubes, bags, or boxes. ● Protect ESD-sensitive parts and assemblies with conductive or approved containers or packaging. ● Keep ESD-sensitive parts in their containers until the parts arrive at static-free workstations. ●...
  • Page 46 Equipment guidelines Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation. When seated, wear a wrist strap connected to a grounded system. Wrist straps are flexible straps ● with a minimum of one megohm ±10% resistance in the ground cords. To provide proper ground, wear a strap snugly against the skin at all times.
  • Page 47 Unknown user password If the computer you are servicing has an unknown user password, follow these steps to clear the password. NOTE: These steps also clear CMOS. Before disassembling the computer, follow these steps: Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
  • Page 48 Make special note of each screw and standoff size and location during removal and replacement. Serial number Report the computer serial number to HP when requesting information or ordering spare parts. The serial number is located on the bottom of the computer. Chapter 4 Removal and replacement procedures...
  • Page 49 Battery Description Spare part number 12-cell, 8.80-Ah Li-ion battery 451864-001 6-cell, 2.55-Ah Li-ion battery 446507-001 6-cell, 2.20-Ah Li-ion battery 446506-001 Before disassembling the computer, follow these steps: Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
  • Page 50 Hard drive NOTE: All hard drive spare part kits include a hard drive bracket. Description Spare part number 250-GB, 5400-rpm 453775-001 200-GB, 4200-rpm 451863-001 160-GB, 5400-rpm 451862-001 120-GB, 5400-rpm 446498-001 80-GB, 5400-rpm 446497-001 60-GB, 5400-rpm 446496-001 Before removing the hard drive, follow these steps: Shut down the computer.
  • Page 51 Use the Mylar tab (1) to lift the hard drive (2) until it disconnects from the computer. Remove the hard drive. If it is necessary to remove the hard drive bracket, remove the four Phillips PM3.0×3.0 screws (1) that secure the hard drive bracket to the hard drive. Lift the bracket (2) straight up to remove it from the hard drive.
  • Page 52 Computer feet Description Spare part number Rubber Kit (includes base enclosure rubber feet and display bezel screw covers) 431431-001 The computer feet are adhesive-backed rubber pads. The feet attach to the base enclosure in the locations illustrated below. Memory module Description Spare part number 2048-MB (PC2-5300, 667-MHz, 1-DIMM)
  • Page 53 Lift the left side of the cover (2), swing it to the right, and remove the cover. Remove the memory/WLAN module compartment cover. NOTE: The memory/WLAN module compartment cover is included in the Plastics Kit, spare part number 438669-001. Spread the retaining tabs (1) on each side of the memory module slot to release the memory module. (The edge of the module opposite the slot rises away from the computer.) Remove the module (2) by pulling it away from the slot at an angle.
  • Page 54 RTC battery NOTE: Removing the RTC battery and leaving it uninstalled for 5 or more minutes causes all passwords and CMOS settings to be cleared. Description Spare part number RTC battery (includes 2-sided tape) 446518-001 and 449729-001 Before removing the RTC battery, follow these steps: Shut down the computer.
  • Page 55 WLAN module Description Spare part number Intel 802.11a/b/g/n WLAN modules: For use in Antigua & Barbuda, Argentina, Aruba, the Bahamas, Barbados, Bermuda, Brunei, 441086-001 ● Canada, the Cayman Islands, Chile, Colombia, Costa Rica, the Dominican Republic, Ecuador, El Salvador, Guam, Guatemala, Haiti, Honduras, Hong Kong, India, Indonesia, Malaysia, Mexico, Panama, Paraguay, Peru, Saudi Arabia, Taiwan, the United States, Uruguay, Venezuela, and Vietnam ●...
  • Page 56 Description Spare part number Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Palau, Panama, Papua New Guinea, Paraguay, the People's Republic of China, Peru, the Philippines, Poland, Portugal, Qatar, the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome &...
  • Page 57 Remove the WLAN module (4) by pulling it away from the slot at an angle. NOTE: WLAN modules are designed with a notch (5) to prevent incorrect installation into the WLAN module slot. Reverse this procedure to install a WLAN module. Component replacement procedures Download from Www.Somanuals.com.
  • Page 58 Optical drive NOTE: All optical drive spare part kits include an optical drive bezel. Description Spare part number For use in computer models with Intel processors: Blu-ray Disc ROM Drive with SuperMulti DVD±R/RW Double-Layer (DL) support 462453-001 DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe 446505-001 DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive 446504-001...
  • Page 59 Remove the optical drive. If it is necessary to replace the optical drive bracket, position the optical drive with the optical drive bracket toward you. Remove the two Phillips PM2.0×3.0 screws (1) that secure the optical drive bracket to the optical drive.
  • Page 60 Switch cover Description Spare part number Switch cover for use in full-featured computer models (includes LED board and cable) 431425-001 and 451010-001 Switch cover for use in defeatured computer models (includes LED board and cable) 455260-001 Before removing the switch cover, follow these steps: Shut down the computer.
  • Page 61 Lift the rear edge of the switch cover and swing it forward until it rests on the keyboard. Release the zero insertion force (ZIF) connector (1) to which the LED board cable is connected, and disconnect the cable (2) from the LED board. Remove the switch cover.
  • Page 62 Keyboard Description For use in: Spare part For use in: Spare part number number Finland, Norway, and Sweden 441428-DH1 Saudi Arabia 441428-171 France 441428-051 Spain 441428-071 French Canada 441428-121 Taiwan 441428-AB1 International 441428-B31 Thailand 441428-281 Italy 441428-061 Turkey 441428-141 South Korea 441428-AD1 The United Kingdom 441428-031...
  • Page 63 Open the computer as far as possible. Lift the rear edge of the keyboard (1) until it rests at an angle. Release the keyboard (2) by sliding it back to disengage the tabs on the front edge of the keyboard from the top cover.
  • Page 64 Power button board Description Spare part number Power button board (includes power button board cable) 431438-001 Before removing the power button board, follow these steps: Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
  • Page 65 Remove the power button board (4). Reverse this procedure to install the power button board. Component replacement procedures Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 66 Display assembly Description Spare part number 15.4-inch, WXGA, BrightView display assembly (includes microphones) 446485-001 Before removing the display assembly, follow these steps: Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
  • Page 67 Remove the display assembly (2). If it is necessary to replace the display bezel or any of the display assembly internal components, remove the following screw covers: (1) Four covers on the top edge of the bezel (2) Two covers on the lower bezel edges (3) Two covers on the lower-inside edge of the bezel The display rubber screw covers are included in the Display Screw Kit, spare part number 431400-001.
  • Page 68 Remove the eight Phillips PM2.5×7.0 screws that secure the display bezel to the display assembly. Flex the inside edges of the left and right sides (1) and the top and bottom sides (2) of the display bezel until the bezel disengages from the display enclosure. Remove the display bezel (3).
  • Page 69 Disconnect the display panel cable (2) and the backlight cable (3) from the inverter. Remove the display inverter. The display inverter is available using spare part number 431391-001. If it is necessary to replace the display panel, remove the four Phillips PM2.5×4.0 screws (1) that secure the display panel to the display enclosure.
  • Page 70 Remove the display hinges (2). The display hinges are available using spare part number 433288-001. If it is necessary to replace the wireless antenna transceivers and cables, remove the Phillips PM2.0×3.0 screw (1) that secures each transceiver to the display enclosure. Release the retention tabs (2) built into the display enclosure that secure the wireless antenna cables and remove the cables from the tabs.
  • Page 71 Remove the microphone cables (3) from the display enclosure. The microphones and cables are available using spare part number 431393-001. Reverse this procedure to reassemble and install the display assembly. Component replacement procedures Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 72 Top cover Description Spare part number Top cover for use with computer models with Intel processors (includes speakers and TouchPad and 446510-001 and cable) 455514–001 Top cover for use in computer models with AMD processors: ● Full-featured models 454170-001 Defeatured models 451407-001 ●...
  • Page 73 Remove the following screws: (1) Three Phillips PM2.5×3.0 screws (2) Six Phillips PM2.5×4.0 screws (3) Two Hex HM5.0×9.0 screw locks Turn the computer right-side up, with the front toward you. Release the ZIF cable (1) to which the TouchPad cable is connected, and disconnect the TouchPad cable (2).
  • Page 74 Remove the two Phillips PM2.5×7.0 screws (1) and the two Phillips PM2.5×4.0 screws (2) that secure the top cover to the base enclosure. Lift the front edge of the top cover (1) until it disengages from the computer. Remove the top cover (2). Reverse this procedure to install the top cover.
  • Page 75 Bluetooth module Description Spare part number Bluetooth module (includes Bluetooth module cable) 412766-002 Before removing the Bluetooth module, follow these steps: Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system. Disconnect all external devices connected to the computer.
  • Page 76 Reverse this procedure to install the Bluetooth module. ExpressCard assembly Description Spare part number ExpressCard assembly 431440-001 Before removing the ExpressCard assembly, follow these steps: Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
  • Page 77 Remove the ExpressCard slot bezel (2) from the ExpressCard slot. NOTE: The ExpressCard slot bezel is included in the Plastics Kit, spare part number 438669-001. Remove the three Phillips PM2.5×4.0 screws (1) that secure the ExpressCard assembly to the system board.
  • Page 78 USB/power connector board Description Spare part number USB/power connector board (includes USB/power connector board cable) 447444-001 Before removing the USB/power connector board, follow these steps: Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
  • Page 79 Disconnect the USB board cable (3) and the power connector board cable (4) from the USB/power connector board. Remove the USB/power connector board. Reverse this procedure to install the USB/power connector board. System board Description Spare part number System board for use in computer models with Intel processors 446475-001 and 453770-001 System board for use only in computer models with AMD processors in full-featured models equipped...
  • Page 80 Top cover (see Top cover on page Audio board (see Audio board on page USB/power connector board (see USB/power connector board on page When replacing the system board, be sure that the following components are removed from the defective system board and installed on the replacement system board: Memory modules (see Memory module on page ●...
  • Page 81 Release the system board (4) by sliding it to the right until the connectors on the left side of the system board disengage from the base enclosure. Remove the system board. If it is necessary to replace the USB/power connector board cable, turn the system board upside down with the front toward you.
  • Page 82 Audio board Description Spare part number For use only in computer models with Intel processors: In models that include consumer infrared 449453-001 ● In models that do not include consumer infrared lens 431443-001 ● For use only in computer models with AMD processors: ●...
  • Page 83 Remove the audio board (3) by lifting it straight up. Reverse this procedure to install the audio board. Fan/heat sink assembly Description Spare part number Fan/heat sink assembly for use in computer models with Intel processors (includes thermal material) 446522-001 Fan/heat sink assembly for use in computer models with AMD processors (includes thermal material) 449961-001 NOTE: When replacing the fan/heat sink assembly, be sure that the power button board is removed...
  • Page 84 Remove the battery (see Battery on page 41). Remove the following components: Hard drive (see Hard drive on page Optical drive (see Optical drive on page Switch cover (see Switch cover on page Keyboard (see Keyboard on page Display assembly (see Display assembly on page Top cover (see Top cover on page...
  • Page 85 NOTE: The thermal material must be thoroughly cleaned from the surfaces of the fan/heat sink assembly (1) and (2), the processor (3), and the system board component (4) each time the fan/heat sink assembly is removed. Thermal material must be installed on all surfaces before the fan/heat sink assembly is reinstalled.
  • Page 86 Processor NOTE: All processor spare part kits include thermal material. Description Spare part number Intel Core 2 Duo processors: 2.20-GHz processor (4-MB L2 cache, 800-MHz FSB) 453771-001 2.00-GHz processor (2-MB L2 cache, 800-MHz FSB) 455515-001 1.86-GHz processor (1-MB L2 cache, 533-MHz FSB) 453773–001 1.50-GHz processor (2-MB L2 cache, 667-MHz FSB) 453772-001...
  • Page 87 Remove the battery (see Battery on page 41). Remove the following components: Hard drive (see Hard drive on page Optical drive (see Optical drive on page Switch cover (see Switch cover on page Keyboard (see Keyboard on page Display assembly (see Display assembly on page Top cover (see Top cover on page...
  • Page 88 Setup Utility Starting the Setup Utility The Setup Utility is a ROM-based information and customization utility that can be used even when your Windows® operating system is not working or will not load. NOTE: The fingerprint reader (select models only) does not work when accessing the Setup Utility. The utility reports information about the computer and provides settings for startup, security, and other preferences.
  • Page 89 Using the Setup Utility Changing the language of the Setup Utility The following procedure explains how to change the language of the Setup Utility. If the Setup Utility is not already running, begin at step 1. If the Setup Utility is already running, begin at step 2. To start the Setup Utility, turn on or restart the computer, and then press while “Press <F10>...
  • Page 90 Restoring default settings in the Setup Utility The following procedure explains how to restore the Setup Utility default settings. If the Setup Utility is not already running, begin at step 1. If the Setup Utility is already running, begin at step 2. To start the Setup Utility, turn on or restart the computer, and then press while “Press <F10>...
  • Page 91 Using advanced Setup Utility features This guide describes the Setup Utility features recommended for all users. For more information about the Setup Utility features recommended for advanced users only, refer to Help and Support, which is accessible only when the computer is in Windows. The Setup Utility features available for advanced users include a hard drive self-test, a Network Service Boot, and settings for boot order preferences.
  • Page 92 Security menu Select To Do This Administrator password Enter, change, or delete an administrator password. Power-On Password Enter, change, or delete a power-on password. System Configuration menu Select To Do This Language Support Change the Setup Utility language. Boot Options Set the following boot options: Delay (sec.)―Set the delay for the functions...
  • Page 93 Specifications Computer specifications Metric U.S. Dimensions Height (front to back) 4.09 cm 1.61 in Width 35.71 cm 14.06 in Depth 25.71 cm 10.12 in Weight (with optical drive, hard drive, and battery) 2.86 kg 6.31 lbs Input power Operating voltage 18.5 V dc —19.0 V dc Operating current 3.5 A or 4.74 A...
  • Page 94 Metric U.S. Nonoperating 1.50 g zero-to-peak, 10 Hz to 500 Hz, 0.5 oct/min sweep rate NOTE: Applicable product safety standards specify thermal limits for plastic surfaces. The computer operates well within this range of temperatures. 15.4-inch, WXGA, BrightView display specifications Metric U.S.
  • Page 95 Hard drive specifications 250-GB* 200-GB* 160-GB* 120-GB* 80-GB* Dimensions Height 9.5 mm 9.5 mm 9.5 mm 9.5 mm 9.5 mm Width 70 mm 70 mm 70 mm 70 mm 70 mm Weight 102 g 102 g 102 g 102 g 102 g Interface type SATA...
  • Page 96 DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive specifications Applicable disc Read: Write: CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-R and CD-RW CD-ROM XA, MIXED MODE CD, CD-I, CD-I DVD+R, DVD+RW, DVD-R, DVD- Bridge (Photo-CD, Video CD), Multisession CD RW, DVD-RAM (Photo-CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R, DVD+RW, DVD-RAM...
  • Page 97 HD DVD-ROM Drive with SuperMulti DVD±R/RW Double Layer support specifications Applicable disc Read: Write: CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-R and CD-RW CD-ROM, CD-ROM XA, MIXED MODE DVD+R, DVD+R(9), DVD+RW, DVD-R, CD, CD-I, CD-I Bridge (Photo-CD, DVD-R(9),DVD-RW, DVD-RAM Video CD), Multisession CD (Photo-CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R,...
  • Page 98 Blu-ray Disc ROM Drive with SuperMulti DVD±R/RW Double-Layer (DL) support specifications Applicable disc Read: Write: CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-R and CD-RW CD-ROM, CD-ROM XA, MIXED MODE DVD+R, DVD+R(9), DVD+RW, DVD-R, CD, CD-I, CD-I Bridge (Photo-CD, DVD-R(9),DVD-RW, DVD-RAM Video CD), Multisession CD (Photo- CD, CD-EXTRA, Portfolio, CD-R, CD- RW), CD-R, CD-RW, DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18),...
  • Page 99 System DMA specifications, Intel Hardware DMA System function DMA0 Not applicable DMA1* Not applicable DMA2* Not applicable DMA3 Not applicable DMA4 Direct memory access controller DMA5* Available for PC Card DMA6 Not assigned DMA7 Not assigned *PC Card controller can use DMA 1, 2, or 5. System DMA specifications, Intel Download from Www.Somanuals.com.
  • Page 100 System DMA specifications, AMD Hardware DMA System function DMA4 Direct memory access controller Chapter 6 Specifications Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 101 System interrupt specifications, Intel Hardware IRQ System function IRQ0 System timer IRQ1 Standard 101-/102-Key or Microsoft® Natural Keyboard IRQ2 Cascaded IRQ3 Intel 82801DB/DBM USB2 Enhanced Host Controller—24CD IRQ4 COM1 IRQ5* Conexant AC—Link Audio Intel 82801DB/DBM SMBus Controller—24C3 Data Fax Modem with SmartCP IRQ6 Diskette drive IRQ7*...
  • Page 102 System interrupt specifications, AMD Hardware IRQ System function IRQ0 High precision event timer IRQ1 Standard 101-/102-Key or Microsoft® Natural PS/2 Keyboard IRQ5 RICOH OHCI Compliant IEEE 1394 Host Controller IRQ7 Ricoh Memory Stick Controller Ricoh SD/MMC Host Controller Ricoh XD-Picture Card Controller SDA Standard Compliant SD Host Controller IRQ8 High precision event timer...
  • Page 103 System I/O address specifications, Intel I/O address (hex) System function (shipping configuration) 000 - 00F DMA controller no. 1 010 - 01F Unused 020 - 021 Interrupt controller no. 1 022 - 024 Opti chipset configuration registers 025 - 03F Unused 02E - 02F 87334 “Super I/O”...
  • Page 104 I/O address (hex) System function (shipping configuration) 220 - 22F Entertainment audio 230 - 26D Unused 26E - 26 Unused 278 - 27F Unused 280 - 2AB Unused 2A0 - 2A7 Unused 2A8 - 2E7 Unused 2E8 - 2EF Reserved serial port 2F0 - 2F7 Unused 2F8 - 2FF...
  • Page 105 System I/O address specifications, AMD I/O address (hex) System function (shipping configuration) 0000 - 0008 DMA controller 000A - 000F DMA controller 0020 - 0021 Programmable interrupt controller 0040 - 0043 System timer 0060 - 0060 Standard 101-/102-Key or Microsoft® Natural PS/2 Keyboard 0061 - 0061 System speaker 0062 - 0062...
  • Page 106 I/O address (hex) System function (shipping configuration) 30F0 - 30F7 Standard Dual Channel PCI IDE Controller 4000 - 4FFF PCI standard PCI-to-PCI bridge Chapter 6 Specifications Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 107 System memory map specifications, Intel Size Memory address System function 640 KB 00000000-0009FFFF Base memory 128 KB 000A0000-000BFFFF Video memory 48 KB 000C0000-000CBFFF Video BIOS 160 KB 000C8000-000E7FFF Unused 64 KB 000E8000-000FFFFF System BIOS 15 MB 00100000-00FFFFFF Extended memory 58 MB 04800000-07FFFFFF Super extended memory 58 MB...
  • Page 108 System memory map specifications, AMD Size Memory address System function 128 KB 000A0000-000BFFFF nVidia MCP67M 16 KB B0000000-B0003FFF HDA Controller 8 KB B0004000-B0005FFF Standard Dual Channel PCI IDE Controller 4 KB B0006000-B0006FFF Standard OpenHCD USB Host Controller 256 B B0007000-B00070FF Standard Enhanced PCI to USB Host Controller 256 B...
  • Page 109 Screw listing This section provides specification and reference information for the screws and screw locks used in the computer. All screws and screw locks listed in this section are available in the Screw Kit, spare part number 434893-001, and the Display Screw Kit, spare part number 431400-001. Phillips PM2.0×5.0 captive screw Color Quantity...
  • Page 110 (2) Three captive screws (secured by C-clips) that secure the memory/WLAN module compartment cover to the computer Phillips PM3.0×3.0 screw Color Quantity Length Thread Head width Silver 3.0 mm 3.0 mm 5.0 mm Where used: 4 screws that secure the hard drive bracket to the hard drive 102 Chapter 7 Screw listing Download from Www.Somanuals.com.
  • Page 111 Phillips PM2.0×3.0 screw Color Quantity Length Thread Head width Silver 3.0 mm 2.0 mm 4.5 mm Where used: 2 screws that secure the WLAN module to the system board Where used: 2 screws that secure the optical drive bracket to the optical drive Phillips PM2.0×3.0 screw 103 Download from Www.Somanuals.com.
  • Page 112 Where used: 2 screws that secure the wireless antenna transceivers to the display enclosure Where used: 4 screws that secure the display hinges to the display panel 104 Chapter 7 Screw listing Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 113 Phillips PM2.5×7.0 screw Color Quantity Length Thread Head width Black 7.0 mm 2.5 mm 5.0 mm Where used: (1) One screw that secures the optical drive to the computer (2) Three screws that secure the keyboard to the computer Phillips PM2.5×7.0 screw 105 Download from Www.Somanuals.com.
  • Page 114 Where used: 4 screws that secure the display assembly to the computer Where used: 8 screws that secure the display bezel to the display assembly Where used: 9 screws that secure the top cover to the computer 106 Chapter 7 Screw listing Download from Www.Somanuals.com.
  • Page 115 Where used: 2 screws that secure the top cover to the computer Phillips PM2.5×7.0 screw 107 Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 116 Phillips PM2.5×10.0 screw Color Quantity Length Thread Head width Black 10.0 mm 2.5 mm 5.0 mm Where used: 2 screws that secure the switch cover to the computer 108 Chapter 7 Screw listing Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 117 Phillips PM2.5×4.0 screw Color Quantity Length Thread Head width Black 4.0 mm 2.5 mm 5.0 mm Where used: One screw that secures the switch cover to the computer Phillips PM2.5×4.0 screw 109 Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 118 Where used: One screw that secures the power button board to the fan/heat sink assembly Where used: 6 screws that secure the display panel to the display enclosure Where used: 6 screws that secure the top cover to the computer 110 Chapter 7 Screw listing Download from Www.Somanuals.com.
  • Page 119 Where used: 2 screws that secure the top cover to the computer Where used: 4 screws that secure the ExpressCard assembly to the computer Phillips PM2.5×4.0 screw 111 Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 120 Where used: (1) Two screws that secure the USB/power connector board to the computer (2) Two screws that secure the audio board to the computer Where used: 2 screws that secure the system board to the computer 112 Chapter 7 Screw listing Download from Www.Somanuals.com.
  • Page 121 Phillips PM2.5×3.0 screw Color Quantity Length Thread Head width Black 3.0 mm 2.5 mm 4.5 mm Where used: 3 screws that secure the top cover to the computer Phillips PM2.5×3.0 screw 113 Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 122 Hex HM5.0×9.0 standoff Color Quantity Length Thread Head width Silver 8.0 mm 2.5 mm 5.0 mm Where used: 2 standoffs that secure the top cover to the computer 114 Chapter 7 Screw listing Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 123 Phillips PM2.0×2.0 screw Color Quantity Length Thread Head width Silver 2.0 mm 2.0 mm 4.0 mm Where used: 2 screws that secure the Bluetooth module to the system board Phillips PM2.0×2.0 screw 115 Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 124 Phillips PM2.0×7.0 screw Color Quantity Length Thread Head width Silver 7.0 mm 2.0 mm 5.0 mm Where used: One screw that secures the system board to the base enclosure 116 Chapter 7 Screw listing Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 125 Phillips PM2.5×5.0 captive screw Color Quantity Length Thread Head width Black 5.0 mm 2.5 mm 5.0 mm Where used: 3 captive screws (secured by C-clips) that secure the fan/heat sink assembly to the computer Phillips PM2.5×5.0 captive screw 117 Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 126 Phillips 2.5×4.0 captive screw Color Quantity Length Thread Head width Silver 4.0 mm 2.5 mm 5.0 mm Where used: One captive screw (secured by a C-clip) that secures the fan/heat sink to the computer 118 Chapter 7 Screw listing Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 127 Backup and recovery Recovering system information Tools provided by the operating system and Recovery Manager software are designed to help you with the following tasks for safeguarding your information and restoring it in case of a system failure: Backing up your information regularly to protect your important system files. ●...
  • Page 128 Number each disc before inserting it into the computer optical drive. ● If necessary, you can exit the program before you have finished creating the recovery discs. The next ● time you open Recovery Manager, you will be prompted to continue the disc creation process. To create a set of recovery discs: Select Start >...
  • Page 129 Using system restore points When you back up your system, you are creating a system restore point. A system restore point allows you to save and name a snapshot of your hard drive at a specific point in time. You can then recover back to that point if you want to reverse subsequent changes made to your system.
  • Page 130 Performing a recovery NOTE: You can only recover files that you have previously backed up. HP recommends that you use Recovery Manager to create an entire drive backup as soon as you set up your computer. Recovery Manager software allows you to repair or restore the system if you experience system failure or instability.
  • Page 131 Connector pin assignments Audio-out (headphone) Signal Audio out, left channel Audio out, right channel Ground Audio-in (microphone) Signal Audio signal in Audio signal in Ground Audio-out (headphone) 123 Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 132 External monitor Signal Red analog Green analog Blue analog Not connected Ground Ground analog Ground analog Ground analog +5 VDC Ground Monitor detect DDC 2B data Horizontal sync Vertical sync DDC 2B clock 124 Chapter 9 Connector pin assignments Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 133 RJ-11 (modem) Signal Unused Ring Unused Unused Unused RJ-45 (network) Signal Transmit + Transmit - Receive + Unused Unused Receive - Unused Unused RJ-11 (modem) 125 Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 134 S-Video-out Signal S-VHS color (C) signal Composite video signal S-VHS intensity (Y) signal S-VHS color ground TV-CD S-VHS intensity ground Composite video ground Universal Serial Bus Signal +5 VDC Data - Data + Ground 126 Chapter 9 Connector pin assignments Download from Www.Somanuals.com.
  • Page 135 10 Power cord set requirements The wide range input feature of the computer permits it to operate from any line voltage from 100 to 120 volts AC or from 220 to 240 volts AC. The 3-conductor power cord set included with the computer meets the requirements for use in the country or region where the equipment is purchased.
  • Page 136 Requirements for specific countries or regions Country/region Accredited agency Applicable note number Australia EANSW Austria Belgium CEBC Canada Denmark DEMKO Finland FIMKO France Germany Italy Japan METI South Korea The Netherlands KEMA Norway NEMKO The People's Republic of China Sweden SEMKO Switzerland Taiwan...
  • Page 137 Careful handling must be exercised when removing these components. NOTE: Materials Disposal. This HP product contains mercury in the backlight in the display assembly that might require special handling at end-of-life. Disposal of mercury may be regulated because of environmental considerations. For disposal or recycling information, contact your local authorities, or see the Electronic Industries Alliance (EIA) Web site at http://www.eiae.org.
  • Page 138 Perform the following steps to disassemble the display assembly: Remove all screw covers (1) and screws (2) that secure the display bezel to the display assembly. Lift up and out on the left and right inside edges (1) and the top and bottom inside edges (2) of the display bezel until the bezel disengages from the display assembly.
  • Page 139 Disconnect all display panel cables (1) from the display inverter and remove the inverter (2). Remove all screws (1) that secure the display panel assembly to the display enclosure. Remove the display panel assembly (2) from the display enclosure. Turn the display panel assembly upside down. Remove all screws that secure the display panel frame to the display panel.
  • Page 140 Remove the display panel frame (2) from the display panel. Remove the screws (1) that secure the backlight cover to the display panel. Lift the top edge of the backlight cover (2) and swing it outward. Remove the backlight cover. Turn the display panel right-side up.
  • Page 141 Remove the backlight cables (1) from the clip (2) in the display panel. Turn the display panel upside down. Remove the backlight frame from the display panel. WARNING! The backlight contains mercury. Exercise caution when removing and handling the backlight to avoid damaging this component and causing exposure to the mercury. Display 133 Download from Www.Somanuals.com.
  • Page 142 Remove the backlight from the backlight frame. Disconnect the display cable (1) from the LCD panel. Remove the screws (2) that secure the LCD panel to the display rear panel. Release the LCD panel (3) from the display rear panel. Release the tape (4) that secures the LCD panel to the display rear panel.
