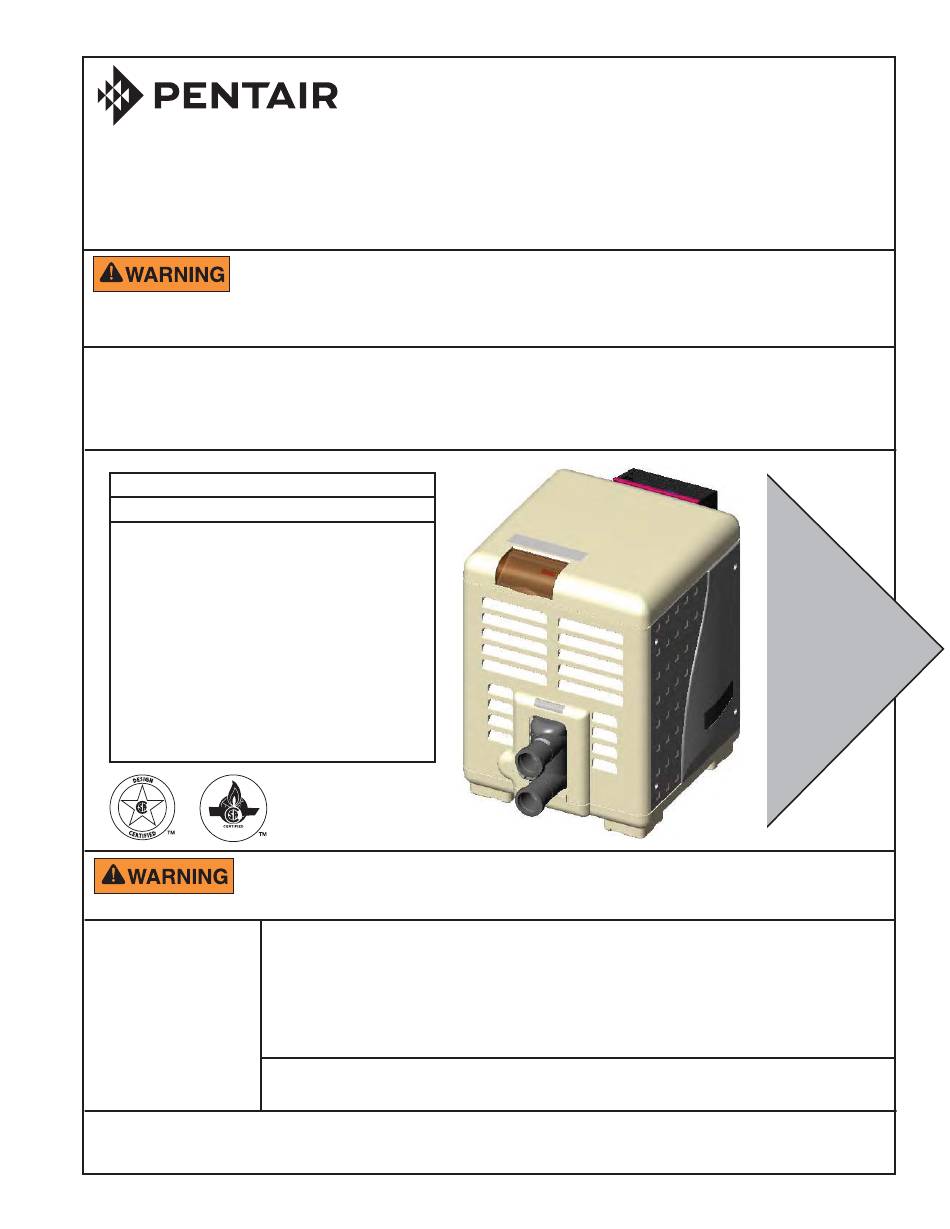

MASTERTEMP POOL AND SPA HEATER
INSTALLATION AND USER'S GUIDE
FOR YOUR SAFETY - READ BEFORE OPERATING
If you do not follow these instructions exactly, a fire or explosion may result, causing
property damage, personal injury or loss of life. For additional free copies of this
manual; call (800) 831-7133.
FOR YOUR SAFETY - This product must be installed and serviced by authorized personnel, qualified inpool/spa
heater installation. Improper installation and/or operation can create carbon monoxide gas and flue gases which can
cause serious injury, property damage, or death. For indoor installations, as an additional measure of safety, Pentair
Aquatic Systems strongly recommends installation of suitable Carbon Monoxide detectors in the vicinity of this
appliance and in any adjacent occupied spaces. Improper installation and/or operation will void the warranty.
120/240 VAC NATURAL GAS/LP GAS
Models
175K BTU/HR
200K BTU/HR (ASME)
200K BTU/HR
200K BTU/HR (HD ASME)
250K BTU/HR
250K BTU/HR (HD)
250K BTU/HR (ASME)
250K BTU/HR (HD ASME)
300K BTU/HR
400K BTU/HR
400K BTU/HR (HD)
400K BTU/HR (ASME)
400K BTU/HR (HD ASME)
Improper installation, adjustment, alteration, service or maintenance can cause
propertydamage, personal injury or death. Installation and service must be performed
by a qualified installer, service agency or the gas supplier.
FOR
YOUR
SAFETY
10951 W. Los Angeles Ave., Moorpark, CA 93021
Rev. L 8-12-13
®
Natural
Propane
460792
460793
461000
461001
460730
460731
461032
–
460732
460733
460806
–
460771
460772
461020
–
460734
460735
460736
460737
460805
–
460775
460776
461021
–
WHAT TO DO IF YOU SMELL GAS
Do not try to light any appliance.
•
•
Do not touch any electrical switch; do not use any phone in your building.
•
Immediately call your gas supplier from a neighbor's phone.
Follow the gas supplier's instructions.
•
If you cannot reach your gas supplier, call the fire department.
DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity
of this or other appliances.
Pentair Water Pool and Spa, Inc.
1620 Hawkins Ave., Sanford, NC 27330
(800) 831-7133 or (919) 566-8000
•
(800) 831-7133 or (805) 553-5000
•
®
MASTERTEMP
Pool and Spa Heater Installation and User's Guide
1
OWNER:
Retain For
Future
Reference
