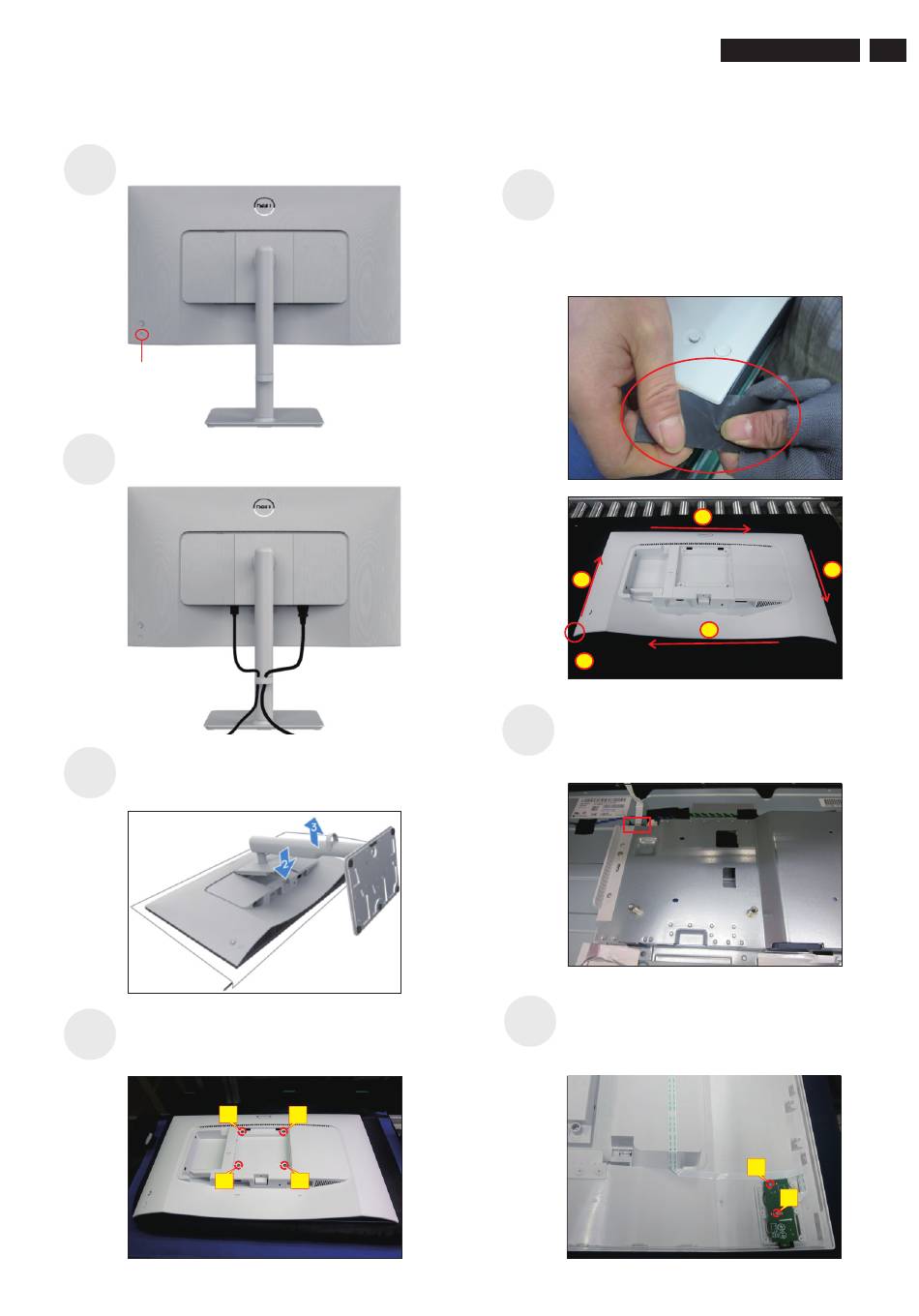

1. Disassembly Procedures:
S1
Turn off power.
Power
Unplug external cables(power cable and video
S2
cable) from the monitor.
Remove stand from the product.(Press the stand
S3
release button, lift the stand up and away from the
monitor)
Use a Philips-head screwdriver to remove 4pcs
S4
screws for unlocking rear cover with assembled unit.
(No.1~4 screw size=M4x11; Torque=10 1kgfxcm)
2
4
±
3
1
Use a mylar sheet to insert the left-bottom corner to
release the rear cover, then wedge your fingers
between the rear cover and the middle bezel of the
S5
monitor to release the rear cover, then use one hand
to press the middle bezel, the other hand to pull up
carefully the rear cover in order of arrow preference
for unlocking mechanisms of rear cover.
2
1
Lift the rear cover up carefully. Disconnect the
joystick cable from the connectors of the interface
S6
board, and then remove the rear cover and put it
aside for later disassembling.
Use a Philips-head screwdriver to remove 2pcs
screws for unlocking the joystick key board unit, then
S7
tear off the tapes and release the USB board.
(No.1~2 screw size=M2x3.3,Torque=1±0.2kgfxcm)

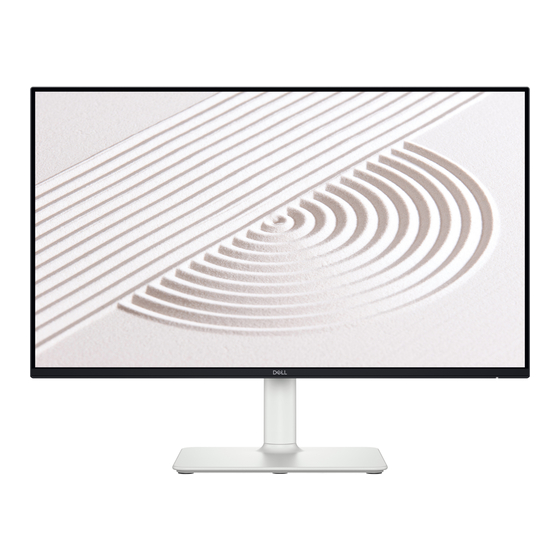

DELL S2425HS
.
3
4
5
2
1
1
