OPERATING INSTRUCTIONS

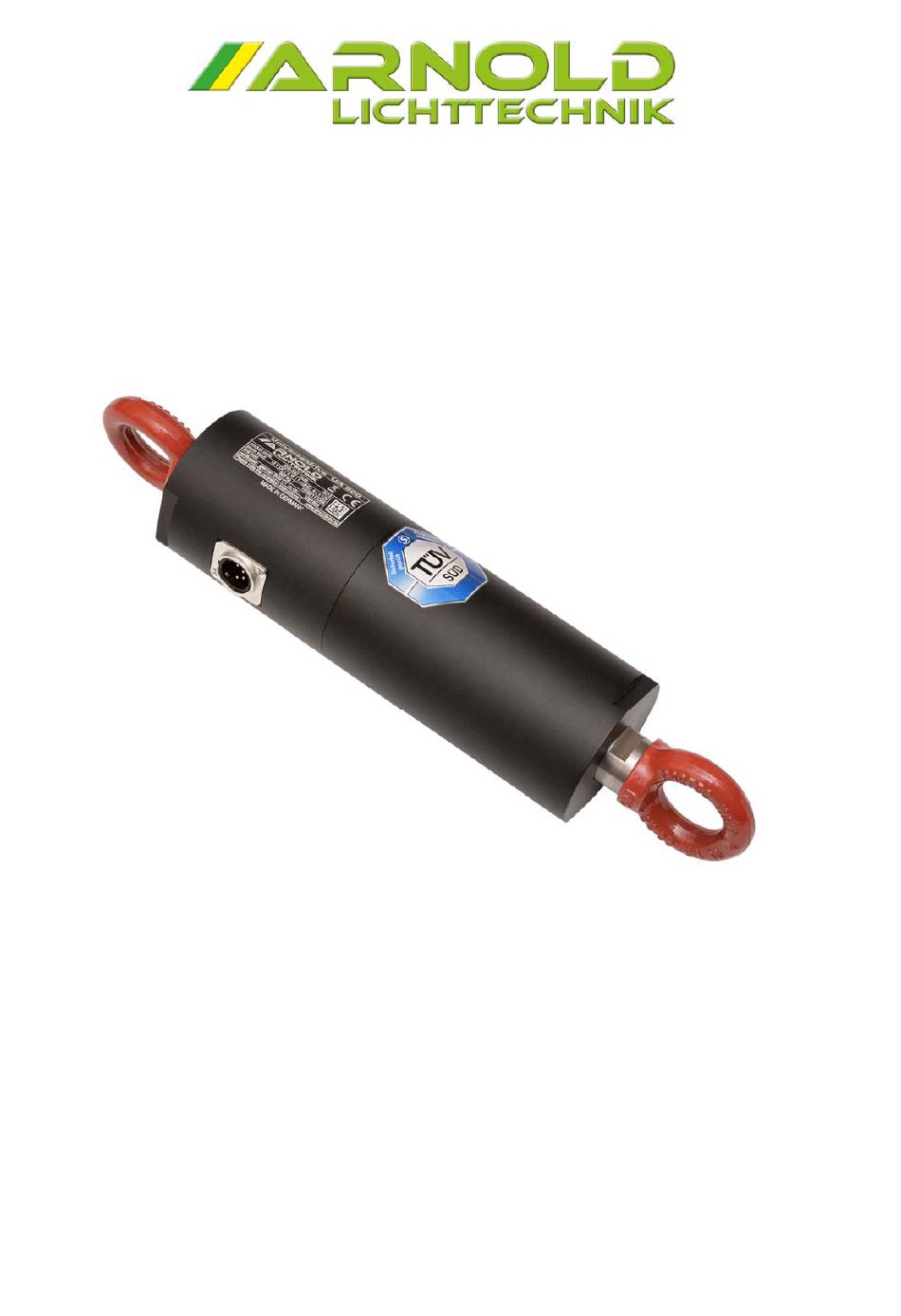

UNIVERSAL DRIVE UA 500
1. General information
The universal drive UA 500 is approved for the safe rotation of heavy loads
(explicitly not persons) of up to 500 kg. One typical application is the drive of a
larger mirror ball or other objects. An integrated lamella torque clutch protects the
gear from overload and makes it possible to accelerate and decelerate large
masses without jolts. The drive is controlled manually or by a suitable DMX
Motor-Controller. The extremely robust design and the high-quality components
of the device guarantee a very high safety and longevity.
Page 1 of 11
12/2021 REV.19
Advertisement
Related Manuals for ARNOLD UA 500
Summary of Contents for ARNOLD UA 500
- Page 1 UNIVERSAL DRIVE UA 500 1. General information The universal drive UA 500 is approved for the safe rotation of heavy loads (explicitly not persons) of up to 500 kg. One typical application is the drive of a larger mirror ball or other objects. An integrated lamella torque clutch protects the gear from overload and makes it possible to accelerate and decelerate large masses without jolts.
- Page 2 WLL (Working Load Limit) of 750 kg with regard to a working coefficient of 10 is part of the scope of supply of the UA 500. Smaller fastening elements can also be used in compliance with the dimensioning regulations according to DGUV directive 17.
- Page 3 Please observe the instructions for the permitted installation position and load limits of the UA 500. For the protection of the gear unit and due to reasons of the safety at work (prevention of the risk of crushing), a torque clutch with a nominal torque of 1.3 Nm is integrated, which allows a soft acceleration and deceleration of corresponding heavy loads.
- Page 4 “Major Saveking” is recommended. The universal drive UA 500 is a product designed for the application on stages, which is designed corresponding to the state-of-the-art in a way that risks can be largely excluded.
- Page 5 Please send the drive to the company ARNOLD Lichttechnik for a more thorough inspection, if there are visible damages that suggest a limitation of the operating safety (e.g. after a crash of the drive).
- Page 6 5. Permitted installation position 500 Kg The universal drive UA 500 is exclusively approved for the hanging / vertical operating mode displayed in the graphics. Off-center loads or the standing operation are not permitted. 6. Direction of rotation The UA 500 is driven by a direct current gear motor and can, thus, be easily controlled in its direction of rotation and its speed.
- Page 7 Certification: conformity checked according to Machinery Directive 2006/42/EC by TÜV SÜD 8. Scope of supply / order numbers: Universal drive type UA 500, load capacity 500 kg 559-050 Transport case for UA 500 503-151 Connection cable motor towards controller XLR 4-pin / 2m...
- Page 8 For the operation of the UA 500 the following are (optionally) required: Motor-Controller MCU 910 mini (manual) 536-050 speed adjustable via potentiometer, direction of rotation manually switchable incl. wall wart) Motor-Controller MCU 400 D (DMX + manual) 515-060 direction of rotation and speed...
- Page 9 9. Wiring examples 12V DC Power Supply 2 x 0,37mm² 12V DC/ 2A XLR 4-pin max. 20m UA 500 MCU 910 mini UA 1500 12V DC XLR 3-pin Motor control with Motor-Controller MCU 910 mini (manual control) Power Supply 2 x 0,37mm²...
- Page 10 10. Dimensions ø63.00 ø35.00 0V ( GND ) + 12 V DC Connector XLR 4 (male) ø79.00 Page 10 of 11 12/2021 REV.19...
- Page 11 Mirror ball, diameter 2m with UA 500 (example) ARNOLD Lichttechnik Karl-Marx-Straße 19, 04654 Frohburg / Germany Phone: +49 34344 64660, Fax: 61528 www.arnoldlicht.de We reserve the right to make alterations for the purpose of technical development. Page 11 of 11...
- Page 12 Universaldrive of the series: UA 500 (Ident-No. 559-050) auf das sich diese Erklärung bezieht, mit der/den folgenden Normen oder normativen Dokumenten übereinstimmt (falls zutreffend):...
- Page 14 Anhang zur Konformitätsprüfbescheinigung Nr. CA 400 vom 02.05.2022 Anwendungsbereich Die Universalantriebe vom Typ UA 500 und UA 1500 sind transportable Antriebe für die Drehung von Lasten im Anwendungsbereich der DGUV Vorschrift 17 (bisher: BGV C1) – „Veranstaltungs- und Produktionsstätten für szenische Darstellung“.
- Page 15 EG-Konformitätserklärung gemäß 2006/42/EG Anhang II Teil 1 Abschnitt A für die Maschine − Betriebsanleitung UA 500, Fassung 12/2021 Rev.19 bzw. Betriebsanleitung UA 1500, Fassung 12/2021 Rev.02 Diese Bescheinigung beruht auf dem Stand der Technik, der durch die zurzeit gültigen harmonisier- ten Normen dokumentiert wird.
- Page 16 Anhang zur Konformitätsprüfbescheinigung Nr. CA 400 vom 02.05.2022 Seite 3 von 4...
- Page 17 Anhang zur Konformitätsprüfbescheinigung Nr. CA 400 vom 02.05.2022 Seite 4 von 4...
- Page 18 The Controller (controllable power supply) is used to regulate the Universal Drives UA 500 and UA 1500. Its technical data are specified for the operation of these appliances. The front panel contents a OLED display, 3 push buttons as well as 4 status LEDs.
- Page 19 2. Operating elements / Display / Operating philosophy 2.1 Controls / Display For the operation and parameterization of the Controller, the unit is equipped on the front with a 2-line OLED display and three pushbuttons. The display shows the current system status, adjustable parameters and service functions. Start screen (DMX operation mode): MODE: 1(1CH) - MODE is showing the present selected operation mode...
- Page 20 The status LEDs arranged on the left side of the display indicate the following states: 1. POWER [green] - Mains voltage is applied 2. DMX OK [green] - DMX signal is present 3. MANUAL [yellow] - Manual mode is activated 4.
- Page 21 3. Operating modes For the controlling of the UA500 / 1500 devices, there are three kind of operating modes available: MODE: 1(1CH) 1 Channel-Mode, DMX start-address controls the direction of rotating and speed (Figure A) MODE: 2(2CH) 2 Channel-Mode, DMX start-address controls the direction of rotating, the following address controls the speed (Page 5, Figure B) MODE: 3(MAN)
- Page 22 3.2 Two-Channel-Mode (Figure B): motor speed % DMX % The DMX start address controls the direction of rotation. The following address controls the speed of the motor. When the DMX value is 0, the motor stops. The curve characteristics of this mode is linear as shown in the figure above. If the DMX signal fails, the motor stops immediately (no "HOLD"...
- Page 23 2 x 0,37mm² 12V DC/ 2A max. 20m 12V DC XLR 4-pin MCU 400 D UA 500 UA 1500 XLR 3-pin DMX Control XLX 5-pin Please note that the maximum cable length between controller and motor should not exceed 20 m. Microphone cables or the like are recommended. The operation of the unit is allowed in dry rooms only.
- Page 24 In exceptional cases, this requirement is considered fulfilled if the operator, using a connector, can unplug the drive from the controller unit. ARNOLD Lichttechnik Karl-Marx-Straße 19, 04654 Frohburg / Germany Tel.: +49 34344 64660, Fax: 61528 www.arnoldlicht.de...
