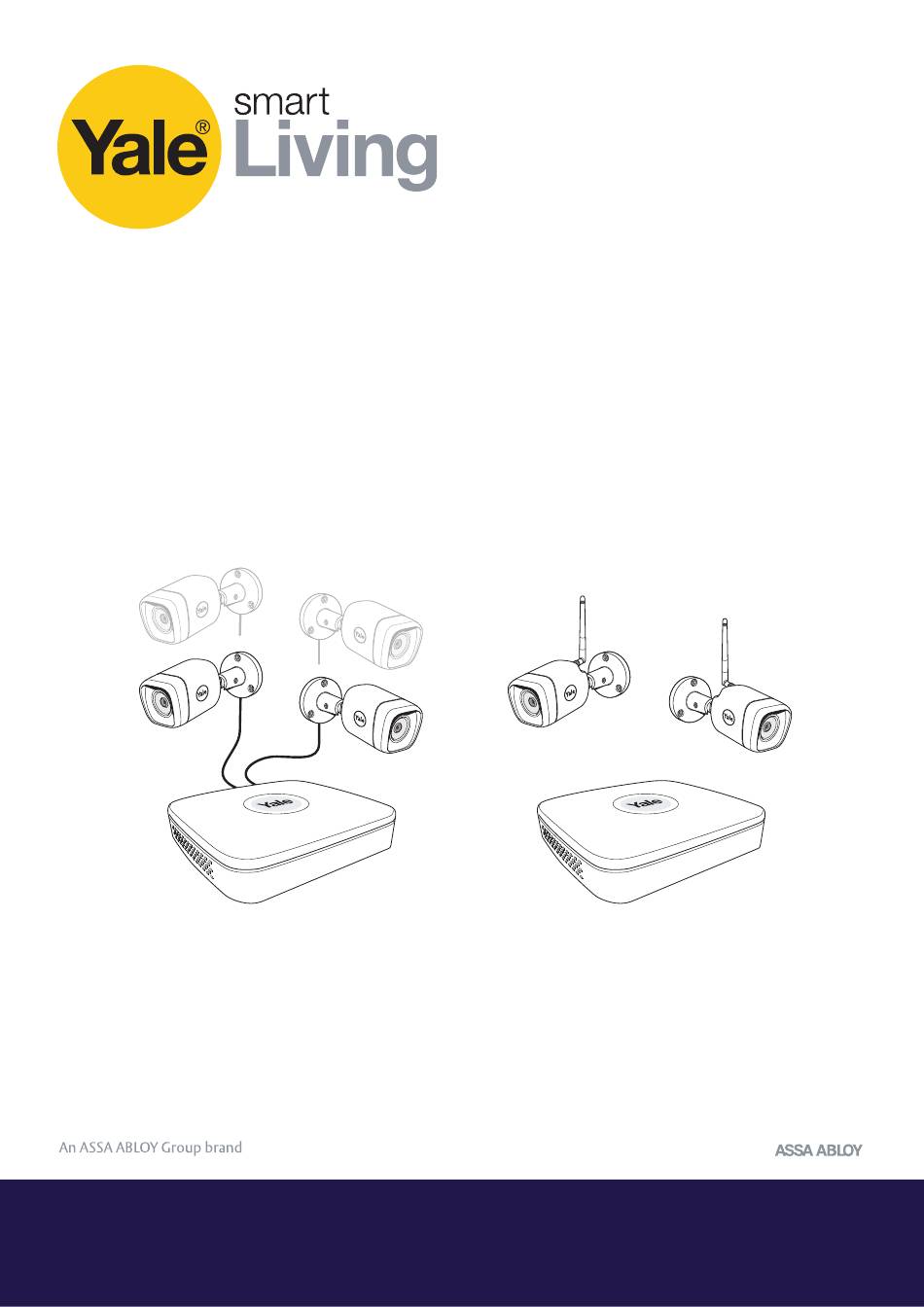

CCTV Menu Operations
Manual
SV-4C-2ABFX / SV-8C-4ABFX
SV-4C-2DB4MX
Disclaimer!
This Manual will guide you through the standard settings and operations for normal Residential
CCTV usage. The system is based on a professional system and may contain advanced
features and settings that are typically not needed for residential use.
This manual will be continuously updated and be available at www.yalelock.com/smart-living.
The smarter way to protect your
home.

Advertisement

loading
Need help?

Need help?

Do you have a question about the SV-4C-2ABFX and is the answer not in the manual?

Questions and answers

Related Manuals for Yale SV-4C-2ABFX

Summary of Contents for Yale SV-4C-2ABFX

  • Page 1 CCTV Menu Operations Manual SV-4C-2ABFX / SV-8C-4ABFX SV-4C-2DB4MX Disclaimer! This Manual will guide you through the standard settings and operations for normal Residential CCTV usage. The system is based on a professional system and may contain advanced features and settings that are typically not needed for residential use.
  • Page 2 Setting up recording and motion detection 17-18 Searching in recorded video Backing up a video sequence Adding a WiFi camera Moving WiFi camera up in the channel list Notification via email and App message System information Yale info and help desk...
  • Page 3 Plan camera locations and connect cables It is the users responsibility to make sure to follow the local regulations for setting up camera surveillance. Plan the camera location Face detection is useful at locations like front door, at face hight or slightly above. p.16) Connect cables according to the manual that came with your Kit.
  • Page 4 Download App - Personal registration in the App Download App for Android or IOS: “Yale Smart Living VIEW” Yale Smart Living VIEW Personal registration in the App App Log-in page: Initial setup: 1) Click Register This will be your opening page, after you have registered in steps 2) to 6).
  • Page 5 Initial setup - Wired Kit Initial setup for system with wired cameras. 1) Key in password / ? : & @ (Click in box and keyboard display will appear) 2) Confirm password 3) Click NEXT 4) Draw unlock pattern (Min. 4 dots) Draw again to confirm Draw unlock pattern Remember this pattern! This will be your key to...
  • Page 6 (WiFi cameras can be added later if needed) The App needs to be installed and registered before scanning. 14) If you want access to your system via the Yale View App, scan the QR code to connect to your DVR system. (If not click NEXT)
  • Page 7 Initial setup - WiFi Kit Initial setup for system with WiFi cameras. 1) Key in password / ? : & @ (Click in box and keyboard display will appear) 2) Confirm password 3) Click NEXT 4) Draw unlock pattern (Min. 4 dots) Draw again to confirm Draw unlock pattern Remember this pattern! This will be your key to...
  • Page 8 11) Click Refresh to update Network connection. 12) Click Next 13) If you have WiFi cameras in your Kit (wiereless camera) click YES. 14) Connect Ethernet cables as described in the Yale Quick guide included in the box with the DVR unit. 15) Click Next...
  • Page 9 Initial setup - WiFi Kit Initial setup for system with WiFi cameras. 16) Click Scan xxx.xxx.x.xx SV-DB4MX-B 17) All your connected cameras (WiFi) should now show up on the list. xxx.xxx.x.xx SV-DB4MX-B If all your cameras do not show up on the list, click Scan again. xxx.xxx.x.xx SV-DB4MX-B If they still do not show up, check that they are all connected to power...
  • Page 10 Initial setup - WiFi Kit Initial setup for system with WiFi cameras. 21) Click Next xxx.xxx.x.xx SV-DB4MX-B xxx.xxx.x.xx SV-DB4MX-B xxx.xxx.x.xx SV-DB4MX-B 22) Click Next 23) Select the router you want to connect to. “Your Router WiFi” 24) Write Connection Password for your Router. (Same as when you connect any computer or smartphone to you lokal router/network.) 25) Click Connect...
  • Page 11 Initial setup for system with WiFi cameras. The App needs to be installed and registered before scanning. 27) If you want access to your system via the Yale View App, scan the QR code to connect to your DVR system. (If not click NEXT) 28) Click NEXT 29) Setup is now complete.
  • Page 12 Menu overwiev Menu overwiev Right Click in the live view > brings up the top menu for the live view screen options. CAM 1 CAM 2 CAM 3 CAM windows can be dragged to rearrange order. CAM 4 CAM 5 CAM 6 The system is flexible for you to set to your personal preferences and it can...
  • Page 13 Setting Date and Time - Synchronizing WiFi camera time Setting Date and Time Date and Time 1) Go to SYSTEM > GENERAL > Date & Time 2) Set Year, Month, Date and Hour, Minutes. 3) Set your timeline acording to GMT 4) Click Save.
  • Page 14 Setting up recording and motion detection Setting up recording schedule and recommended residential motion detection (MD) Click STORAGE Setting up SCHEDULE (week planning) for recordings and event triggers. Click Event Setting up movement-triggers for recordings. Mode: VIDEO DETECT = MD (Motion Detect) (Detection of simple movement) IVS = INTEL (Detection of specific movement) FACE DETECT (Triggers when it detects a face-shape,...
  • Page 15 Setting up recording and motion detection Setting up advanced IVS motion detection (wired cameras only). (C) IVS = Intel EVENT- IVS = Intel (To add IVS functionality to your wired cameras go through the following steps. ) 1) Select Channel (Channel = Camera) 2) Click Add Message 3) Click OK...
  • Page 16 Setting up recording and motion detection Setting up face detection (wired camera only). The face detect function only works with Wired camera on CHANNEL 1 (D) FACE DETECT EVENT- FACE DETECT (Triggers when it detects a face-shape, not a specific face !) 1) Select Channel 1 2) Tick Enable min.
  • Page 17 Searching in recorded video Searching in recorded video by Time/Date, Motion detection, Face detection When you have setup your system, this menu is where you can find video recordings to investigate or document events. OPERATE: (A) SEARCH: Search for and playback recorded video by Date and Time.
  • Page 18 Searching in recorded video Searching in recorded video by Time/Date, Motion detection, Face detection FACE SEARCH will show a picture taken of the face shape, captured by the camera. SEARCH by Year / Month / Date...
  • Page 19 Backing up a video sequence Backing up a video sequence to storage media. OPERATE: BACKUP: Plan backup of recorded video, to external media (Extenal HDD or USB memory). Backup - recorded video Backup from SEARCH Menu Extenal storage media, HDD or a USB memory stick, need to be plugged in to USB (back of unit).
  • Page 20 Adding a WiFi camera Adding a WiFi camera to you DVR Go to Camera Camera needs to be connected via ethernet cable to the router, for the DVR to search for it. See the manual that came with your kit for details of how to connect cables.
  • Page 21 Moving WiFi camera in the channel list Rearranging WiFi camera in channel list How to move WiFi cameras up the channels list for simpler overview when searching and in the App. Go to Camera 1) Go to CHANNEL TYPE 2) Tick (change) channel to IP If you have wired cameras connected to the first 2 channels then tick IP up to the first one after your wired channels.
  • Page 22 Setting up mail notification Setting notifications to send message to you via mail and App. Go to Network 1) Go to EMAIL 2) Tick Enable 3) Write your email in RECEIVER 4) Write Subject ( will make it easy to recognize the email ) 5) Click Apply 6) Click Test ( the system will now send a test mail ) Activating email notification on motion detection.
  • Page 23 System information Estimating recording time on the hard drive. Harddrive recording time estimated 1) Go to INFO > SYSTEM > REC ESTIMATE 2) Check that all Cameras / channels are ticked. 3) Click select (in the pop up click OK) 4) Time will now show an estimate of time left to record.
  • Page 24 Support www.yalelock.com/smart-living www.yalelock.com/smart-living THE YALE BRAND, with its unparalleled global reach and range of products, reassures more people in more countries than any other consumer locking solution. THE ASSA ABLOY GROUP is the world´s leading manufacturer and supplier of locking solutions, dedicated to satisfying end-user needs for security, safety and convenience.
